LG LTNS16121V.APZCNA0

Model: LTNS16121V.APZCNA0

Save Part Not Listed?
product name

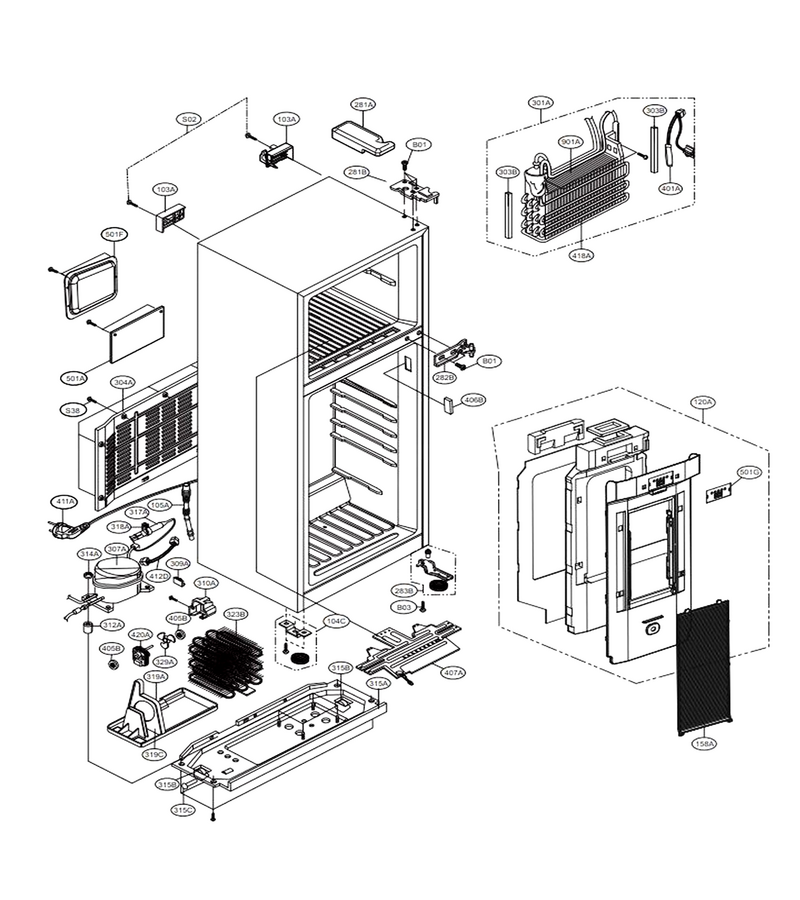

Case Parts

...
...
B01
Refrigerator Screw L-G-J351-00004L
...
S02
Screw,customized L-G-1SBZJA3004H
...
B03
Screw,customized L-G-J351-00004F
...
104C
Supporter Assembly,leg L-G-4981JA3006C
...
105A
Drain Assembly, Pipe-Z L-G-5251JA3003C
...
120A
Duct Assembly,multi L-G-ADJ34268212
...
158A
Cover,lamp L-G-MCK38904602
...
281A
Cover Assembly,hinge L-G-ACQ87269302
...
281B
Hinge Assembly,upper L-G-AEH75276601
...
282B
Refrigerator Center Hinge Assembly L-G-4775JA3009B
...
283B
Hinge Assembly,lower L-G-AEH74256501
...
301A
Evaporator Assembly L-G-ADL73361305
...
303B
Insulation Assembly L-G-4827JJ3001A
...
304A
Cover Assembly,machinery(rear) L-G-3551JJ2002F
...
307A
Compressor,set Assembly L-G-TCA35776405
...
309A
Overload Protect L-G-EAF61170610
...
310A
Cover,ptc L-G-MCK66611201
...
312A
Damper,compressor L-G-MCQ66921104
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-3103JJ2001N
...
315C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
315B
Roller L-G-4580JJ3007A
...
318A
Drier Holder L-G-MEG64900401
...
319A
Tray,drip L-G-MJS63411901
...
319C
Guide,fan L-G-4974JJ1002B
...
323B
Condenser Assembly,wire L-G-ACG74844502
...
329A
Refrigerator Fan Assembly L-G-5901JJ1004B
...
401A
Controller Assembly L-G-ACM73919208
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
407A
Heater,plate L-G-5300JB1081F
...
411A
Power Cord Assembly L-G-EAD61445253
...
412D
Harness Assembly L-G-EAD61050843
...
418A
Heater,sheath L-G-5300JB1079M
...
420A
Motor,dc L-G-EAU60694520
...
501G
Pcb Assembly,display L-G-6871JB2026D
...
501F
Cover Assembly,pcb L-G-ACQ86705502
...
501A
Pcb Assembly,main L-G-EBR80860806
...
901A
Evaporator Assembly L-G-5421JA2358J

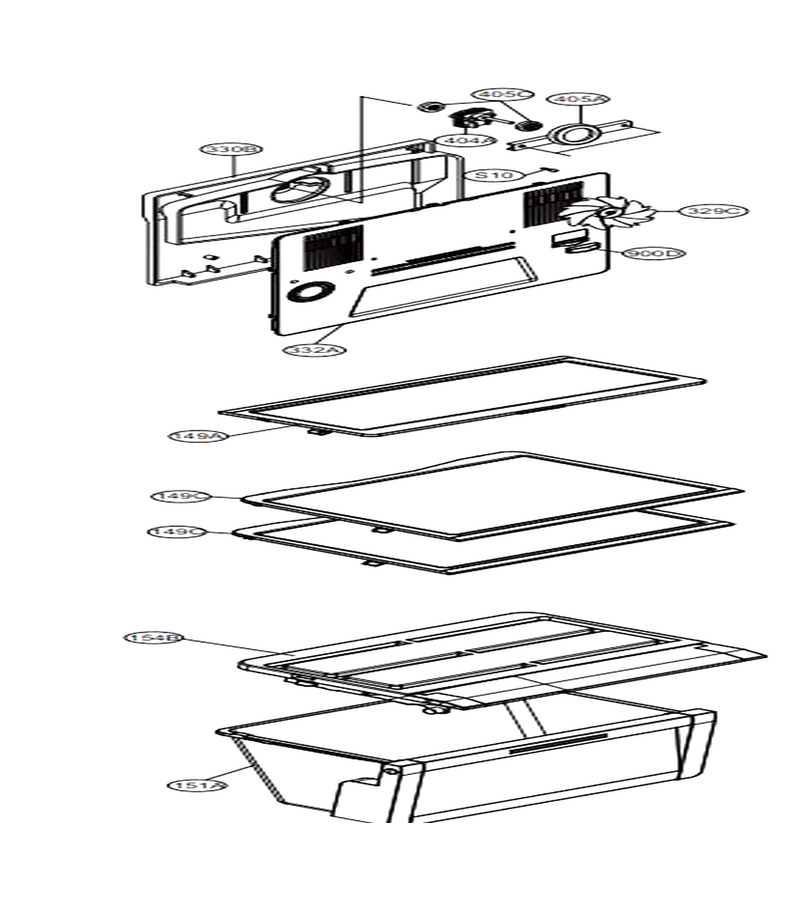

Refrigerator And Freezer Parts

...
...
S10
Refrigerator Screw Assembly L-G-4001JA3001A
...
149A
Shelf Assembly,freezer L-G-AHT73754002
...
149C
Shelf Assembly,refrigerator L-G-AHT34266712
...
151A
Tray Assembly,vegetable L-G-AJP34267108
...
154B
Cover Assembly,tv L-G-ACQ34267008
...
329C
Fan Assembly L-G-5901JJ1001C
...
330B
Shroud Assembly,freezer L-G-AHV34871805
...
332A
Grille Assembly,fan L-G-AEB34733523
...
404A
Motor,dc L-G-4681JB1029Z
...
405A
Bracket,motor L-G-MAZ30459202
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
900D
Knob,shutter L-G-4940JJ2001G

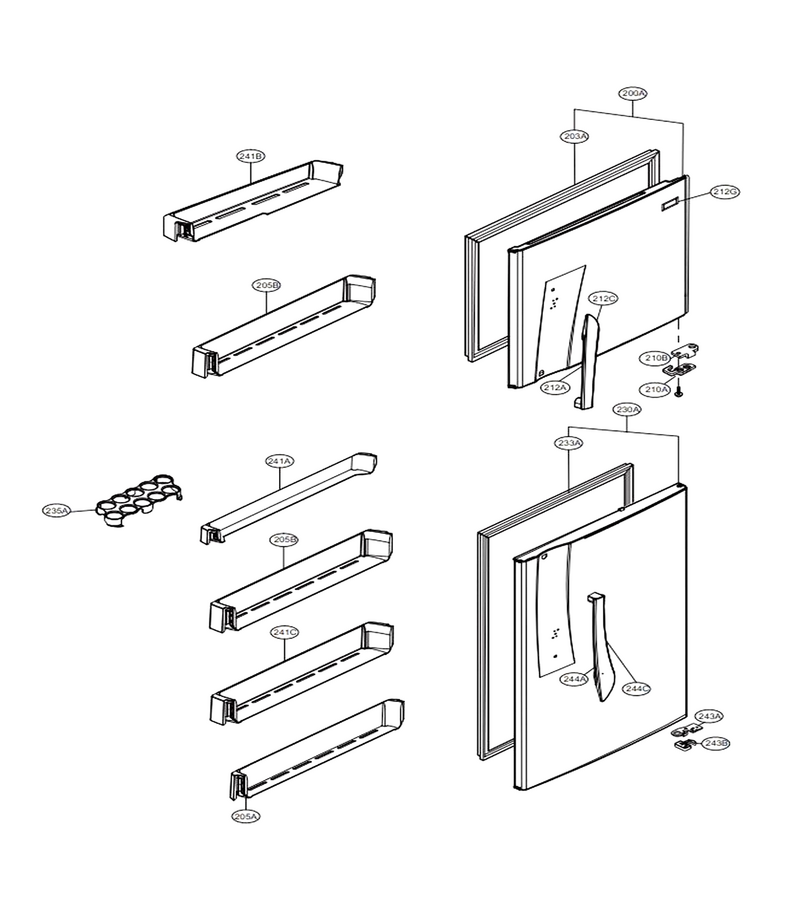

Door Parts

...
...
200A
Door Assembly,freezer L-G-ADC34872923
...
203A
Gasket Assembly,door L-G-ADX52752661
...
205B
Basket,door L-G-MAN62388202
...
205A
Basket,door L-G-MAN38618602
...
210A
Stopper,door L-G-4620JJ2001A
...
210B
Guide,stopper L-G-J325-00033A
...
212A
Handle,base L-G-MEB62795604
...
212C
Handle,decor L-G-MEB62795404
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Door Assembly,refrigerator L-G-ADC34873017
...
233A
Gasket Assembly,door L-G-ADX52752663
...
235A
Tray,egg L-G-MJS62214003
...
241A
Basket,door L-G-MAN38616502
...
241B
Basket,door L-G-MAN41866702
...
241C
Basket,door L-G-MAN38617702
...
243A
Stopper,door L-G-MJB62889901
...
243B
Stopper,door L-G-MJB63209701
...
244A
Handle,base L-G-MEB62795704
...
244C
Handle,decor L-G-MEB62795504
