LG LTNC11131V.APZCNA0

Model: LTNC11131V.APZCNA0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

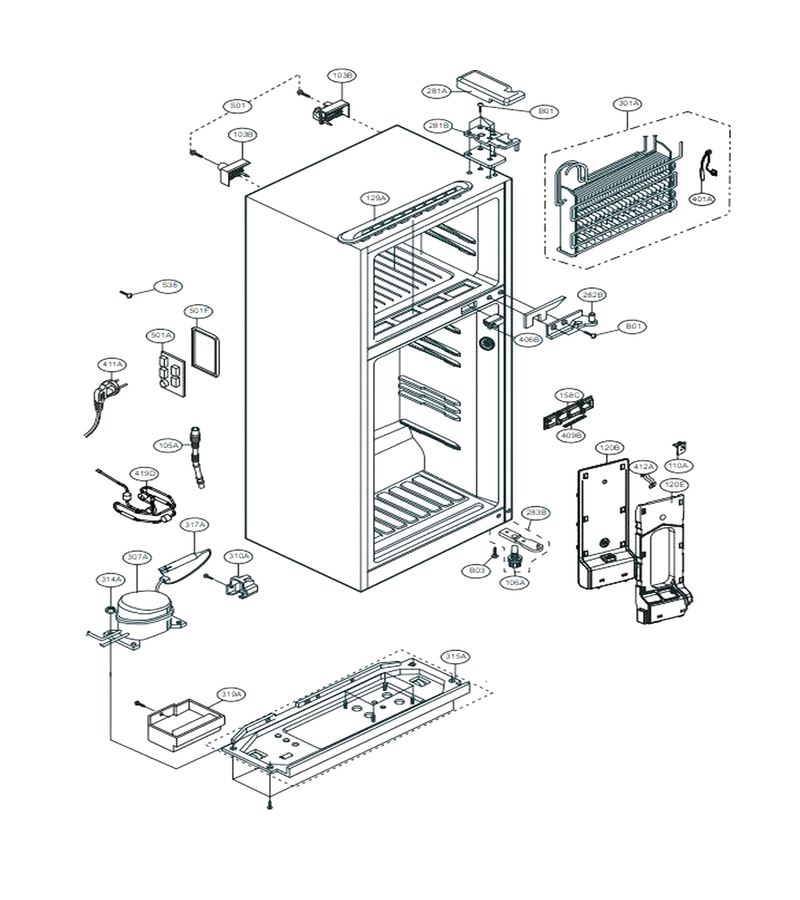

Case Parts

...
...
B03
Screw,customized L-G-J351-00004F
...
S01
Refrigerator Screw L-G-4J00415D
...
S38
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
105A
Refrigerator Drain Pipe L-G-5250JA2009A
...
106A
Leg Assembly,frame L-G-AFC73069702
...
110A
Pcb Assembly,sub L-G-EBR77678901
...
120B
Duct Assembly,multi L-G-ADJ73812501
...
120E
Duct,insulation L-G-MCZ62973401
...
129A
Guide,duct L-G-MEA63272601
...
158C
Cover,led L-G-MCK67711402
...
281A
Cover Assembly,hinge L-G-ACQ87269301
...
281B
Hinge Assembly,upper L-G-AEH74216703
...
282B
Hinge Assembly,center L-G-AEH74297502
...
283B
Hinge Assembly,lower L-G-AEH74456203
...
301A
Evaporator Assembly L-G-ADL74101801
...
307A
Set Assembly Compressor L-G-TCA37032104
...
310A
Cover,ptc L-G-MCK68768001
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Compressor Base Assembly L-G-AAN74350505
...
317A
Drier Assembly L-G-ADH73590310
...
319A
Tray,drip L-G-MJS62894203
...
401A
Controller Assembly L-G-ACM73919208
...
409B
Led Assembly L-G-EAV63613204
...
411A
Power Cord Assembly L-G-EAD61445253
...
412A
Harness Assembly L-G-EAD62596406
...
419D
Joint Pipe Assembly L-G-AGR75278005
...
501A
Main Pcb Assembly L-G-EBR83664871
...
501F
Pcb Cover Assembly L-G-ACQ86705506

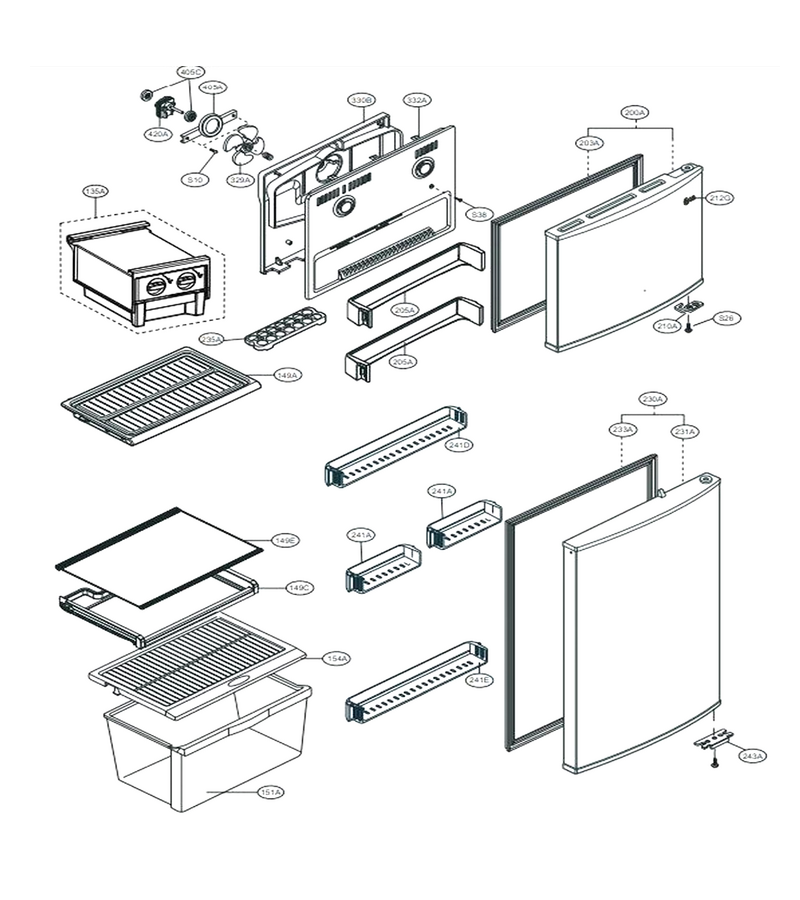

Door Parts, Refrigerator And Freezer Parts

...
...
S38
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
S10
Refrigerator Screw Assembly L-G-4001JA3001A
...
S26
Refrigerator Screw L-G-1SZZJJ3003D
...
135A
Tray Assembly,ice L-G-AJP73974401
...
149A
Shelf Assembly,freezer L-G-AHT73754001
...
149C
Refrigerator Shelf Assembly L-G-AHT73833805
...
149E
Shelf Assembly,refrigerator L-G-AHT73754101
...
151A
Tray Assembly,vegetable L-G-AJP73874901
...
154A
Cover Assembly,tv L-G-ACQ86486001
...
200A
Freezer Door Assembly L-G-ADC74187413
...
203A
Gasket Assembly,door L-G-ADX73750405
...
205A
Basket,door L-G-MAN62871001
...
210A
Stopper,door L-G-MJB63270502
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Refrigerator Door Assembly L-G-ADC74187215
...
231A
Refrigerator Door Foam Assembly L-G-ADD73997111
...
233A
Door Gasket Assembly L-G-ADX73750406
...
235A
Tray,egg L-G-MJS62214003
...
241A
Basket,door L-G-MAN62871101
...
241D
Basket,door L-G-MAN62871301
...
241E
Basket,door L-G-MAN62871401
...
243A
Stopper,door L-G-MJB63210102
...
329A
Fan Assembly L-G-ADP73293401
...
330B
Freezer Shroud Assembly L-G-AHV73469811
...
332A
Fan Grille Assembly L-G-AEB73945101
...
405A
Bracket,motor L-G-MAZ30459203
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
420A
Dc Motor L-G-EAU62963004
