LG LTNC11121V.APZCNA0

Model: LTNC11121V.APZCNA0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

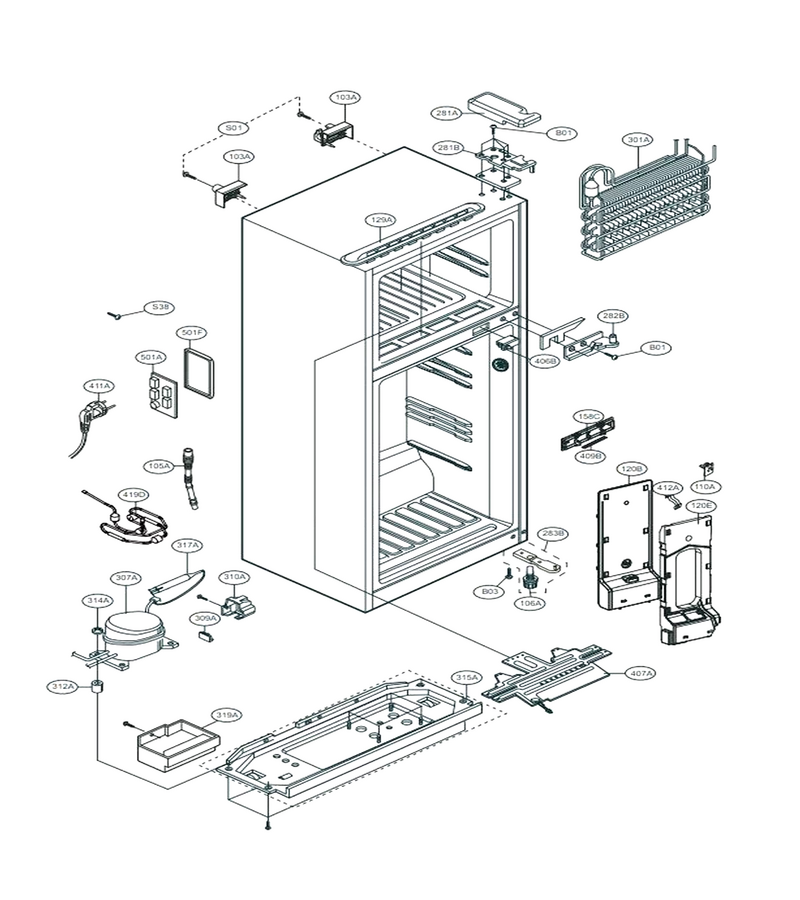

Case Parts

...
...
B01
Refrigerator Screw L-G-J351-00004L
...
S01
Refrigerator Screw L-G-4J00415D
...
B03
Screw,customized L-G-J351-00004F
...
103A
Handle,rear L-G-MEB62454603
...
105A
Refrigerator Drain Pipe L-G-5250JA2009A
...
106A
Leg Assembly,frame L-G-AFC73069702
...
110A
Pcb Assembly,sub L-G-EBR77678901
...
120B
Duct Assembly,multi L-G-ADJ73812501
...
120E
Duct,insulation L-G-MCZ62973401
...
129A
Guide,duct L-G-MEA63272601
...
158C
Cover,led L-G-MCK67711401
...
281A
Cover,hinge L-G-MCK68047401
...
281B
Hinge Assembly,upper L-G-AEH74216703
...
282B
Hinge Assembly,center L-G-AEH74297502
...
283B
Hinge Assembly,lower L-G-AEH74456203
...
301A
Evaporator Assembly L-G-ADL74101803
...
307A
Compressor,set Assembly L-G-TCA35776405
...
309A
Overload Protect L-G-EAF61170610
...
310A
Cover,ptc L-G-MCK66611201
...
312A
Damper,compressor L-G-MCQ66921104
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN74350501
...
317A
Refrigerator Drier Assembly L-G-5851JA2008V
...
319A
Tray,drip L-G-MJS62894203
...
406B
Switch,push Button L-G-6600JB1005L
...
407A
Heater,plate L-G-MEE62565004
...
409B
Refrigerator Led Light L-G-EAV61652805
...
411A
Refrigerator Power Cord L-G-EAD61445206
...
412A
Harness Assembly L-G-EAD62596406
...
419D
Pipe Assembly,joint L-G-AGR74055102
...
501A
Pcb Assembly,main L-G-EBR78051806
...
501F
Cover Assembly,pcb L-G-ACQ86705502

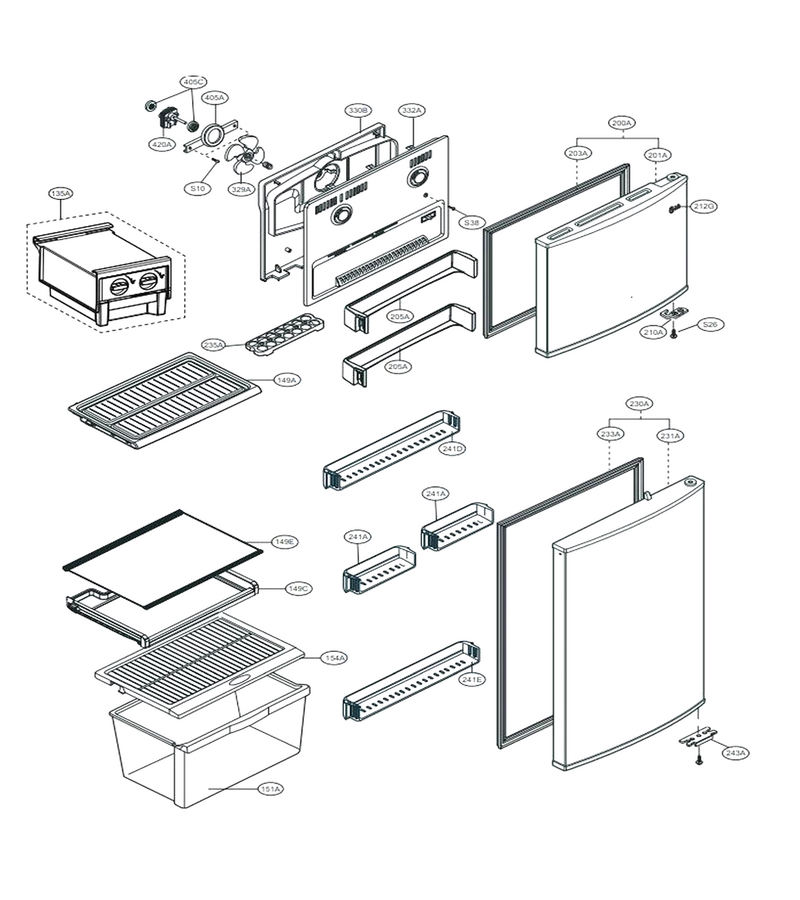

Door Parts

...
...
S10
Refrigerator Screw Assembly L-G-4001JA3001A
...
S26
Refrigerator Screw L-G-1SZZJJ3003D
...
135A
Tray Assembly,ice L-G-AJP73974401
...
149A
Shelf Assembly,freezer L-G-AHT73754001
...
149C
Shelf Assembly,refrigerator L-G-AHT73833801
...
149E
Shelf Assembly,refrigerator L-G-AHT73754101
...
151A
Tray Assembly,vegetable L-G-AJP73874901
...
154A
Cover Assembly,tv L-G-ACQ86486001
...
200A
Door Assembly,freezer L-G-ADC74187403
...
201A
Door Foam Assembly,freezer L-G-ADD73997003
...
203A
Gasket Assembly,door L-G-ADX73750405
...
205A
Basket,door L-G-MAN62871001
...
210A
Stopper,door L-G-MJB63270502
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Door Assembly,refrigerator L-G-ADC74187205
...
231A
Door Foam Assembly,refrigerator L-G-ADD73997105
...
233A
Door Foam Assembly,refrigerator L-G-ADD73997105
...
235A
Tray,egg L-G-MJS62214003
...
241A
Basket,door L-G-MAN62871101
...
241D
Basket,door L-G-MAN62871301
...
241E
Basket,door L-G-MAN62871401
...
243A
Stopper,door L-G-MJB63210102
...
329A
Fan Assembly L-G-ADP73013901
...
330B
Shroud Assembly,freezer L-G-AHV73469805
...
332A
Grille Assembly,fan L-G-AEB73945103
...
405A
Bracket,motor L-G-MAZ30459202
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
420A
Motor,dc L-G-4681JB1029Z
