LG LTE4815BM.ABMLLGA

Model: LTE4815BM.ABMLLGA

Save Part Not Listed?
product name

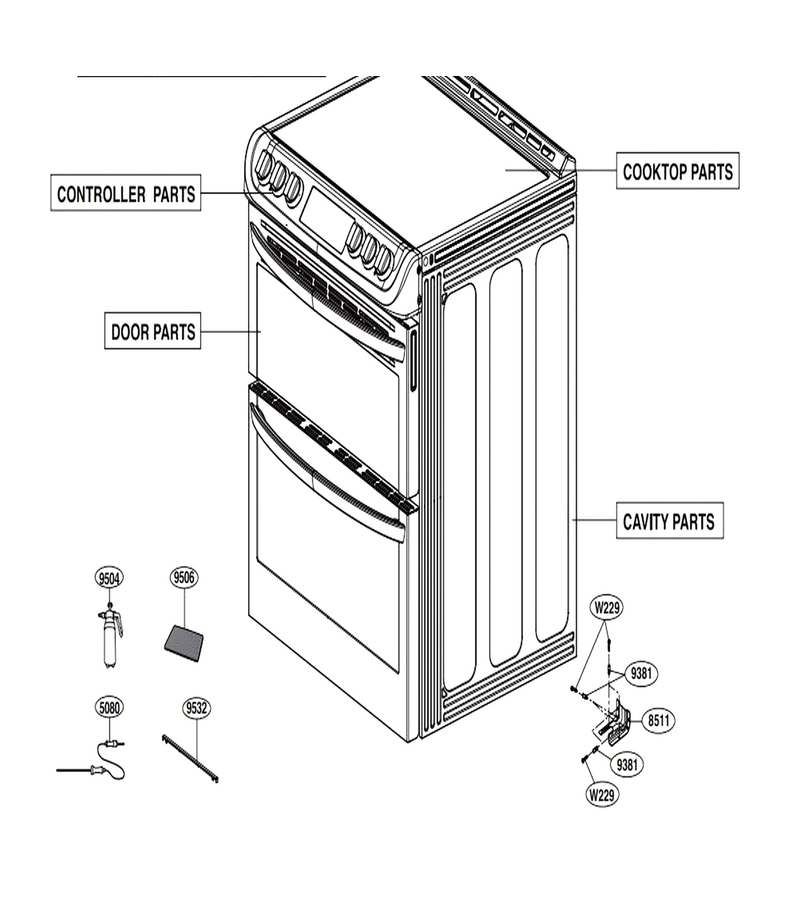

Main

...
...
W229
Screw L-G-1SZZW1N003A
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
8511
Range Anti-Tip Bracket L-G-MAZ34877102
...
9381
Anchor L-G-FAK30249601
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602
...
9532
Decor,guard(rear) L-G-MCR67468502

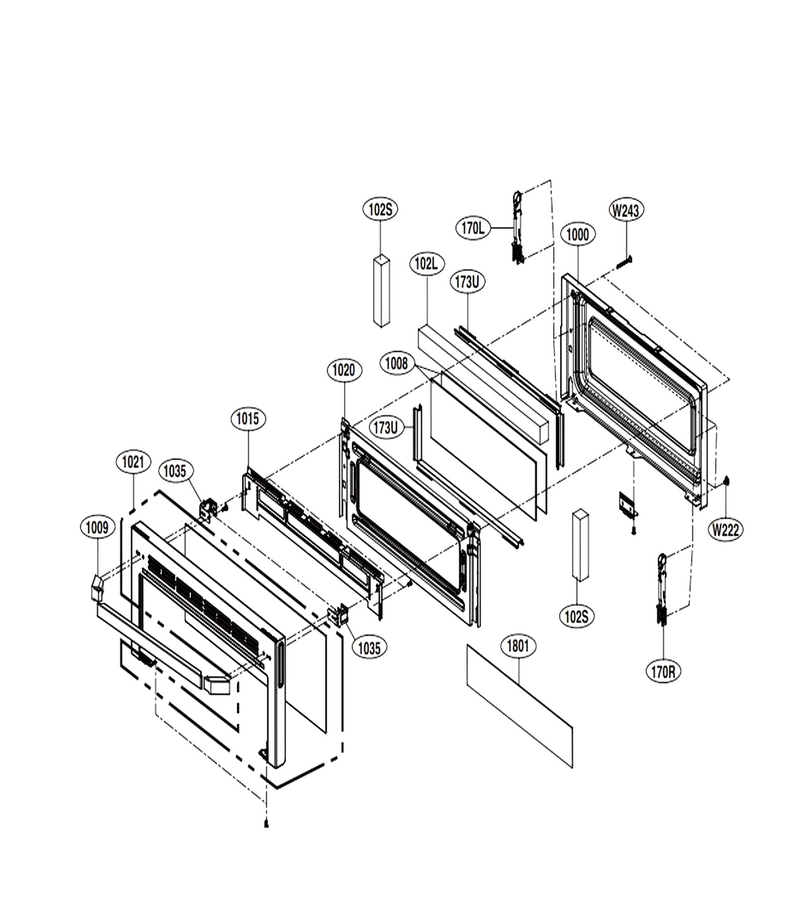

Upper Door Parts

...
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102L
Insulator L-G-MEV65115511
...
102S
Insulator L-G-MEV65115512
...
170L
Bracket,hinge L-G-MAZ64607602
...
170R
Bracket,hinge L-G-MAZ64607601
...
173U
Mount Bracket L-G-MAZ64569402
...
1000
Door Frame L-G-MDQ64177102
...
1008
Window,glass L-G-4890W1N005S
...
1009
Handle,door L-G-MEB63574006
...
1015
Guide,air L-G-MEA63970506
...
1020
Inner Cover L-G-MCK68473301
...
1021
Cover Assembly,poise L-G-ACQ87912309
...
1035
Supporter,handle L-G-MJH64673101
...
1801
Plate,shield L-G-3300W1N003N

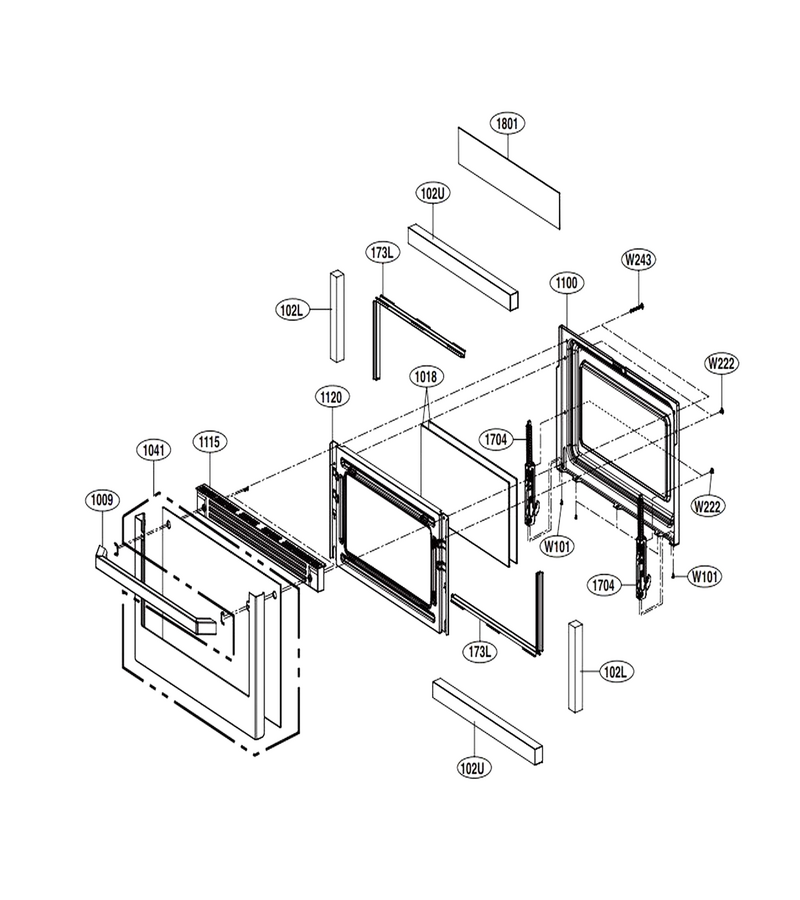

Lower Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102L
Insulator L-G-MEV65115511
...
102U
Insulator L-G-MEV65115513
...
173L
Mount Bracket L-G-MAZ64569403
...
1009
Door Handle L-G-MEB63574005
...
1018
Glass L-G-4890W1N005W
...
1041
Range Oven Door Outer Panel, Lower L-G-ACQ87912404
...
1100
Door Frame L-G-MDQ64177302
...
1115
Door Decor L-G-MCR65828301
...
1120
Inner Cover L-G-MCK68473501
...
1704
Hinge Assembly L-G-AEH75637206
...
1801
Plate,shield L-G-3300W1N003N

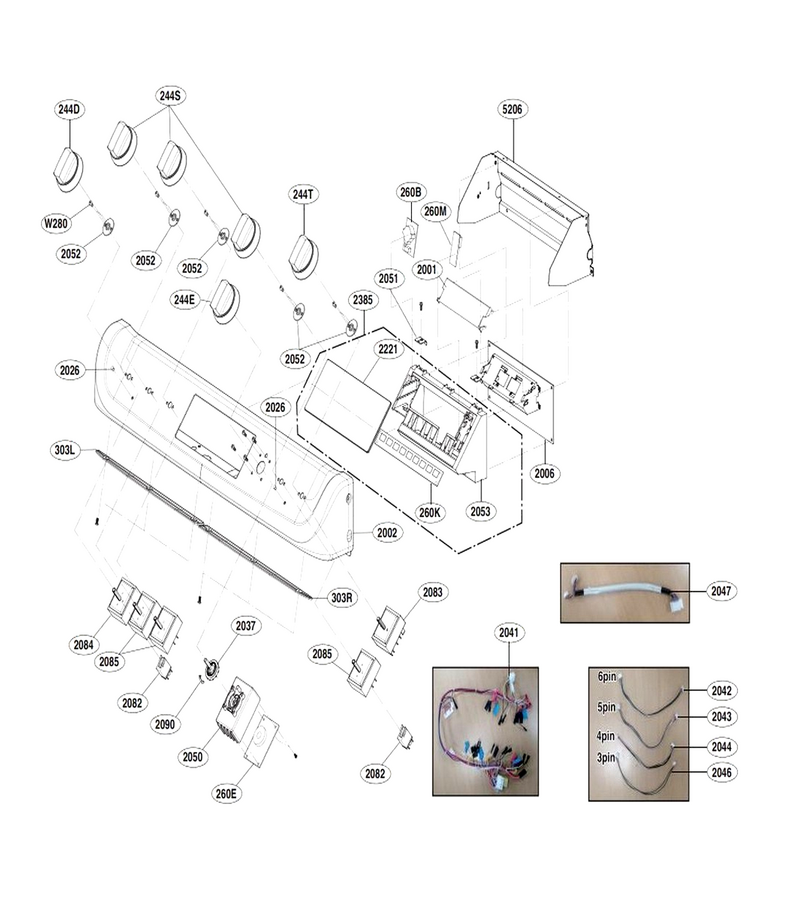

Controller Parts

...
...
244D
Knob Assembly L-G-AEZ74533309
...
244E
Knob Assembly L-G-AEZ74533354
...
244S
Knob Assembly L-G-AEZ74533308
...
244T
Knob Assembly L-G-AEZ74533349
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260M
Pcb Assembly,module L-G-EBR83227508
...
303L
Supporter L-G-MJH63757101
...
2002
Panel Assembly,front L-G-AGL75512523
...
2006
Pcb Assembly,main L-G-EBR81445906
...
2026
Cover,lamp L-G-MCK62028003
...
2041
Harness,single L-G-EAD63748806
...
2042
Harness,single L-G-EAD34822980
...
2043
Single Harness L-G-EAD34822941
...
2044
Harness,single L-G-EAD62349833
...
2052
Ring,guide L-G-MGZ63727001
...
2082
Lamp,neon L-G-EAQ60658303
...
2083
Rotary Switch L-G-EBF62174901
...
2221
Window,glass L-G-MKC65459114
...
2385
Parts Assembly L-G-AGM75429205

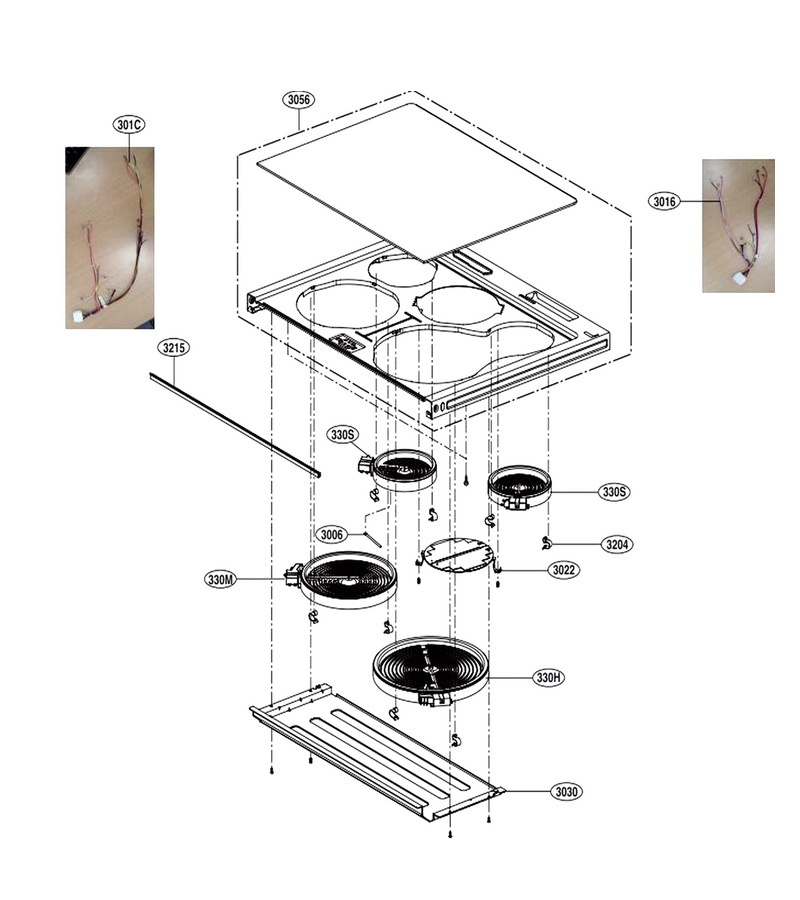

Cooktop Parts

...
...
330H
Radiant Heater L-G-MEE62704901
...
330m
Range Radiant Surface Element L-G-MEE62385201
...
330s
Range Radiant Surface Element L-G-MEE62385001
...
3006
Lug (circ) L-G-4B72510F
...
3016
Single Harness L-G-EAD62705301
...
3022
Heater Assembly L-G-AEG33897011
...
3030
Bracket Assembly L-G-ABA75830002
...
3056
Plate Assembly,upper L-G-AGU75049003
...
3204
Dishwasher Heating Element Support Bracket L-G-MAZ63310801

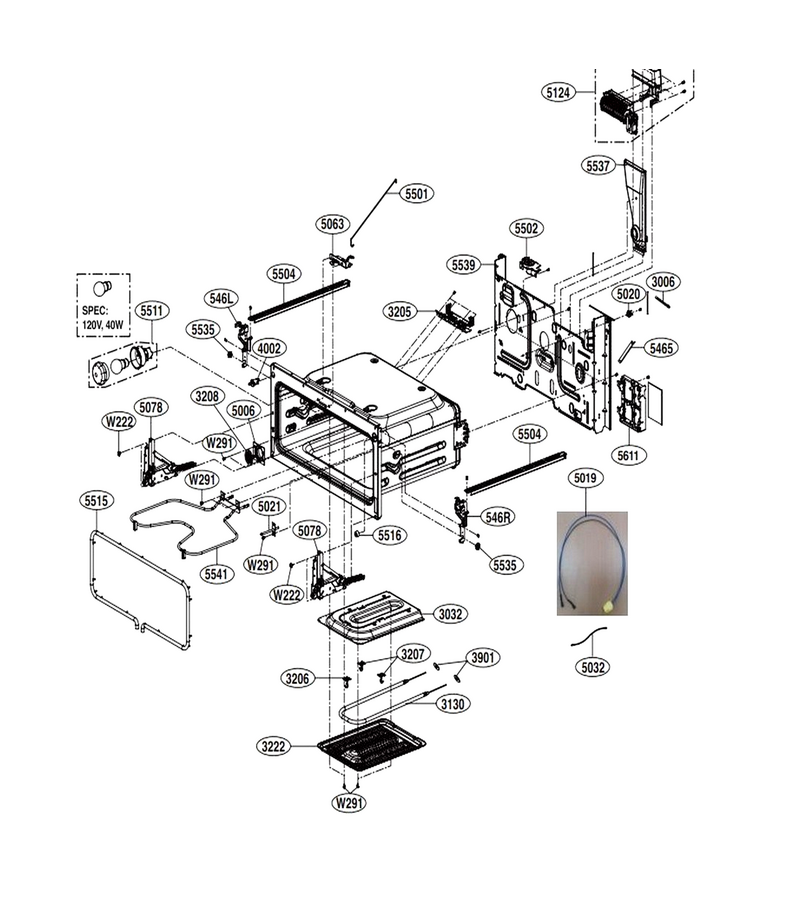

Upper Cavity Parts

...
...
W222
Drawing Screw L-G-1SZZW5N001C
...
3006
Lug (circ) L-G-4B72510F
...
3032
Reflector L-G-MGW63348601
...
3130
Heater,carbon L-G-MEE61844803
...
3205
Bracket,heater L-G-MAZ64548201
...
3206
Bracket,heater L-G-MAZ64548401
...
3207
Bracket,heater L-G-MAZ64548402
...
3208
Bracket L-G-MAZ64764301
...
3222
Cover,heater L-G-MCK68512901
...
3901
Gasket L-G-4350W4A007P
...
4002
Switch L-G-EBF60663403
...
5006
Duct L-G-MCZ63532001
...
5019
Range Wire Harness L-G-EAD61076101
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5032
Range Wire Harness L-G-6877W1N024F
...
5063
Bracket Assembly L-G-ABA75389602
...
5078
Range Oven Door Hinge L-G-AEH74656201
...
5465
Bracket,idle L-G-MAZ65465801
...
5501
Bar L-G-MAK61907202
...
5502
Motor Assembly L-G-EAU62862901
...
5504
Supporter L-G-MJH63775301
...
5511
Lamp,incandescent L-G-6913W1N002H
...
5515
Packing,gasket L-G-MFZ64539602
...
5516
Packing Seal L-G-3920W1N013A
...
5535
Supporter L-G-MJH63776501
...
5537
Vent Assembly L-G-AJV73149902
...
5539
Panel L-G-MGC63820001
...
5541
Heater,sheath L-G-MEE62864903
...
5611
Supporter,pcb L-G-MJH63756601

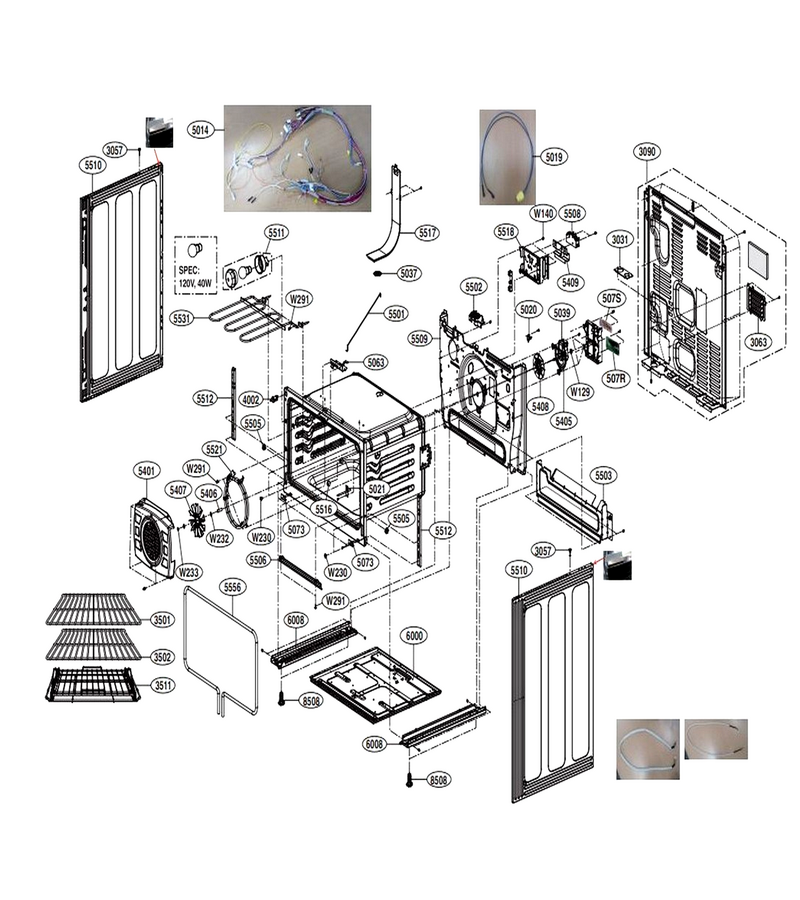

Lower Cavity Parts

...
...
W129
Nut L-G-1NHA0400018
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
507R
Pcb Assembly,option L-G-EBR80595411
...
3057
Packing L-G-3920W1N014A
...
3063
Cover,rear L-G-MCK68473902
...
3090
Cover Assembly,rear L-G-ACQ88365208
...
3501
Shelf L-G-MHL63411407
...
3502
Shelf L-G-MHL63531403
...
3511
Shelf Assembly L-G-AHT74173804
...
4002
Switch L-G-EBF60663403
...
5014
Harness,single L-G-EAD64146401
...
5019
Range Wire Harness L-G-EAD61076101
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5037
Filter,charcoal L-G-5230W1N001G
...
5039
Range Convection Fan Motor L-G-EAU62343001
...
5063
Bracket Assembly L-G-ABA75389602
...
5073
Motor Bracket L-G-MAZ40417401
...
5401
Cover,heater L-G-MCK68473108
...
5405
Motor Bracket L-G-4810W1N060B
...
5407
Convection Fan L-G-MDG62882901
...
5408
Fan Blade L-G-3B72559A
...
5409
Insulator L-G-5012W1N016D
...
5501
Bar L-G-MAK61907202
...
5502
Motor Assembly L-G-EAU62862901
...
5503
Supporter L-G-MJH63775501
...
5505
Supporter L-G-4980W1N013A
...
5506
Bracket,heater L-G-MAZ64548501
...
5508
Connector L-G-EAG32629301
...
5509
Panel,rear L-G-MGC63820202
...
5510
Panel L-G-MGC62644017
...
5511
Lamp,incandescent L-G-6913W1N002H
...
5512
Hinge Bracket L-G-MAZ64788501
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV73149701
...
5521
Heater,sheath L-G-MEE62865003
...
5531
Heater,sheath L-G-MEE61945104
...
5556
Packing,gasket L-G-MFZ64539702
...
6000
Plate L-G-4960W0N001C
...
6008
Base Plate L-G-MGJ64431101
...
8508
Range Leveling Leg L-G-4778W1N001A
