LG LTCS20220B.AWBCNA1

Model: LTCS20220B.AWBCNA1

Save Part Not Listed?
product name

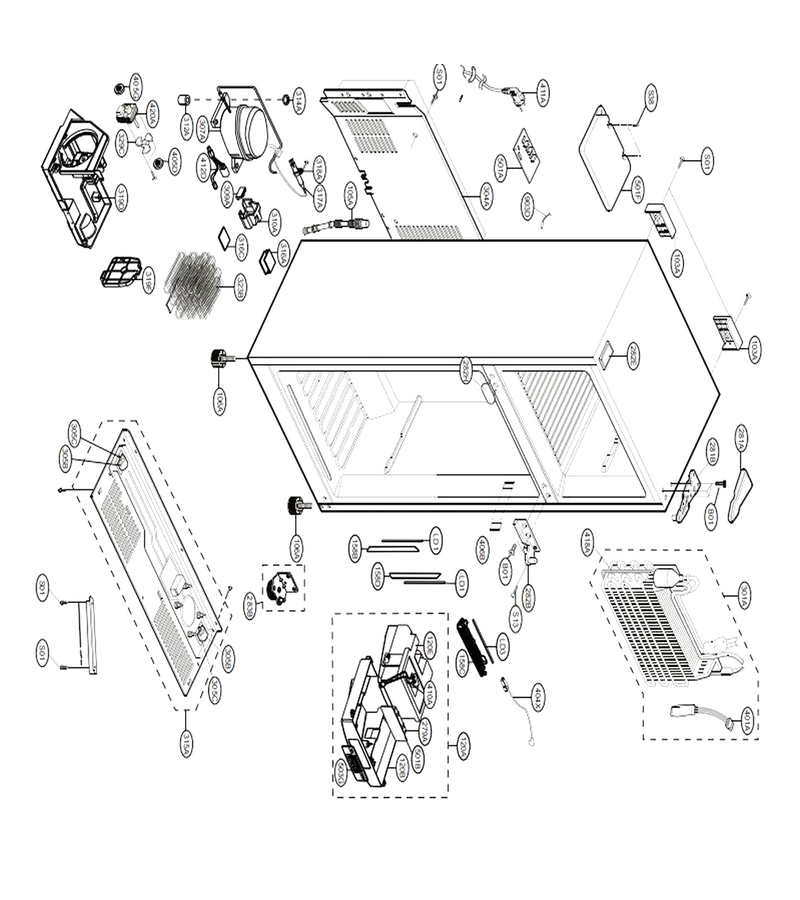

Case Parts

...
...
LD1
Led Assembly L-G-EAV48995122
...
S38
Refrigerator Screw L-G-4J00415D
...
S13
Screw,customized L-G-1SZZJQ3015B
...
LD3
Led Assembly L-G-EAV61573112
...
S01
Refrigerator Screw L-G-4J00415D
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
120A
Case Assembly,control Refrigerator L-G-ABQ73946703
...
120B
Case,control Refrigerator L-G-MBN62806301
...
120E
Duct Assembly,insulation L-G-5209JJ1001C
...
158B
Refrigerator Light Cover L-G-MCK66584301
...
158C
Cover,lamp L-G-MCK67133301
...
158D
Refrigerator Light Cover L-G-MCK66584302
...
279A
Case,display L-G-MBN62787901
...
281A
Cover,hinge L-G-MCK67257302
...
281B
Hinge Assembly,upper L-G-AEH73999402
...
282B
Hinge Assembly,center L-G-AEH73976901
...
282H
Refrigerator Center Hinge Hole Plug L-G-5006JJ3004E
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001F
...
283B
Hinge Assembly,lower L-G-AEH73997702
...
301A
Evaporator Assembly L-G-5421JJ0003C
...
305B
Roller L-G-MHA61893201
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Compressor,set Assembly L-G-TCA35776401
...
309A
Overload Protect L-G-EAF61170610
...
310A
Cover,ptc L-G-MCK66611201
...
312A
Damper,compressor L-G-MCQ66921104
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN73232107
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
318A
Drier Holder L-G-MEG64900401
...
323B
Condenser Assembly,wire L-G-ACG73766707
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
401A
Controller Assembly L-G-6615JB2005W
...
404X
Harness Assembly L-G-EAD62043501
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405G
Refrigerator Motor L-G-5040JA2009A
...
406B
Refrigerator Door Switch L-G-EBF61314804
...
410A
Harness Assembly L-G-EAD62043301
...
411A
Power Cord Assembly L-G-EAD61445241
...
412D
Harness Assembly L-G-EAD64168622
...
418A
Heater,sheath L-G-5300JK1003L
...
420A
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
501A
Pcb Assembly,main L-G-EBR78764105
...
501B
Pcb Assembly,display L-G-EBR59400502
...
501F
Cover Assembly,pcb L-G-ACQ86705503
...
503G
Decor,control L-G-MCR64757803

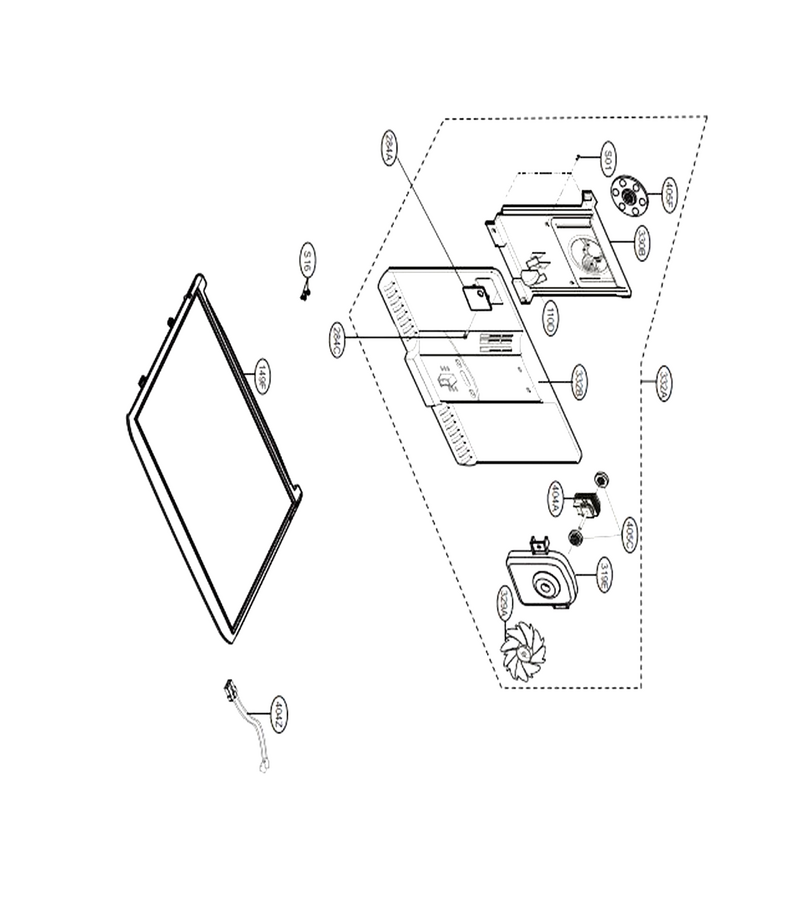

Freezer Part

...
...
S16
Screw,customized L-G-1SBZJA3004M
...
S01
Refrigerator Screw L-G-4J00415D
...
110D
Rotary Thermostat L-G-4940JJ2004A
...
149F
Shelf Assembly,freezer L-G-AHT73455101
...
284A
Cover,grille Fan L-G-MCK67133401
...
284C
Refrigerator Screw L-G-1SBZJA3004L
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
330B
Shroud,freezer L-G-MHN62462002
...
332A
Grille Assembly,fan L-G-3531JJ1006V
...
332B
Grille Assembly,fan L-G-3531JJ1005L
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
404Z
Harness Assembly L-G-EAD62043401
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B

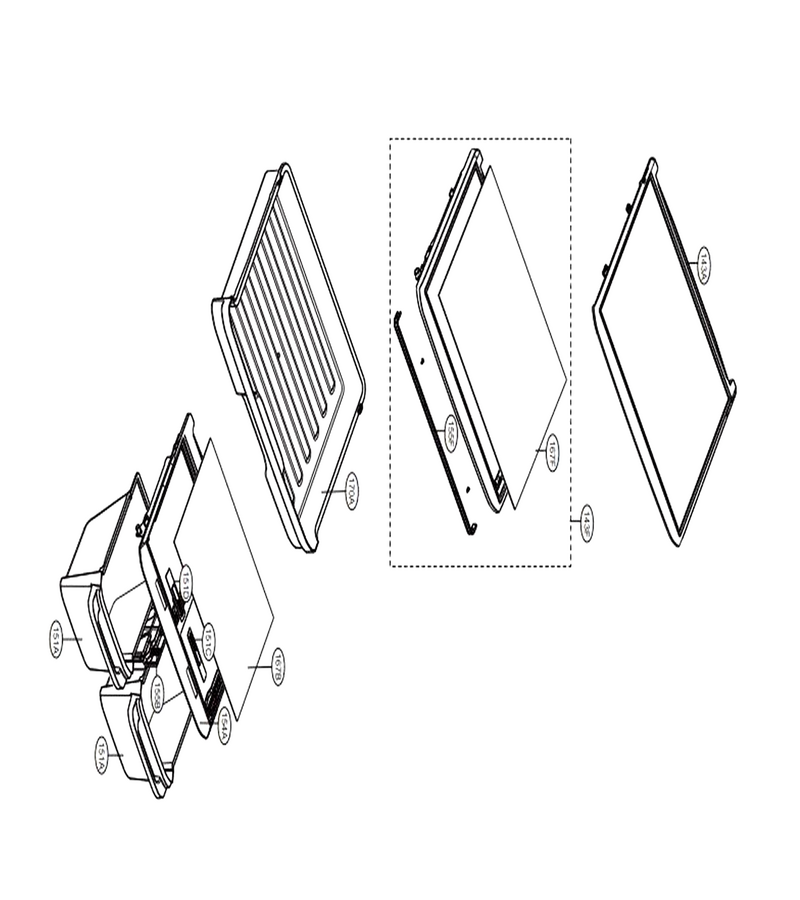

Refrigerator Parts

...
...
143A
Shelf Assembly,refrigerator L-G-AHT73514301
...
143F
Shelf Assembly,refrigerator L-G-AHT73514201
...
151A
Tray,vegetable L-G-MJS62633001
...
151C
Knob,shutter L-G-MEY62654202
...
151D
Knob,shutter L-G-MEY62654201
...
154A
Cover Assembly,tv L-G-ACQ85956603
...
155B
Supporter,cover Tv L-G-MJH62795501
...
155F
Supporter L-G-MJH62739502
...
167F
Shelf,glass L-G-MHL61952313
...
167B
Shelf,glass L-G-MHL61952310
...
170A
Tray,fresh Room L-G-MJS62632801

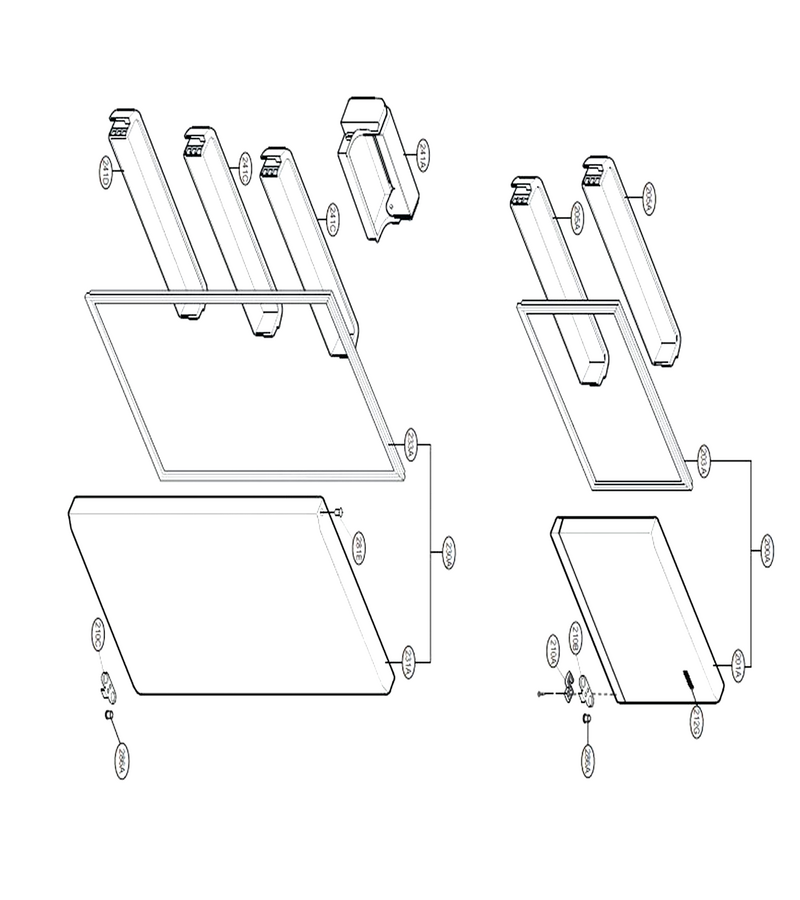

Door Parts

...
...
200A
Door Assembly,freezer L-G-ADC74045610
...
203A
Gasket Assembly,door L-G-ADX52752664
...
205A
Basket,door L-G-MAN62570601
...
210A
Stopper,door L-G-MJB63029902
...
210B
Refrigerator Guide L-G-4974JA3031B
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Door Assembly,refrigerator L-G-ADC74045710
...
233A
Gasket Assembly,door L-G-ADX52752666
...
241C
Basket,door L-G-MAN62570401
...
241D
Basket,door L-G-MAN62570501
...
241A
Basket Assembly,door L-G-AAP73711401
...
281E
Refrigerator Hinge Cap L-G-5006JJ3003E
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A

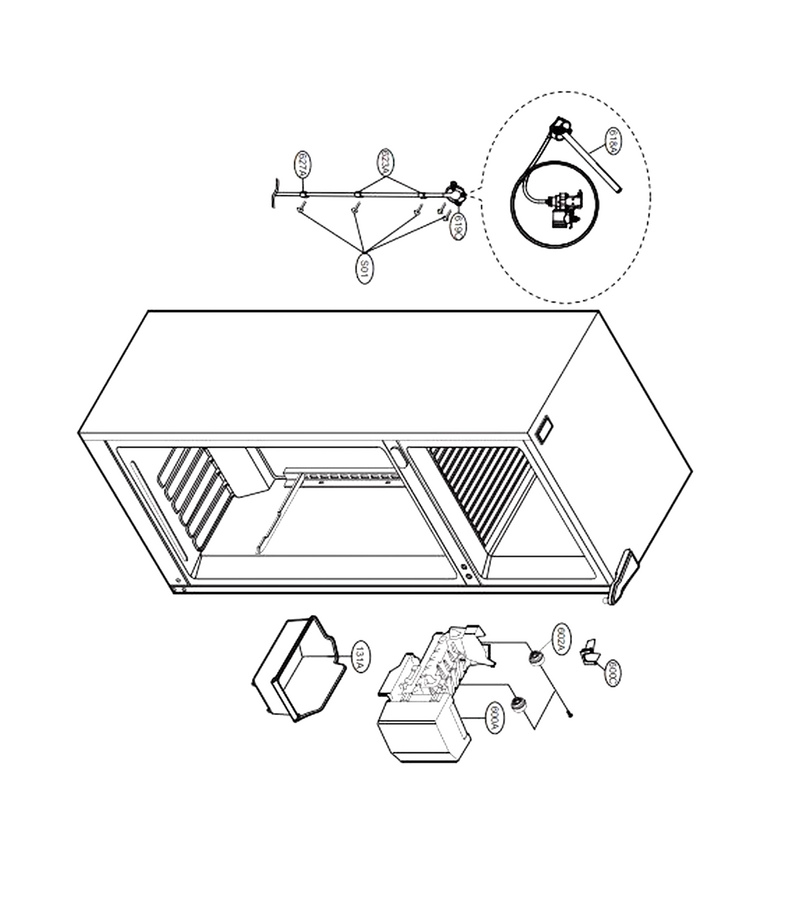

Ice Maker Parts

...
...
S01
Refrigerator Screw L-G-4J00415D
...
131A
Bucket,ice L-G-5074JJ1007B
...
600A
Ice Maker Assembly,kit L-G-5989JA0002Y
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Holder Assembly L-G-AEJ73579702
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3006B
...
619C
Valve Assembly,water L-G-AJU73292414
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001E
