LG LTCS20020B.AWBCNA0

Model: LTCS20020B.AWBCNA0

Save Part Not Listed?
product name

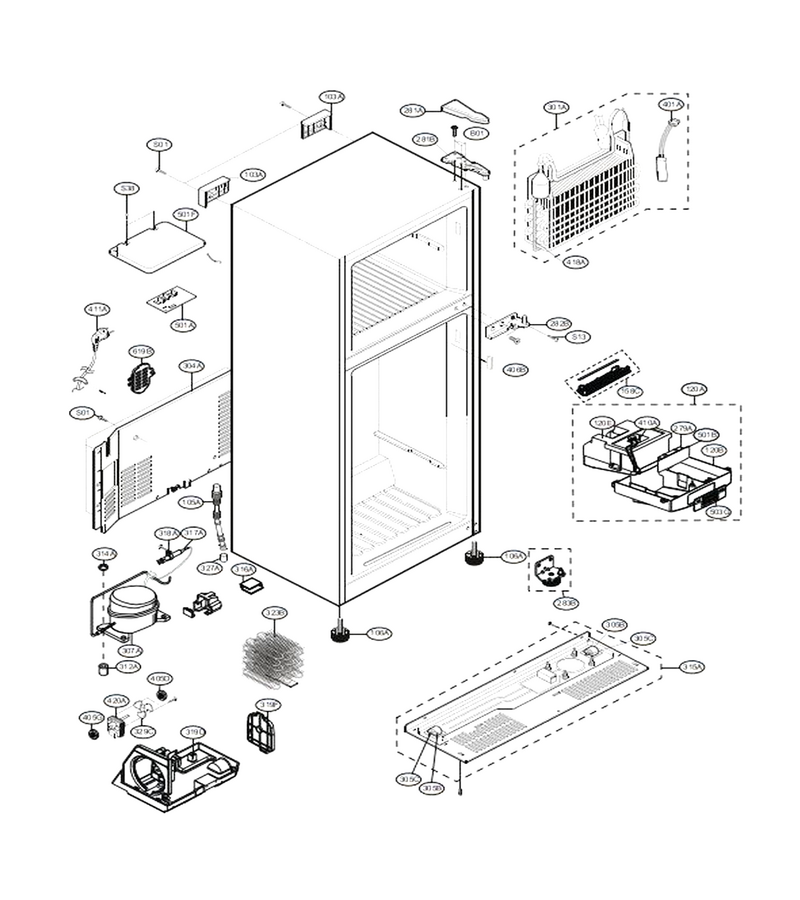

Case Parts

...
...
S01
Refrigerator Screw L-G-4J00415D
...
S38
Refrigerator Screw L-G-4J00415D
...
S13
Screw,customized L-G-1SZZJQ3015B
...
103A
Refrigerator Door Handle L-G-MEB64014305
...
120A
Case Assembly,control Refrigerator L-G-ABQ73946703
...
120B
Case,control Refrigerator L-G-MBN62806301
...
120E
Duct Assembly,insulation L-G-5209JJ1001C
...
158C
Lamp Cover Assembly L-G-ACQ89591802
...
279A
Case,display L-G-MBN62787901
...
281A
Cover,hinge L-G-MCK67257302
...
281B
Hinge Assembly,upper L-G-AEH73999402
...
282B
Hinge Assembly,center L-G-AEH73976901
...
283B
Hinge Assembly,lower L-G-AEH73997702
...
301A
Evaporator Assembly L-G-5421JJ0003H
...
304A
Cover Assembly,machinery(rear) L-G-ACQ76219909
...
305B
Roller L-G-MHA61893201
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Compressor,set Assembly L-G-TCA35892757
...
312A
Damper,compressor L-G-MCQ66921104
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN73232107
...
316A
Damper,noise L-G-5072JQ3002F
...
317A
Drier Assembly L-G-ADH73590310
...
318A
Drier Holder L-G-MEG64900401
...
319D
Fan Guide L-G-MEA62951001
...
323B
Condenser Assembly,wire L-G-ACG73946406
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
401A
Controller Assembly L-G-ACM75678707
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405G
Refrigerator Motor L-G-5040JA2009A
...
410A
Harness Assembly L-G-EAD62043301
...
411A
Power Cord Assembly L-G-EAD61445253
...
418A
Heater,sheath L-G-MEE64165101
...
420A
Motor,dc L-G-EAU63103202
...
501A
Pcb Assembly,main L-G-EBR80757409
...
501B
Pcb Assembly,display L-G-EBR59400502
...
501F
Cover Assembly,pcb L-G-ACQ86705503
...
503G
Decor,control L-G-MCR64757803
...
619B
Cover,valve L-G-MCK63312301

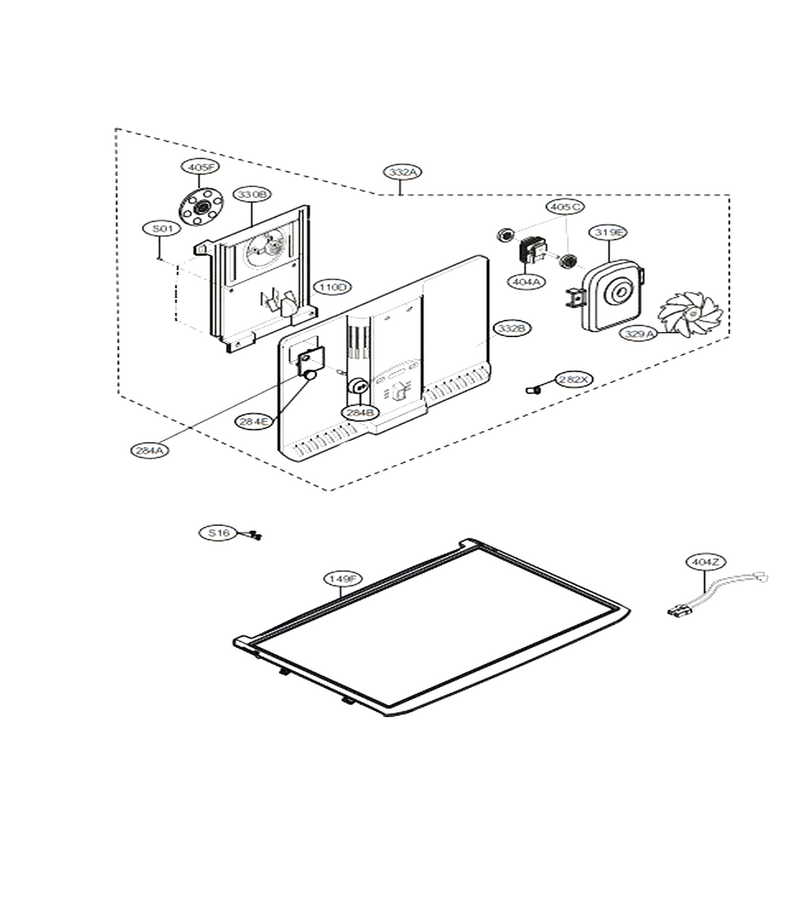

Freezer Parts

...
...
S16
Refrigerator Screw L-G-4J01425B
...
S01
Refrigerator Screw L-G-4J00415D
...
110D
Rotary Thermostat L-G-4940JJ2004A
...
149F
Shelf Assembly,freezer L-G-AHT73455101
...
282X
Cap,handle L-G-5006JJ3010E
...
284A
Cover,grille Fan L-G-MCK67133401
...
284B
Connection Cover L-G-3550JA3120A
...
284E
Refrigerator Glide L-G-3550JJ3001A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
330B
Shroud,freezer L-G-MHN62462002
...
332B
Grille Assembly,fan L-G-3531JJ1005J
...
332A
Grille Assembly,fan L-G-AEB75144906
...
404A
Motor,dc L-G-EAU63103001
...
404Z
Harness Assembly L-G-EAD62043402
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B

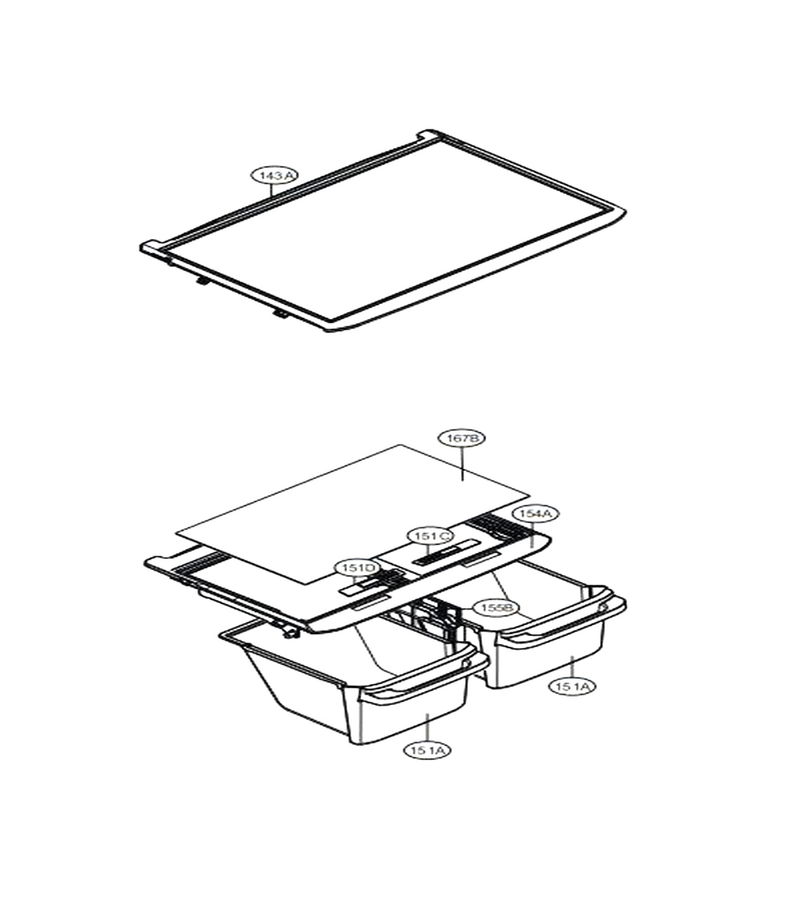

Refrigerator Parts

...
...
143A
Shelf Assembly,refrigerator L-G-AHT73514301
...
151D
Knob,shutter L-G-MEY62654201
...
151C
Knob,shutter L-G-MEY62654202
...
151A
Tray,vegetable L-G-MJS62633001
...
154A
Cover Assembly,tv L-G-ACQ85956603
...
155B
Supporter,cover Tv L-G-MJH62795501
...
167B
Shelf,glass L-G-MHL61952310

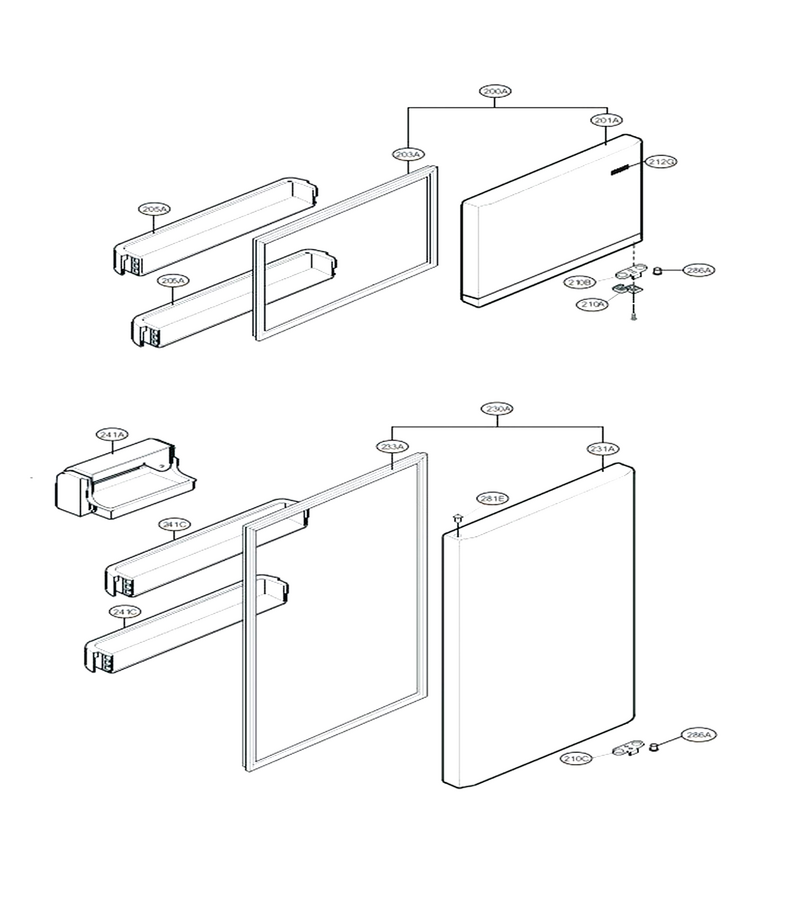

Door Parts

...
...
200A
Freezer Door Assembly L-G-ADC74045632
...
201A
Freezer Door Foam Assembly L-G-ADD73697422
...
203A
Gasket Assembly,door L-G-ADX52752664
...
205A
Basket,door L-G-MAN62570601
...
210A
Stopper,door L-G-MJB63029902
...
210B
Refrigerator Guide L-G-4974JA3031B
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Refrigerator Door Assembly L-G-ADC74045730
...
231A
Refrigerator Door Foam Assembly L-G-ADD73896116
...
233A
Gasket Assembly,door L-G-ADX52752666
...
241A
Basket Assembly,door L-G-AAP73711401
...
241C
Basket,door L-G-MAN62570401
...
281E
Refrigerator Hinge Cap L-G-5006JJ3003E
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
