product name

LG LTC24380SB.AWBCNA0

Model: LTC24380SB.AWBCNA0

Save Part Not Listed?
product name

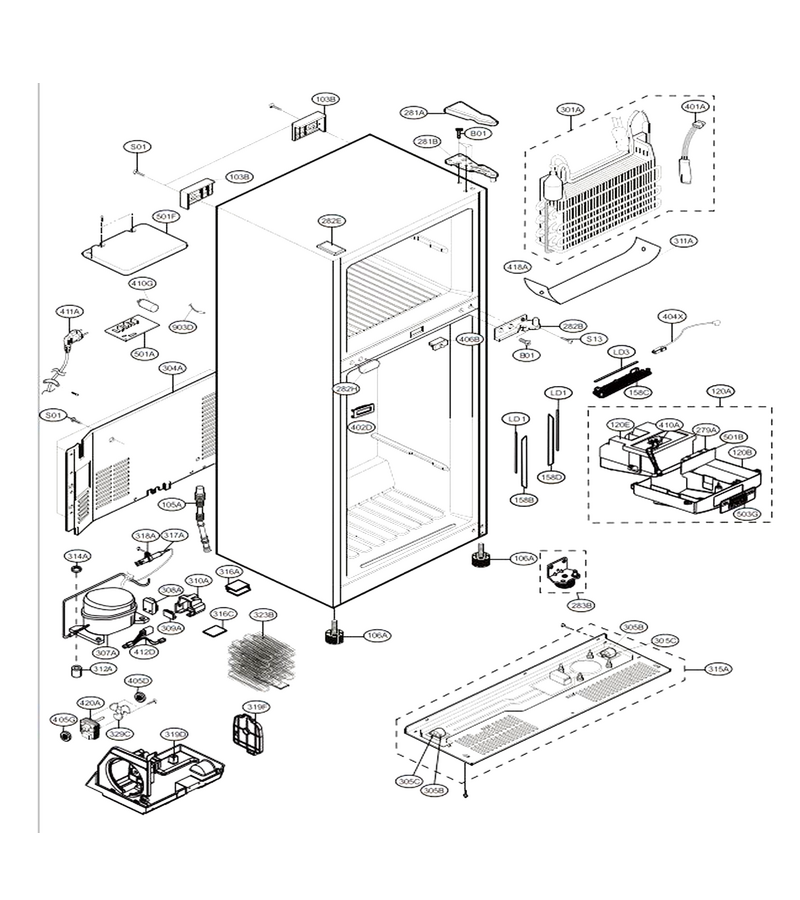

Case Parts

...
...
LD1
Led Assembly L-G-EAV48995122
...
LD3
Led Assembly L-G-EAV61573102
...
S01
Refrigerator Screw L-G-4J00415D
...
S13
Screw,customized L-G-1SZZJQ3015B
...
106A
Leg Assembly,adjust L-G-AFC73249602
...
120A
Case Assembly,control Refrigerator L-G-ABQ73946703
...
120B
Case,control Refrigerator L-G-MBN62806301
...
120E
Duct Assembly,insulation L-G-5209JJ1001C
...
158B
Refrigerator Light Cover L-G-MCK66584301
...
158C
Cover,lamp L-G-MCK67133301
...
158D
Refrigerator Light Cover L-G-MCK66584302
...
279A
Case,display L-G-MBN62787901
...
281A
Cover,hinge L-G-MCK67257303
...
281B
Hinge Assembly,upper L-G-AEH73999402
...
282B
Hinge Assembly,center L-G-AEH73976901
...
282E
Refrigerator Hinge Cap L-G-5006JJ2001G
...
282H
Refrigerator Door Hinge Cover L-G-5006JJ3004F
...
283B
Hinge Assembly,lower L-G-AEH73997702
...
301A
Evaporator Assembly L-G-5421JJ0002C
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Compressor,set Assembly L-G-TCA31748016
...
308A
Refrigerator Temperature Sensor L-G-EBG42993601
...
309A
Overload Protect L-G-EAF39584208
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550C-0042C
...
311A
Tray,drain L-G-3390JJ1013B
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN73232103
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
316C
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003B
...
318A
Refrigerator Holder L-G-4930JA3034A
...
323B
Condenser Assembly,wire L-G-ACG73766802
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
401A
Controller Assembly L-G-6615JB2005W
...
402D
Cover,door Switch L-G-3550JJ2037B
...
404X
Harness Assembly L-G-EAD62043501
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405G
Refrigerator Motor L-G-5040JA2009A
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
410A
Harness Assembly L-G-EAD62043301
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2012J
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011A
...
418A
Heater,sheath L-G-5300JK1003M
...
420A
Motor,dc L-G-EAU61644105
...
501A
Pcb Assembly,main L-G-EBR74799502
...
501B
Pcb Assembly,display L-G-EBR59400502
...
501F
Cover Assembly,pcb L-G-3551JJ1020E
...
503G
Decor,control L-G-MCR64757803
...
903D
Harness Assembly L-G-EAD62043201

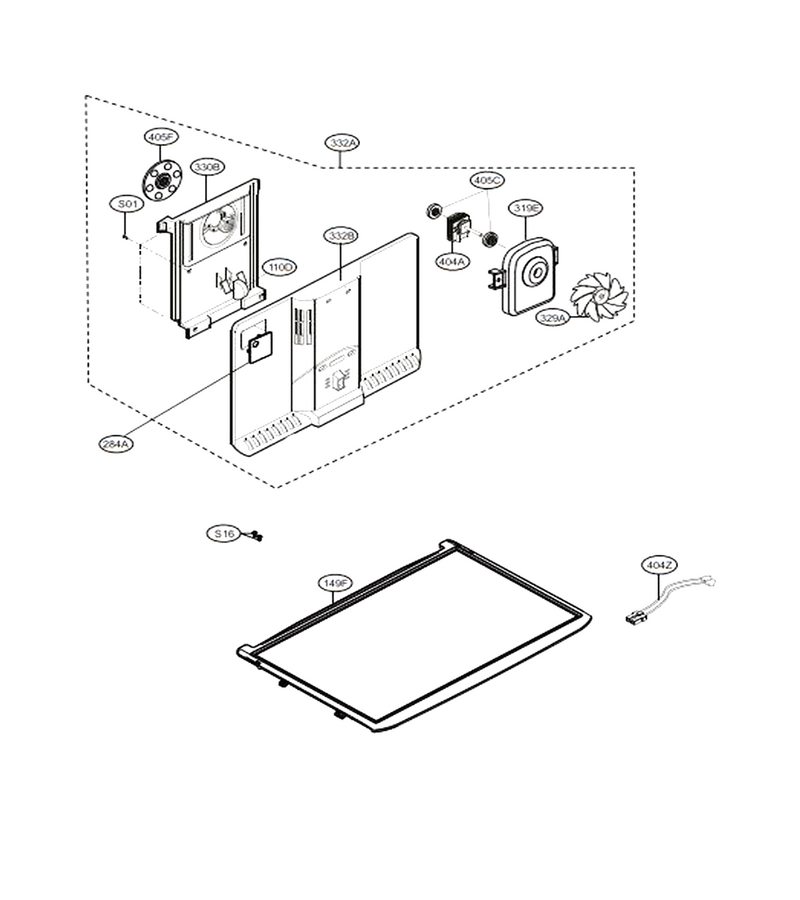

Freezer Parts

...
...
S01
Refrigerator Screw L-G-4J00415D
...
110D
Rotary Thermostat L-G-4940JJ2004A
...
149F
Shelf Assembly,freezer L-G-AHT73455102
...
284A
Cover,grille Fan L-G-MCK67133401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
330B
Shroud,freezer L-G-MHN62462002
...
332A
Grille Assembly,fan L-G-3531JJ1006X
...
332B
Grille Assembly,fan L-G-3531JJ1005N
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
404Z
Harness Assembly L-G-EAD62043401
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B

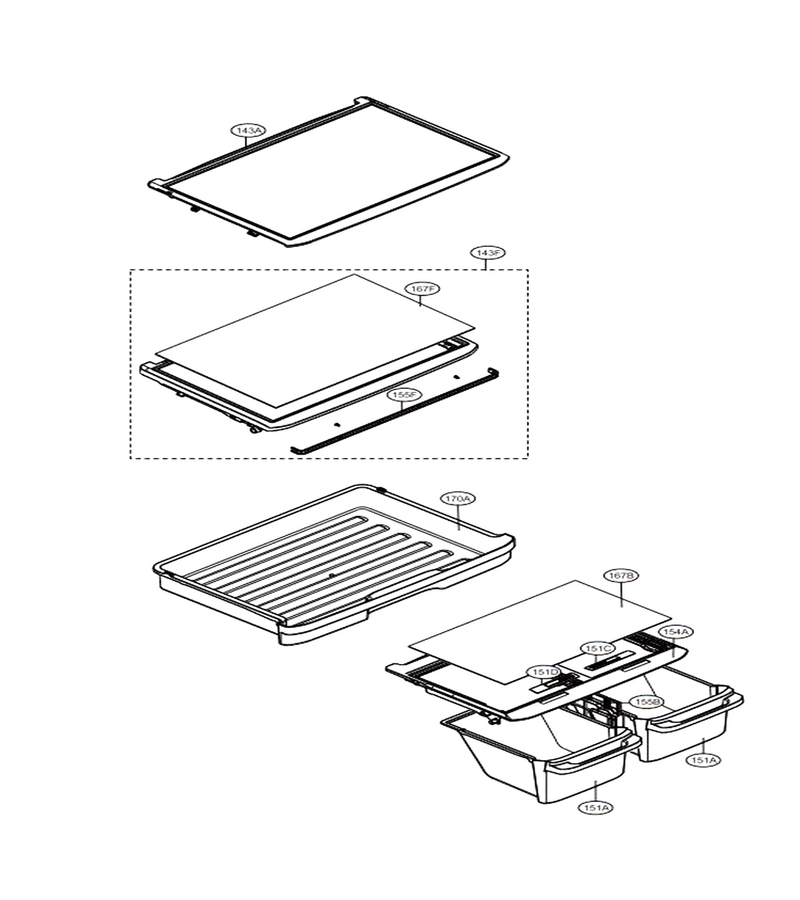

Refrigerator Parts

...
...
143A
Shelf Assembly,refrigerator L-G-AHT73514302
...
143F
Shelf Assembly,refrigerator L-G-AHT73514202
...
151A
Tray,vegetable L-G-MJS62633101
...
151C
Knob,shutter L-G-MEY62654202
...
151D
Knob,shutter L-G-MEY62654201
...
154A
Cover Assembly,tv L-G-ACQ85956604
...
155B
Supporter,cover Tv L-G-MJH62795501
...
155F
Supporter L-G-MJH62739501
...
167B
Shelf,glass L-G-MHL61952311
...
167F
Shelf,glass L-G-MHL61952315
...
170A
Tray,fresh Room L-G-MJS62632901

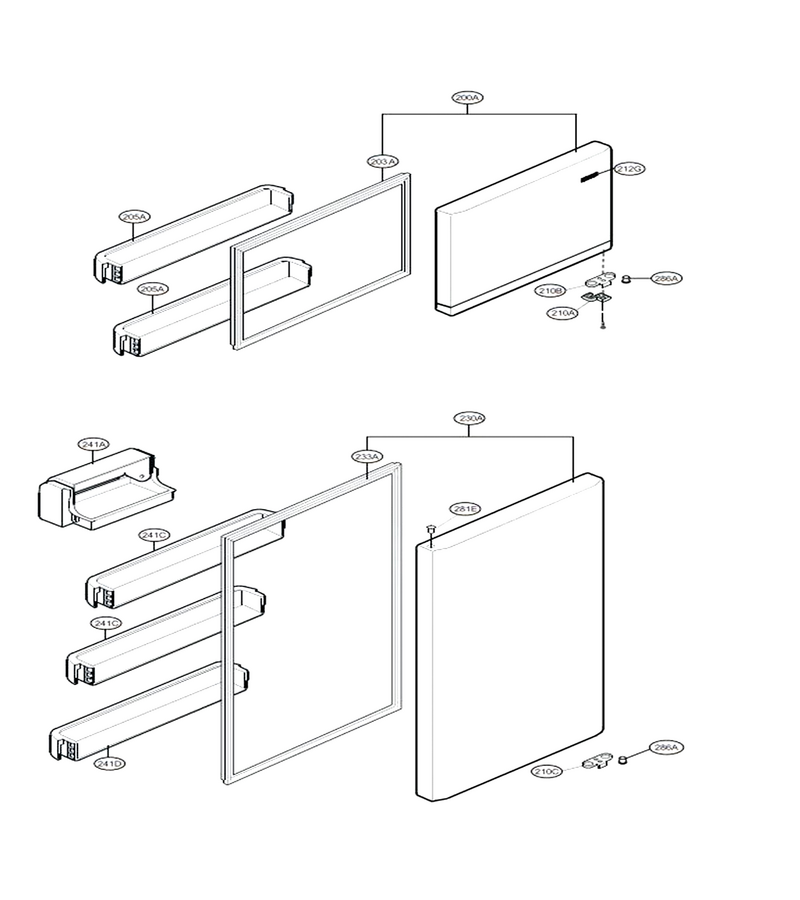

Door Parts

...
...
200A
Door Assembly,freezer L-G-ADC74045606
...
203A
Gasket Assembly,door L-G-ADX52752665
...
205A
Basket,door L-G-MAN62571001
...
210A
Stopper,door L-G-MJB63029902
...
210B
Refrigerator Guide L-G-4974JA3031B
...
210C
Stopper,door L-G-MJB63010703
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Door Assembly,refrigerator L-G-ADC74045706
...
233A
Gasket Assembly,door L-G-ADX52752667
...
241A
Basket Assembly,door L-G-AAP73711401
...
241C
Basket,door L-G-MAN62570801
...
241D
Basket,door L-G-MAN62570901
...
281E
Refrigerator Hinge Cap L-G-5006JJ3003E
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A

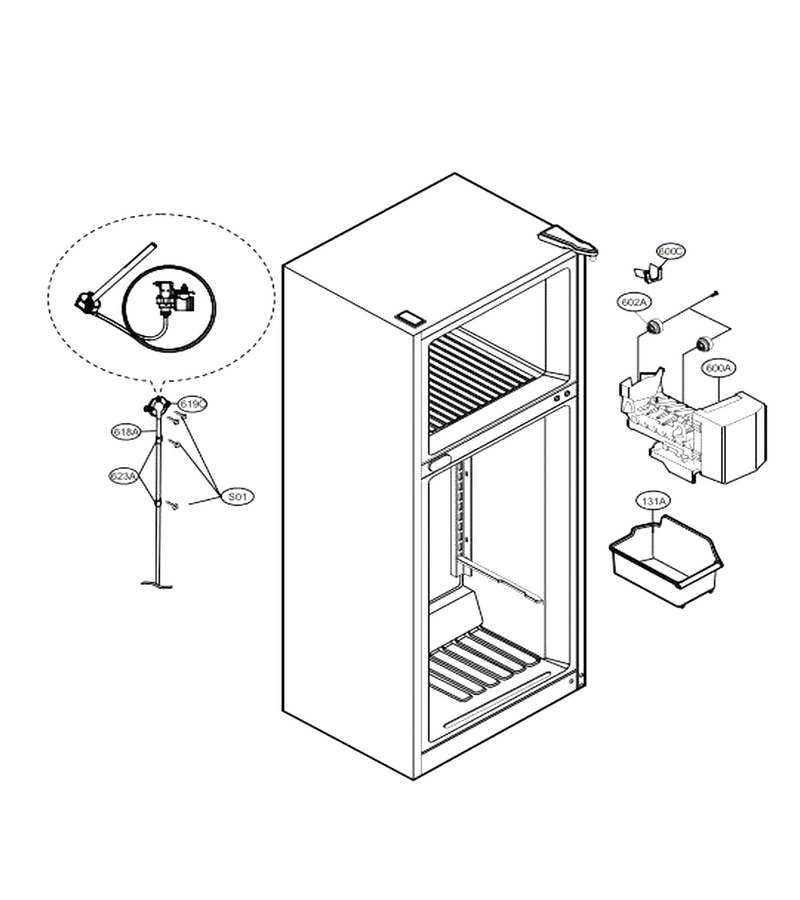

Icemaker Parts

...
...
S01
Refrigerator Screw L-G-4J00415D
...
131A
Bucket,ice L-G-5074JJ1007B
...
600A
Ice Maker Assembly,kit L-G-5989JA0002Y
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Holder Assembly L-G-AEJ73579702
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3006B
...
619C
Valve Assembly,water L-G-AJU73292414
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
