LG LT1430CNR.AT3AHDS

Model: LT1430CNR.AT3AHDS

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
W5210B
Tube,connector L-G-MJU64971705
...
W5210C
Tube,connector L-G-MJU64928406
...
263RZZ
Thermistor,ntc L-G-6323A20012F
...
2687M
Pcb Assembly,main L-G-EBR31327501
...
2687D
Pcb Assembly,display L-G-EBR89597701
...
35211S
Tube Assembly,suction L-G-AJR75743906
...
55211SC
Tube Assembly,condenser(out) L-G-AJR75724606
...
55211B
Tube Assembly,condenser(out) L-G-AJR75704501
...
130410
Base Assembly,single L-G-AAN73212128
...
131400
Cabinet L-G-3090A20017R
...
132100
Frame L-G-MDQ63677201
...
135312
Grille Assembly,front L-G-3531A18004N
...
147580
Louver,horizontal L-G-4758A20058D
...
147582
Louver,vertical L-G-MFH63463702
...
147583
Louver,vertical L-G-MFH63463701
...
152402
Filter,air L-G-5230A20041D
...
237200
Room Air Conditioner Electronic Control Board L-G-MGC35987201
...
238310
Escutcheon L-G-MDD62483302
...
249950
Case Assembly,control L-G-ABQ74404935
...
264110
Power Cord Assembly L-G-EAD63469506
...
346711
Motor Assembly,dc L-G-EAU64124107
...
349490
Orifice L-G-MFX62982301
...
349600
Bracket,motor L-G-MAZ63728002
...
352114
Tube Assembly,discharge L-G-AJR75022311
...
354210
Evaporator Assembly,first L-G-ADL73741708
...
435300
Grille,rear L-G-3530A20101D
...
435313
Grille Assembly,rear L-G-AEB75064801
...
550140
Damper,compressor L-G-4830A30005E
...
554031
Condenser Assembly,bending L-G-ACG76528201
...
554130
Condenser Assembly,first L-G-ACG76528101
...
554160
Compressor Set,china L-G-TBZ39168401
...
559011
Fan,axial L-G-5900A10009E
...
559015
Fan,turbo L-G-5900A20009D
...
731273
Installation Part L-G-3127A20017E
...
749750
Guide Assembly,air L-G-AEC73577504

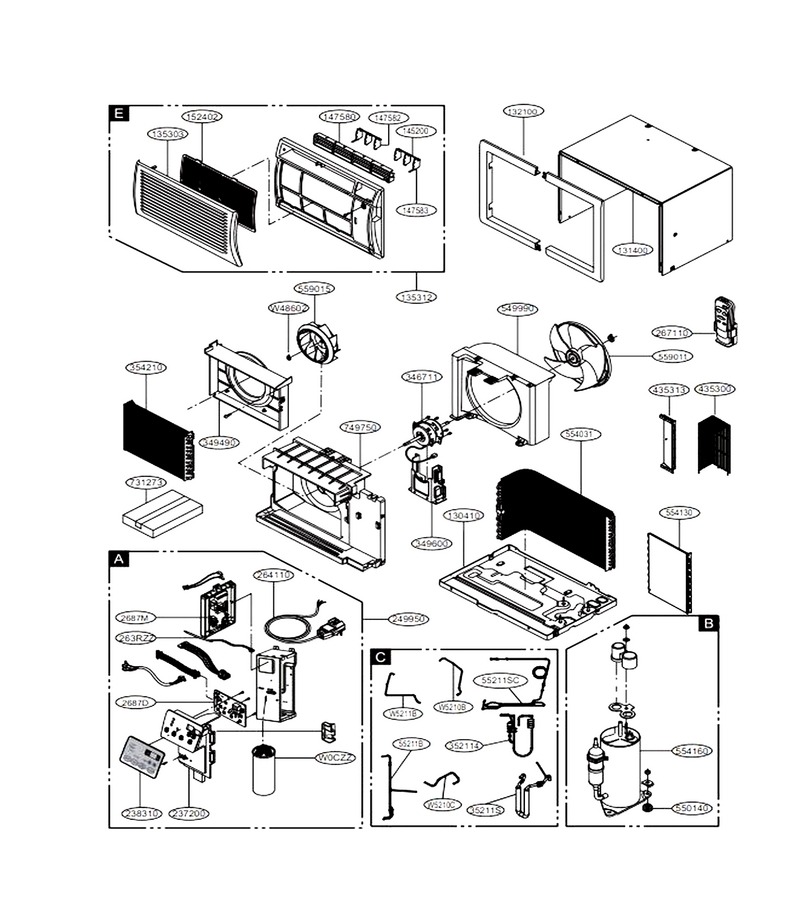

Schematic Image Zoomed
