LG LT1230CR.AWYBUSL

Model: LT1230CR.AWYBUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Dual-Motor Run Capacitor L-G-6120AR2194D
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
35211A
Suction Tube L-G-5211A21420A
...
130410
Base L-G-3041A10046C
...
131400
Cabinet L-G-3090A20017C
...
132100
Room Air Conditioner Sleeve Front Trim L-G-3210A20075A
...
135303
Room Air Conditioner Air Filter Grille L-G-3530A10272A
...
135312
Grille Asy,f L-G-3531A18004A
...
147581
Louver L-G-4758A20058A
...
147582A
Louver L-G-4758A30045B
...
147582B
Louver L-G-4758A30045A
...
147900
Barrier L-G-4790A11001A
...
149980
Shroud L-G-4998A20003A
...
152302
Room Air Conditioner Air Filter L-G-5230A20041A
...
237200
Control Panel L-G-3720A20251A
...
238310
Escutcheon L-G-3831A10037D
...
249951
Control Box L-G-4994A20080A
...
264110
Ac Power Cord Assembly L-G-6411A20048J
...
267110
(267110) Remote Controller Assembly L-G-6711A90024G
...
268711B
Display Power Board L-G-6871A20448A
...
268711A
Room Air Conditioner Electronic Control Board A... L-G-6871A01001B
...
346811
Room Air Conditioner Fan Motor L-G-4681A20041J
...
349480
Orifice L-G-4948A20045A
...
349600
Motor Mount L-G-4960A20008A
...
352113
Tube L-G-5211A21421A
...
352115
Evaporator Tube L-G-5211A29024A
...
352380
Air Guard L-G-5238A20033A
...
354210
Evaporator L-G-5421A20071G
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
435300
Rear Grille L-G-3530A30002A
...
435300A
Grille L-G-3530A30015A
...
435301
Grille L-G-3530A20101A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552113
Condenser Tube L-G-5211A20560H
...
554031
Condenser L-G-5403A20183H
...
554160
Room Air Conditioner Compressor L-G-2520UCDK020
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567480
Thermistor L-G-6323A20004S
...
731273
Part Assembly L-G-3127A20017C

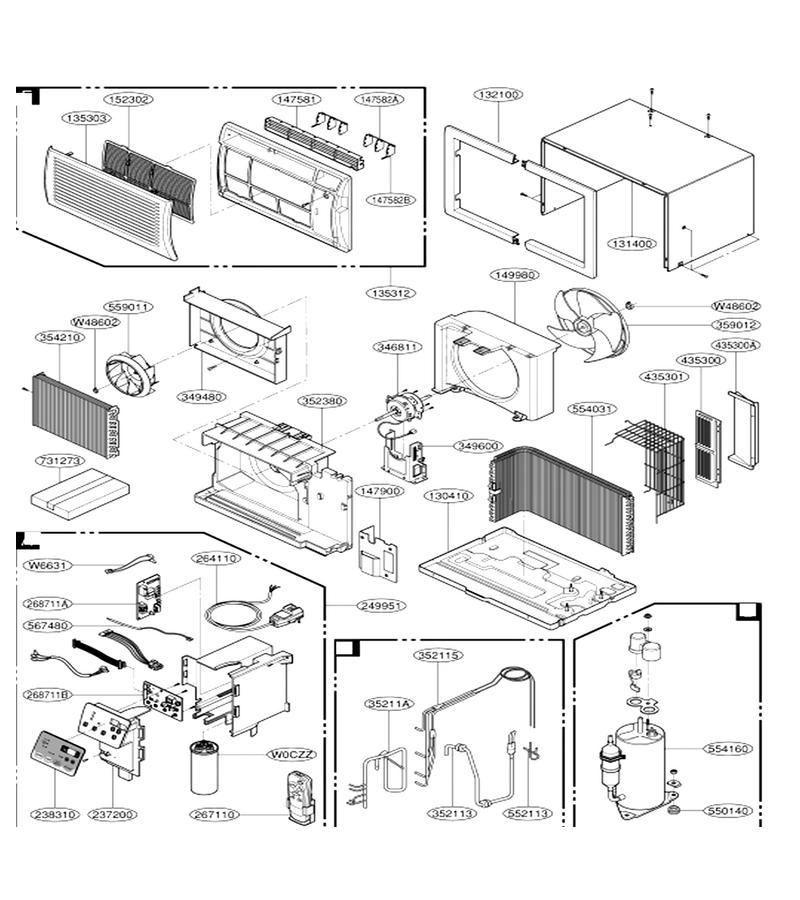

Schematic Image Zoomed
