LG LT103HNR.AWYBUSH

Model: LT103HNR.AWYBUSH

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
35211A
Tube Asy,suc L-G-5211A21428D
...
130410
Base Assembly L-G-3041A10038B
...
130900
Cabinet L-G-3090A20003E
...
132100
Room Air Conditioner Front Trim Kit L-G-4918A20001A
...
135312
Room Air Conditioner Front Grille L-G-3531A20055A
...
135313
Air Conditioner Grille Front L-G-3530A20020A
...
135500
Cover L-G-3550A20030C
...
145200
Link L-G-4520A20003A
...
147581
Louver,hor L-G-4758A20008B
...
147582-1
Vane L-G-4758A20009A
...
147582-2
Vane L-G-4758A20009B
...
148000
Brace L-G-4800A30002A
...
149980
Room Air Conditioner Condenser Fan Shroud L-G-4998A10007B
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
237200
Room Air Conditioner Electronic Control Board A... L-G-3720A10305A
...
238310
Room Air Conditioner Touchpad L-G-3831A10044B
...
249950
Case Assembly,control L-G-ABQ73187611
...
264110
Room Air Conditioner Power Cord L-G-6411A20056Q
...
267110
Room Air Conditioner Remote Control L-G-6711A20034G
...
268711-2
Pcb Diode Assembly L-G-EBR30852201
...
268711-1
Pcb Assembly,main L-G-EBR74780404
...
346811
Room Air Conditioner Fan Motor L-G-4681A20041C
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352113
Tube Asy,dis L-G-5211A21421R
...
352115
Tube Evaporator Assembly L-G-AJR33322503
...
352380
Air Guide L-G-5239A10002G
...
354210
Evap Asy,fir L-G-ADL73081801
...
359012
Turbo Fan L-G-5900A20009B
...
435300
Grille L-G-3530A30007B
...
435301
Grille L-G-MDX33964101
...
547502
Overload Protector L-G-EAF34140210
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552113
Tube Control Assembly L-G-5211A20560P
...
554031
Condenser Assembly L-G-ACG73126503
...
554160
Compressor L-G-TBZ34841401
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567480
Thermistor L-G-6323A20003F
...
731273
Part Assembly L-G-3127A20017B
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003A

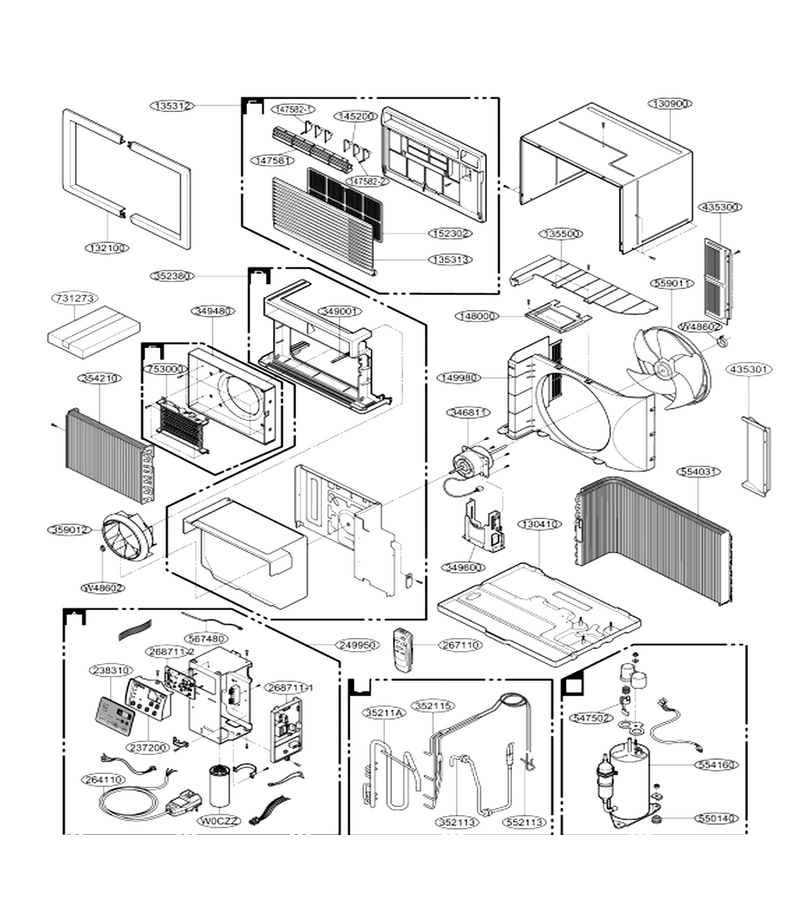

Schematic Image Zoomed
