LG LT1036HNR.AWYAUSH

Model: LT1036HNR.AWYAUSH

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
263VZZ
Thermistor L-G-6323A20003F
...
35211S
Tube Assembly,suction L-G-5211A21428S
...
55211B
Tube Assembly L-G-AJR73067805
...
130410
Base Assembly L-G-3041A10038B
...
130910
Cabinet L-G-3090A20003E
...
132100
Frame L-G-MDQ63676901
...
135301
Grille L-G-3530A20019B
...
135303
Air Conditioner Grille Front L-G-3530A20020A
...
135312
Room Air Conditioner Front Grille L-G-3531A20055A
...
145200
Link L-G-4520A20003A
...
146801
Motor,ac L-G-4681A20041U
...
147580
Louver,hor L-G-4758A20008B
...
147582
Vane L-G-4758A20009A
...
147583
Vane L-G-4758A20009B
...
148001
Brace L-G-4800A30002A
...
149980
Shroud L-G-4998A10007E
...
152402
Room Air Conditioner Air Filter L-G-5230A20007A
...
237200
Room Air Conditioner Electronic Control Board A... L-G-3720A10305A
...
238310
Escutcheon L-G-MDD62483202
...
249950
Case Assembly,control L-G-ABQ74424702
...
267110
Room Air Conditioner Remote Control L-G-6711A20066L
...
349001
Ven Damper L-G-4900A20001A
...
349491
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352114
Tube Assembly,discharge L-G-AJR74364303
...
352115
Tube Assembly,evaporator(in) L-G-AJR33322516
...
354210
Evaporator Assembly,first L-G-ADL73081803
...
435300
Grille L-G-3530A30007B
...
435313
Grille L-G-MDX33964101
...
550140
Damper,compressor L-G-MCQ62508902
...
552113
Tube Assembly L-G-5211A20560R
...
554030
Condenser Assembly,first L-G-ACG73144502
...
554031
Condenser Assembly,bending L-G-ACG73126506
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
559015
Turbo Fan L-G-5900A20009B
...
731273
Part Assembly L-G-3127A20017B
...
749750
Guide Assembly,air L-G-5239A10002J
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003A

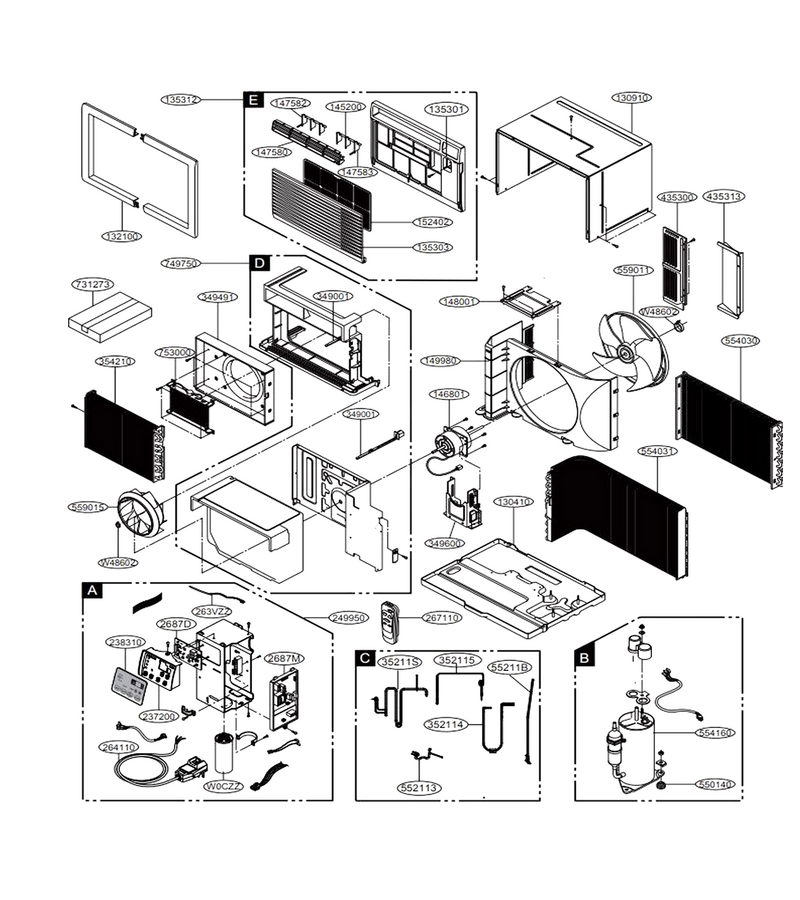

Schematic Image Zoomed
