LG LT101CNR.AWYBUSL

Model: LT101CNR.AWYBUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20007A
...
35211A
Tube Assembly,suction L-G-5211A21428C
...
130410
Base Assembly,single L-G-AAN73212102
...
130900
Cabinet L-G-3090A20017K
...
132100
Room Air Conditioner Sleeve Front Trim L-G-3210A20075A
...
135303
Room Air Conditioner Air Filter Grille L-G-3530A10272A
...
135312
Room Air Conditioner Front Grille L-G-3531A18004C
...
147581
Louver L-G-4758A20058A
...
147582-1
Louver L-G-4758A30045A
...
147582-2
Louver L-G-4758A30045B
...
149980
Shroud L-G-4998A20003A
...
152302
Room Air Conditioner Air Filter L-G-5230A20041A
...
237200
Room Air Conditioner Electronic Control Board L-G-MGC35987201
...
238310
Escutcheon L-G-3831A10037D
...
249950
Case Assembly,control L-G-ABQ73966102
...
264110
Room Air Conditioner Power Cord L-G-6411A20056T
...
267110
Room Air Conditioner Remote Control L-G-6711A20034G
...
268711-1
Pcb Assembly,main L-G-EBR74780301
...
268711-2
Room Air Conditioner Display Board L-G-EBR30852301
...
346811
Room Air Conditioner Fan Motor L-G-4681A20041K
...
349480
Orifice L-G-4948A20045A
...
349600
Motor Mount L-G-4960A20008A
...
352113
Tube Assembly,discharge L-G-5211A21421S
...
352115
Tube Assembly,evaporator(in) L-G-5211A29024M
...
352380
Guide Assembly,air L-G-AEC73117403
...
354210
Evap Asy,fir L-G-ADL73081801
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
435300
Grille L-G-3530A20101A
...
435301
Grille L-G-MDX33964101
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552113
Tube Assembly,condenser(out) L-G-5211A20560N
...
554031
Condenser Assembly,bending L-G-ACG73126502
...
554160
Compressor Set,china L-G-TBZ34841501
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567480
Thermistor L-G-6323A20004S
...
567502
Overload L-G-EAF34140246
...
731273
Installation Part L-G-3127A20017E

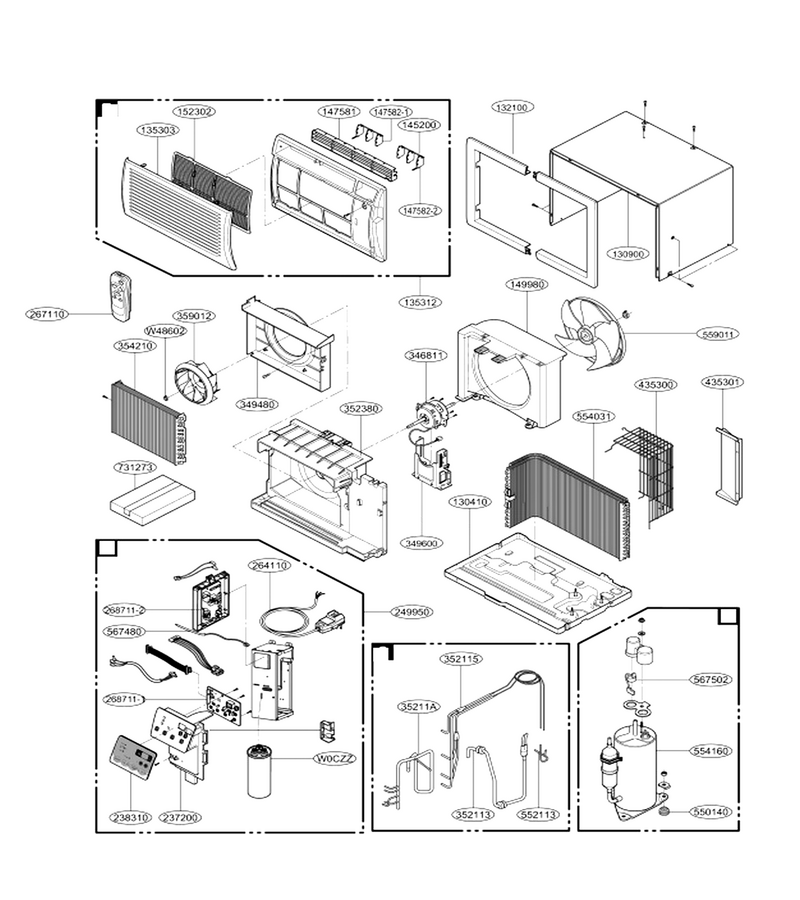

Schematic Image Zoomed
