product name

LG LT0810C.AWYBUSL

Model: LT0810C.AWYBUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
35211A
Tube, Assembly, Suction L-G-5211A20498D
...
130410
Base Assembly L-G-3041A10014X
...
131400
Cabinet L-G-3090A20003B
...
135303
Air Conditioner Grille Front L-G-3530A20020A
...
135312
Room Air Conditioner Front Grille L-G-3531A20055A
...
137215
Panel Assembly L-G-3721A20049A
...
147581
Louver,hor L-G-4758A20008B
...
147582A
Vane L-G-4758A20009A
...
147582B
Vane L-G-4758A20009B
...
147900
Barrier L-G-4790A20024B
...
148000
Brace L-G-4800A30002A
...
149410
Room Air Conditioner Control Knob L-G-4941A30005B
...
149980
Room Air Conditioner Condenser Fan Shroud L-G-4998A10007B
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
249950
Control Case Assembly L-G-4995A20408A
...
264110
Ac Power Cord Assembly L-G-2H00677R
...
266003
Rotary Switch L-G-2H00598E
...
269300
Room Air Conditioner Thermostat L-G-2H01109M
...
330720
Scroll L-G-3072A20003B
...
346811
Fan Motor L-G-4681A20044H
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352113
Discharge Tube Assembly L-G-5211A30588G
...
352390
Air Guide L-G-5239A10002E
...
354210
Evaporator Assembly, First L-G-5421A90037B
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
435300
Rear Grille L-G-3530A30002A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Capillary Tube Assembly L-G-5211A20214R
...
554031
Condenser L-G-5403A20040R
...
554160
Compressor L-G-5416A90007D
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567502
O.l.p L-G-6750A30001N
...
749180
Room Air Conditioner Front Trim Kit L-G-4918A20001A

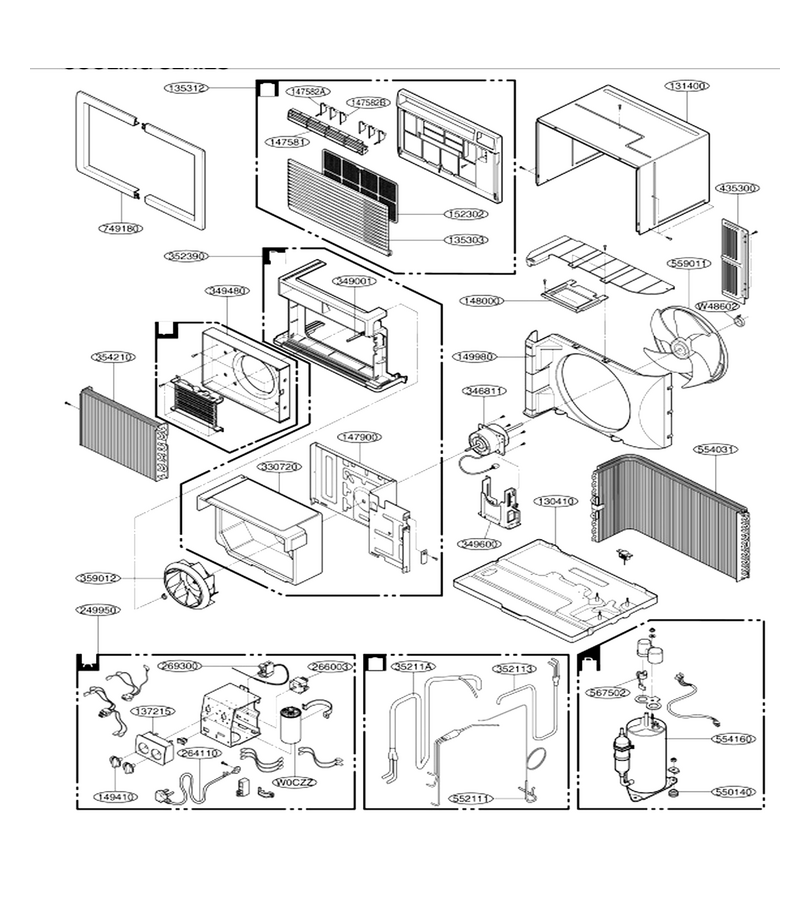

Schematic Image Zoomed
