LG LSXS26386S.ASTCNA4

Model: LSXS26386S.ASTCNA4

Save Part Not Listed?
product name

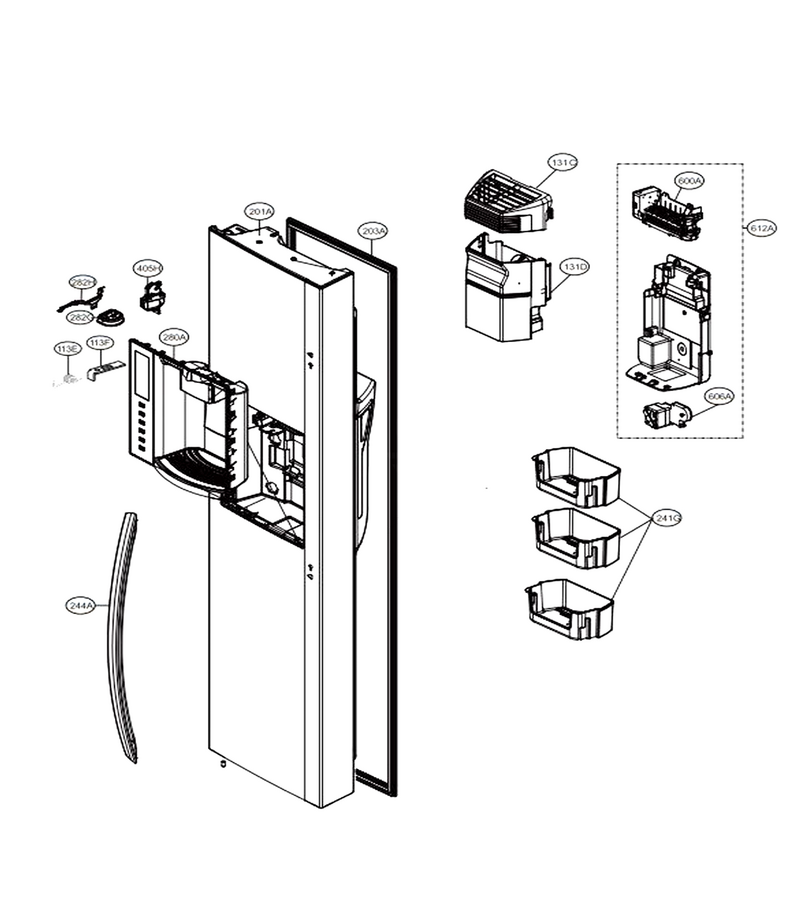

Freezer Door

...
...
113E
Refrigerator Spring L-G-4970JA3011K
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
201A
Door Foam Assembly,freezer L-G-ADD74296446
...
244A
Handle Assembly,refrigerator L-G-AED74732905
...
282G
Cap Assembly,duct L-G-ABN72938908
...
282H
Refrigerator Dispenser Lever L-G-MFC62009501
...
405H
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
600A
Ice Maker Assembly,kit L-G-AEQ73209906
...
612A
Motor, Ac Dispenser L-G-EAU61004412

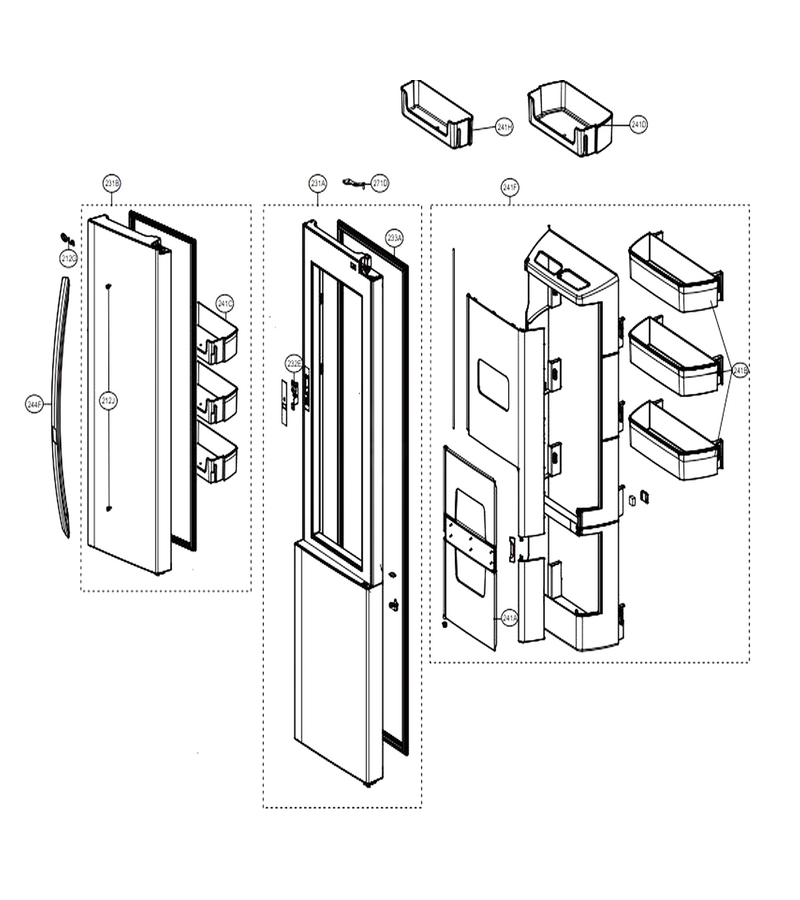

Refrigerator Door

...
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
231A
Door Foam Assembly,refrigerator L-G-ADD74296506
...
232E
Holder Assembly,bracket L-G-AEJ73440302
...
241C
Basket,door L-G-MAN63109301
...
244F
Handle Assembly,refrigerator L-G-AED74732906
...
271D
Hinge Assembly,upper L-G-AEH72957210

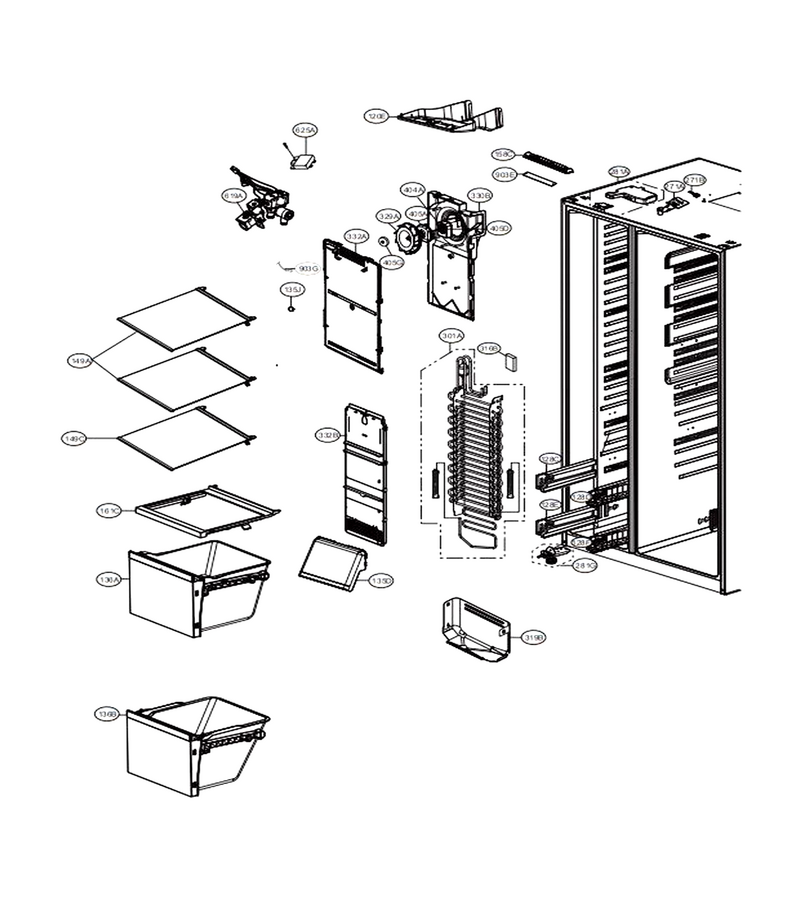

Freezer Compartment

...
...
128F
Guide,rail L-G-MEA64670802
...
128E
Guide,rail L-G-MEA64670801
...
128C
Guide,rail L-G-MEA64670701
...
128D
Guide,rail L-G-MEA64670702
...
135J
Refrigerator Duct Cap L-G-5006JA3123A
...
158C
Cover,led L-G-MCK63331702
...
271A
Hinge Assembly,upper L-G-AEH74176704
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ87309247
...
281G
Hinge Assembly,lower L-G-AEH75176311
...
301A
Evaporator Assembly L-G-ADL73901318
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Tray Assembly,drain L-G-AJP73014604
...
329A
Fan Assembly L-G-ADP74753501
...
330B
Shroud,freezer L-G-MHN61882004
...
332A
Grille Assembly,fan L-G-AEB75404501
...
332B
Grille Assembly,fan L-G-AEB72984718
...
404A
Motor,dc L-G-EAU63103201
...
405A
Bracket,motor L-G-MAZ65353201
...
405D
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
619A
Valve Assembly,water L-G-AJU34125568
...
625A
Cover,tube L-G-MCK69290701
...
903E
Led Assembly L-G-EAV61875814
...
903G
Sensor,temperature L-G-6500JB1008D

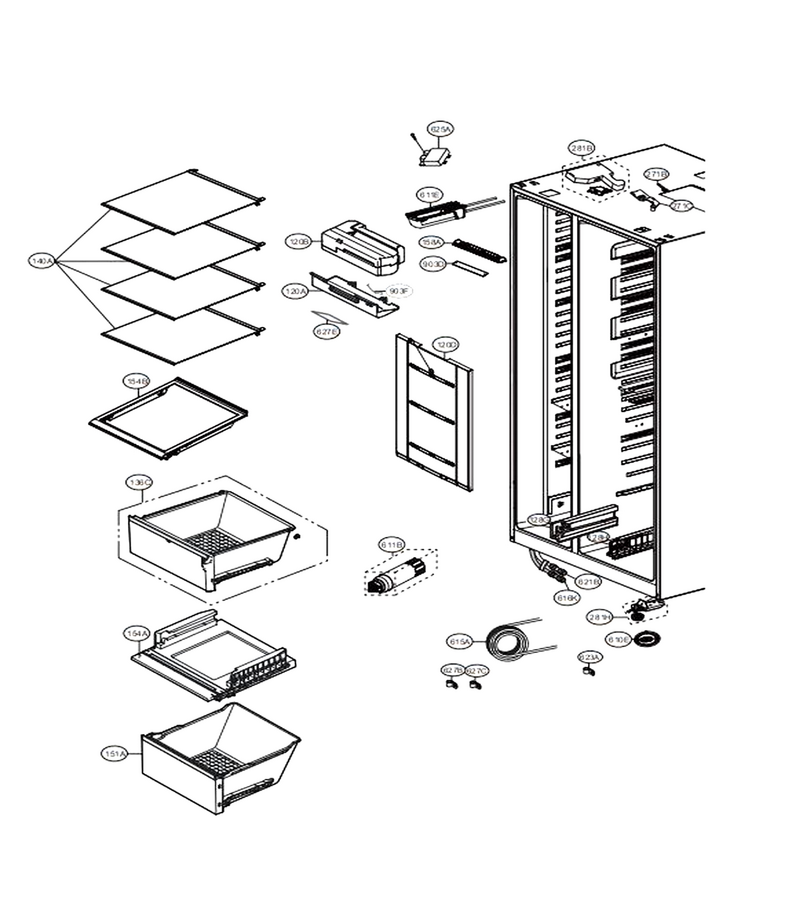

Refrigerator Compartment

...
...
120D
Duct Assembly,multi L-G-ADJ73012206
...
128G
Guide,rail L-G-MEA64710402
...
128H
Guide,rail L-G-MEA64710401
...
140A
Shelf Assembly,refrigerator L-G-AHT73493833
...
158A
Cover,led L-G-MCK63331802
...
271C
Hinge Assembly,upper L-G-AEH73957102
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281B
Cover Assembly,hinge L-G-ACQ87309246
...
281H
Hinge Assembly,lower L-G-AEH75176202
...
610E
Cover,sensor L-G-3550JQ2073E
...
611B
Refrigerator Water Filter L-G-ADQ73613401
...
615A
Refrigerator Water Tank L-G-MJM61904704
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Cover,tube L-G-MCK69290701
...
627B
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627E
Gasket,foam L-G-5400JA2042N
...
627C
Refrigerator Band L-G-4770JA3001B
...
903D
Led Assembly L-G-EAV61875815
...
903F
Sensor,temperature L-G-6500JB2008Z

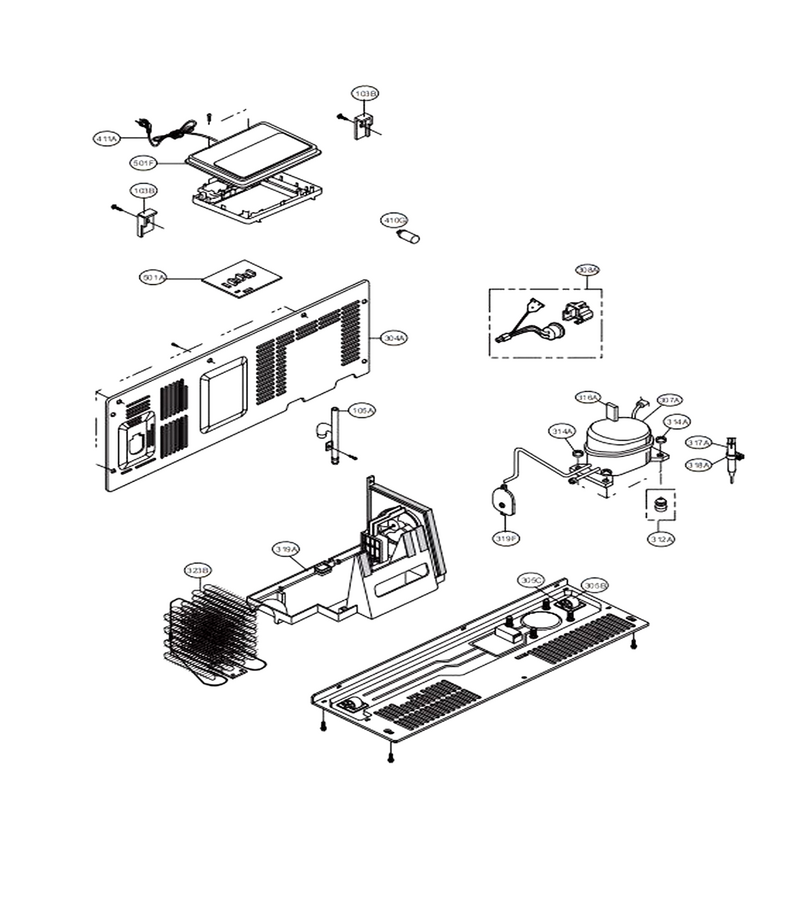

Machine Compartment

...
...
105A
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
304A
Cover Assembly,machinery(rear) L-G-ACQ86284806
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA36691603
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
318A
Drier Holder L-G-MEG64900401
...
319A
Tray,drip L-G-MJS61873304
...
319F
Guide Assembly,fan L-G-AEC74777701
...
410G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
411A
Power Cord Assembly L-G-EAD61857359
...
501A
Pcb Assembly,main L-G-EBR87145143
...
501F
Cover Assembly,pcb L-G-ACQ85612409
