product name

LG LSXC22426S.ASTCNA7

Model: LSXC22426S.ASTCNA7

Save Part Not Listed?

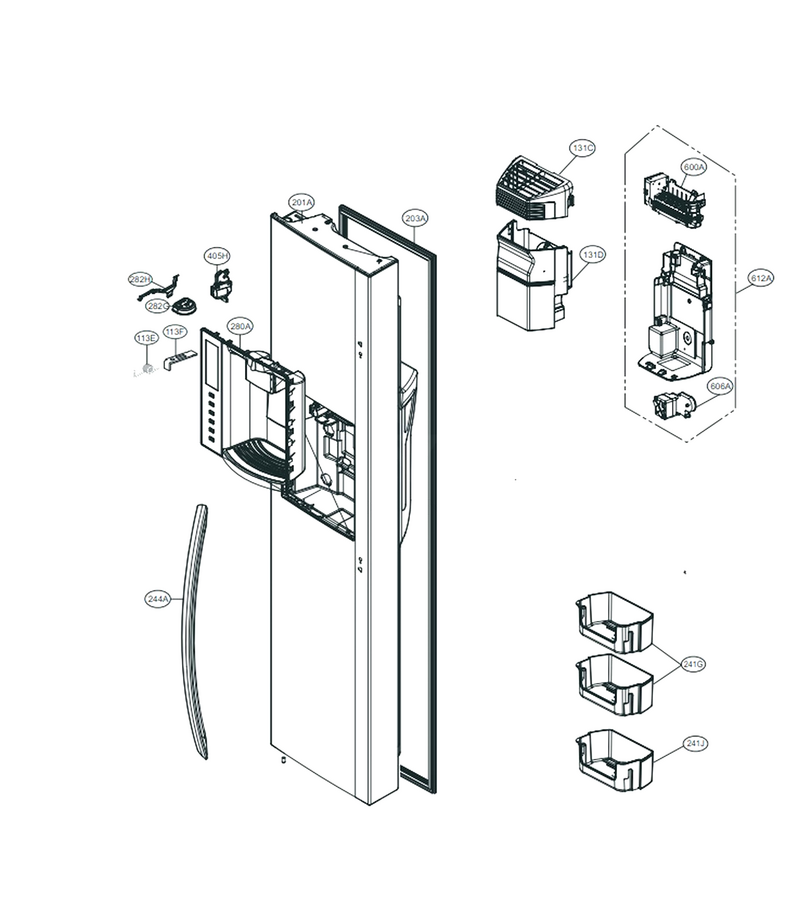

product name

Freezer Door

...
...
113E
Refrigerator Spring L-G-4970JA3011K
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
201A
Door Foam Assembly,freezer L-G-ADD76256123
...
241J
Basket,door L-G-MAN62569801
...
244A
Handle Assembly,refrigerator L-G-AED74732905
...
280A
Cover Assembly,display L-G-ACQ87270829
...
282G
Cap Assembly,duct L-G-ABN72938908
...
282H
Refrigerator Dispenser Lever L-G-MFC62009501
...
405H
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
600A
Ice Maker Assembly,kit L-G-AEQ73209906
...
612A
Motor, Ac Dispenser L-G-EAU61004412

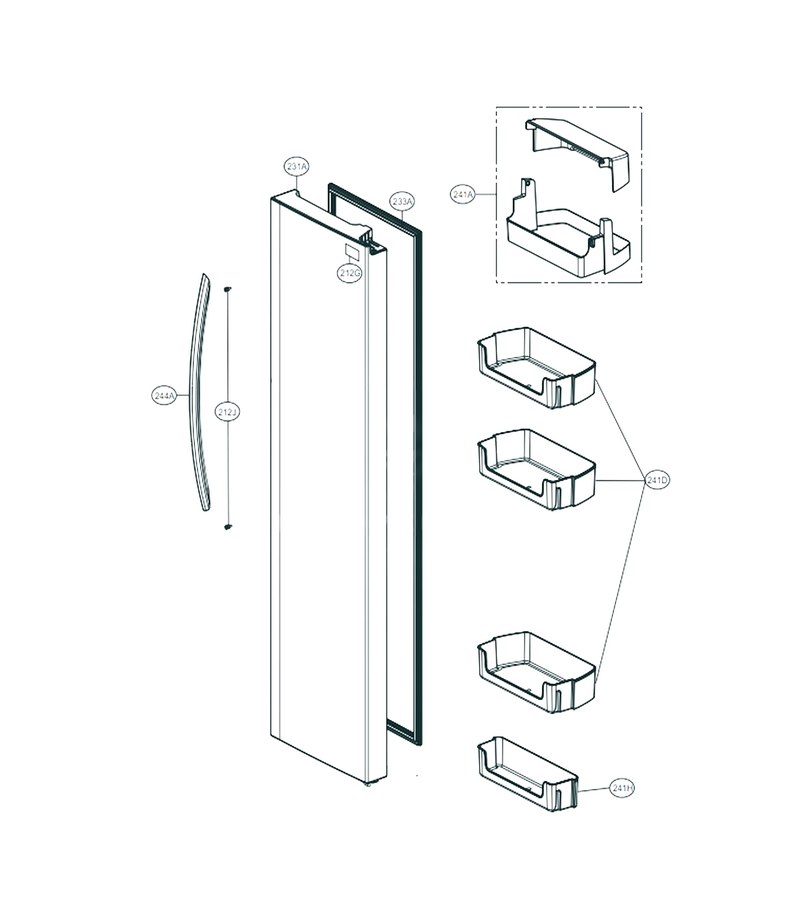

Refrigerator Door

...
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
231A
Door Foam Assembly,refrigerator L-G-ADD74296608
...
241A
Basket Assembly,door L-G-AAP74211301
...
244A
Handle Assembly,refrigerator L-G-AED74732905

Freezer Compartment

...
...
120E
Duct Assembly,multi L-G-ADJ73152216
...
128C
Guide,rail L-G-MEA63033301
...
128D
Guide,rail L-G-MEA63033302
...
128E
Guide,rail L-G-MEA63033401
...
128F
Guide,rail L-G-MEA63033402
...
135J
Refrigerator Duct Cap L-G-5006JA3123A
...
136B
Tray Assembly,drawer L-G-AJP73595169
...
136A
Tray Assembly,drawer L-G-AJP73595168
...
149A
Shelf Assembly,freezer L-G-AHT73493941
...
149C
Shelf Assembly,freezer L-G-AHT73493943
...
154C
Cover Assembly,tray L-G-ACQ85968603
...
158C
Led Cover L-G-MCK63331704
...
161C
Cover Assembly,tray L-G-ACQ76211724
...
271A
Hinge Assembly,upper L-G-AEH75957301
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ87309240
...
281G
Hinge Assembly,lower L-G-AEH75176202
...
301A
Evaporator Assembly L-G-ADL73901333
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Tray Assembly,drain L-G-AJP73014604
...
329A
Fan Assembly L-G-ADP74753501
...
330B
Shroud,freezer L-G-MHN61882004
...
332A
Grille Assembly,fan L-G-AEB75404501
...
332B
Grille Assembly,fan L-G-AEB72984718
...
404A
Motor,dc L-G-EAU63103201
...
405A
Bracket,motor L-G-MAZ65353201
...
405D
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
619A
Valve Assembly,water L-G-AJU34125567
...
625A
Cover,tube L-G-MCK69290701
...
903G
Sensor,temperature L-G-6500JB1008D
...
903E
Led Assembly L-G-EAV61875814

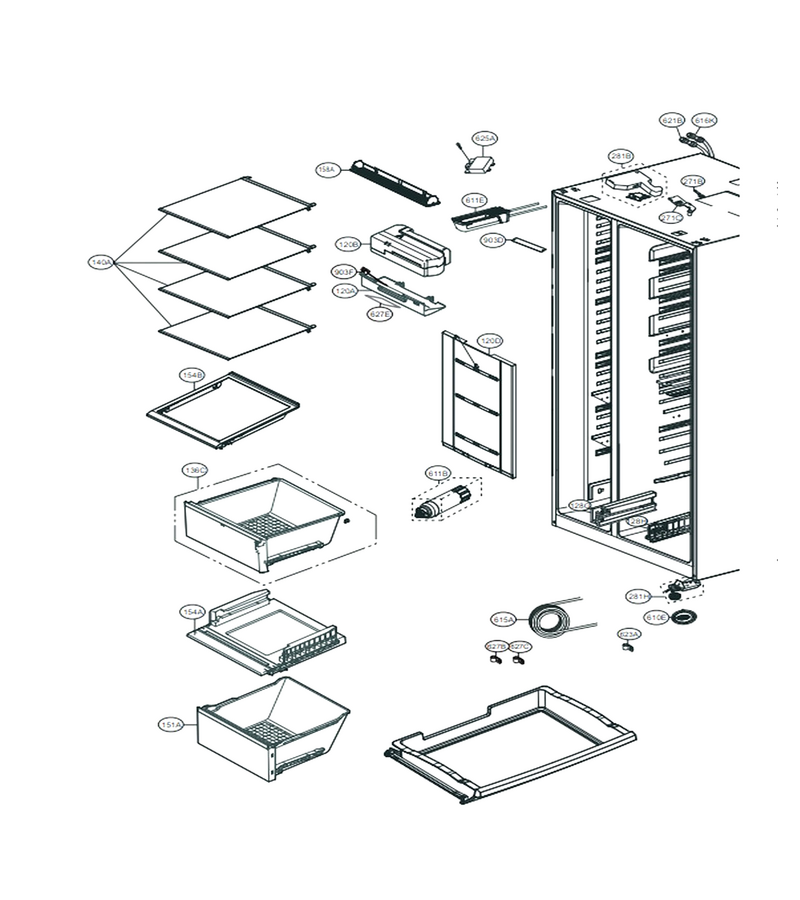

Refrigerator Compartment

...
...
128G
Guide,rail L-G-MEA63110002
...
128H
Guide,rail L-G-MEA63110001
...
136C
Tray Assembly,drawer L-G-AJP73815125
...
140A
Shelf Assembly,refrigerator L-G-AHT73493838
...
151A
Tray Assembly,vegetable L-G-AJP73595019
...
154A
Cover Assembly,tray L-G-ACQ85968602
...
154B
Cover Assembly,tv L-G-ACQ76008430
...
158A
Led Cover L-G-MCK63331804
...
271C
Hinge Assembly,upper L-G-AEH73957102
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281B
Cover Assembly,hinge L-G-ACQ87309239
...
281H
Hinge Assembly,lower L-G-AEH75176304
...
610E
Cover,sensor L-G-3550JQ2073E
...
611B
Refrigerator Water Filter L-G-ADQ73613401
...
615A
Tank,water L-G-MJM61904708
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
625A
Cover,tube L-G-MCK69290701
...
627E
Gasket,foam L-G-MDS67110105
...
627B
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627C
Refrigerator Band L-G-4770JA3001B
...
903D
Led Assembly L-G-EAV61875815
...
903F
Sensor,temperature L-G-6500JB2008Z

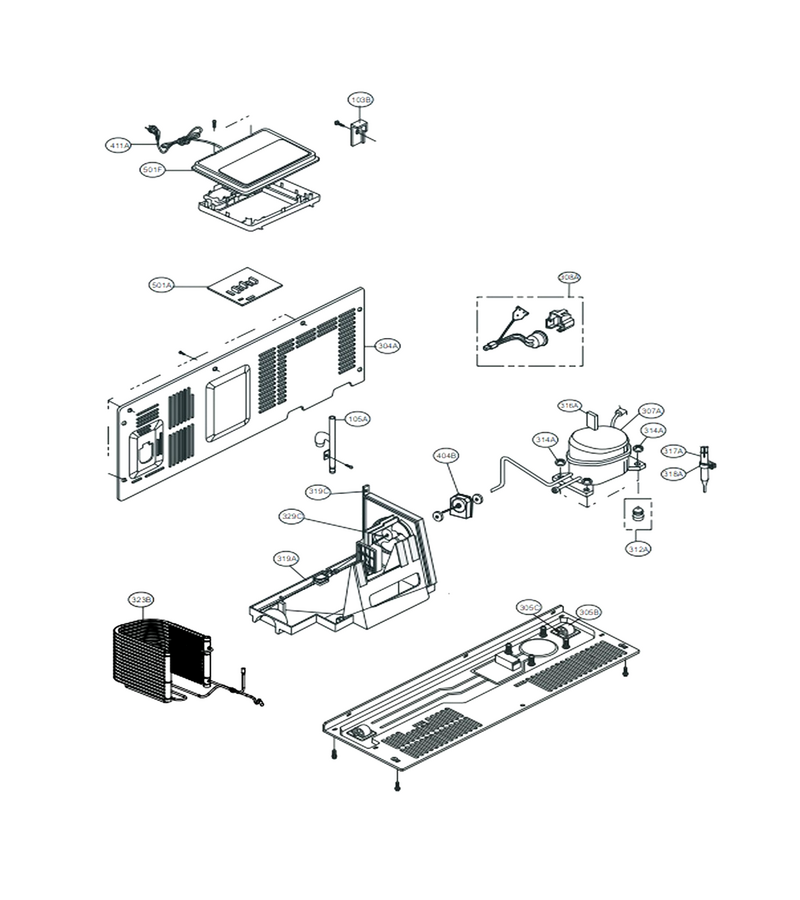

Machine Compartment

...
...
105A
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
304A
Cover Assembly,machinery(rear) L-G-ACQ86284807
...
305B
Roller L-G-4580JJ3001G
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Set Assembly Compressor L-G-TCA36811415
...
308A
Ptc Thermistor Assembly L-G-EBG63205819
...
312A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Drier Assembly L-G-ADH73590310
...
318A
Drier Holder L-G-MEG64900401
...
319A
Tray,drip L-G-MJS65315101
...
319C
Guide,fan L-G-MEA42773102
...
323B
Condenser Assembly,wire L-G-ACG76384503
...
329C
Fan Assembly L-G-ADP73273401
...
404B
Motor,dc L-G-EAU63103301
...
411A
Power Cord Assembly L-G-EAD61857359
...
501A
Main Pcb Assembly L-G-EBR31600159
...
501F
Cover Assembly,pcb L-G-ACQ85612409
