LG LSU307HV3.AWHBEUS

Model: LSU307HV3.AWHBEUS

Save Part Not Listed?

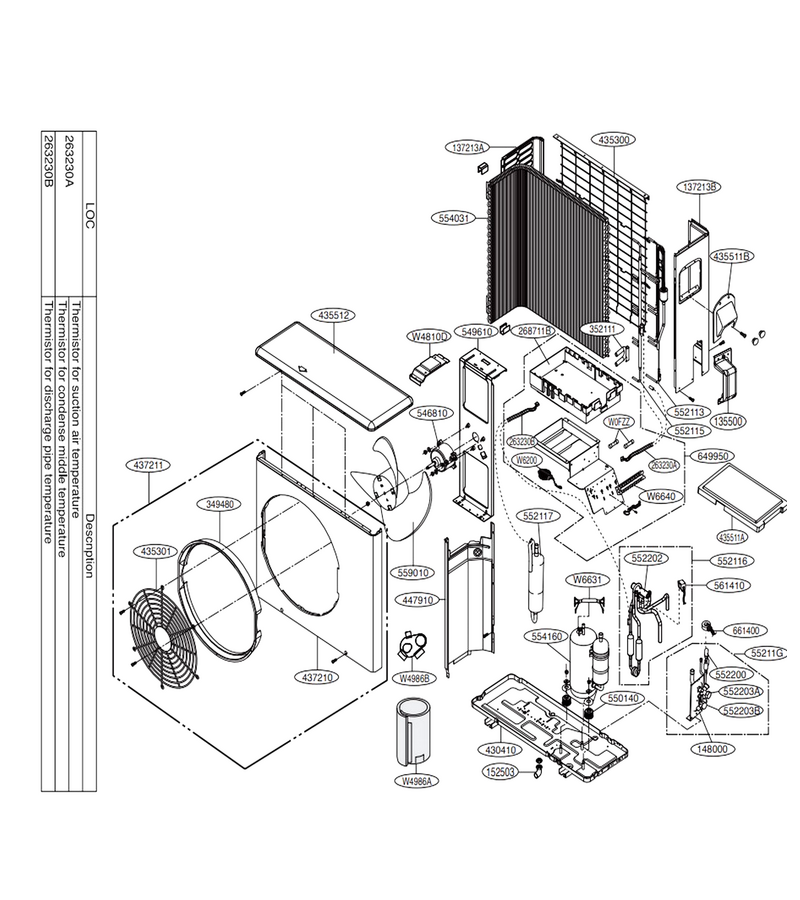

product name

Outdoor Unit

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W4810D
Bracket L-G-3A01934B
...
W4986A
Gasket L-G-3096A20018A
...
W4986B
Sound Proof L-G-3096AP3476L
...
W6200
Filter,line Noise L-G-EAM38878005
...
W6631
Harness,multi L-G-EAD57999875
...
55211G
Tube Assembly,expansion L-G-AJR71433301
...
135500
Cover L-G-MCK47976001
...
137213A
Panel Assembly,side L-G-AGL70858107
...
137213B
Panel Assembly,side L-G-AGL70857204
...
263230A
Thermistor Assembly,ntc L-G-EBG61107024
...
263230B
Thermistor Assembly,ntc L-G-EBG61109832
...
268711B
Pcb Assembly,main L-G-EBR77097410
...
430410
Base Assembly,outdoor L-G-AAN73130015
...
435300
Grille,rear L-G-MDX59045504
...
435301
Grille,discharge L-G-MDX61846201
...
435511A
Cover Assembly,control(outdoor) L-G-3551A30162L
...
435511B
Cover Assembly,control(outdoor) L-G-ACQ36712504
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437210
Panel Assembly,front(sub) L-G-1A00197D
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105644
...
447910
Barrier Assembly,outdoor L-G-AAM34710911
...
546810
Motor Assembly,dc,outdoor L-G-4681A20172K
...
549610
Bracket Assembly,motor L-G-ABA32344701
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552113
Tube Assembly,condenser(out) L-G-AJR34565811
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR34739801
...
552116
Tube Assembly,reverse L-G-AJR71429420
...
552117
Tube Assembly,suction(outdoor) L-G-AJR71429318
...
552202
Valve,reverse L-G-5220AR3228W
...
554031
Condenser Assembly,bending L-G-5403A20070W
...
554160
Compressor Set,korea L-G-TBZ35620401
...
559010
Fan,propeller L-G-MDG37708601
...
649950
Case Assembly,control(outdoor) L-G-ABQ75520103
...
661400
Coil,expansion L-G-6141A30003M
