LG LSU303HLV3.AK3GEUS

Model: LSU303HLV3.AK3GEUS

Save Part Not Listed?
product name

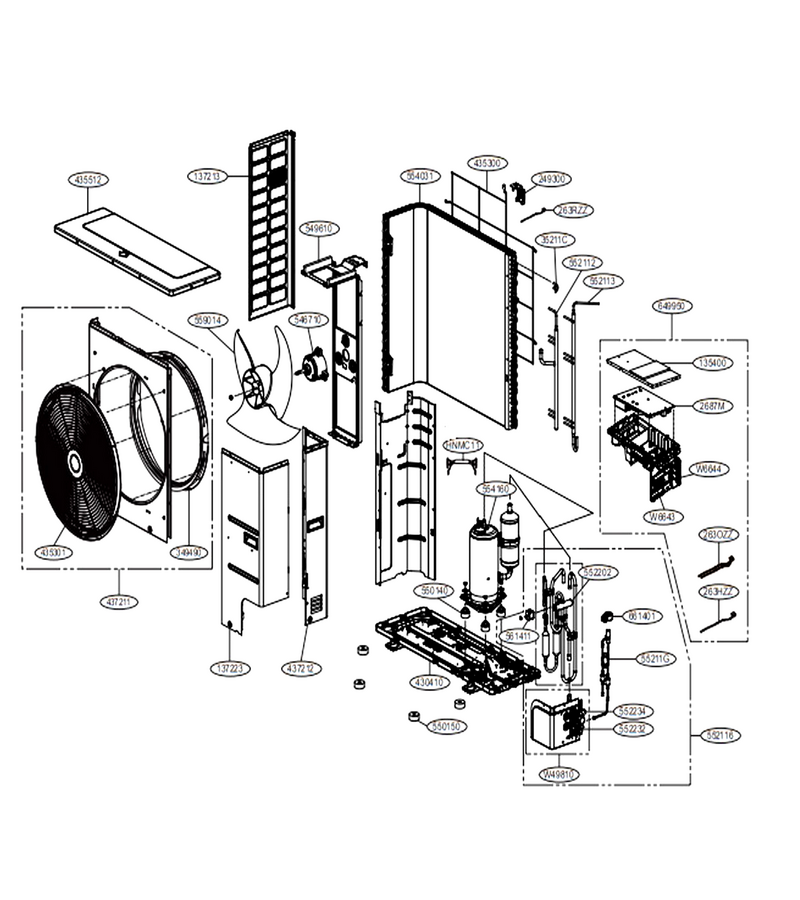

Main

...
...
HNMC11
Harness,multi L-G-EAD57999873
...
W49810
Supporter Assembly L-G-AJJ73040828
...
W6643
Connector,terminal Block L-G-EAG38884401
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61285807
...
263OZZ
Thermistor Assembly,ntc L-G-EBG62805801
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61106852
...
2687M
Pcb Assembly,main L-G-EBR85104034
...
35211C
Tube Assembly,connector L-G-5211A20349Z
...
55211G
Tube Assembly,expansion L-G-AJR71433341
...
135400
Cover Assembly L-G-ACQ89178802
...
137213
Panel Assembly,side L-G-AGL72909301
...
137223
Panel Assembly,side L-G-AGL72909478
...
249300
Holder,sensor L-G-MEG63259001
...
349490
Orifice L-G-MFX63082101
...
430410
Base Assembly,outdoor L-G-AAN34062062
...
435300
Grille,rear L-G-MDX61843724
...
435301
Grille,discharge L-G-MDX64291902
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131827
...
437211
Panel Assembly,front(outdoor) L-G-AGL72770339
...
437212
Panel Assembly,rear(outdoor) L-G-AGL72910405
...
546710
Motor Assembly,dc,outdoor L-G-EAU62543701
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA74032411
...
550140
Isolator L-G-5014A20003A
...
552112
Tube Assembly,condenser(in) L-G-AJR74444501
...
552113
Tube Assembly,condenser(out) L-G-AJR74444603
...
552116
Tube Assembly,reverse L-G-AJR76523012
...
552202
Valve,reverse L-G-5220AR3228W
...
552232
Valve,service L-G-MJX62472202
...
552234
Valve,service L-G-MJX62472101
...
554031
Condenser Assembly,bending L-G-ACG74824502
...
554160
Compressor Set,korea L-G-TBZ36114801
...
559014
Fan,propeller L-G-MDG62002901
...
561411
Drawing,assembly L-G-6877A20052V
...
649950
Case Assembly,control(outdoor) L-G-ABQ76700319
...
661401
Coil,expansion L-G-EAP63107118
