product name

LG LSU242HE.AWHBEUS

Model: LSU242HE.AWHBEUS

Save Part Not Listed?
product name

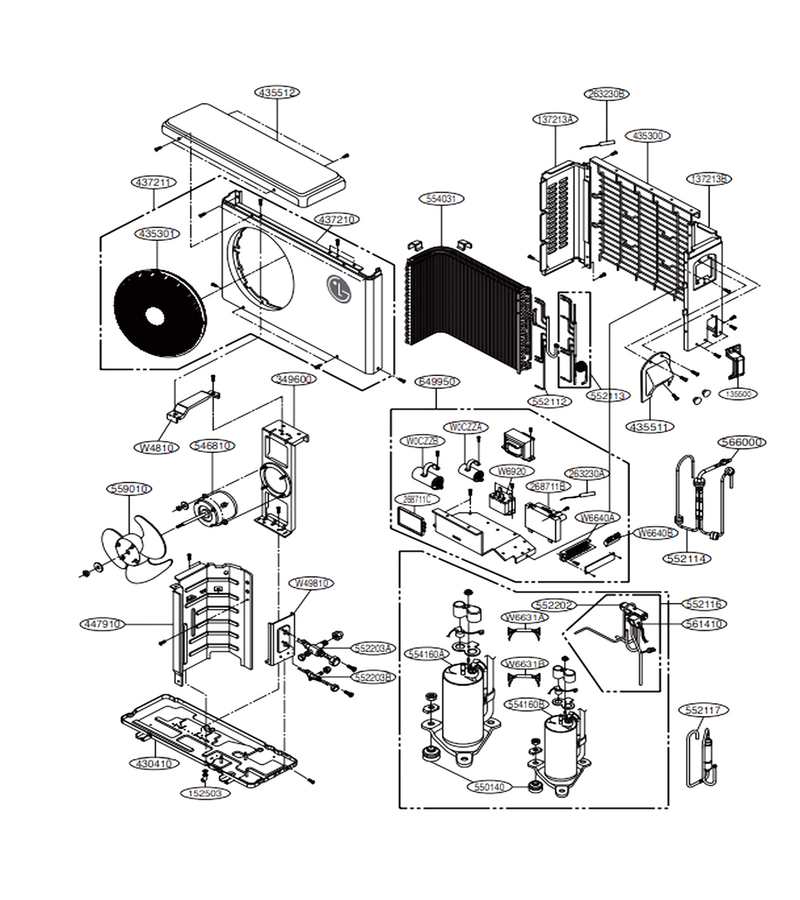

Outdoor Unit

...
...
W0CZZA
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Connector, Terminal Block L-G-6640AP9107C
...
W6631B
Multi Harness L-G-6863AP3980S
...
W49810
Supporter, Valve L-G-4980A20001B
...
W4810
Bracket L-G-3A01934B
...
W0CZZB
Room Air Conditioner Fan Motor Capacitor L-G-3A00988B
...
W6631A
Multi Harness L-G-6863AP3980U
...
135500
Cover L-G-MCK47976001
...
137213A
Panel Assembly,side L-G-AGL70858107
...
137213B
Panel Assembly,side L-G-3721A10150E
...
152503
Nipple,drain L-G-4H01010A
...
263230A
Thermistor Assembly,ntc L-G-EBG61106528
...
263230B
Thermistor Assembly,ntc L-G-EBG61107009
...
268711B
Room Air Conditioner Display Board L-G-6871A10184F
...
268711C
Main Pcb Assembly L-G-6871A20522C
...
349600
Motor Mount L-G-1A00206B
...
430410
Base Assembly, Outdoor L-G-AAN73130003
...
435300
Grill, Rear L-G-MDX59045502
...
435301
Grille,discharge L-G-MDX63212101
...
435511
Cover Assembly, Control (outdoor) L-G-3551A10005G
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019507
...
437210
Panel Assembly,front(sub) L-G-1A00197F
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105637
...
447910
Barrier Assembly,outdoor L-G-4791A30004F
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20008E
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly, Condenser (in) L-G-5211A34007A
...
552113
Tube Assembly, Condenser (out) L-G-5211A34008C
...
552114
Tube Assembly, Discharge (outdoor) L-G-5211A25045C
...
552116
Tube Assembly, Reverse L-G-5211A24108B
...
552117
Tube Assembly, Suction (outdoor) L-G-5211A25046B
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Service Valve L-G-5220A20013D
...
552203B
Service Valve L-G-5220A20005C
...
554031
Condenser Assembly, Bending L-G-5403A20066F
...
554160A
Compressor Set, Korea L-G-2520UGHK2AA
...
554160B
Compressor Set, Korea L-G-2520UGKK2AA
...
559010
Fan Assembly L-G-1A00195B
...
561410
Solenoid L-G-6141A20017D
...
566000
Service Valve L-G-6600L000013
...
649950
Case Assembly, Control (outdoor) L-G-4995A20383L
