product name

LG LSU240HEV2.AT3GEUS

Model: LSU240HEV2.AT3GEUS

Save Part Not Listed?
product name

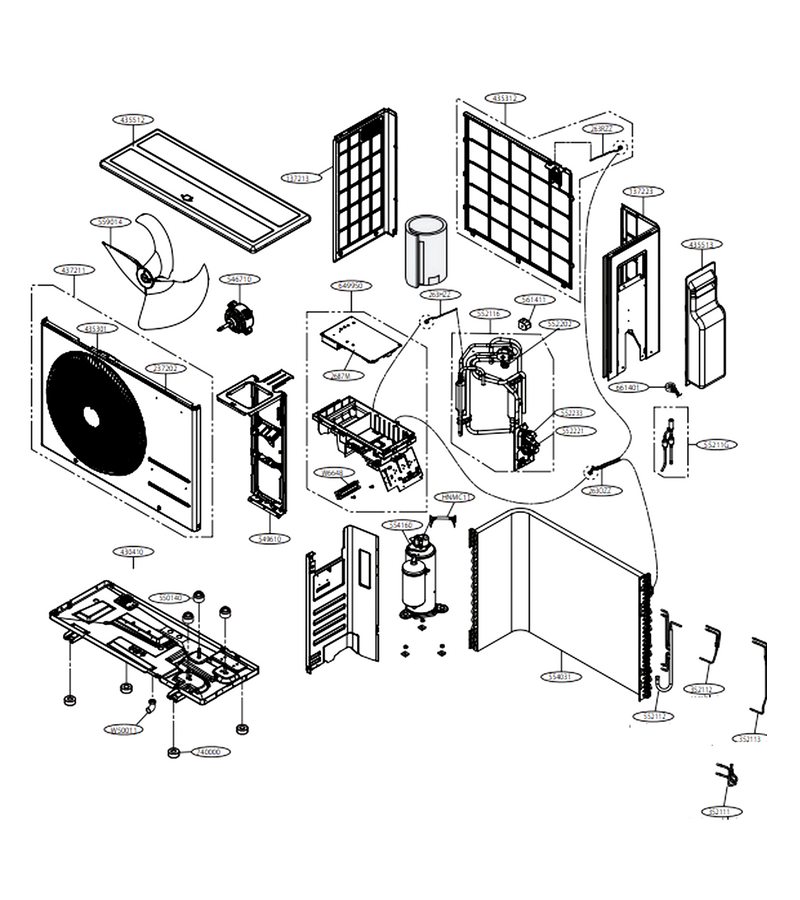

Outdoor Unit

...
...
HNMC11
Harness,multi L-G-EAD57999873
...
W50011
Accessory Assembly,outdoor L-G-AAA74469708
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61285812
...
263OZZ
Thermistor Assembly,ntc L-G-EBG62805802
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61106852
...
2687M
Pcb Assembly,main L-G-EBR87542807
...
55211G
Tube Assembly,expansion L-G-AJR75605821
...
137213
Panel Assembly,side L-G-AGL75492908
...
137223
Panel Assembly,side L-G-AGL75674117
...
237202
Panel,front L-G-MGC64419401
...
352111
Tube Assembly,connector L-G-AJR74862904
...
352112
Tube Assembly,connector L-G-AJR74862903
...
352113
Tube Assembly,connector L-G-AJR74862902
...
430410
Base Assembly,outdoor L-G-AAN75630618
...
435301
Grille,discharge L-G-MDX63971901
...
435312
Grille Assembly,rear(outdoor) L-G-AEB74924911
...
435512
Cover Assembly,top(outdoor) L-G-ACQ88886204
...
435513
Cover Assembly,tubing L-G-ACQ88651617
...
437211
Panel Assembly,front(outdoor) L-G-AGL75493004
...
546710
Motor Assembly,dc,outdoor L-G-EAU60905414
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA76108301
...
550140
Isolator L-G-5014A20003A
...
552112
Tube Assembly,condenser(in) L-G-AJR75743204
...
552116
Tube Assembly,reverse L-G-AJR76502708
...
552202
Valve,reverse L-G-5220AR3228W
...
552221
Service Valve L-G-2H02479J
...
552233
Service Valve L-G-5220A20006J
...
554031
Condenser Assembly,bending L-G-ACG75244611
...
554160
Compressor Set,china L-G-TBZ37378701
...
559014
Fan,propeller L-G-MDG63102801
...
561411
Drawing,assembly L-G-6877A20052V
...
649950
Case Assembly,control(outdoor) L-G-ABQ76621414
...
661401
Coil,expansion L-G-EAP63107118
...
740000
Package Assembly L-G-AGF76411102
