LG LSU240HEV1.ANWBEUS

Model: LSU240HEV1.ANWBEUS

Save Part Not Listed?
product name

Main

...
...
W49810
Supporter Assembly L-G-AJJ74158908
...
55211G
Tube Assembly,expansion L-G-AJR75142401
...
135500
Cover L-G-MCK47976001
...
237202
Panel,front L-G-MGC63039301
...
261704
Transformer,reactor L-G-EBJ36274419
...
349600
Bracket,motor L-G-MAZ62861501
...
430410
Base Assembly,outdoor L-G-AAN74033304
...
435301
Grille,discharge L-G-MDX62852701
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019510
...
437211
Panel Assembly,front(outdoor) L-G-AGL36687047
...
437212
Panel Assembly,rear(outdoor) L-G-AGL36636817
...
550140
Isolator L-G-5014A20003A
...
552112
Tube Assembly,condenser(in) L-G-AJR75645701
...
552113
Tube Assembly,condenser(out) L-G-AJR75645801
...
552116
Tube Assembly,reverse L-G-AJR75104402
...
552202
Valve,reverse L-G-5220AR3228W
...
554031
Condenser Assembly,bending L-G-ACG74784704
...
554160
Compressor Set,china L-G-TBZ36154301
...
649950
Case Assembly,control(outdoor) L-G-ABQ73841330

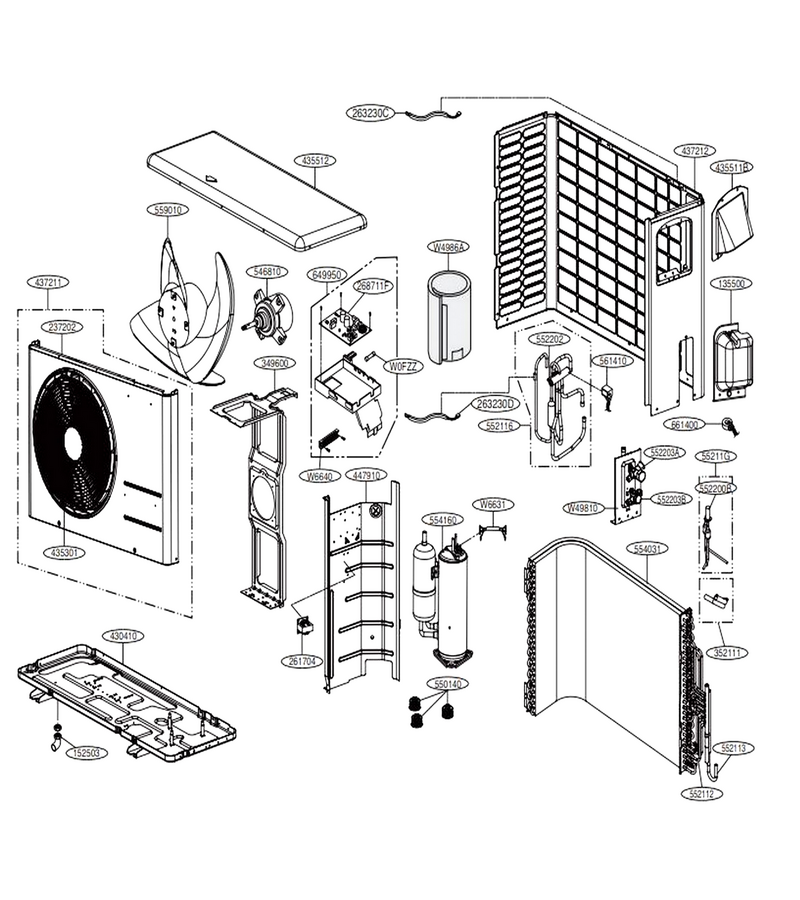

Schematic Image Zoomed
