LG LSU186HE.AWHBEUS

Model: LSU186HE.AWHBEUS

Save Part Not Listed?
product name

Outdoor Unit

...
...
W0CZZA
Capacitor,electric Appliance Film,radial L-G-EAE43285013
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Terminal Block 6p Fc L-G-4G00103A
...
W6631B
Multi Harness L-G-6863AP3980S
...
W6631A
Multi Harness L-G-6863AP3980U
...
W0CZZB
Capacitor,electric Appliance Film,radial(dual) L-G-EAE43285408
...
135500
Cover L-G-MCK47976001
...
237202
Panel,front L-G-MGC63039301
...
263230A
Thermistor Assembly,ntc L-G-EBG61106528
...
263230B
Thermistor Assembly,ntc L-G-EBG61107009
...
268711B
Pcb Assembly,main L-G-6871A10184G
...
430410
Base Assembly, Outdoor L-G-AAN73130003
...
435301
Grille,discharge L-G-MDX62852701
...
435511
Cover Assembly, Control (outdoor) L-G-3551A10005G
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019507
...
437211
Panel Assembly,front(outdoor) L-G-AGL36687019
...
437212
Panel Assembly,rear(outdoor) L-G-AGL36636835
...
447910
Barrier Assembly,outdoor L-G-4791A30004V
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20013N
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73010801
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly,condenser(in) L-G-AJR73165701
...
552113
Tube Assembly,condenser(out) L-G-AJR73165801
...
552114
Tube Assembly,discharge(outdoor) L-G-AJR73165501
...
552116
Tube Assembly,reverse L-G-AJR73165901
...
554031
Condenser Assembly,bending L-G-ACG73547403
...
554160A
Compressor Set,korea L-G-TBZ34894501
...
554160B
Compressor Set,korea L-G-TBZ34894601
...
559010
Fan Assembly L-G-1A00195B
...
561410
Solenoid L-G-6141A20017D
...
566000
Service Valve L-G-6600L000013
...
649950
Case Assembly,control(outdoor) L-G-ABQ73260501

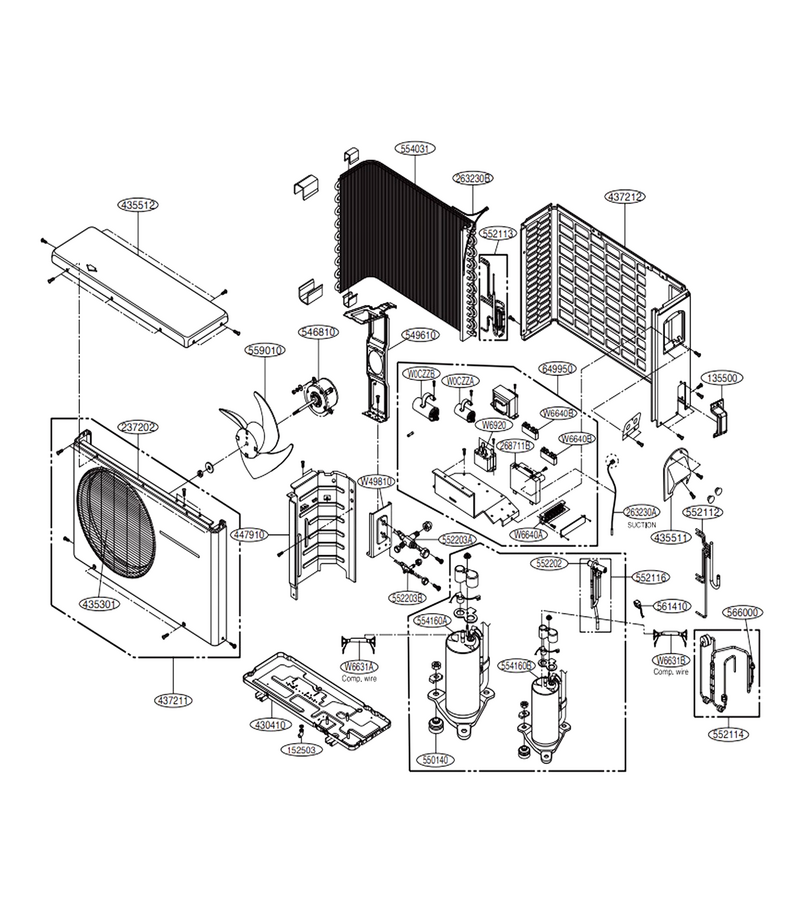

Schematic Image Zoomed
