LG LSU180HSV5.AK6GEUS

Model: LSU180HSV5.AK6GEUS

Save Part Not Listed?
product name

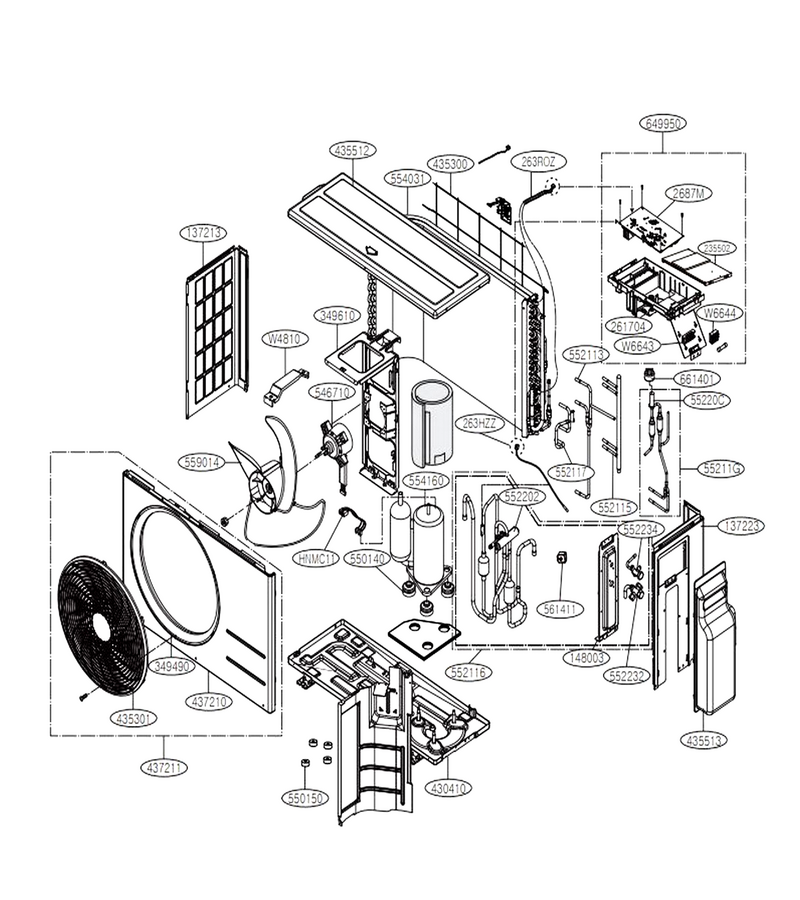

Main

...
...
HNMC11
Harness,multi L-G-EAD57999873
...
W4810
Bracket L-G-3A01934B
...
W6643
Connector,terminal Block L-G-EAG38884401
...
W6644
Terminal Block Connector L-G-EAG38884402
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61285807
...
263ROZ
Thermistor Assembly,ntc L-G-EBG61107044
...
2687M
Pcb Assembly,main L-G-EBR83943107
...
55211G
Tube Assembly,expansion L-G-AJR71433336
...
55220C
Valve,expansion Body L-G-MJX63992001
...
137213
Panel Assembly,side L-G-AGL70858107
...
137223
Panel Assembly,side L-G-AGL34711314
...
148003
Supporter L-G-MJH64518101
...
235502
Cover L-G-MCK69188101
...
261704
Transformer,reactor L-G-EBJ63090301
...
349490
Orifice L-G-4948A20011G
...
349610
Bracket Assembly,motor L-G-ABA32344701
...
430410
Base Assembly,outdoor L-G-AAN74033305
...
435300
Grille,rear L-G-MDX59045504
...
435301
Grille,discharge L-G-MDX61846204
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
435513
Cover Assembly,tubing L-G-ACQ91472005
...
437210
Panel Assembly,front(sub) L-G-1A00197D
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105656
...
546710
Motor Assembly,dc,outdoor L-G-EAU62543701
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552113
Tube Assembly,condenser(out) L-G-AJR34565825
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR34739816
...
552116
Tube Assembly,reverse L-G-AJR71429443
...
552202
Valve,reverse L-G-5220AR3228W
...
552232
Service Valve L-G-5220A20001X
...
552234
Service Valve L-G-5220A20013C
...
554031
Condenser Assembly,bending L-G-ACG73425115
...
554160
Compressor Set,korea L-G-TBZ37342001
...
559014
Fan,propeller L-G-MDG62002901
...
561411
Drawing,assembly L-G-6877A20052V
...
649950
Case Assembly,control(outdoor) L-G-ABQ75825207
...
661401
Coil,expansion L-G-EAP63107118
