LG LSU180HEV1.ANWBEUS

Model: LSU180HEV1.ANWBEUS

Save Part Not Listed?
product name

Outdoor Unit

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W4986A
Sound Proof L-G-MDS62134726
...
W4986B
Sound Proof L-G-MDS62061804
...
W6631
Harness,multi L-G-EAD63894003
...
55211G
Tube Assembly,expansion L-G-AJR75104002
...
135500
Cover L-G-MCK56985610
...
137213B
Panel Assembly,side L-G-AGL68979405
...
137213A
Panel Assembly,side L-G-AGL71499505
...
148000
Supporter L-G-MJH56985708
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-MGC56983325
...
261704
Transformer,reactor L-G-EBJ36274412
...
263230D
Thermistor Assembly,ntc L-G-EBG61285804
...
263230B
Thermistor Assembly,ntc L-G-EBG61325812
...
263230A
Thermistor Assembly,ntc L-G-EBG61106852
...
268711B
Pcb Assembly,main L-G-EBR74631923
...
430410
Base Assembly,outdoor L-G-AAN68977810
...
435301
Grille,discharge L-G-MDX63452301
...
435312
Grille Assembly,rear(outdoor) L-G-AEB68981201
...
435513
Cover Assembly,tubing L-G-ACQ68981126
...
437211
Panel Assembly,front(outdoor) L-G-AGL68978027
...
447910
Barrier Assembly,outdoor L-G-AAM68980835
...
546810
Motor Assembly,dc,outdoor L-G-EAU57945710
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA71499601
...
550140
Damper,compressor L-G-MCQ62508902
...
552112
Tube Assembly,condenser(in) L-G-AJR75645501
...
552113A
Tube Assembly,condenser(out) L-G-AJR75645606
...
552113B
Tube Assembly,condenser(out) L-G-AJR75645605
...
552113C
Tube Assembly,condenser(out) L-G-AJR75645604
...
552116
Tube Assembly,reverse L-G-AJR73985708
...
552200B
Valve, Expansion Body L-G-5220A90001R
...
552202
Valve,reverse L-G-5220AR3228X
...
552203A
Service Valve L-G-5220A20006J
...
552203B
Service Valve L-G-2H02479J
...
554031
Condenser Assembly,bending L-G-ACG74744603
...
554160
Compressor Set,china L-G-TBZ36874701
...
559010
Fan Assembly,propeller L-G-ADP67804501
...
561410
Solenoid L-G-6141A20017E
...
649950
Case Assembly,control(outdoor) L-G-ABQ73880752
...
661400
Coil,expansion L-G-EAP62666305
...
669010
Fuse Assembly L-G-EAF58158301

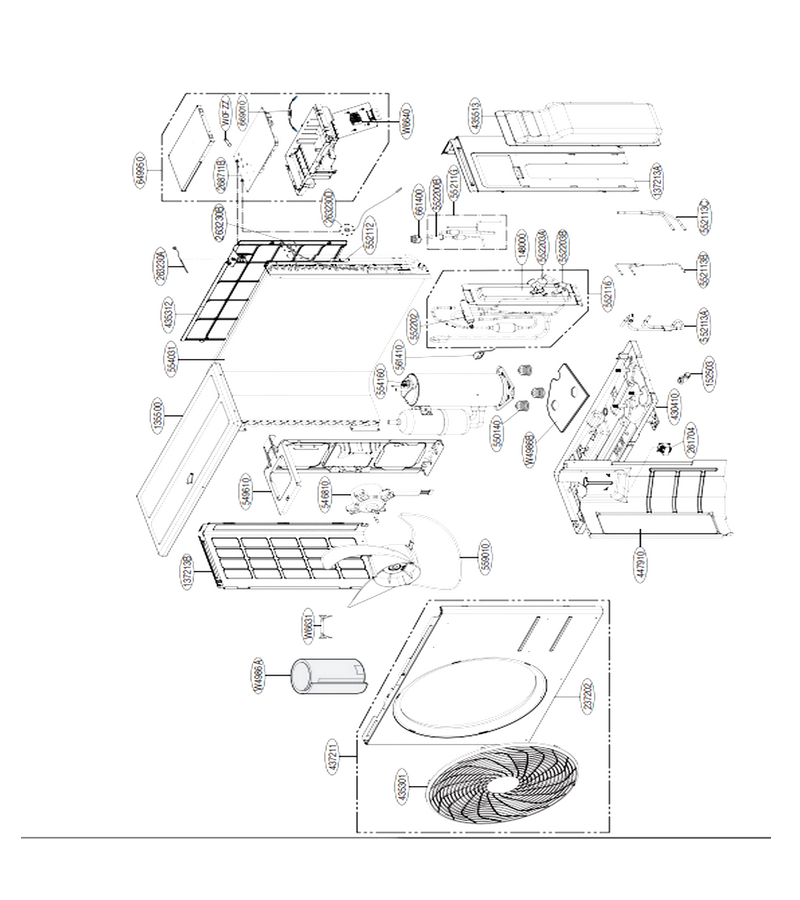

Schematic Image Zoomed
