LG LSU120HSV5.AT3GEUS

Model: LSU120HSV5.AT3GEUS

Save Part Not Listed?
product name

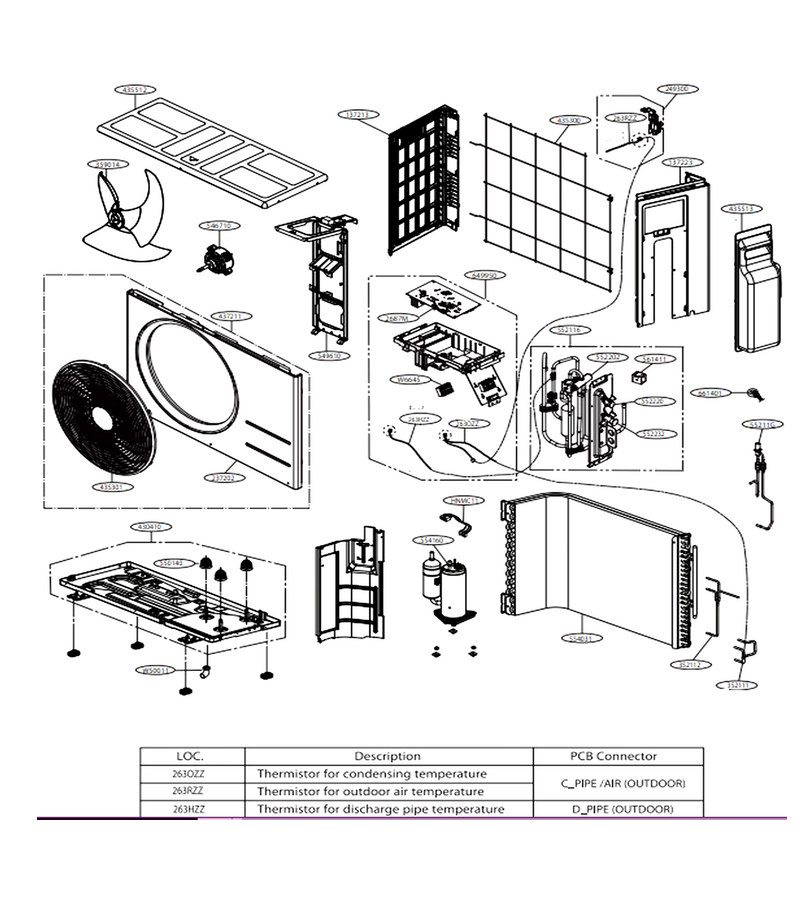

Outdoor Unit

...
...
HNMC11
Multi Harness L-G-EAD64547303
...
W50011
Outdoor Accessory Assembly L-G-AAA74469706
...
W6645
Terminal Block Connector L-G-6640A90001W
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61285804
...
263OZZ
Thermistor Assembly,ntc L-G-EBG61325812
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61106852
...
2687M
Main Pcb Assembly L-G-EBR83953806
...
55211G
Expansion Tube Assembly L-G-AJR75104029
...
137213
Side Panel L-G-MGC65919304
...
137223
Side Panel Assembly L-G-AGL71499540
...
237202
Front Panel L-G-MGC56983328
...
249300
Sensor Holder L-G-MEG63259003
...
352111
Tube Assembly,connector L-G-AJR74128501
...
352112
Tube Assembly,connector L-G-AJR74128601
...
359014
Fan Assembly,propeller L-G-ADP74253301
...
430410
Outdoor Base Assembly L-G-AAN75968714
...
435300
Rear Grille L-G-MDX61893209
...
435301
Discharge Grille L-G-MDX63452304
...
435512
Cover L-G-MCK56985610
...
435513
Tubing Cover Assembly L-G-ACQ89488717
...
437211
Front (outdoor) Panel Assembly L-G-AGL68978054
...
546710
Motor Assembly,dc,outdoor L-G-EAU57945708
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA75269301
...
550140
Isolator L-G-5014A20003A
...
552116
Reverse Tube Assembly L-G-AJR75943208
...
552202
Valve,reverse L-G-5220AR3228X
...
552220
308 Valve L-G-2H02479N
...
552232
Valve,service L-G-MJX42581405
...
554031
Condenser Assembly,bending L-G-ACG73867901
...
554160
China Compressor Set L-G-TBZ37636901
...
561411
Assembly Drawing L-G-EAD62115308
...
649950
Control (outdoor) Case Assembly L-G-ABQ76681635
...
661401
Coil,expansion L-G-EAP63107114
