LG LSU120HSV5.AK6GEUS

Model: LSU120HSV5.AK6GEUS

Save Part Not Listed?
product name

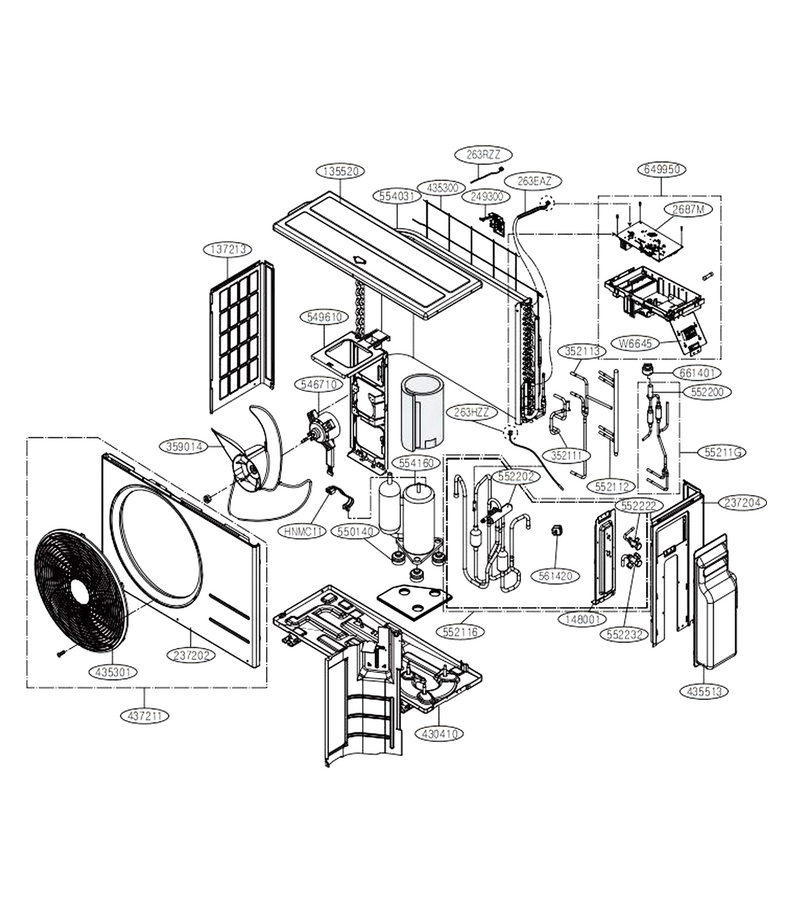

Outdoor Unit

...
...
HNMC11
Harness,multi L-G-EAD62145817
...
W6645
Terminal Block Connector L-G-6640A90001W
...
263EAZ
Thermistor Assembly,ntc L-G-EBG61325812
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61285804
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61106852
...
2687M
Main Pcb Assembly L-G-EBR79393311
...
55211G
Tube Assembly,expansion L-G-AJR75104008
...
135520
Cover L-G-MCK56985610
...
137213
Side Panel L-G-MGC65919301
...
148001
Supporter L-G-MJH56985703
...
237202
Panel,front L-G-MGC56983325
...
237204
Panel,side L-G-MGC56985308
...
249300
Holder,sensor L-G-MEG63259001
...
352111
Tube Assembly,connector L-G-AJR74128501
...
352113
Tube Assembly,connector L-G-AJR74128601
...
359014
Fan Assembly,propeller L-G-ADP74253301
...
430410
Base Assembly,outdoor L-G-AAN68977832
...
435300
Grille,rear L-G-MDX61893203
...
435301
Discharge Grille L-G-MDX63452304
...
435513
Cover Assembly,tubing L-G-ACQ68981126
...
437211
Panel Assembly,front(outdoor) L-G-AGL74875105
...
546710
Motor Assembly,dc,outdoor L-G-EAU57945708
...
549610
Motor Bracket L-G-MAZ64624501
...
550140
Damper,compressor L-G-MCQ62508902
...
552112
Tube Assembly,condenser(in) L-G-AJR69388501
...
552116
Tube Assembly,reverse L-G-AJR75103104
...
552200
Valve,expansion Body L-G-MJX63991801
...
552202
Valve,reverse L-G-5220AR3228X
...
552222
Valve,service L-G-MJX62451504
...
552232
Valve,service L-G-MJX42581405
...
554031
Condenser Assembly,bending L-G-ACG73867901
...
554160
Compressor Set,china L-G-TBZ37534501
...
561420
Solenoid L-G-6141A20017E
...
649950
Control (outdoor) Case Assembly L-G-ABQ75180614
...
661401
Coil,expansion L-G-EAP63107114
Schematic Image Zoomed
