LG LSU120HEV2.AT3GEUS

Model: LSU120HEV2.AT3GEUS

Save Part Not Listed?
product name

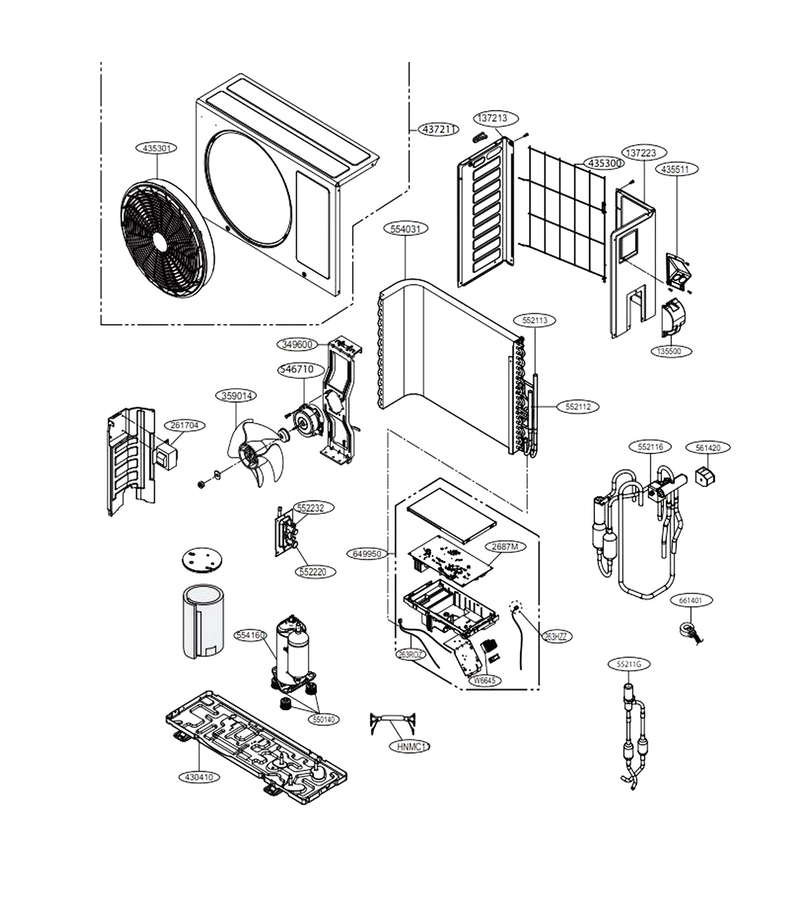

Outdoor Unit

...
...
HNMC11
Harness,multi L-G-EAD62146303
...
W6645
Terminal Block Connector L-G-6640A90001W
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61207503
...
263ROZ
Thermistor Assembly,ntc L-G-EBG61207502
...
2687M
Pcb Assembly,main L-G-EBR82699427
...
55211G
Tube Assembly,expansion L-G-AJR73042312
...
135500
Cover L-G-MCK66727701
...
137213
Panel Assembly,side L-G-AGL73012732
...
137223
Panel Assembly,side L-G-AGL73536818
...
261704
Transformer,reactor L-G-EBJ62950103
...
349600
Bracket,motor L-G-MAZ65045706
...
359014
Fan Assembly,propeller L-G-ADP74113502
...
430410
Base Assembly,outdoor L-G-AAN73568813
...
435300
Grille,rear L-G-MDX61893202
...
435301
Discharge Grille L-G-MDX64192704
...
435511
Cover Assembly,control(outdoor) L-G-ACQ86514405
...
437211
Panel Assembly,front(outdoor) L-G-AGL73372518
...
546710
Motor Assembly,dc,outdoor L-G-EAU57945708
...
550140
Damper,compressor L-G-MCQ62508904
...
552112
Tube Assembly,condenser(in) L-G-AJR75644303
...
552113
Tube Assembly,condenser(out) L-G-AJR74147105
...
552116
Tube Assembly,reverse L-G-AJR76222511
...
552220
Service Valve L-G-2H02479P
...
552232
Valve,service L-G-5220A20001S
...
554031
Condenser Assembly,bending L-G-ACG72964808
...
554160
Thailand Compressor Set L-G-TBZ38939402
...
561420
Solenoid L-G-6141A20017E
...
649950
Case Assembly,control(outdoor) L-G-ABQ75963609
...
661401
Coil,expansion L-G-EAP63107114
