LG LSU093HE.AWHBEUS

Model: LSU093HE.AWHBEUS

Save Part Not Listed?
product name

Outdoor Unit

...
...
W0CZZ
Capacitor L-G-6120AR2359U
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Terminal Block 6p Fc L-G-4G00103A
...
W6631
Single Harness L-G-6631A30099M
...
W49810
Supporter Assembly L-G-4980A20006T
...
135500
Cover L-G-3550A20196A
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-3720A10015N
...
263230A
Thermistor Assembly,ntc L-G-EBG61107009
...
263230B
Thermistor Assembly,ntc L-G-EBG61106528
...
268711D
Room Air Conditioner Electronic Control Board L-G-6871A20901D
...
349480
Orifice L-G-4948A20001A
...
430410
Base Assembly,outdoor L-G-AAN74209603
...
435301
Grille,discharge L-G-MDX61846101
...
435511
Cover Assembly, Control (outdoor) L-G-3551A10005C
...
437211
Panel Assembly,front(outdoor) L-G-AGL32476446
...
437212
Panel Assembly,rear(outdoor) L-G-AGL74280901
...
447910
Barrier Assembly,outdoor L-G-4791A30002Z
...
546810
Room Air Conditioner Fan Motor L-G-4681A20122B
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73129806
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly, Condenser (in) L-G-5211A24117A
...
552113
Tube Assembly, Condenser (in) L-G-5211A24118B
...
552116
Tube Assembly, Reverse L-G-5211A26008A
...
552202
Valve,reverse L-G-5220AR3228X
...
552203A
308 Valve L-G-2H02479N
...
552203B
Service Valve L-G-5220A20006J
...
553000
Heater L-G-5300AR2915D
...
554031
Condenser Assembly, Bending L-G-5403A20221J
...
554160
Room Air Conditioner Compressor L-G-2520UGAC2AA
...
559010
Fan Propeller L-G-5901A10033A
...
561410
Soleniod L-G-6141A90007C
...
649950
Control Box Assembly, Outdoor L-G-4995A21006Q

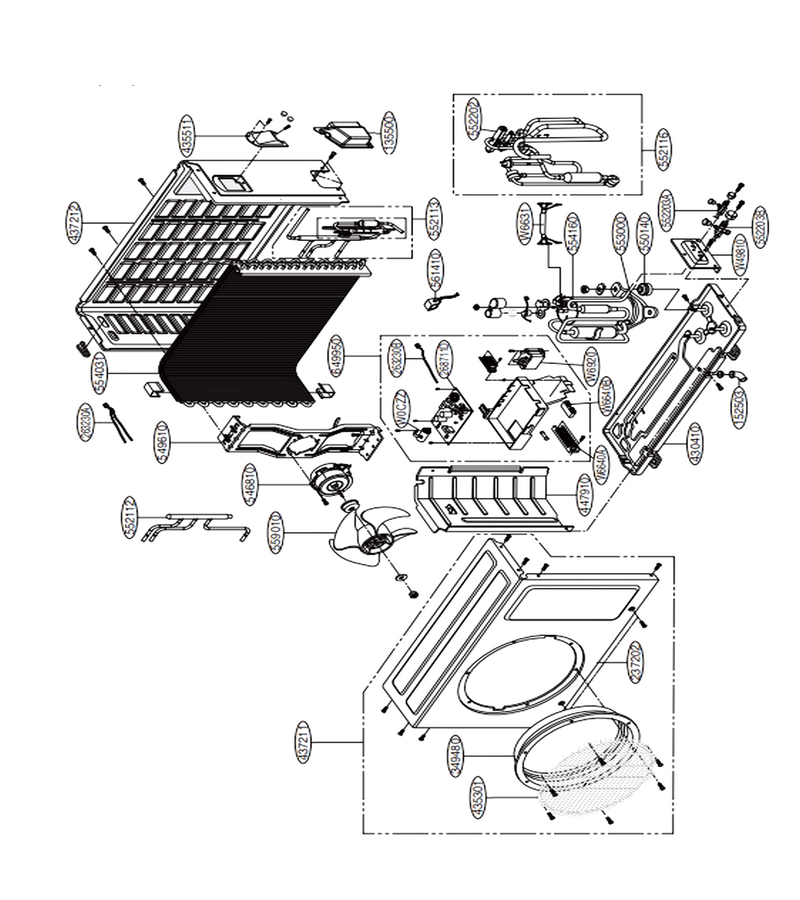

Schematic Image Zoomed
