product name

LG LSU090HEV1.ANWBEUS

Model: LSU090HEV1.ANWBEUS

Save Part Not Listed?
product name

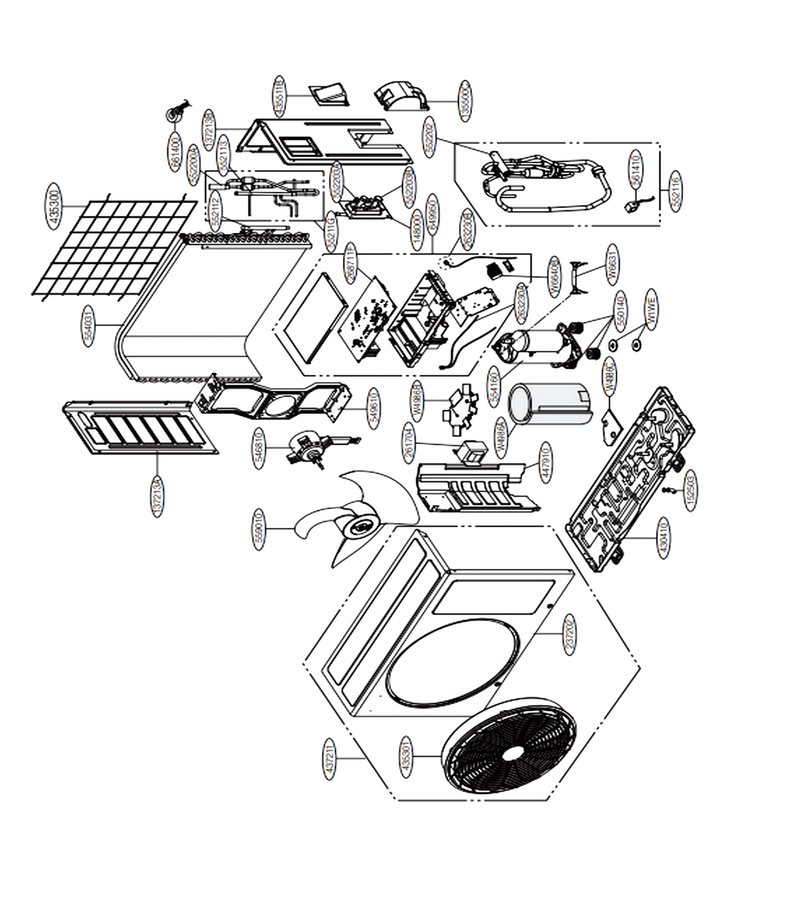

Outdoor Unit

...
...
W1WE
Washer,common L-G-4H01029B
...
W4986A
Gasket L-G-MDS64140413
...
W4986B
Sound Proof L-G-MDS62134729
...
W4986C
Gasket L-G-MDS63933103
...
W6631
Harness,multi L-G-EAD62333805
...
55211G
Tube Assembly,expansion L-G-AJR73042305
...
135500C
Cover L-G-3550A30254B
...
137213A
Panel,rear L-G-MGC62262808
...
137213B
Panel,rear L-G-MGC62301607
...
148000
Supporter L-G-MJH62281310
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-MGC62262902
...
261704
Transformer,reactor L-G-EBJ36274409
...
263230A
Thermistor Assembly,ntc L-G-EBG61108909
...
263230B
Thermistor Assembly,ntc L-G-EBG61285804
...
268711F
Pcb Assembly L-G-EBR78632013
...
430410
Base Assembly,outdoor L-G-AAN73533044
...
435300
Grille,rear L-G-3530A10251M
...
435301
Grille,discharge L-G-MDX61851806
...
435511B
Cover Assembly,control(outdoor) L-G-ACQ86514406
...
437211
Panel Assembly,front(outdoor) L-G-AGL72992819
...
447910
Barrier Assembly,outdoor L-G-AAM72911210
...
546810
Motor Assembly,dc,outdoor L-G-EAU57945710
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73168202
...
550140
Damper,compressor L-G-MCQ62508902
...
552112
Tube Assembly,condenser(in) L-G-AJR74127403
...
552113
Tube Assembly,condenser(out) L-G-AJR74147003
...
552116
Tube Assembly,reverse L-G-AJR74622718
...
552200A
Valve,expansion Body L-G-5220A90013D
...
552202
Reverse Valve L-G-5220AR3228D
...
552203A
Valve,service L-G-5220A20001S
...
552203B
308 Valve L-G-2H02479N
...
554031
Condenser Assembly,bending L-G-ACG72964802
...
554160
Compressor Set,china L-G-TBZ35940301
...
559010
Fan Assembly,propeller L-G-ADP73173503
...
561410
Solenoid L-G-6141A20017E
...
649950
Case Assembly,control(outdoor) L-G-ABQ74262158
...
661400
Coil,expansion L-G-6141A30003W
