LG LSN243HLV3.AK3GEUS

Model: LSN243HLV3.AK3GEUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W3110
Case L-G-MBN64403003
...
W50400
Damper L-G-MCQ67209301
...
146CNM
Motor Assembly,dc,stepping L-G-EAU60683708
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61106803
...
263VZZ
Thermistor Assembly L-G-EBG60787304
...
2687U
Pcb Assembly,module L-G-EBR82056913
...
2687M
Pcb Assembly,main L-G-EBR85102041
...
2687D
Pcb Assembly,display L-G-EBR79613111
...
35211E
Tube Assembly,connector L-G-AJR73972015
...
35211B
Tube Assembly,tubing L-G-AJR76542405
...
131410
Chassis Assembly L-G-ABW74372502
...
135090
Decor Assembly L-G-ACW76017103
...
135311
Grille Assembly,discharge(indoor) L-G-AEB75664602
...
135316
Grille Assembly,front(indoor) L-G-AEB75664804
...
135500
Cover L-G-MCK70344401
...
135501
Cover L-G-MCK70229801
...
145201
Link L-G-MFF63663101
...
147581
Louver,horizontal L-G-MFH63643801
...
147582
Louver,vertical L-G-MFH63643701
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG65679302
...
152402
Filter,air L-G-MDJ65624701
...
249951
Case Assembly,control(indoor) L-G-ABQ76720129
...
267110
Remote Controller Assembly L-G-AKB74955602
...
342800
Bearing L-G-MAP64313501
...
346710
Motor Assembly,dc,indoor L-G-EAU62543506
...
352119
Tube Assembly,return Bending L-G-AJR76102305
...
352150
Hose Assembly,drain L-G-AEM73493417
...
354210
Evaporator Assembly,first L-G-ADL76081201
...
359013
Fan Assembly,cross Flow L-G-ADP73694504
...
635501
Cover,bearing L-G-MCK67886605
...
733010
Plate Assembly,installation L-G-AGU76189202
...
749740
Guide L-G-MEA64890307

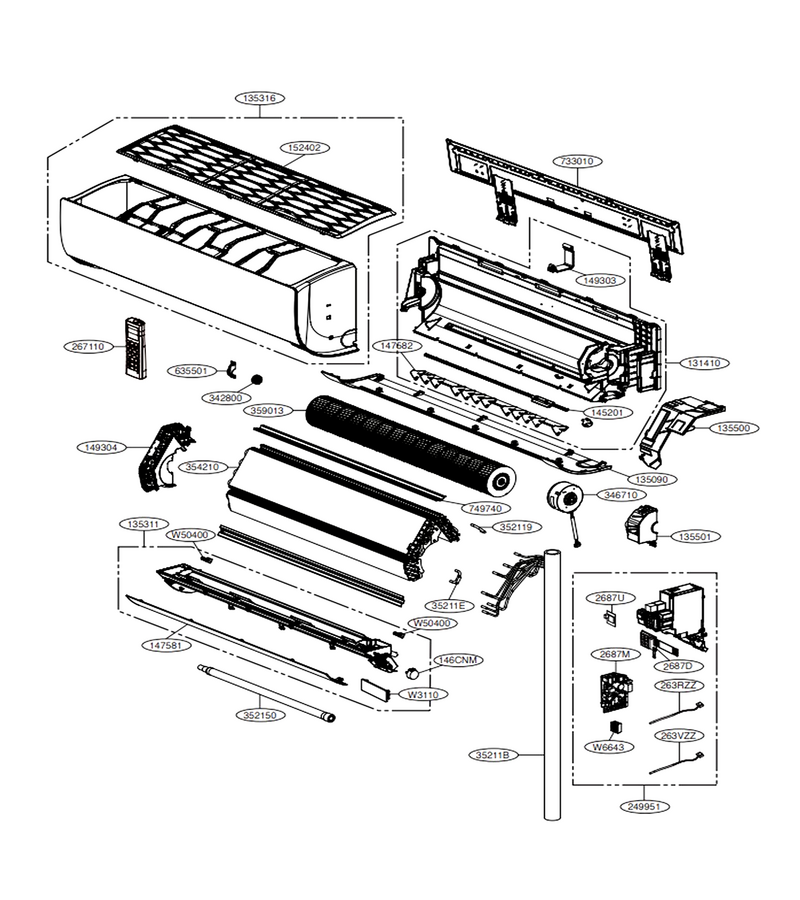

Schematic Image Zoomed
