LG LSN182HE.AWHBEUS

Model: LSN182HE.AWHBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W50400
Damper L-G-5040A30027A
...
W5210B
Tube,connector L-G-5210A20851K
...
35211B
Tube Assembly, Tubing L-G-5211A21378D
...
131410
Chassis Assembly L-G-3141A20020G
...
135311
Grille Assembly, Discharge (indoor) L-G-AEB30240203
...
135314
Grille Assembly, Inlet (sub) L-G-3531A20254R
...
135316
Grille Assembly, Front (indoor L-G-3531A23005X
...
135500
Cover L-G-3550A20316A
...
135511
Cover Assembly,control(indoor) L-G-ACQ86372901
...
135516
Motor Cover Assembly L-G-3551A20154A
...
145200C
Link L-G-4520A20034A
...
145200B
Link L-G-4520A20033B
...
145200A
Link L-G-4520A20033A
...
146811
Motor Assembly L-G-4681A20055A
...
147581
Louver L-G-5990A20071A
...
147582
Vertical Louver L-G-5990A20050A
...
149303
Holder, Tubing L-G-4930A20022A
...
149304
Holder,evaporator L-G-4930A20065A
...
152301
Filter,deodorizing L-G-5230A20052J
...
152313
Filter Assembly, Deodorizer L-G-5231A20040V
...
159830
Filter Assembly, Air Cleaner L-G-5983A20018A
...
237900
Window,display L-G-3790A20130A
...
249951
Case Assembly,control(indoor) L-G-ABQ74106108
...
263230
Thermistor Assembly,ntc L-G-EBG61107004
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote Controller Assembly L-G-AKB74375404
...
268711A
Display Pcb Assembly L-G-6871A20681C
...
268711B
Room Air Conditioner Electronic Control Board L-G-6871A20771D
...
268711C
Sub Pcb Assembly L-G-6871A20990D
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Motor Assembly L-G-4681AR2295M
...
352111
Tube Assembly,connector L-G-5211A20349U
...
352150
Drain Hose Assembly L-G-5251A20011D
...
354210
Evaporator Assembly, First L-G-5421A20220A
...
354212
Evaporator Assembly,final L-G-5421A20221J
...
359011
Room Air Conditioner Blower Wheel L-G-5901A92441E
...
733010
Plate Assembly, Installation L-G-AGU36472501

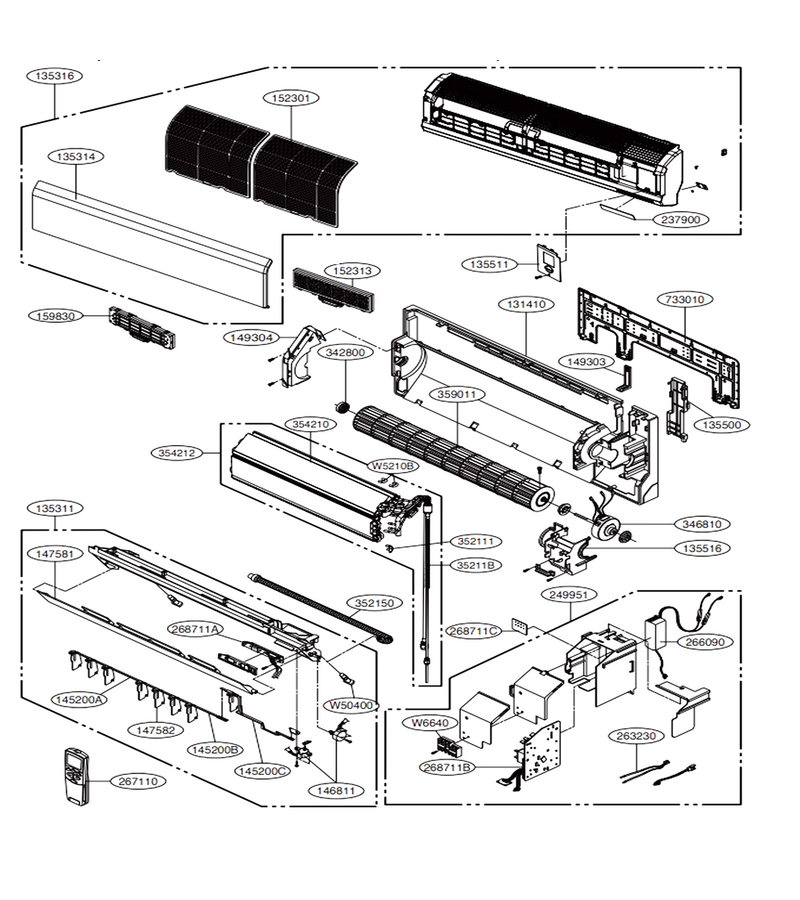

Schematic Image Zoomed
