LG LSN180HSV5.AK6GEUS

Model: LSN180HSV5.AK6GEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W3110
Case L-G-MBN64403003
...
W50400
Damper L-G-5040A30027A
...
146BNM
Dc Motor Asm L-G-4681A20042E
...
263AZZ
Thermistor Assembly,ntc L-G-EBG61325801
...
263REZ
Thermistor Assembly,ntc L-G-EBG61108915
...
263VZZ
Thermistor Assembly L-G-EBG60787304
...
2687M
Pcb Assembly,main L-G-EBR83651313
...
2687D
Pcb Assembly,display L-G-EBR84585201
...
2687U
Pcb Assembly,module L-G-EBR82056913
...
35211E
Tube Assembly,connector L-G-AJR73972001
...
35211B
Tube Assembly,tubing L-G-AJR74942531
...
131111
Case Assembly,indoor L-G-ABQ75140131
...
131410
Chassis Assembly L-G-ABW74032614
...
135090
Decor Assembly L-G-ACW74677053
...
135311
Grille Assembly,discharge(indoor) L-G-AEB74384533
...
135316
Grille Assembly,front(indoor) L-G-AEB74384620
...
135500
Cover L-G-MCK69546601
...
135501
Cover L-G-MCK68484801
...
145201
Link L-G-MFF62923201
...
147581
Louver,horizontal L-G-MFH62983601
...
147582
Louver,vertical L-G-MFH62983701
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG64118601
...
152402
Filter,air L-G-MDJ64344607
...
249951
Case Assembly,control(indoor) L-G-ABQ75748536
...
267110
Remote Controller Assembly L-G-AKB74955602
...
342800
Bearing L-G-MAP64313501
...
346710
Motor Assembly,dc,indoor L-G-EAU62543502
...
352150
Hose Assembly,drain L-G-AEM73493417
...
354210
Evaporator Assembly,first L-G-ADL74761214
...
354212
Evaporator Assembly,final L-G-ADL74741150
...
359013

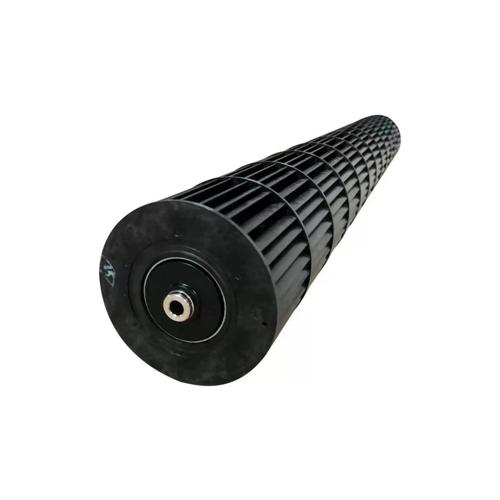

Fan Assembly,cross Flow L-G-ADP73513403
...
635501
Cover,bearing L-G-MCK67886605
...
733010
Plate Assembly,installation L-G-AGU65884502
...
749740
Guide L-G-MEA64890302

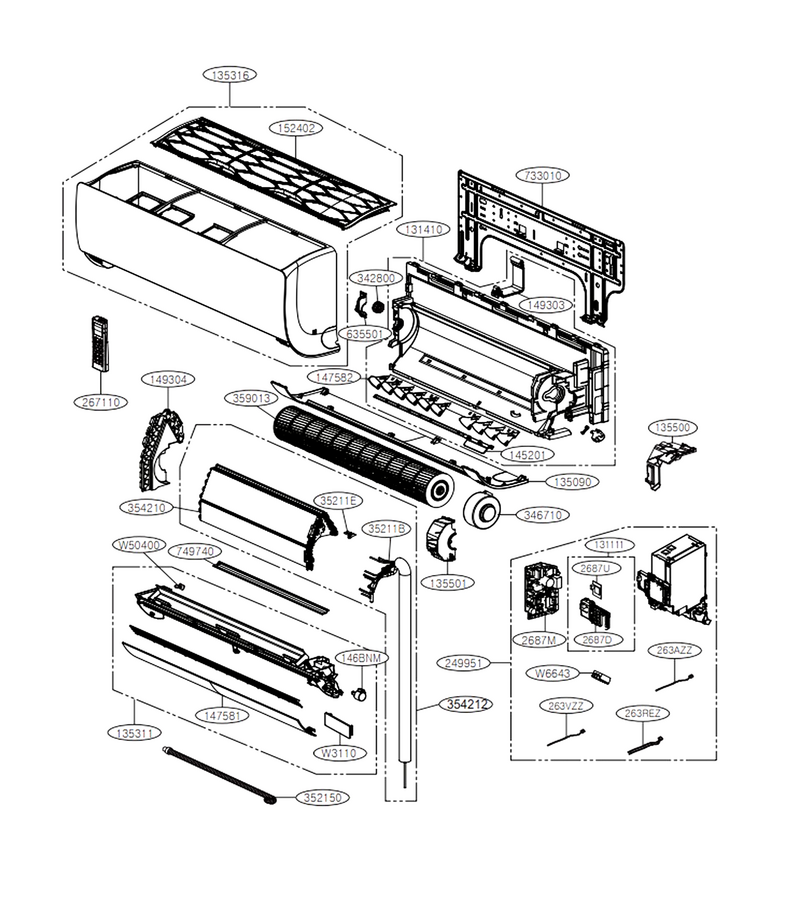

Schematic Image Zoomed
