LG LSN090HYV.AWHBEUS

Model: LSN090HYV.AWHBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W52105
Tube,return Bending L-G-5210AR4124A
...
W6631C
Harness,single L-G-6631A30005X
...
W54100A
Insulator L-G-5410A20793X
...
W5210B
Tube,connector L-G-MJU62947901
...
131410
Chassis Assembly L-G-ABW73492401
...
135080
Decor L-G-MCR64587502
...
135311
Grille Assembly,discharge(indoor) L-G-AEB73584702
...
135313
Grille Assembly,inlet L-G-AEB73584601
...
135316
Grille Assembly,front(indoor) L-G-AEB73584503
...
135500A
Cover L-G-MCK56993601
...
135500C
Cover L-G-MCK62805104
...
147581
Louver,horizontal L-G-MFH62243601
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG62919801
...
152302
Filter,air L-G-MDJ63304301
...
159830B
Filter Assembly,air Cleaner L-G-ADQ68719501
...
249951
Case Assembly,control(indoor) L-G-ABQ73801803
...
263230B
Thermistor Assembly,ntc L-G-EBG61110705
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote Controller Assembly L-G-AKB74375403
...
268711A
Pcb Assembly,display L-G-EBR73818305
...
268711B
Pcb Assembly,main L-G-EBR35936518
...
268711D
Pcb Assembly,sub L-G-EBR74242812
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Motor Assembly,dc,indoor L-G-EAU62983003
...
352111
Tube Assembly,connector L-G-5211A21904N
...
352119
Tube Assembly,return Bending L-G-AJR67807801
...
352150
Hose Assembly,drain L-G-AEM73493402
...
354210
Evaporator Assembly,first L-G-ADL72918702
...
359011
Fan Assembly,cross Flow L-G-ADP73513401
...
733010
Plate Assembly,installation L-G-AGU67813404

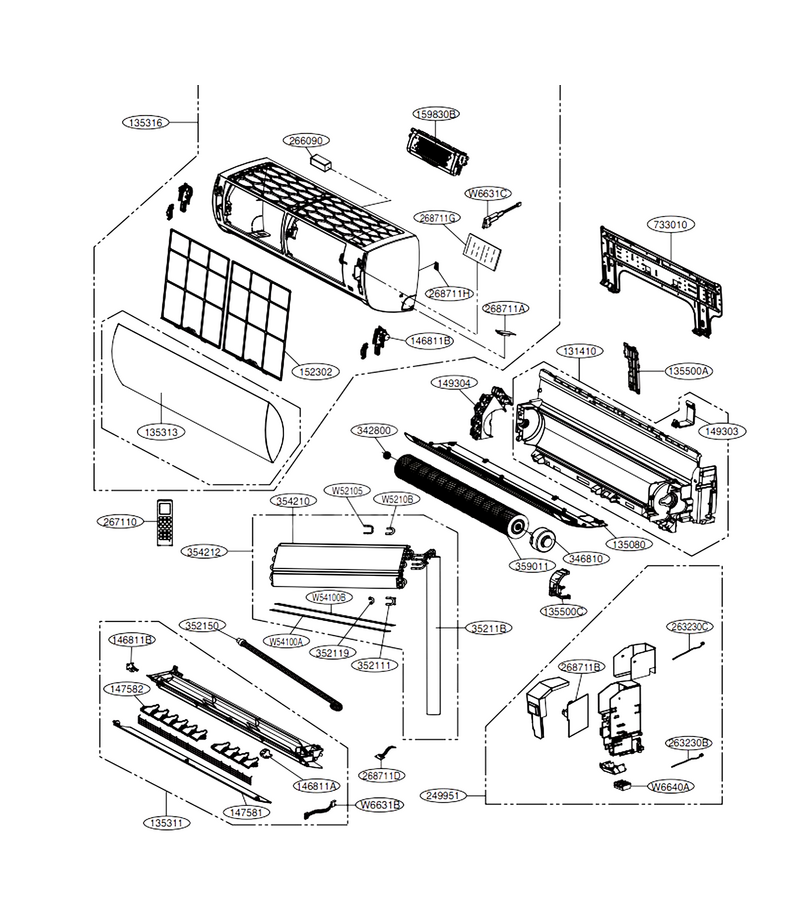

Schematic Image Zoomed
