LG LSN090HEV1.ANWBEUS

Model: LSN090HEV1.ANWBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W50400
Damper L-G-5040A30027A
...
35211B
Tube Assembly,tubing L-G-AJR55796810
...
131111
Case Assembly,indoor L-G-ABQ73082715
...
131410
Chassis Assembly L-G-ABW73472401
...
135090
Decor L-G-MCR60969410
...
135311
Grille Assembly,discharge(indoor) L-G-AEB73605120
...
135316
Grille Assembly,front(indoor) L-G-AEB75045102
...
135511
Cover Assembly,control(indoor) L-G-ACQ83851503
...
135516
Cover Assembly,motor L-G-3551A30135E
...
145200
Link L-G-MFF62003003
...
146811
Motor Assembly,dc,stepping L-G-EAU57945603
...
147581
Louver,horizontal L-G-MFH62023605
...
147582
Louver,vertical L-G-MFH56981207
...
149303
Holder,tubing L-G-MEG56994602
...
149304
Holder,evaporator L-G-MEG62379402
...
152302
Filter,air L-G-MDJ62744409
...
237202
Panel,front L-G-MGC64540101
...
249951
Case Assembly,control(indoor) L-G-ABQ74166425
...
263230A
Thermistor Assembly,ntc L-G-EBG61106803
...
263230B
Thermistor Assembly,ntc L-G-EBG61110705
...
267110
Remote Controller Assembly L-G-AKB74955602
...
268711B
Pcb Assembly,main L-G-EBR71379404
...
268711D
Pcb Assembly,option L-G-EBR80362402
...
342800
Bearing L-G-4280A20004M
...
346810
Motor Assembly,dc,indoor L-G-EAU62983001
...
352150
Hose Assembly,drain L-G-AEM72952915
...
354210
Evaporator Assembly,first L-G-ADL73260910
...
354212
Evaporator Assembly,final L-G-ADL73301311
...
359011
Fan Assembly,cross Flow L-G-ADP72912103
...
733010
Plate Assembly,installation L-G-AGU73388704

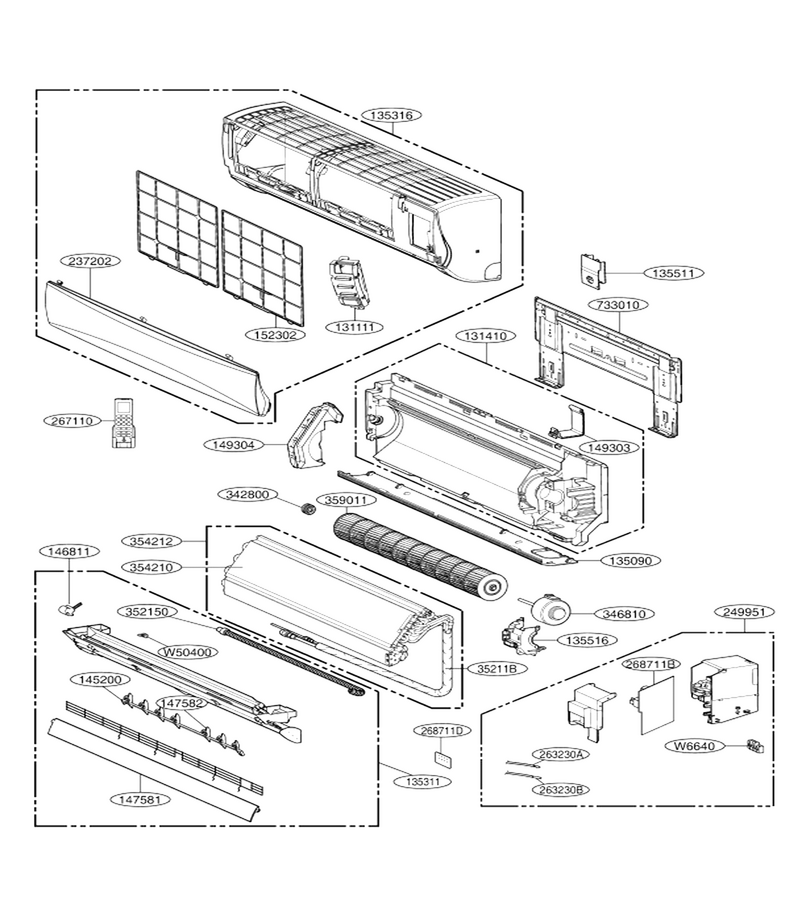

Schematic Image Zoomed
