LG LSC27921TT.ATICLGA

Model: LSC27921TT.ATICLGA

Save Part Not Listed?
product name

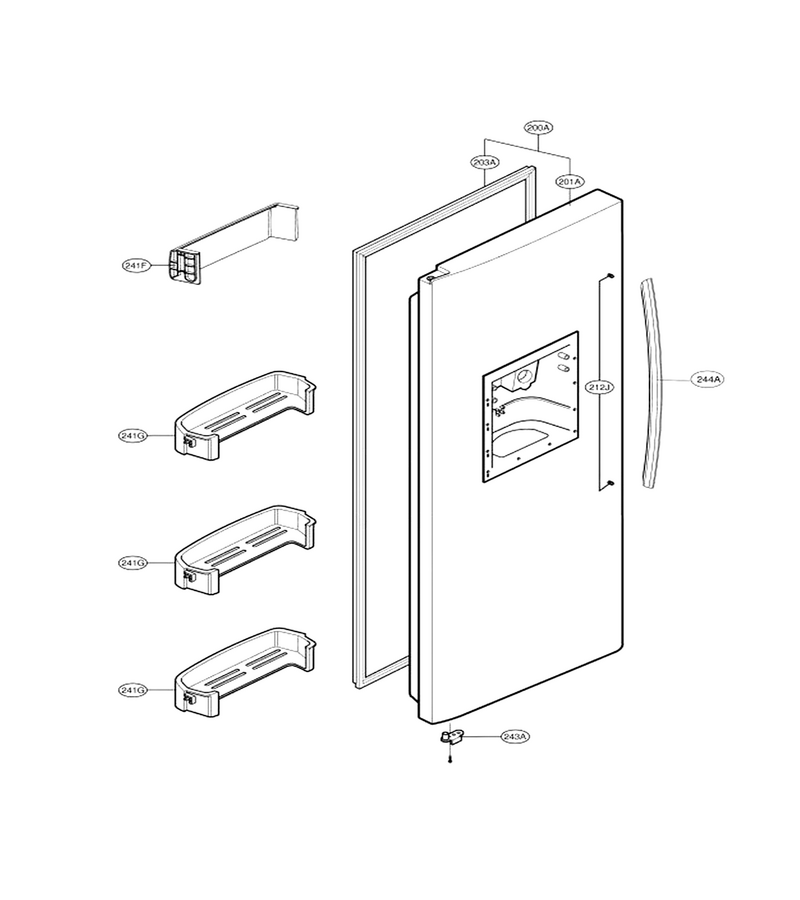

Freezer Door

...
...
200A
Refrigerator Door Assembly L-G-ADC30116550
...
201A
Door,semi F L-G-ADC30170451
...
203A
Refrigerator Freezer Door Gasket L-G-4987JJ1010L
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
241F
Refrigerator Door Basket L-G-MAN39969001
...
241G
Refrigerator Freezer Bin L-G-MAN32794701
...
243A
Refrigerator Stopper Assembly L-G-4621JA3002E
...
244A
Handle Assembly,refrigerator L-G-AED37082943

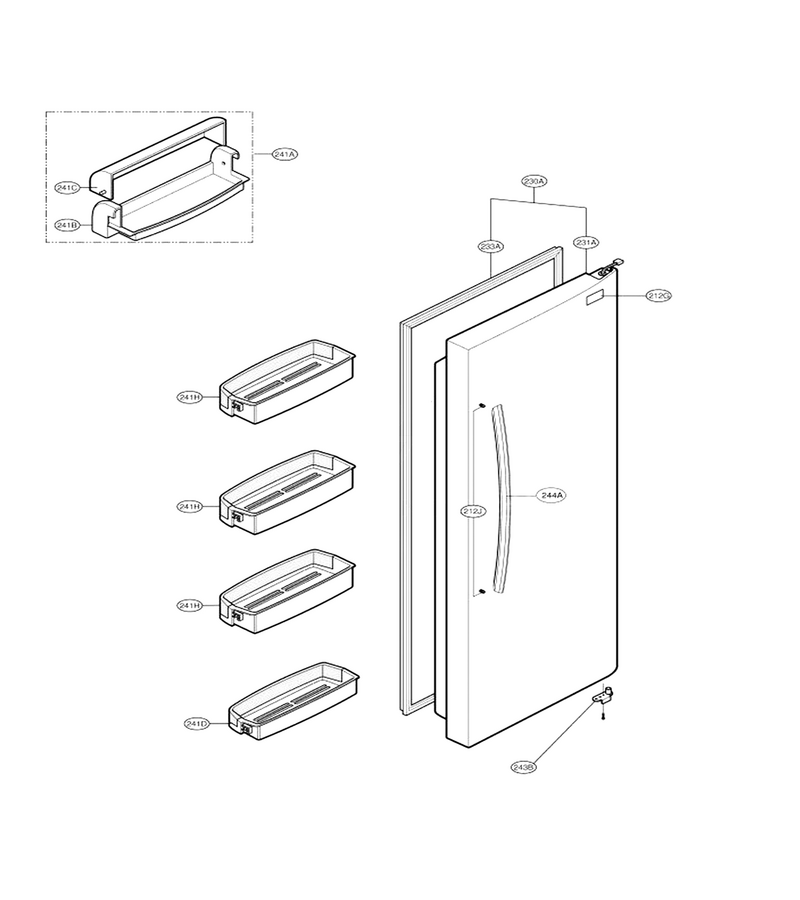

Refrigerator Door

...
...
212G
Refrigerator Nameplate L-G-MFT62366501
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
230A
Refrigerator Door Assembly L-G-ADC30116638
...
231A
Door Foam Assembly,refrigerator L-G-ADD30170726
...
233A
Refrigerator Door Gasket L-G-4987JJ1010M
...
241A
Refrigerator Door Bin L-G-5005JJ1004B
...
241B
Refrigerator Door Basket L-G-5004JL1169B
...
241C
Refrigerator Door Bin Cover L-G-5004JJ1184A
...
241D
Refrigerator Door Bin L-G-AAP34518101
...
241H
Refrigerator Door Basket L-G-AAP34518202
...
243B
Refrigerator Door Stop L-G-4621JA3002H
...
244A
Handle Assembly,refrigerator L-G-AED37082943

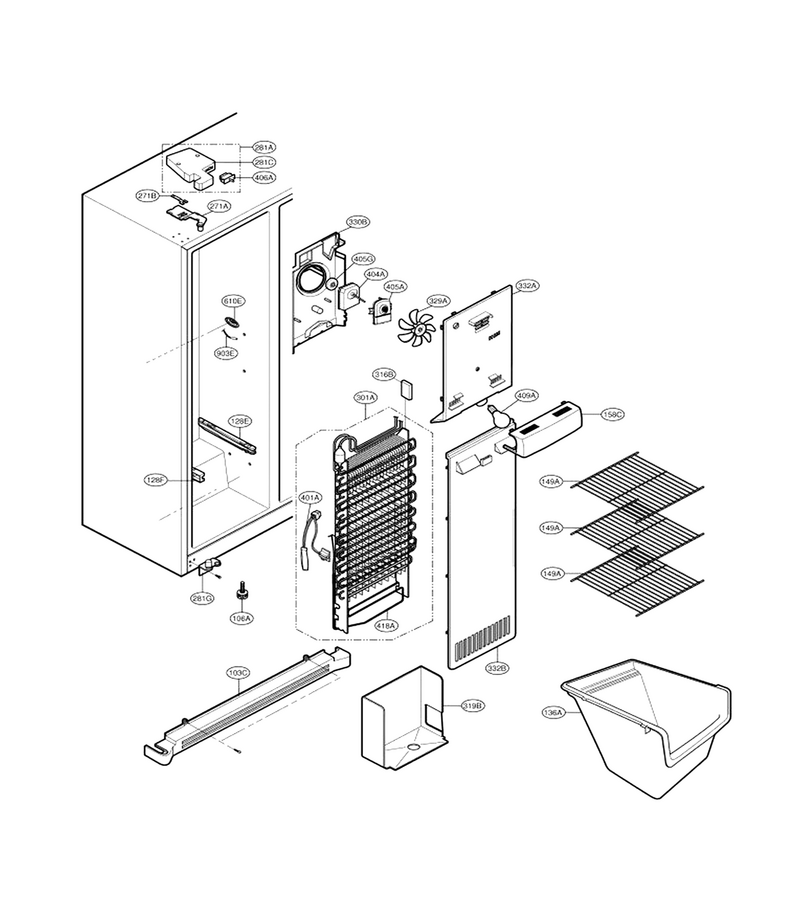

Freezer Compartment

...
...
103C
Refrigerator Toe Grille L-G-3550JJ0073B
...
106A
Refrigerator Leveling Leg L-G-4779JA3001E
...
128E
Refrigerator Rail Guide Assembly L-G-4975JA1018B
...
128F
Refrigerator Rail Guide Assembly L-G-4975JA1018A
...
136A
Refrigerator Freezer Drawer L-G-MJS32793301
...
149A
Refrigerator Freezer Shelf L-G-MHL48126402
...
158C
Refrigerator Lamp Cover L-G-MCK35849501
...
271A
Refrigerator Door Hinge, Upper L-G-4775JA2105A
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Refrigerator Door Hinge Cover Assembly L-G-3551JA1084F
...
281G
Refrigerator Door Hinge L-G-4775JA2085A
...
301A
Refrigerator Evaporator Assembly L-G-ADL72916201
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Refrigerator Freezer Evaporator Drip Tray L-G-3391JA2036A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1022A
...
330B
Freezer Shroud Assembly L-G-4999JJ2004D
...
332A
Refrigerator Grille L-G-3531JJ1010A
...
332B
Refrigerator Fan Grille Assembly L-G-3531JJ1011B
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2002R
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1029A
...
405A
Refrigerator Motor Bracket L-G-MAZ61976201
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
418A
Refrigerator Defrost Heater L-G-5300JB1102D
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

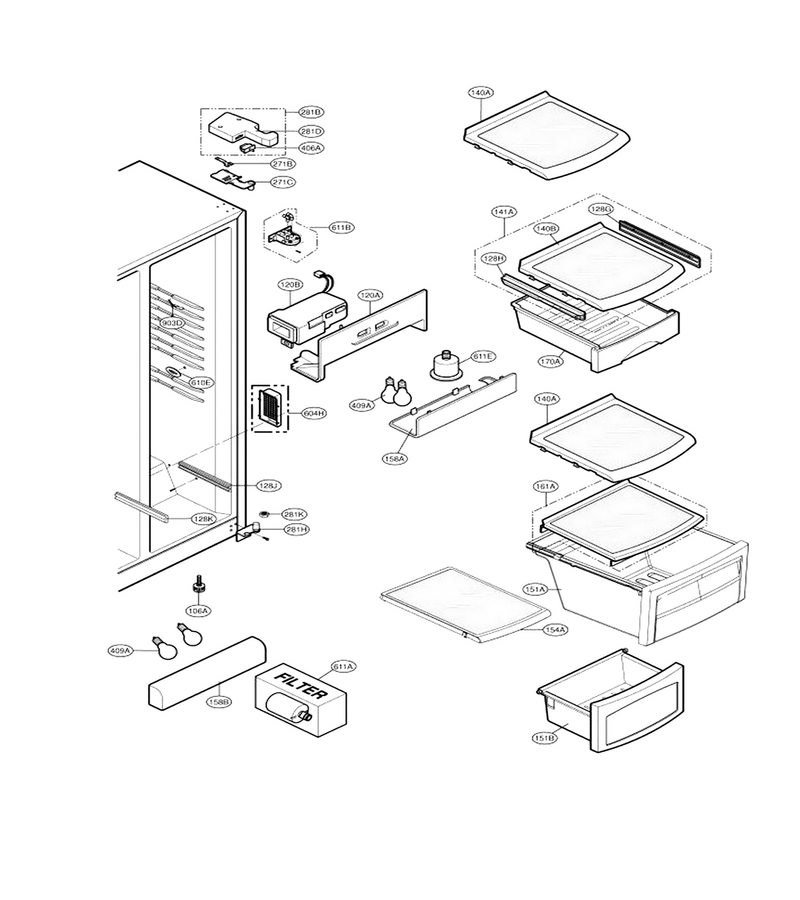

Refrigerator Compartment

...
...
106A
Refrigerator Leveling Leg L-G-4779JA3001E
...
120A
Refrigerator Air Duct Control Cover L-G-4995JJ1039B
...
120B
Refrigerator Air Damper L-G-5209JJ1013B
...
128G
Refrigerator Crisper Drawer Slide Rail L-G-MEA40002601
...
128H
Refrigerator Drawer Slide Rail L-G-MEA40002602
...
128J
Refrigerator Crisper Drawer Track L-G-4975JA1022A
...
128K
Refrigerator Rail Guide Assembly L-G-4975JA1022B
...
140A
Shelf,refrigerator L-G-MHL61848905
...
140B
Shelf,refrigerator L-G-MHL61848906
...
141A
Shelf Assembly,refrigerator L-G-AHT72913503
...
151A
Refrigerator Crisper Drawer, Large L-G-AJP55756801
...
151B
Refrigerator Crisper Drawer, Small L-G-AJP55756901
...
154A
Refrigerator Tray Cover L-G-ACQ55757101
...
158A
Refrigerator Light Cover L-G-MCK34620601
...
158B
Refrigerator Light Cover L-G-3550JA1496A
...
161A
Refrigerator Tray Cover Assembly L-G-ACQ55757001
...
170A
Tray Assembly,snack L-G-AJP72913501
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Refrigerator Door Hinge L-G-4775JA2084A
...
281B
Refrigerator Door Hinge Cover Assembly L-G-3551JA1084E
...
281H
Refrigerator Door Hinge L-G-4775JA2113A
...
281K
Refrigerator Nut L-G-1NZZJA3023A
...
409A
Refrigerator Light Bulb L-G-6912JB2004M
...
604H
Refrigerator Cover Assembly L-G-3551JA2053E
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
611A
Filter Assembly,water L-G-ADQ72910906
...
611B
Refrigerator Water Filter Head L-G-ADQ72911002
...
611E
Refrigerator Water Filter Bypass L-G-5007JA3007C
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A

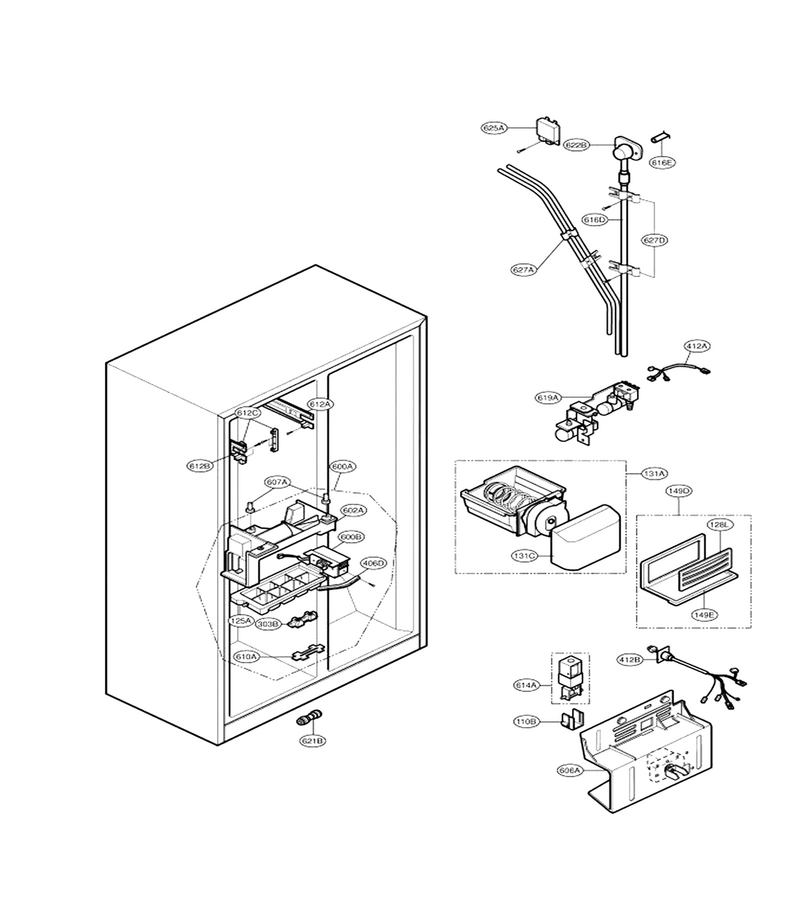

Ice & Water Part

...
...
110B
Refrigerator Ice Guide L-G-4974JA3028A
...
125A
Refrigerator Ice Maker Ice Mold L-G-3390JA1150A
...
128L
Refrigerator Air Guide L-G-MEA50433502
...
131A
Refrigerator Ice Container Assembly L-G-5075JJ1003B
...
131C
Refrigerator Ice Bin Cover, Front L-G-MCK50433401
...
149D
Refrigerator Freezer Shelf Assembly L-G-5027JJ1098C
...
149E
Refrigerator Shelf L-G-5026JJ1195A
...
303B
Refrigerator Insulation L-G-5410JA3011A
...
406D
Refrigerator Lever L-G-4510JA3003C
...
412A
Refrigerator Wire Harness L-G-6877JB3019F
...
412B
Refrigerator Drawing Assembly L-G-6877JB2039G
...
600A
Refrigerator Ice Maker Assembly L-G-5989JA1005F
...
600B
Refrigerator Ice Maker Ice Mold L-G-5988JA1002H
...
606A
Refrigerator Auger Motor L-G-4681JJ1001B
...
607A
Refrigerator Holder Assembly L-G-AEJ73579702
...
610A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA3095A
...
612A
Refrigerator Ice Container Slide Rail, Righ L-G-4974JA1063B
...
612B
Refrigerator Ice Container Slide Rail, Left L-G-4974JA1064B
...
612C
Gear Support L-G-4980JA2071B
...
614A
Refrigerator Ice Dispenser Solenoid L-G-6421JA3001Y
...
616D
Refrigerator Water Tubing L-G-5210JA3005A
...
616E
Refrigerator Water Tubing L-G-5210JA2006B
...
619A
Refrigerator Water Inlet Valve L-G-MJX42111401
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
622B
Refrigerator Water Tube Fitting L-G-5040JA2015A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184A
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627D
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

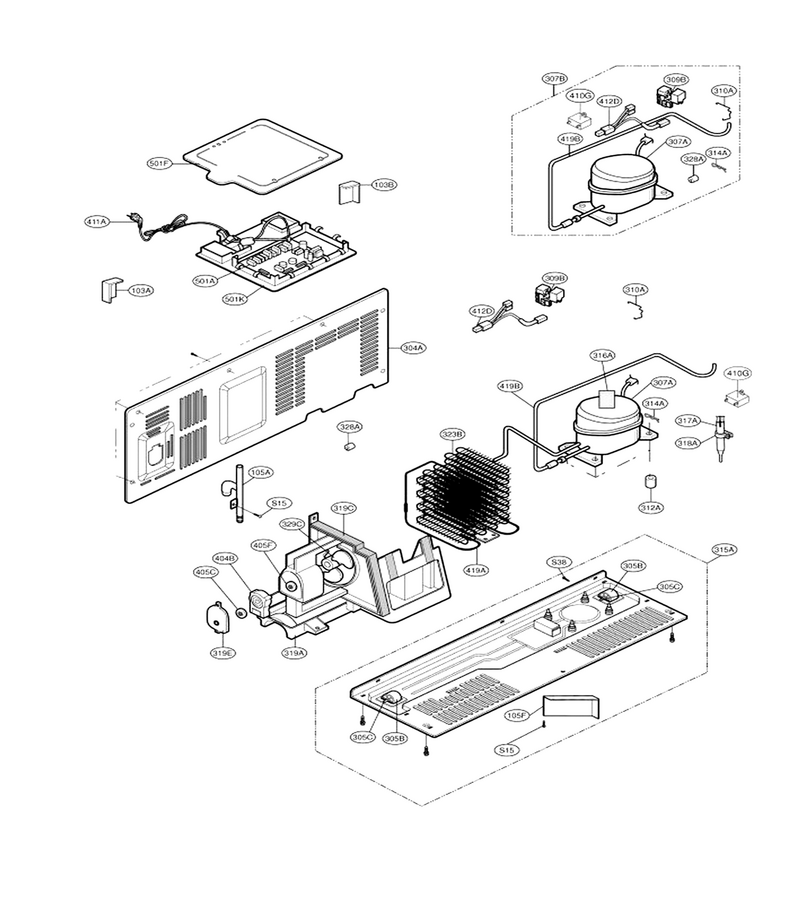

Mechanical Compartment

...
...
S15
Refrigerator Screw L-G-4J00415D
...
103A
Refrigerator Tray Cover L-G-3650JA3032Q
...
103B
Refrigerator Tray Cover L-G-3650JA3032R
...
105A
Tube Assy,dr L-G-5251JA3004A
...
105F
Refrigerator Lower Skirt L-G-5070JJ3004C
...
304A
Cover Asy,ma L-G-ACQ85290801
...
305B
Refrigerator Roller L-G-4580JA3024B
...
305C
Refrigerator Roller Wheel Pin L-G-1PZZJA3013A
...
307A
Refrigerator Compressor L-G-TCA32241801
...
309B
Refrigerator Temperature Sensor L-G-EBG44336202
...
310A
Refrigerator Compressor Start Relay Cover L-G-4810JJ3033B
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
315A
Compressor Base Assembly L-G-3103JJ1004B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Refrigerator Filter Dryer L-G-5851JA2007A
...
319A
Refrigerator Drain Pan L-G-3390JJ1109A
...
319C
Refrigerator Fan Guid L-G-4974JJ1053A
...
319E
Refrigerator Motor Cover L-G-3550JA2147A
...
323B
Condenser Assembly,wire L-G-5403JA1003C
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1019A
...
404B
Refrigerator Condenser Fan L-G-4681JB1029B
...
405C
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014G
...
411A
Refrigerator Power Cord L-G-EAD56779002
...
412D
Harness Assembly L-G-EAD37941002
...
419A
Pipe Joint L-G-5200JA1019A
...
419B
Pipe Joint L-G-MGE58810302
...
501A
Refrigerator Electronic Control Board L-G-EBR61439203
...
501F
Cover Assembly,pcb L-G-ACQ85612405
...
501K
Refrigerator Electronic Control Board Housing L-G-3110JA1071A

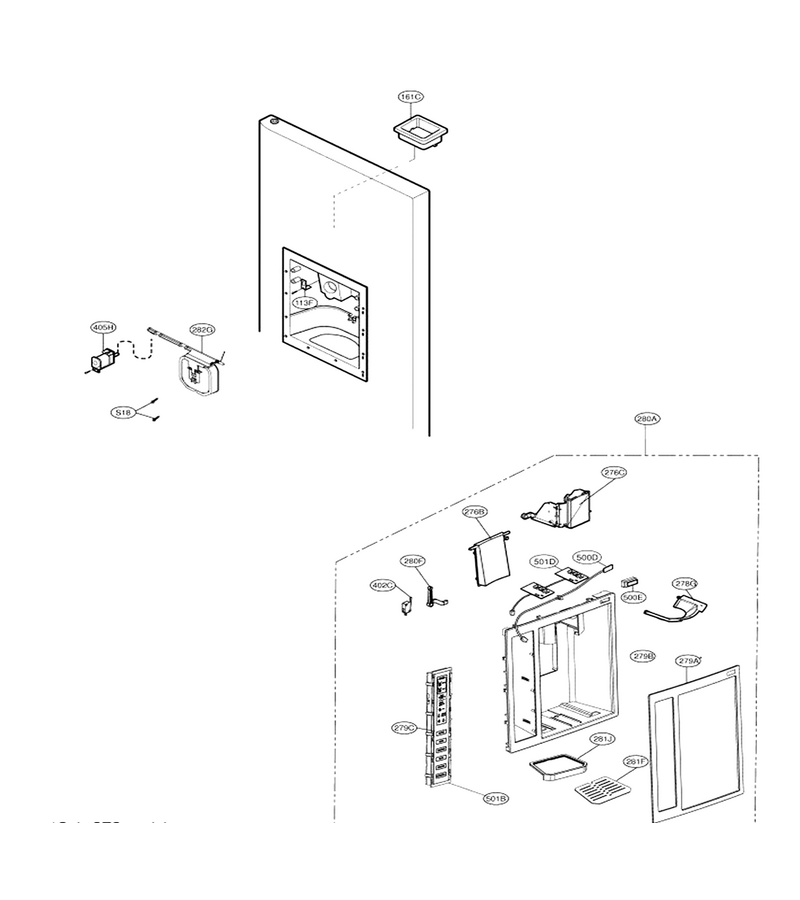

Dispenser Part

...
...
S18
Refrigerator Screw L-G-1TRL0302818
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
161C
Refrigerator Ice Dispenser Funn L-G-3550JJ2074A
...
276B
Refrigerator Dispenser Lever L-G-MBG42907101
...
276C
Refrigerator Ice And Water Dispenser Lever L-G-ABH37000103
...
278G
Refrigerator Dispenser Ice Chute Funnel L-G-MDR41995701
...
279B
Dispenser Cover L-G-MCK51195103
...
279C
Refrigerator Dispenser Display Assembly L-G-MCR42758701
...
280A
Cover,disply L-G-ACQ36835912
...
280F
Refrigerator Dispenser Lever L-G-MBG38252601
...
281F
Refrigerator Decorative Drain L-G-MCR42627303
...
281J
Refrigerator Drain Tray L-G-MJS42627203
...
282G
Refrigerator Ice Dispenser Door L-G-ABN55757903
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405H
Refrigerator Dispenser Ice Chute Door Solenoid L-G-6421JB2002D
...
500D
Refrigerator Keypad Assembly L-G-EBR36498901
...
500E
Refrigerator Button Assembly L-G-ABH34641205
...
501B
Refrigerator Display Pcb Assembly L-G-EBR42478906
...
501D
Refrigerator Led Power Board L-G-6871JB2074E
