LG LRTBC2025T.ATICLGX

Model: LRTBC2025T.ATICLGX

Save Part Not Listed?
product name

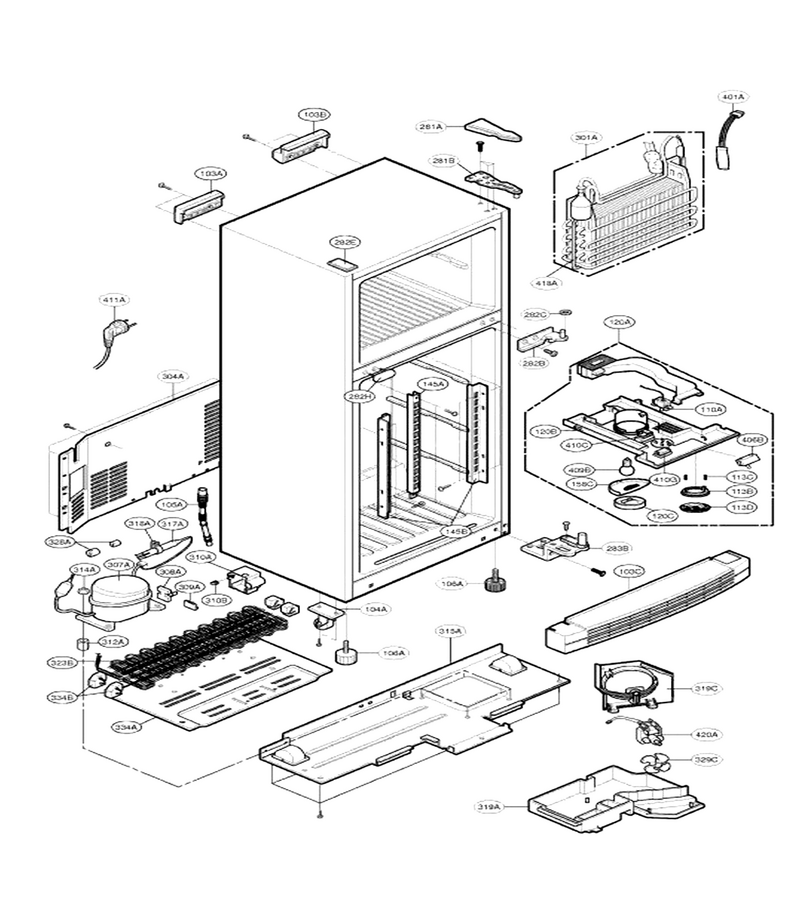

Main Parts I

...
...
103A
Handle L-G-3650JA2004U
...
103B
Handle,bac L-G-3650JA2004V
...
103C
Refrigerator Cover Assembly L-G-3551JA2082D
...
104A
Refrigerator Caster Assembly L-G-4441JA3001A
...
105A
Refrigerator Drain Pipe L-G-5250JA2009A
...
106A
Leg Assy,a L-G-4779JA2003B
...
110A
Refrigerator Thermostat L-G-6930JB1007C
...
113B
Guide,duct L-G-4974JA2033A
...
113C
Refrigerator Spring L-G-4970JA3016A
...
113D
Refrigerator Door Gasket L-G-4986JA2024A
...
120A
Refrigerator Control Board L-G-4995JA1022H
...
120B
Cntrl Box,r L-G-4994JD1037B
...
120C
Refrigerator Knob Damper L-G-4940JD1006E
...
145A
Refrigerator Shelf Holder L-G-4930JA2032A
...
145B
Refrigerator Shelf Holder L-G-4930JA2031A
...
158C
Refrigerator Lamp Cover L-G-3550JA2096A
...
281A
Refrigerator Hinge Cover L-G-3550JA2132K
...
281B
Refrigerator Hinge Assembly L-G-4775JA2031B
...
282B
Refrigerator Hinge Assembly L-G-4774JA2005A
...
282C
Washer L-G-1WPZJA3007A
...
282E
Refrigerator Hinge Cap L-G-5006JA2011U
...
282H
Refrigerator Hinge Cap L-G-5006JA2020B
...
283B
Refrigerator Hinge Assembly L-G-4775JA2026A
...
301A
Refrigerator Evaporator Assembly L-G-5421JA1032A
...
304A
Cover Assembly,machinery(rear) L-G-3550JA1117A
...
307A
Refrigerator Compressor L-G-2521JA1006C
...
308A
Refrigerator Compressor Start Relay L-G-6748JA3001A
...
309A
Overload Protector L-G-6750JA3001A
...
310A
Cover,p.t. L-G-3550JA2158A
...
312A
Refrigerator Seat L-G-5040JA3044A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Refrigerator Complete Base L-G-3103JA1015B
...
317A
Refrigerator Drier Assembly L-G-5851JA2003B
...
318A
Holder Drier L-G-J719-00006A
...
319A
Refrigerator Drip Tray L-G-3390JA1115A
...
319C
Refrigerator Fan Guide L-G-4974JA1046A
...
323B
Refrigerator Condenser Assembly L-G-5403JA1026A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329C
Refrigerator Fan Assembly L-G-5901JA1005B
...
334A
Refrigerator Cover Assembly L-G-3550JA2095A
...
334B
Refrigerator Rubber L-G-5040JA3039A
...
401A
Refrigerator Control L-G-6615JB2003F
...
406B
Refrigerator Door Switch L-G-6600JB1002K
...
409B
Refrigerator Light Bulb L-G-6912JB2004C
...
410C
Refrigerator Defrost Timer L-G-6914JB2006G
...
410G
Refrigerator Run Capacitor L-G-0CBZJB2001E
...
411A
Refrigerator Power Cord Assembly L-G-6411JB1013B
...
418A
Refrigerator Evaporator Defrost Heater L-G-5300JB1050R
...
420A
Ac Motor L-G-4681JB1020G

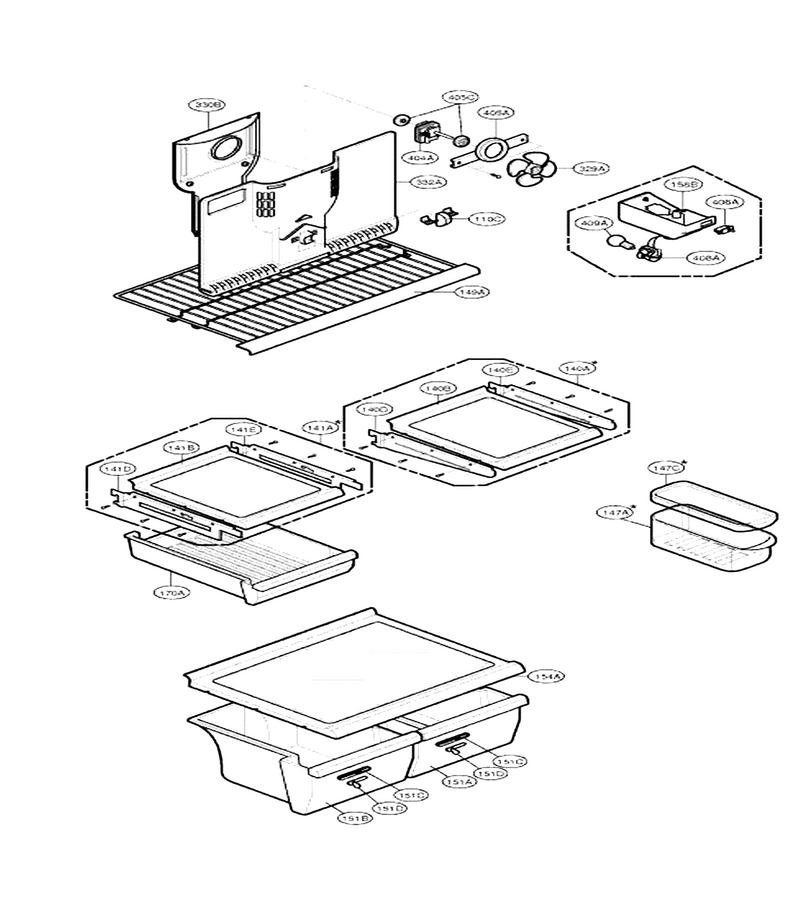

Main Parts Ii

...
...
110C
Refrigerator Knob Damper L-G-4940JD1007C
...
140A
Refrigerator Shelf Assembly L-G-5027JA1041J
...
140B
Refrigerator Shelf Assembly L-G-5027JA1030E
...
140D
Refrigerator Shelf Net L-G-5026JA2016F
...
140E
Refrigerator Shelf Net L-G-5026JA2016E
...
141A
Refrigerator Shelf Assembly L-G-5027JA1019U
...
141B
Refrigerator Shelf Assembly L-G-5027JA1030E
...
141D
Refrigerator Shelf Net L-G-5026JA2012F
...
141E
Refrigerator Shelf Net L-G-5026JA2012C
...
147A
Bank L-G-5074JA1008A
...
147C
Cover Bank L-G-3550JA1077A
...
149A
Refrigerator Freezer Shelf Assembly L-G-5026JA1108A
...
151A
Refrigerator Tray Assembly L-G-3391JA1036G
...
151B
Refrigerator Tray Assembly L-G-3391JA1036H
...
151C
Refrigerator Nameplate L-G-4940JA2012A
...
151D
Refrigerator Door Gasket Assembly L-G-4940JA2011A
...
154A
Refrigerator Cover Assembly L-G-3551JA1027D
...
158B
Refrigerator Lamp Holder L-G-4930JA1034A
...
170A
Meat Tray L-G-3390JD1050H
...
329A
Refrigerator Condenser Fan Blade L-G-J753-00011A
...
330B
Shroud,f L-G-4998JA1010A
...
332A
Fan Grille Assembly L-G-3531JA1018L
...
404A
Refrigerator Fan Motor L-G-4681JB1018P
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA3007A
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
406A
Door Switch L-G-6600JB1005C
...
408A
Refrigerator Socket Assembly L-G-6621JB2005A
...
409A
Refrigerator Incandescent Lamp L-G-6912JB2004F

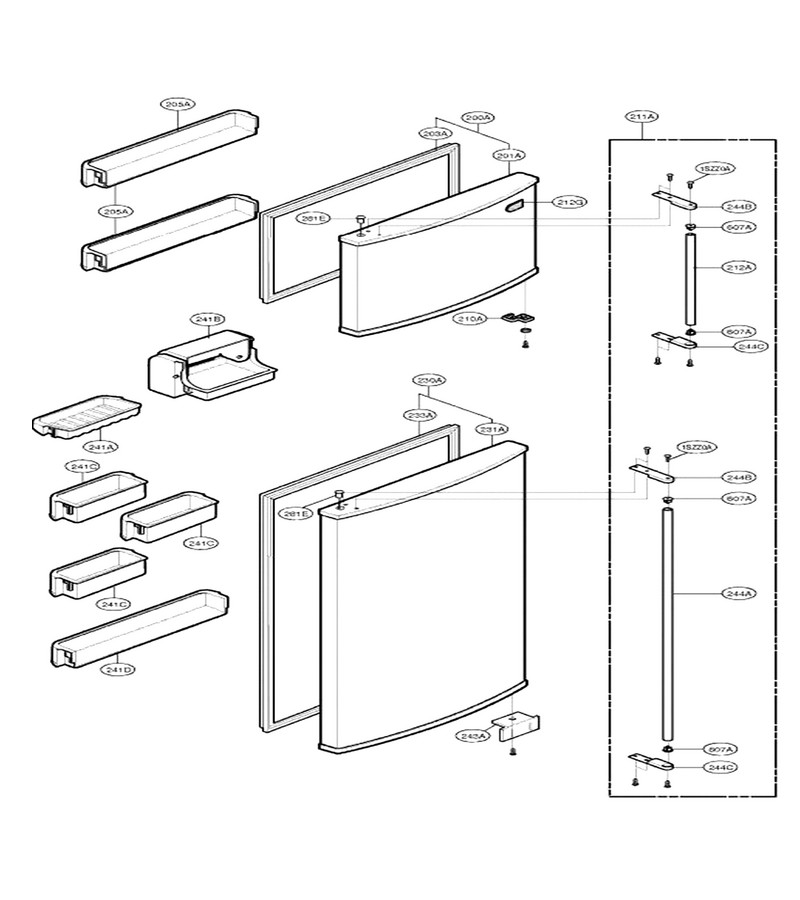

Main Parts Iii

...
...
1SZZ0A
Refrigerator Screw L-G-1TCG0403232
...
200A
Freezer Door L-G-3581JA1045Q
...
201A
Refrigerator Door Foam L-G-5433JA0076F
...
203A
Refrigerator Freezer Door Gasket L-G-4987JA1024A
...
205A
Refrigerator Condenser Fan Blade L-G-5004JD1110B
...
210A
Refrigerator Door Stopper L-G-4620JA2011A
...
211A
Refrigerator Handle Assembly L-G-3651JA2212A
...
212A
Freezer Ha L-G-3650JA2053A
...
212G
Refrigerator Nameplate L-G-4140JD2001C
...
230A
Refrigerator Door Assembly L-G-3581JA8475C
...
231A
Refrigerator Door Foam L-G-5433JA0077L
...
233A
Refrigerator Door Gasket Assembly L-G-4987JA1024B
...
241A
Refrigerator Door Basket L-G-5004JD1119A
...
241B
Refrigerator Basket Assembly L-G-5005JA1001B
...
241C
Refrigerator Door Bin L-G-5004JD1112B
...
241D
Refrigerator Door Basket L-G-5004JD1111C
...
243A
Refrigerator Stopper L-G-4620JA3010B
...
244A
Refrigerator L-G-3650JA2054A
...
244B
Refrigerator Handle L-G-3650JA2055A
...
244C
Refrigerator Handle L-G-3650JA2056A
...
281E
Refrigerator Hinge Cap L-G-5006JA3054H
...
607A
Refrigerator Holder Bracket L-G-4930JA3068A

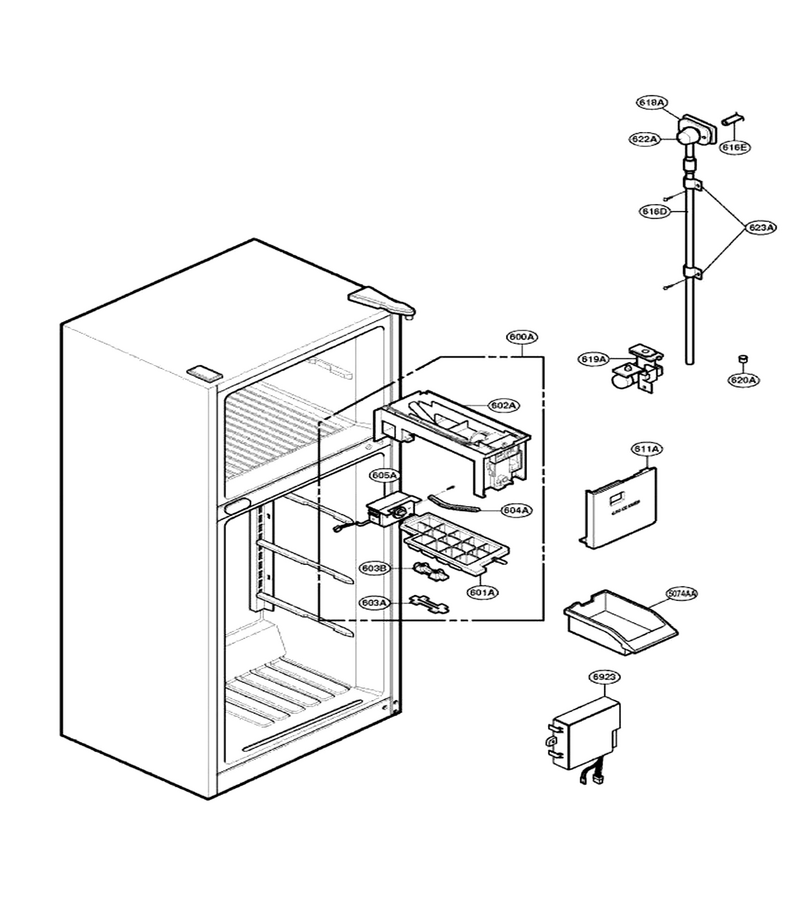

Ice Maker Part

...
...
600A
Refrigerator Ice Maker Kit L-G-5989JA1004B
...
601A
Refrigerator Ice Tray L-G-3390JA1118A
...
602A
Refrigerator Bracket Ice Maker L-G-4810JA1022A
...
603A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA3095A
...
603B
Refrigerator Insulation L-G-5410JA3011A
...
604A
Refrigerator Lever L-G-4510JA3003A
...
605A
Ice Maker (mech), Unit L-G-5988JA1001A
...
611A
Refrigerator Cover Assembly Tray L-G-3551JA2074A
...
616D
Refrigerator Water Tubing L-G-5210JA3005J
...
616E
Tube,inject L-G-5210JA3021A
...
618A
Refrigerator Ice Maker Water Inlet Cover Bracket L-G-4810JA3036A
...
619A
Refrigerator Water Inlet Valve L-G-5220JA2009D
...
620A
Drawer Nut L-G-1NZZJA3005A
...
622A
Rubber, Inject L-G-5040JA3025A
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
5074AA
Ice Bank L-G-5074JA1023A
...
6923
Micom Assy L-G-6923JB1001A
