LG LRSPS2706V.APZCNA2

Model: LRSPS2706V.APZCNA2

Save Part Not Listed?

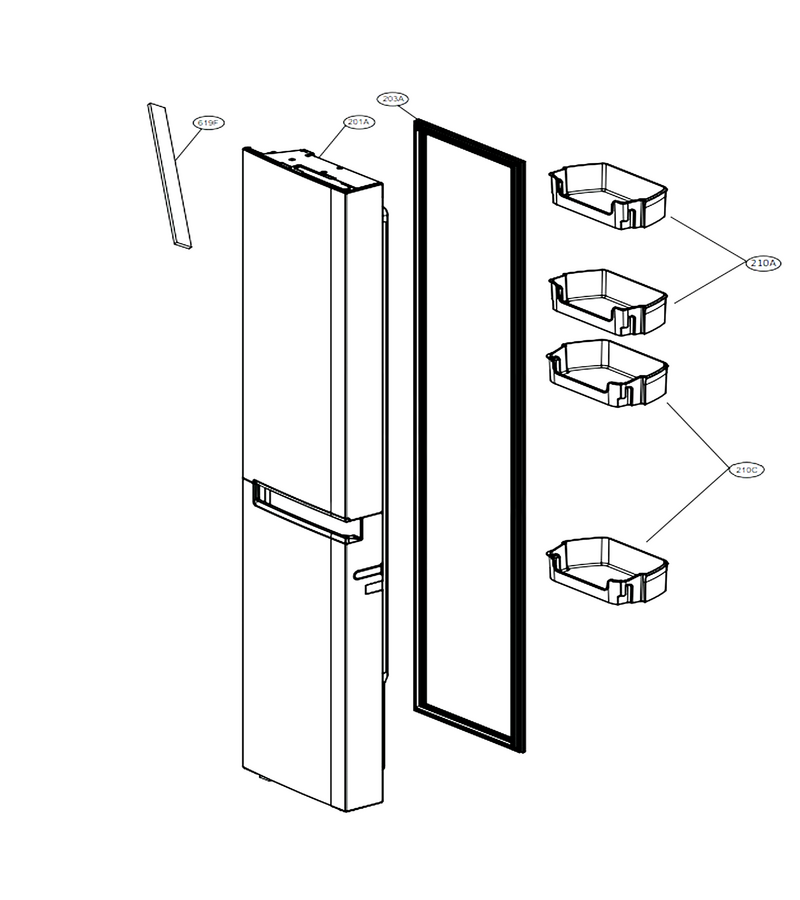

product name

Freezer Door Part

...
...
201A
Door Foam Assembly,freezer L-G-ADD76416401
...
210C
Basket,door L-G-MAN63909402
...
210A
Basket,door L-G-MAN63909502
...
619F
Foam Gasket L-G-5400JJ2042T

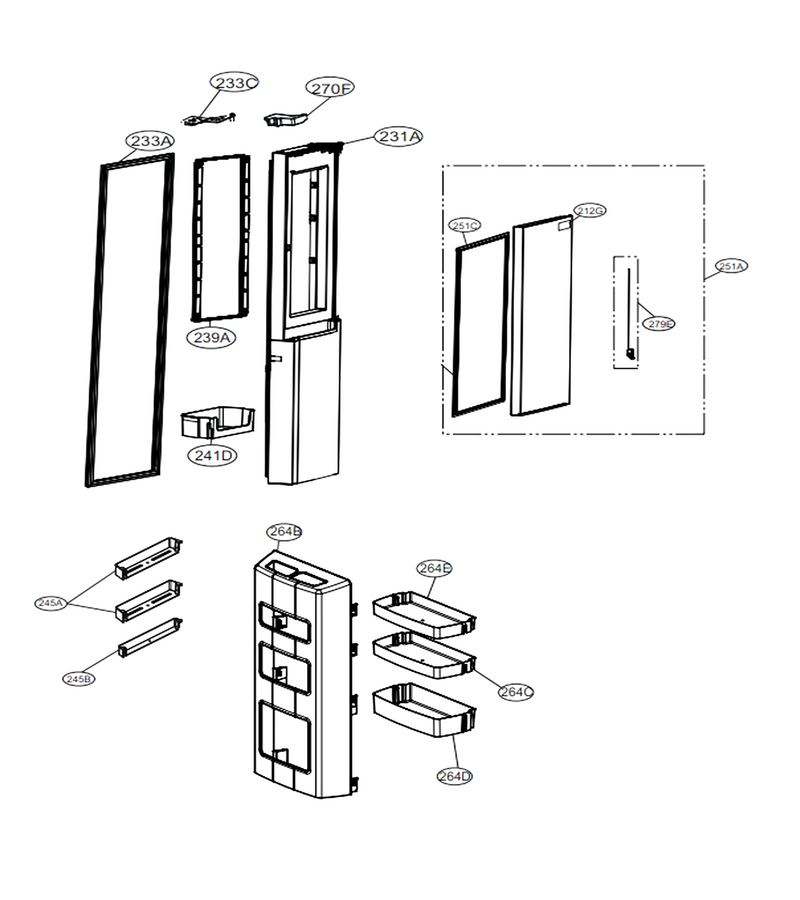

Refrigerator Door Part

...
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
231A
Door Foam Assembly,refrigerator L-G-ADD76416312
...
233C
Hinge Assembly,upper L-G-AEH72957216
...
239A
Decor Assembly,door L-G-ACW75197101
...
245A
Basket,door L-G-MAN63908901
...
245B
Basket,door L-G-MAN63909001
...
251C
Gasket,home Bar L-G-MDS62152466
...
251A
Door Foam Assembly,home Bar L-G-ADD74296736
...
264B
Case,home Bar L-G-MBN66225501
...
264C
Basket,door L-G-MAN63668201
...
264D
Basket,door L-G-MAN63668301
...
264E
Basket,door L-G-MAN63768205
...
270F
Cover,hinge L-G-MCK69251909
...
279E
Button Assembly L-G-ABH74899823

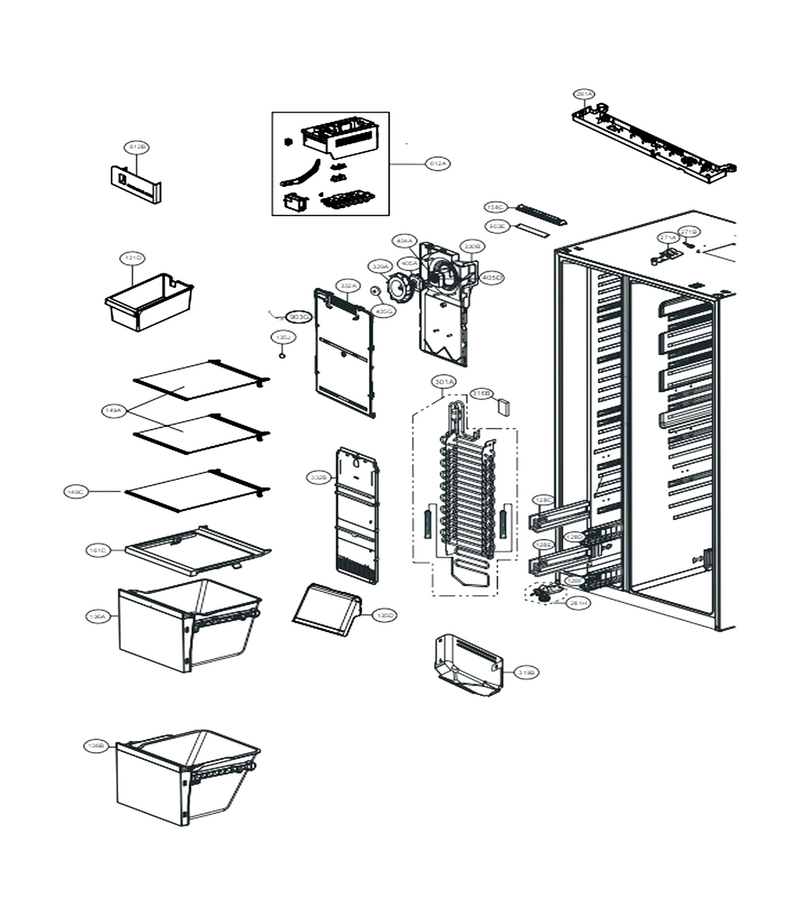

Freezer Compartment

...
...
128F
Guide,rail L-G-MEA64670802
...
128D
Guide,rail L-G-MEA64670702
...
128C
Guide,rail L-G-MEA64670701
...
128E
Guide,rail L-G-MEA64670801
...
131D
Bucket Assembly,ice L-G-AKC74069201
...
135J
Refrigerator Duct Cap L-G-5006JA3123A
...
158C
Led Cover L-G-MCK63331704
...
271A
Hinge Assembly,upper L-G-AEH75957301
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ30041601
...
281H
Hinge Assembly,lower L-G-AEH75176304
...
301A
Evaporator Assembly L-G-ADL73901333
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Tray Assembly,drain L-G-AJP73014604
...
329A
Fan Assembly L-G-ADP74753501
...
330B
Shroud,freezer L-G-MHN61882004
...
332A
Grille Assembly,fan L-G-AEB75404501
...
332B
Grille Assembly,fan L-G-AEB72984718
...
404A
Motor,dc L-G-EAU63103201
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405D
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405A
Bracket,motor L-G-MAZ65353201
...
612A
Kit Ice Maker Assembly L-G-AEQ72909608
...
612B
Decor,cover L-G-MCR68387301
...
903E
Led Assembly L-G-EAV61875814
...
903G
Sensor,temperature L-G-6500JB1008D

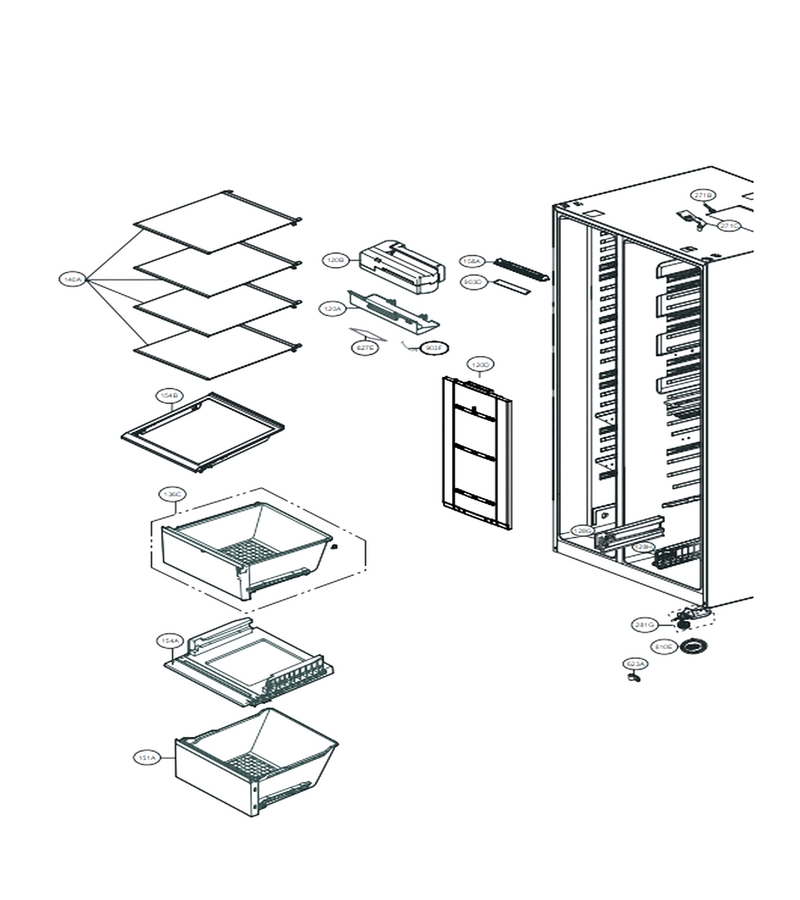

Refrigerator Compartment

...
...
120A
Case Assembly,control Refrigerator L-G-ABQ73984015
...
128G
Guide,rail L-G-MEA64710402
...
128H
Guide,rail L-G-MEA64710401
...
140A
Shelf Assembly,refrigerator L-G-AHT73493833
...
158A
Led Cover L-G-MCK63331804
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Hinge Assembly,upper L-G-AEH73957102
...
281G
Hinge Assembly,lower L-G-AEH75176202
...
610E
Cover,sensor L-G-3550JQ2073E
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627E
Gasket,foam L-G-MDS67110105
...
903D
Led Assembly L-G-EAV61875815
...
903F
Sensor,temperature L-G-6500JB2008Z

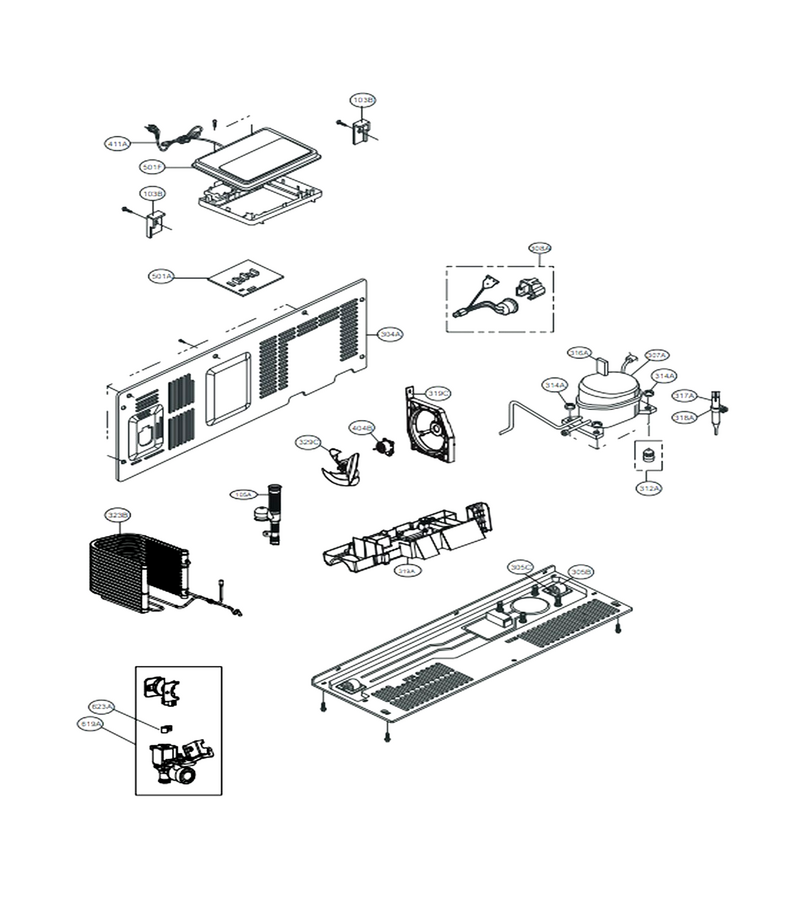

Machine Compartment

...
...
105A
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
304A
Cover Assembly,machinery(rear) L-G-ACQ86284807
...
305B
Roller L-G-4580JJ3001G
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Set Assembly Compressor L-G-TCA36811415
...
308A
Ptc Thermistor Assembly L-G-EBG63205819
...
312A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Drier Assembly L-G-ADH73590310
...
318A
Drier Holder L-G-MEG64900401
...
319A
Tray,drip L-G-MJS65315101
...
319C
Guide,fan L-G-MEA42773102
...
323B
Condenser Assembly,wire L-G-ACG76384503
...
329C
Fan Assembly L-G-ADP73273401
...
404B
Motor,dc L-G-EAU63103301
...
411A
Power Cord Assembly L-G-EAD61857359
...
501A
Main Pcb Assembly L-G-EBR31600160
...
501F
Cover Assembly,pcb L-G-ACQ85612409
...
619A
Valve Assembly,water L-G-AJU73432824
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001E
