LG LRSPC2331NI.ANICLGA

Model: LRSPC2331NI.ANICLGA

Save Part Not Listed?

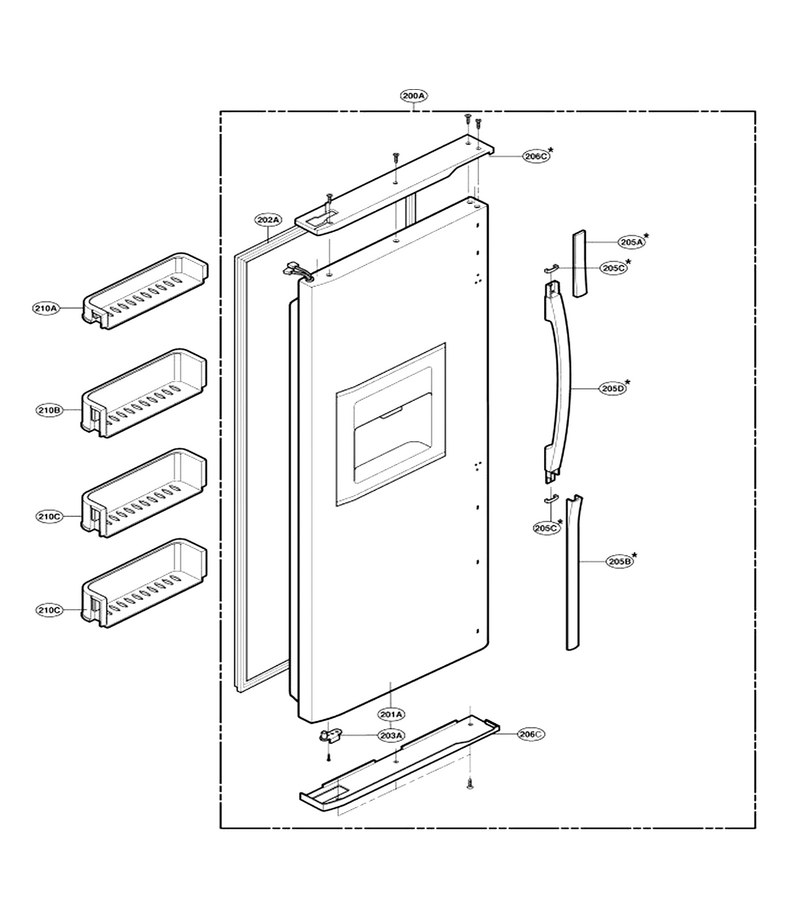

product name

Freezer Door Part

...
...
200A
Door Assembly,freezer L-G-3581JA8377M
...
201A
Door Foam Assembly,freezer L-G-5433JA0064S
...
202A
Refrigerator Door Gasket Assembly L-G-4987JA1022T
...
203A
Refrigerator Stopper Assembly L-G-4621JA3002E
...
205A
Handle,decor L-G-3650JA2024G
...
205B
Handle,decor L-G-3650JA2023G
...
205C
Handle Piece L-G-3650JA3038A
...
205D
Handle,freezer L-G-3650JA0035E
...
206C
Cap,decor Freezer L-G-5078JA1033A
...
210A
Refrigerator Door Basket L-G-5004JD1126A
...
210B
Refrigerator Door Basket L-G-5004JD1126C
...
210C
Refrigerator Door Basket L-G-5004JD1126D

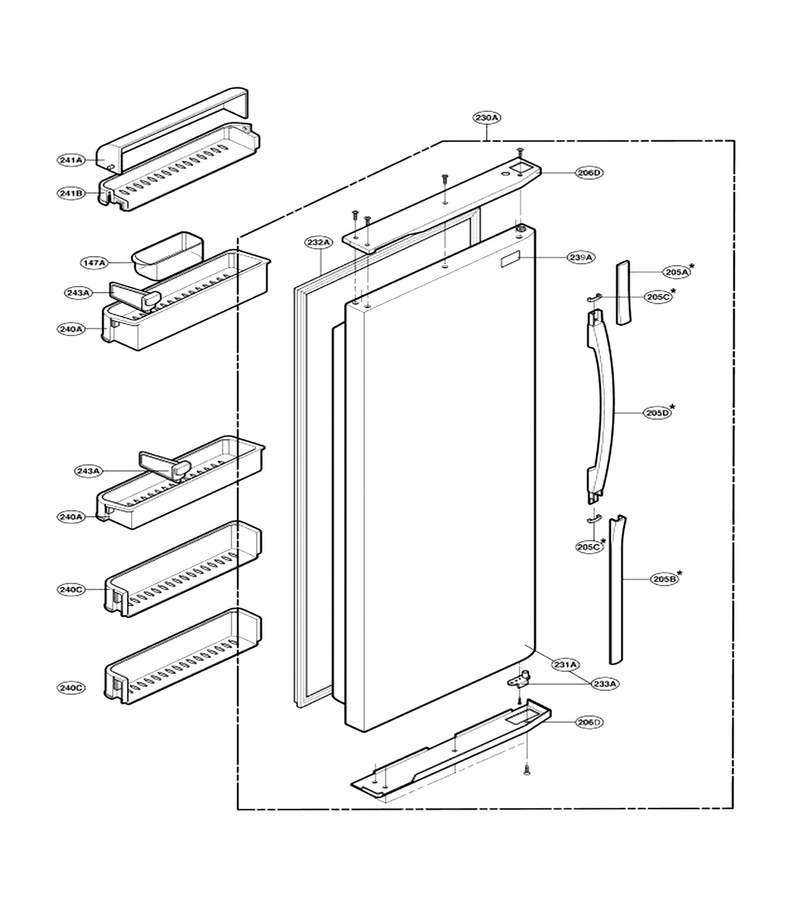

Refrigerator Door Part

...
...
147A
Bank L-G-5074JA1008A
...
205A
Handle,decor L-G-3650JA2024G
...
205B
Handle,decor L-G-3650JA2023G
...
205C
Handle Piece L-G-3650JA3038A
...
205D
Handle,freezer L-G-3650JA0035E
...
206D
Cap,decor Refrigerator L-G-5078JA1034A
...
230A
Door Assembly,refrigerator L-G-3581JA8375X
...
231A
Door Foam Assembly,refrigerator L-G-5433JA0065B
...
232A
Refrigerator Door Gasket L-G-4987JA1022U
...
233A
Refrigerator Door Stop L-G-4621JA3002H
...
239A
Refrigerator Nameplate L-G-3846JD1007F
...
240A
Refrigerator Door Basket L-G-5004JD1126F
...
240C
Refrigerator Door Basket L-G-5004JD1126G
...
241A
Refrigerator Tray Cover L-G-3550JA1104B
...
241B
Refrigerator Door Basket L-G-5004JD1126E
...
243A
Refrigerator Guide L-G-4974JA2055A

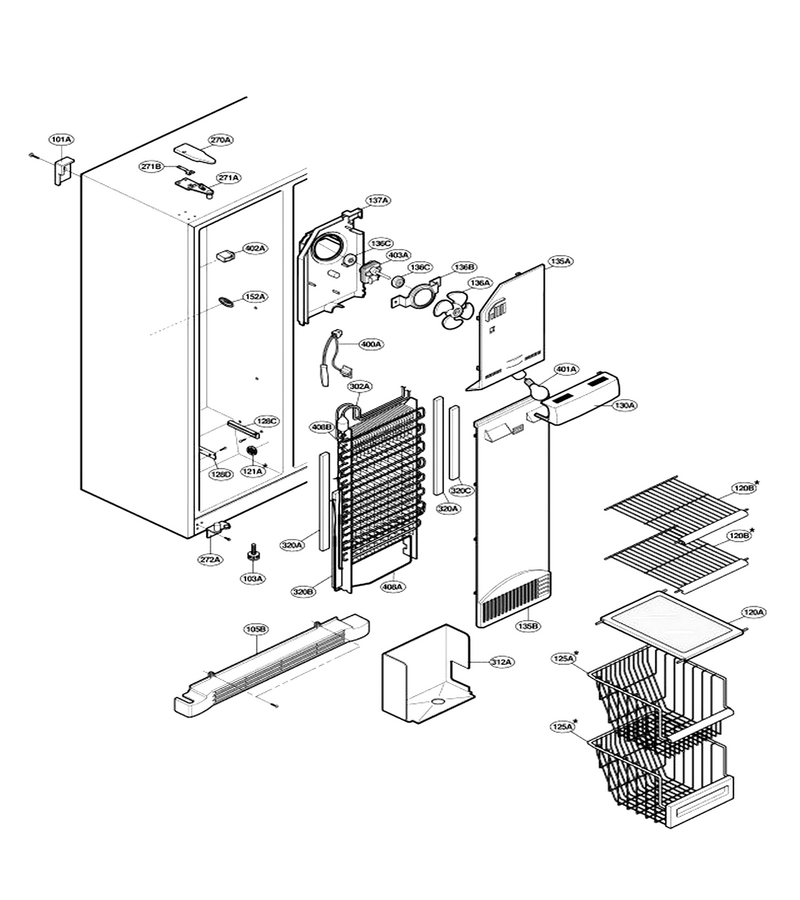

Freezer Compartment

...
...
101A
Handle,rear L-G-3650JA2025D
...
103A
Refrigerator Leveling Leg L-G-4779JA3001E
...
105B
Cover Assembly,lower L-G-3551JA1036D
...
120A
Refrigerator Shelf Assembly L-G-5027JA2041E
...
120B
Shelf Assembly, F L-G-5027JA2036C
...
125A
Refrigerator Drawer Tray Assembly L-G-3391JA1032A
...
128C
Refrigerator Guide L-G-4974JA1043A
...
128D
Refrigerator Guide L-G-4974JA1043B
...
130A
Refrigerator Light Cover L-G-3550JA1113A
...
135A
Fan Grille Assembly L-G-3531JA2013C
...
135B
Refrigerator Grille Assembly L-G-3531JA2015E
...
136A
Refrigerator Fan Assembly L-G-5901JA1011A
...
136B
Refrigerator Evaporator Fan Motor Bracket L-G-4811JA2009A
...
136C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
137A
Refrigerator Shroud L-G-4998JA0024A
...
152A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
270A
Refrigerator Hinge Cover L-G-3550JA1108T
...
271A
Hinge Assembly, Upper L-G-4775JA2024A
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
312A
Refrigerator Drain Tray Assembly L-G-3391JA2016B
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2002R
...
401A
Refrigerator Light Bulb L-G-6912JB2004M
...
402A
Refrigerator Door Switch L-G-6600JB1010A
...
403A
Refrigerator Evaporator Fan Motor L-G-4681JB1017D
...
408A
Refrigerator Heater Sheath L-G-5300JB1092D

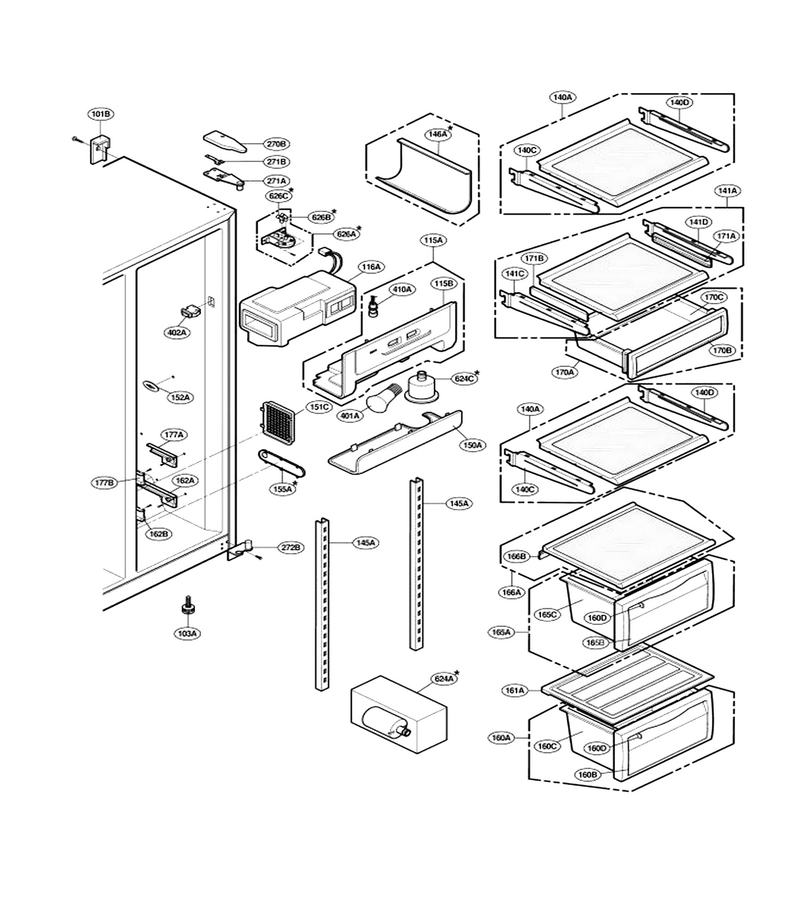

Refrigerator Compartment

...
...
101B
Refrigerator Handle L-G-3650JA3041Z
...
103A
Refrigerator Leveling Leg L-G-4779JA3001E
...
115A
Refrigerator Lamp Socket Housing L-G-4995JA1021R
...
115B
Refrigerator Control Board L-G-4994JD1036F
...
116A
Refrigerator Duct Assembly L-G-5209JA1011D
...
140A
Refrigerator Shelf Assembly L-G-5027JA1013G
...
140C
Refrigerator Shelf Assembly L-G-5027JA2054C
...
141A
Refrigerator Shelf Assembly L-G-5027JA1013H
...
141C
Refrigerator Shelf Assembly L-G-5027JA2054B
...
145A
Refrigerator Shelf Holder L-G-4930JA2023B
...
146A
Refrigerator Wine Rack L-G-J469-00030A
...
150A
Refrigerator Lamp Cover L-G-3550JA1172A
...
151C
Refrigerator Cover Assembly L-G-3551JA2053E
...
152A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
155A
Refrigerator Case Assembly L-G-3111JA2007B
...
160A
Refrigerator Tray Assembly L-G-3391JA1033F
...
160C
Tray,vegetable L-G-3390JD1047F
...
160D
Refrigerator Shutter Knob L-G-4940JA2008A
...
162A
Refrigerator Rail Guide Assembly L-G-4975JA2012A
...
162B
Refrigerator Rail Guide Assembly L-G-4975JA2012B
...
165A
Refrigerator Tray Assembly L-G-3391JA1035F
...
165B
Decor,tray L-G-3806JD1021F
...
165C
Tray,vegetable L-G-3390JD1048E
...
170A
Refrigerator Tray Assembly L-G-3391JA1034F
...
170B
Decor,tray L-G-3806JA1027A
...
177A
Rail Guide Assembly L-G-4975JA2003A
...
177B
Rail Guide Assembly L-G-4975JA2003N
...
270B
Refrigerator Hinge Cover L-G-3550JA1108Q
...
271A
Hinge Assembly, Upper L-G-4775JA2024A
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
401A
Refrigerator Light Bulb L-G-6912JB2004M
...
402A
Refrigerator Door Switch L-G-6600JB1010A
...
624A
Refrigerator Water Filter L-G-5231JA2002A
...
624C
Refrigerator Water Filter Bypas L-G-5007JA3007B
...
626A
Refrigerator Water Filter Head And Tubing L-G-5231JA2004C
...
626B
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
626C
Refrigerator Elbow L-G-4932JA3009B

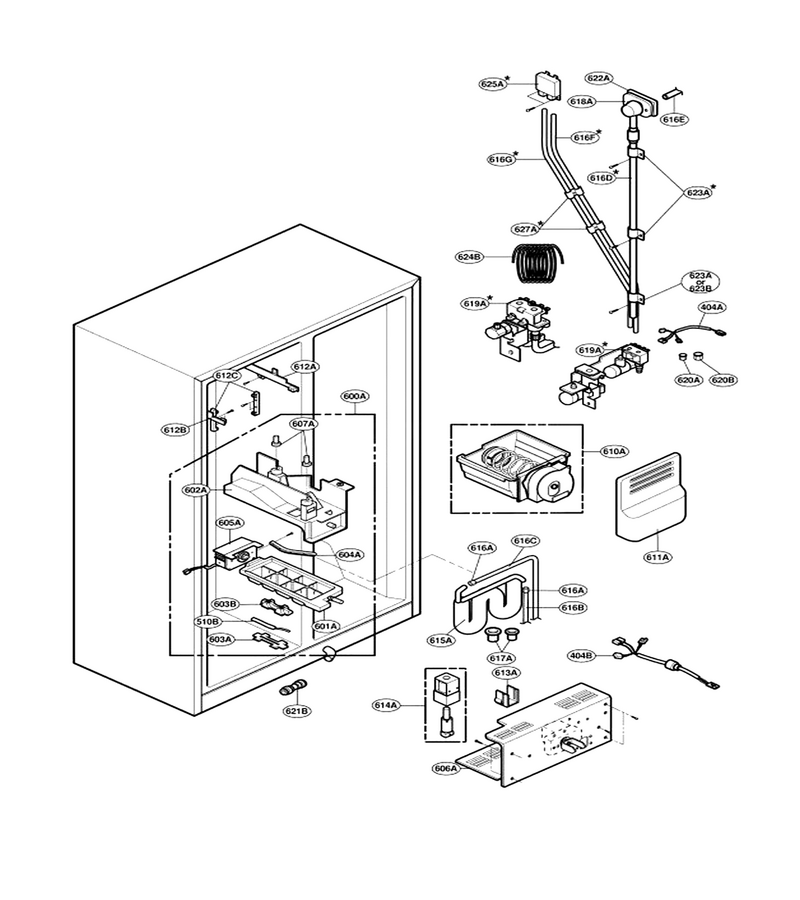

Ice & Water Part

...
...
404A
Refrigerator Wire Harness L-G-6877JB3019F
...
404B
Refrigerator Connector Assembly L-G-6877JB2039E
...
510B
Sensor,temperature L-G-6500JB2004B
...
600A
Refrigerator Ice Maker L-G-5989JA1002A
...
601A
Refrigerator Ice Maker Ice Mold L-G-3390JA1150A
...
602A
Refrigerator Bracket L-G-4810JA1015A
...
603A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA3095A
...
603B
Refrigerator Insulation L-G-5410JA3011A
...
604A
Refrigerator Lever L-G-4510JA3003B
...
605A
Refrigerator Ice Bucket L-G-5988JA1001B
...
606A
Cover Assembly,motor L-G-3551JA1025K
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
610A
Bank Assembly, Ice L-G-5075JA1008A
...
612A
Refrigerator Guide Rail L-G-4974JA2023A
...
612B
Refrigerator Guide Rail L-G-4974JA2024A
...
612C
Refrigerator Supporter L-G-4980JA2019B
...
613A
Refrigerator Ice Guide L-G-4974JA3028A
...
614A
Solenoid Assembly L-G-EBE60661303
...
615A
Refrigerator Water Reservoir L-G-4838JA1004A
...
616A
Drawer Nut L-G-1NZZJA3006A
...
616B
Refrigerator Water Tubing L-G-5210JA3004A
...
616C
Refrigerator Water Tubing L-G-5210JA3004B
...
616D
Refrigerator Water Tubing L-G-5210JA3005A
...
616E
Refrigerator Pipe Assembly L-G-5201JA3011E
...
616F
Refrigerator Water Tubing L-G-5210JA3004U
...
616G
Refrigerator Water Tubing L-G-5210JA3005Q
...
618A
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5040JA2011A
...
619A
Refrigerator Water Inlet Valve L-G-5221JA2006D
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3012B
...
622A
Refrigerator Ice Maker Water Inlet Cover Bracket L-G-4810JA3059A
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Band L-G-4770JA3001B
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184A
...
627A
Refrigerator Clamp L-G-4930JA3054A

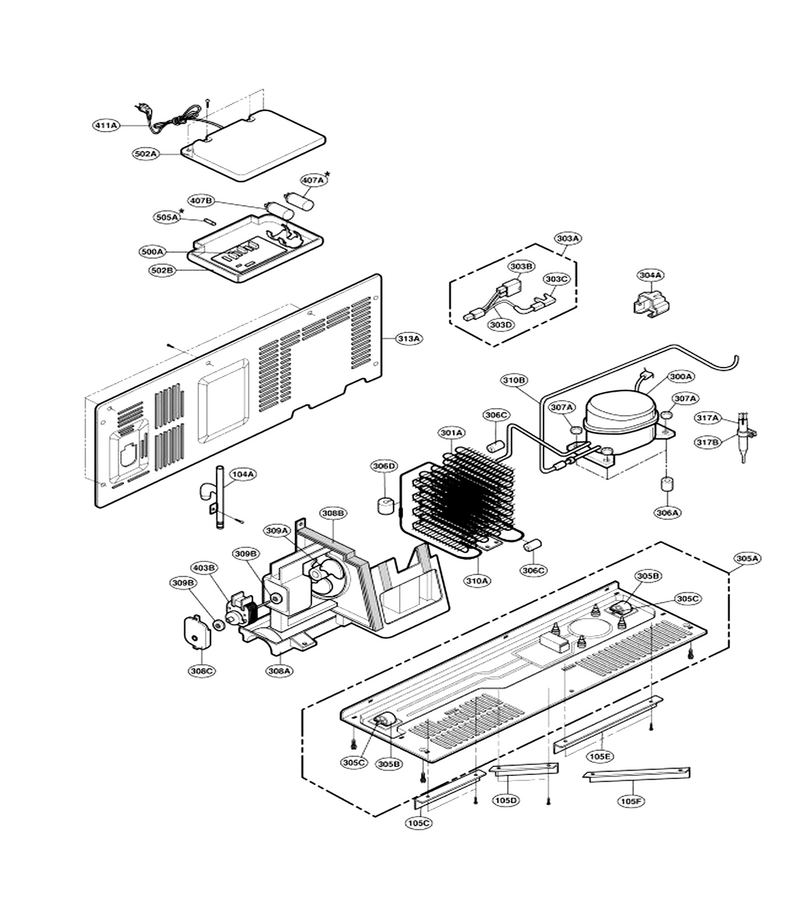

Mechanical Compartment

...
...
104A
Tube Assy,dr L-G-5251JA3004A
...
105C
Skirt Lowr L-G-5070JA3002F
...
105D
Refrigerator Lower Skirt L-G-5070JA3002G
...
105E
Skirt Lowr L-G-5070JA3002J
...
105F
Refrigerator Lower Skirt L-G-5070JA3002D
...
300A
Re-Compres L-G-2521JA1006B
...
301A
Refrigerator Wire Condenser Assembly L-G-5403JA1024A
...
303A
Refrigerator Cover Assembly L-G-3551JA2081B
...
303B
Refrigerator Compressor Start Relay Assembly L-G-6748JA3004A
...
303C
Refrigerator Compressor Overload Protector L-G-6750JA3001B
...
304A
Cover,p.t. L-G-3550JA2158A
...
305A
Refrigerator Complete Base L-G-3103JA1014B
...
305B
Refrigerator Roller L-G-4580JA3024A
...
305C
Refrigerator Roller Wheel Pin L-G-1PZZJA3013A
...
306A
Refrigerator Seat L-G-5040JA3073A
...
307A
Stopper L-G-4J03277A
...
308A
Refrigerator Drip Tray L-G-3390JA1109A
...
308B
Refrigerator Fan Guide L-G-4974JA1053A
...
308C
Refrigerator Motor Cover L-G-3550JA2147A
...
309A
Refrigerator Fan Assembly L-G-5901JA1012A
...
309B
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
310A
Pipe Joint L-G-5200JA1019B
...
310B
Pipe Joint L-G-5200JA1009D
...
313A
Refrigerator Cover L-G-3551JA1024A
...
317A
Refrigerator Drier Assembly L-G-5851JA2008T
...
317B
Refrigerator Holder L-G-4930JA3034B
...
403B
Refrigerator Condenser Fan L-G-4681JB1017E
...
407A
Refrigerator Start Capacitor L-G-J513-00012Z
...
500A
Pwb(pcb) A L-G-6871JB1100F
...
502A
Cover Assembly,pcb L-G-3551JA1101N
...
502B
Pcb Case L-G-3110JA1010A
...
505A
Refrigerator Fuse L-G-3J02447C

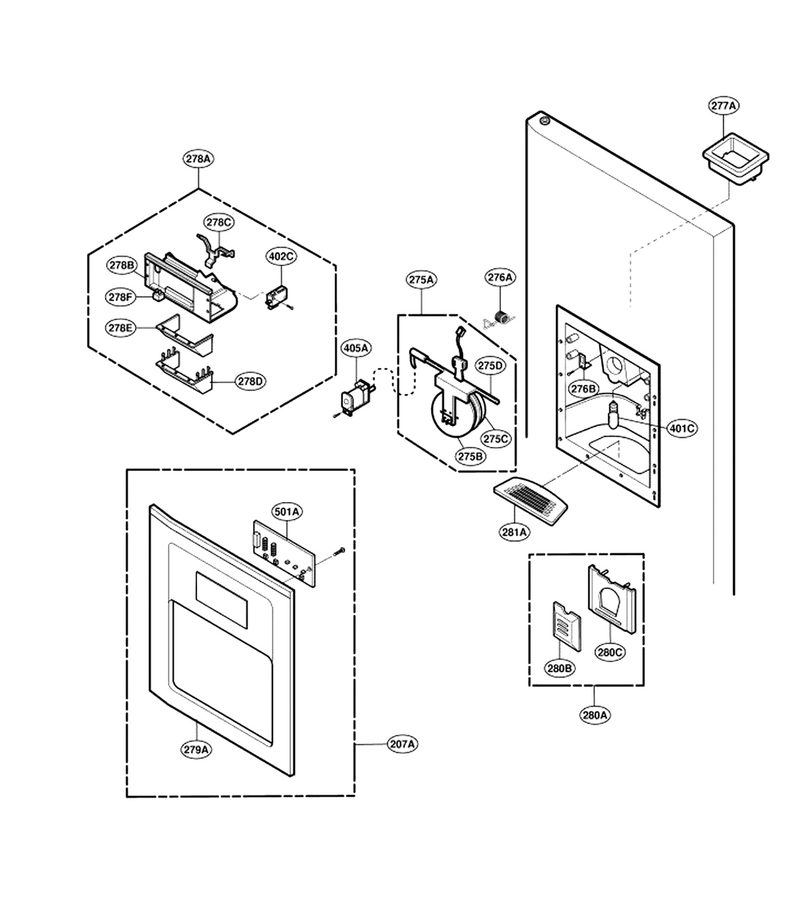

Dispenser Part

...
...
207A
Refrigerator Frame Assembly L-G-3211JA1007Z
...
276A
Refrigerator Spring L-G-4970JA3011A
...
277A
Refrigerator Ice Dispenser Funnel L-G-3550JA2067A
...
278A
Refrigerator Funnel Assembly L-G-3017JA2001V
...
278B
Refrigerator Frame L-G-3210JA1011S
...
278C
Refrigerator Lever L-G-4510JA3007A
...
278D
Refrigerator Funnel L-G-4980JA2024Q
...
278E
Rubber,fun L-G-5040JA2010D
...
278F
Refrigerator Rocker Switch L-G-6600JB3002A
...
279A
Refrigerator Dispenser Cover L-G-3550JD1020X
...
280A
Button Assembly L-G-3807JA3006P
...
280B
Refrigerator Lever Button L-G-5040JA2008D
...
280C
Refrigerator Button Holder L-G-3806JA2019M
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001E
