LG LRSC26911TT.ATICLGB

Model: LRSC26911TT.ATICLGB

Save Part Not Listed?
product name

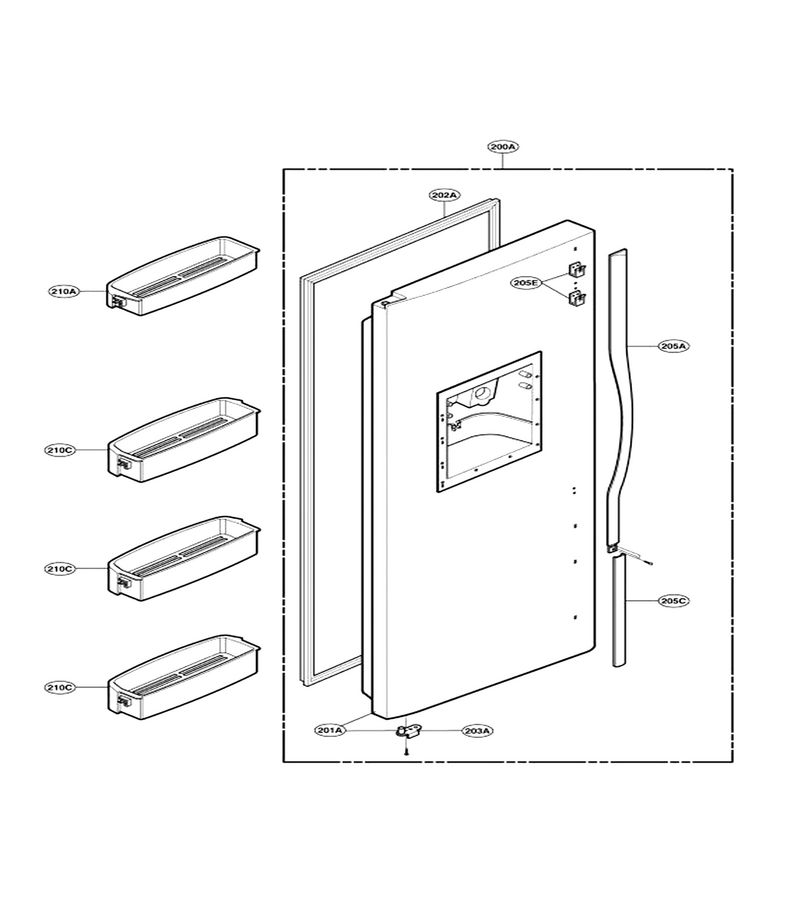

Freezer Door Part

...
...
200A
Frz Dr Asm L-G-3581JA8571L
...
201A
Refrigerator Door Assembly L-G-3581JA8569H
...
202A
Refrigerator Freezer Door Gasket L-G-4987JA1033C
...
203A
Refrigerator Stopper Assembly L-G-4621JA3002E
...
205A
Handle-R L-G-3650JA1167F
...
205C
Refrigerator Handle L-G-3650JA1167E
...
205E
Refrigerator Hand Bracket L-G-4810JA3115A
...
210A
Refrigerator Door Basket L-G-5004JA1197A
...
210C
Refrigerator Door Basket L-G-5004JA1199A

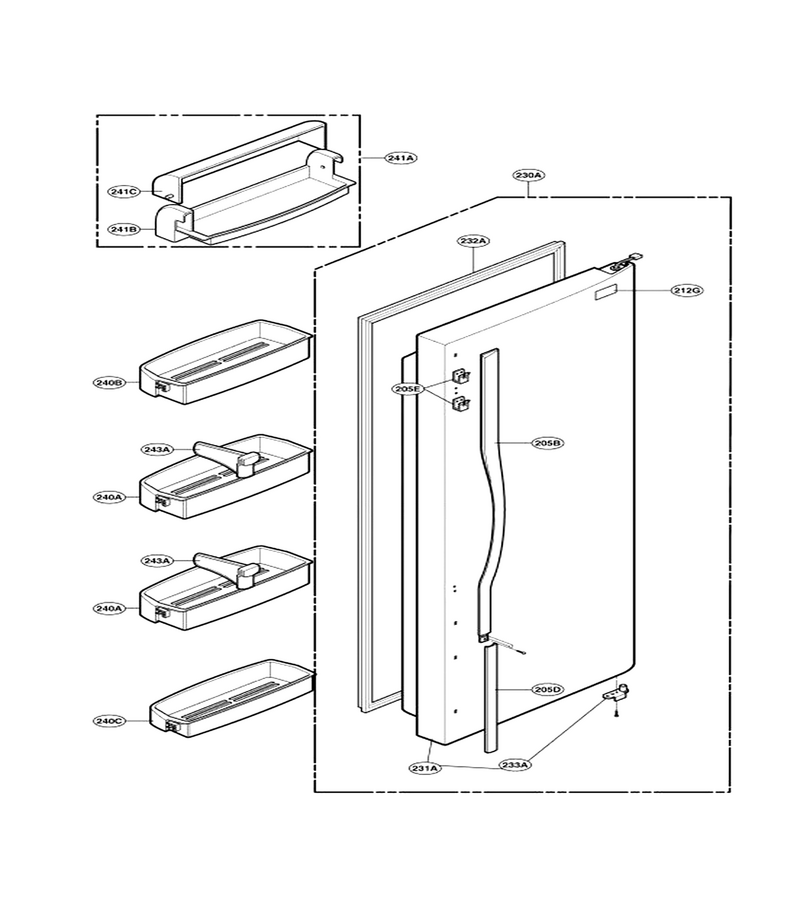

Refrigerator Door Part

...
...
205B
Refrigerator Handle L-G-3650JA1167E
...
205D
Refrigerator Decorative Handle L-G-3650JA2116E
...
205E
Refrigerator Hand Bracket L-G-4810JA3115A
...
212G
Refrigerator Nameplate L-G-3846JD1007E
...
230A
Refrigerator Door Assembly L-G-3581JA8572L
...
231A
Refrigerator Door Assembly L-G-3581JA8570H
...
232A
Refrigerator Door Gasket L-G-4987JA1033D
...
233A
Refrigerator Door Stop L-G-4621JA3002H
...
240A
Refrigerator Door Basket L-G-5004JA1208A
...
240B
Refrigerator Door Basket L-G-5004JA1208A
...
240C
Refrigerator Door Bin L-G-5004JA1209A
...
241A
Refrigerator Door Bin Assembly L-G-5005JA1016A
...
241B
Refrigerator Door Basket L-G-5004JA1183A
...
241C
Refrigerator Door Bin Cover L-G-5004JA1184A
...
243A
Refrigerator Guide L-G-4974JA2055A

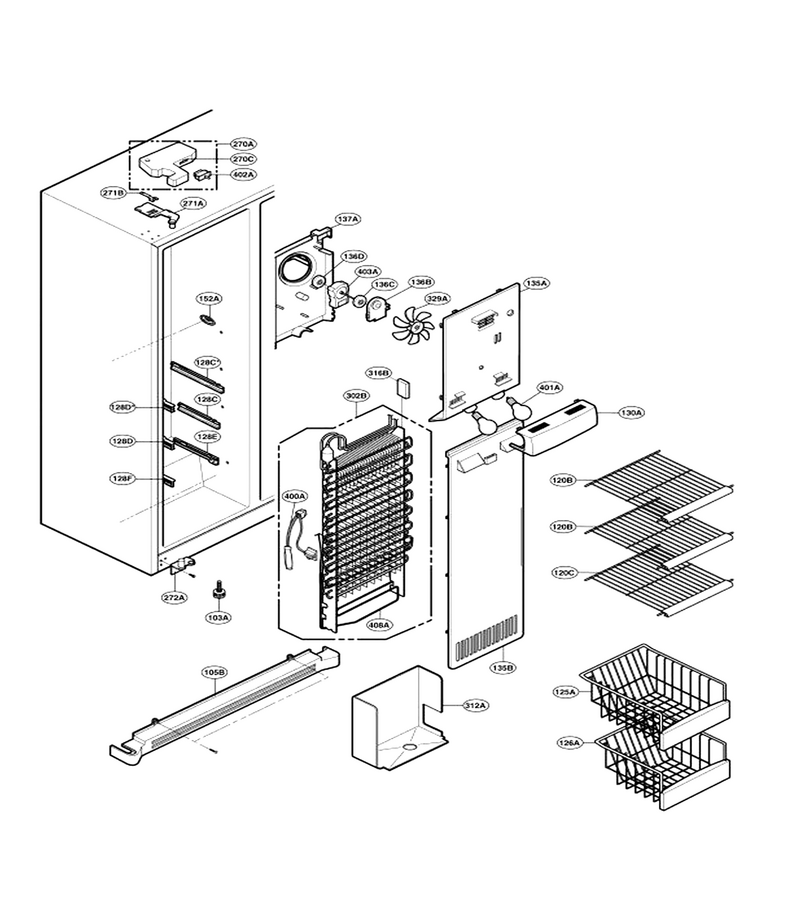

Freezer Compartment

...
...
Refrigerator Hinge Cover L-G-3550JA1299F
...
103A
Refrigerator Leveling Leg L-G-4779JA3001E
...
105B
Refrigerator Lower Cover L-G-3551JA1062Q
...
120B
Refrigerator Shelf Assembly L-G-5027JA1066D
...
120C
Freezer Shelf Assembly L-G-5027JA1065B
...
125A
Refrigerator Freezer Drawer, Center L-G-3391JA1080C
...
126A
Refrigerator Freezer Drawer, Lower L-G-3391JA1080E
...
128C
Refrigerator Guide Assembly L-G-4975JA1017B
...
128D
Refrigerator Guide Assembly L-G-4975JA1017A
...
128E
Refrigerator Rail Guide Assembly L-G-4975JA1018B
...
128F
Refrigerator Rail Guide Assembly L-G-4975JA1018A
...
130A
Refrigerator Light Cover L-G-3550JA1113A
...
135A
Refrigerator Grille L-G-3531JA1040C
...
135B
Refrigerator Grille Assembly L-G-3531JA1041A
...
136B
Refrigerator Evaporator Fan Motor Bracket L-G-4811JA2009A
...
136C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
136D
Refrigerator Motor Support Damper L-G-5040JA2004B
...
137A
Refrigerator Shroud Assembly L-G-4999JA2025A
...
152A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
270A
Refrigerator Door Hinge Cover Assembly L-G-3551JA1084F
...
270C
Refrigerator Door Hinge Cover Assembly L-G-3551JA1084E
...
271A
Refrigerator Door Hinge, Upper L-G-4775JA2083A
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
272A
Refrigerator Hinge L-G-4811JA1050D
...
302B
Refrigerator Evaporator Assembly L-G-5421JA1126Q
...
312A
Refrigerator Freezer Evaporator Drip Tray L-G-3391JA2036A
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003B
...
329A
Refrigerator Fan Blade Assembly L-G-5901JA1018A
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2002R
...
401A
Refrigerator Light Bulb L-G-6912JB2004M
...
402A
Refrigerator Light Switch L-G-6600JB3007B
...
403A
Refrigerator Evaporator Fan Motor L-G-4681JB1017D
...
408A
Refrigerator Defrost Heater L-G-5300JB1102D

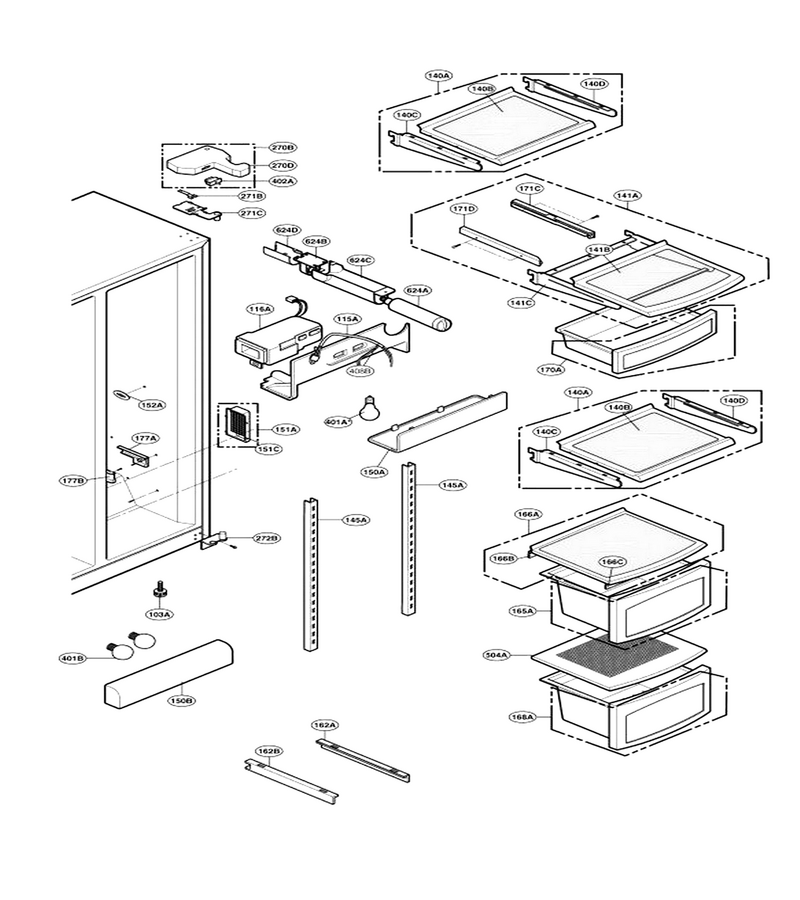

Refrigerator Compartment

...
...
103A
Refrigerator Leveling Leg L-G-4779JA3001E
...
115A
Cntrl Box,r L-G-4995JA1038D
...
116A
Refrigerator Duct Assembly L-G-5209JA1036A
...
140A
Refrigerator Shelf Assembly L-G-5027JA1062C
...
140B
Shelf Assy,r L-G-5027JA1059B
...
140C
Refrigerator Shelf Net L-G-5026JA2011B
...
140D
Shelf,net L-G-5026JA2011A
...
141A
Refrigerator Shelf Assembly L-G-5027JA1062B
...
141B
Refrigerator Shelf Assembly L-G-5027JA1061B
...
141C
Refrigerator Shelf Assembly L-G-5027JA2076E
...
145A
Refrigerator Shelf Holder L-G-4930JA2023B
...
150A
Refrigerator Lamp Cover L-G-3550JA1297A
...
150B
Refrigerator Lamp Cover L-G-3550JA1208A
...
151A
Refrigerator Cover Assembly L-G-3551JA2053E
...
151C
Refrigerator Cover L-G-3550JA2215A
...
152A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
162A
Refrigerator Deli Drawer Cover L-G-4975JA1021A
...
162B
Refrigerator Deli Drawer Slide Rail L-G-4975JA1021B
...
165A
Refrigerator Crisper Drawer L-G-3391JA1082A
...
166A
Refrigerator Crisper Drawer Cover Assembly L-G-3551JA1063C
...
166B
Refrigerator Gasket L-G-4986JA3015A
...
166C
Refrigerator Crisper Drawer Cover L-G-3551JA1064E
...
168A
Refrigerator Crisper Drawer L-G-3391JA1083A
...
170A
Refrigerator Tray Assembly L-G-3391JA1079A
...
171C
Refrigerator Guide Assembly L-G-4975JA1012A
...
171D
Refrigerator Guide Assembly L-G-4975JA1012B
...
177A
Refrigerator Crisper Drawer Track L-G-4975JA1022A
...
177B
Refrigerator Rail Guide Assembly L-G-4975JA1022B
...
270B
Refrigerator Door Hinge Cover Assembly L-G-3551JA1084E
...
270D
Refrigerator Door Hinge Cover L-G-3550JA1299E
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Refrigerator Door Hinge L-G-4775JA2084A
...
272B
Bracket Assembly L-G-4811JA1050C
...
401A
Refrigerator Light Bulb L-G-6912JB2004M
...
401B
Refrigerator Lamp Socket L-G-6620JB1002G
...
402A
Refrigerator Light Switch L-G-6600JB3007B
...
408B
Refrigerator Lamp Socket L-G-6620JB1001S
...
504A
Refrigerator Crisper Drawer Cover L-G-3551JA1065A
...
624A
Refrigerator Water Filter L-G-5231JA2006A
...
624B
Refrigerator Water Filter Head L-G-5230JA2003A
...
624C
Refrigerator Filter Cover L-G-3550JD1087B
...
624D
Refrigerator Filter Cover L-G-3550JA2209A

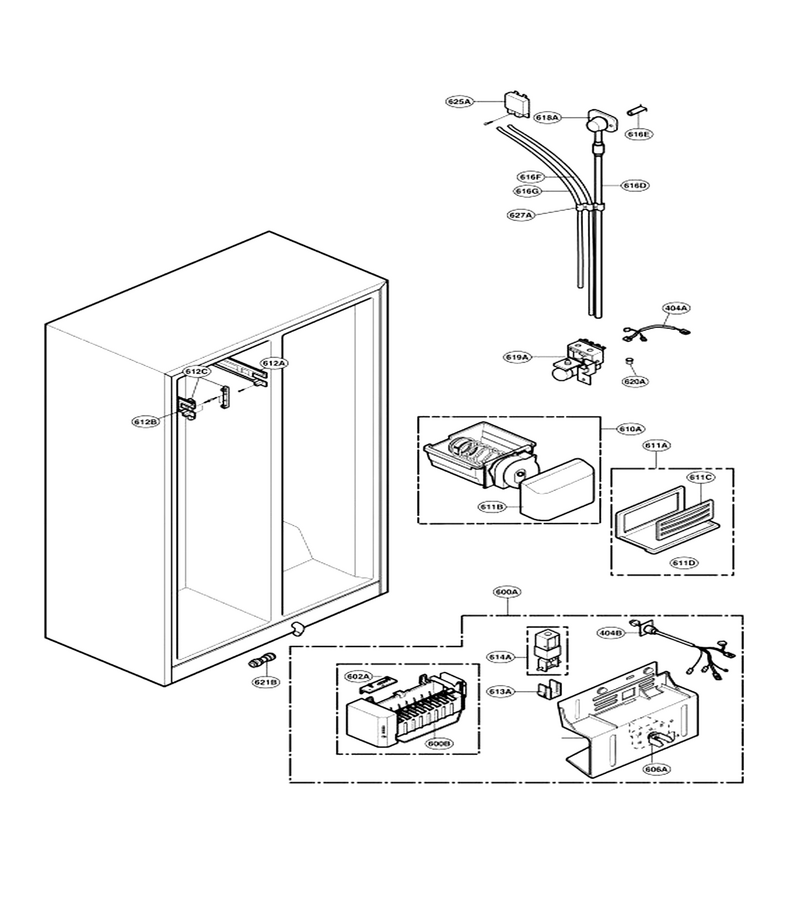

Ice & Water Part

...
...
404A
Refrigerator Wire Harness L-G-6877JB3053A
...
404B
Refrigerator Harness L-G-6877JB1272A
...
600A
Refrigerator Motor Assembly L-G-4681JA1005J
...
600B
Refrigerator Ice Maker L-G-5989JA0002G
...
602A
Refrigerator Ice Maker Support Bracket L-G-4810JA2078A
...
606A
Refrigerator Auger Motor L-G-EAU33481404
...
610A
Bank Assembly L-G-5075JA1029B
...
611A
Refrigerator Shelf Assembly L-G-5027JA1040B
...
611B
Refrigerator Ice Bin Cover, Front L-G-3550JD1086A
...
611C
Refrigerator Air Guide L-G-4974JD1003B
...
611D
Refrigerator Ice Dispenser Container Shelf L-G-5026JA1195A
...
612A
Refrigerator Guide Rail L-G-4974JA1063A
...
612B
Refrigerator Ice Container Slide Rail, Left L-G-4974JA1064A
...
612C
Refrigerator Supporter L-G-4980JA2071A
...
613A
Refrigerator Ice Guide L-G-4974JA3028A
...
614A
Refrigerator Ice Dispenser Solenoid L-G-6421JA3001D
...
616D
Refrigerator Ice Maker Water Supply Tube L-G-5210JA3005F
...
616E
Refrigerator Injection Tube L-G-5210JA3024B
...
616F
Refrigerator Water Tubing L-G-5210JA3004K
...
616G
Refrigerator Water Tubing L-G-5210JA3005E
...
618A
Refrigerator Water Tube Fitting L-G-5040JA2015A
...
619A
Refrigerator Water Inlet Valve L-G-5221JB2006A
...
620A
Refrigerator Water Tube Fitting L-G-4402JA3001A
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3012B
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184A
...
627A
Refrigerator Holder Pipe L-G-4930JA3081A

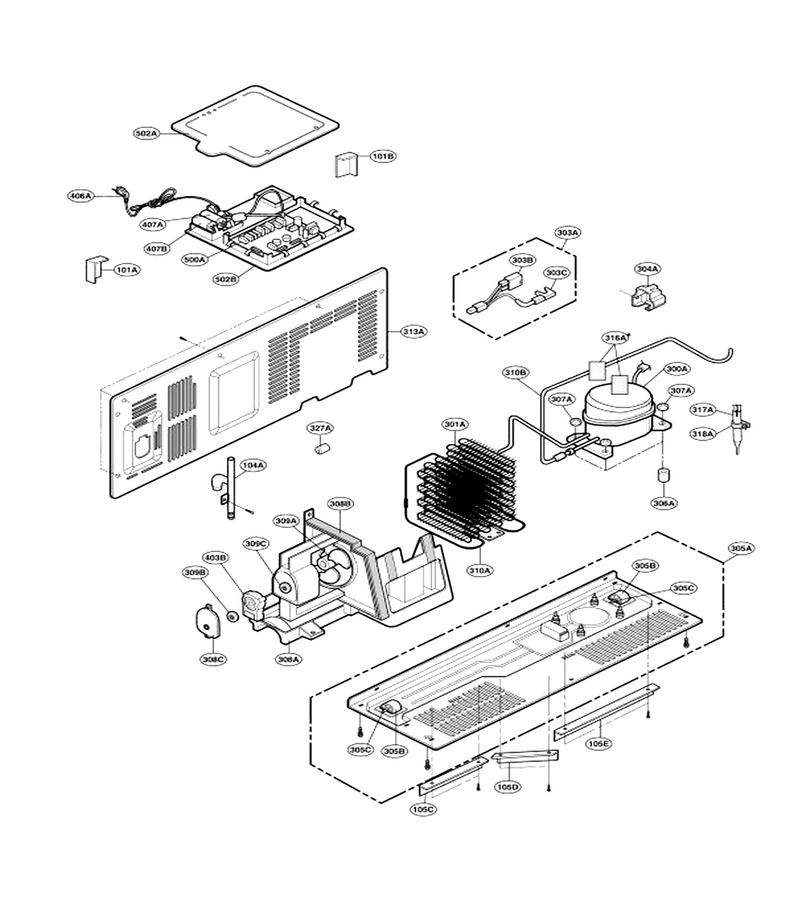

Machine Compartment

...
...
101A
Handle (black) L-G-3650JA3041W
...
101B
Handle Blk L-G-3650JA3041X
...
104A
Tube Assy,dr L-G-5251JA3004A
...
105C
Skirt Lowr L-G-5070JA3002F
...
105D
Skirt Lowr L-G-5070JA3002J
...
105E
Refrigerator Lower Skirt L-G-5070JA3002G
...
300A
Refrigerator Compressor L-G-2521C-A8026
...
301A
Refrigerator Wire Condenser Assembly L-G-5403JA1024A
...
303A
Refrigerator Compressor Start Relay Assembly L-G-6749JA2017C
...
303B
Refrigerator Compressor Start Relay L-G-6748C-0002K
...
303C
Refrigerator Compressor Overload Protector L-G-6750C-0004R
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
305A
Refrigerator Complete Base L-G-3103JA1036C
...
305B
Refrigerator Roller L-G-4580JA3024A
...
305C
Refrigerator Roller Wheel Pin L-G-1PZZJA3013A
...
306A
Refrigerator Seat L-G-5040JA3073A
...
307A
Stopper L-G-4J03277A
...
308A
Refrigerator Drip Tray L-G-3390JA1109A
...
308B
Refrigerator Fan Guide L-G-4974JA1053A
...
308C
Refrigerator Motor Cover L-G-3550JA2147A
...
309A
Refrigerator Fan Assembly L-G-5901JA1019A
...
309B
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
309C
Refrigerator Motor L-G-5040JA2009A
...
310A
Pipe Joint L-G-5200JA1009F
...
310B
Pipe Joint L-G-5200JA1019A
...
313A
Refrigerator Cover Assembly L-G-3551JA1071A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Refrigerator Filter Dryer L-G-5851JA2008R
...
318A
Refrigerator Holder L-G-4930JA3034B
...
327A
Refrigerator Damping L-G-5040JA3056A
...
403B
Refrigerator Condenser Fan L-G-4681JB1027B
...
406A
Refrigerator Power Cord L-G-6411JB1033C
...
407A
Refrigerator Run Capacitor L-G-J513-00012P
...
407B
Refrigerator Run Capacitor L-G-0CZZJB2010H
...
500A
Refrigerator Main Pcb L-G-6871JB1259D
...
502A
Refrigerator Pcb Cover L-G-3550JA1395C
...
502B
Refrigerator Electronic Control Board Housing L-G-3110JA1071A

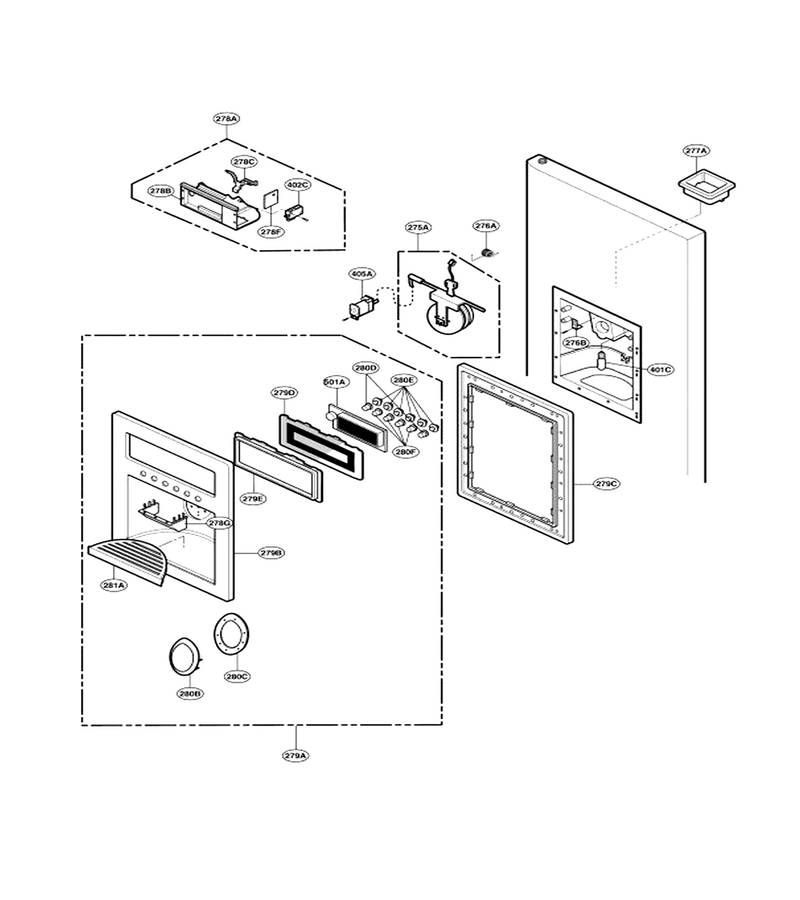

Dispenser Part

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-5007JA3006R
...
276A
Refrigerator Spring L-G-4970JA3011C
...
276B
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
277A
Refrigerator Ice Dispenser Funnel L-G-3550JA2067A
...
278A
Refrigerator Dispenser Ice Chute Funnel L-G-3017JA2004K
...
278B
Refrigerator Frame L-G-3210JA0006S
...
278C
Refrigerator Dispenser Lever L-G-4510JA2022A
...
278F
Refrigerator Dispenser Ice Chute Switch Shield L-G-3858JA3005C
...
278G
Refrigerator Dispenser Ice Chute Funnel L-G-3016JA2002B
...
279A
Refrigerator Frame Assembly L-G-3211JA1042E
...
279B
Refrigerator Dispenser Cover L-G-3550JD1085D
...
279C
Deco L-G-3806JA0019D
...
279E
Deco L-G-3806JA2045D
...
280B
Refrigerator Dispenser Lever L-G-4510JA2017B
...
280C
Refrigerator Holder L-G-4930JA2059B
...
280D
Decorative Button L-G-5020JA3027C
...
280E
Refrigerator Dispenser Selector Button Lin L-G-5020JA3021A
...
280F
Decorative Button L-G-5020JA3027A
...
281A
Refrigerator Dispenser Drip Tray L-G-3806JA2046B
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001B
...
405A
Refrigerator Dispenser Ice Chute Door Solenoid L-G-6421JB2002D
...
501A
Refrigerator Display Board L-G-6871JB1264B
