LG LRSC21934SB.AWBCLGA

Model: LRSC21934SB.AWBCLGA

Save Part Not Listed?
product name

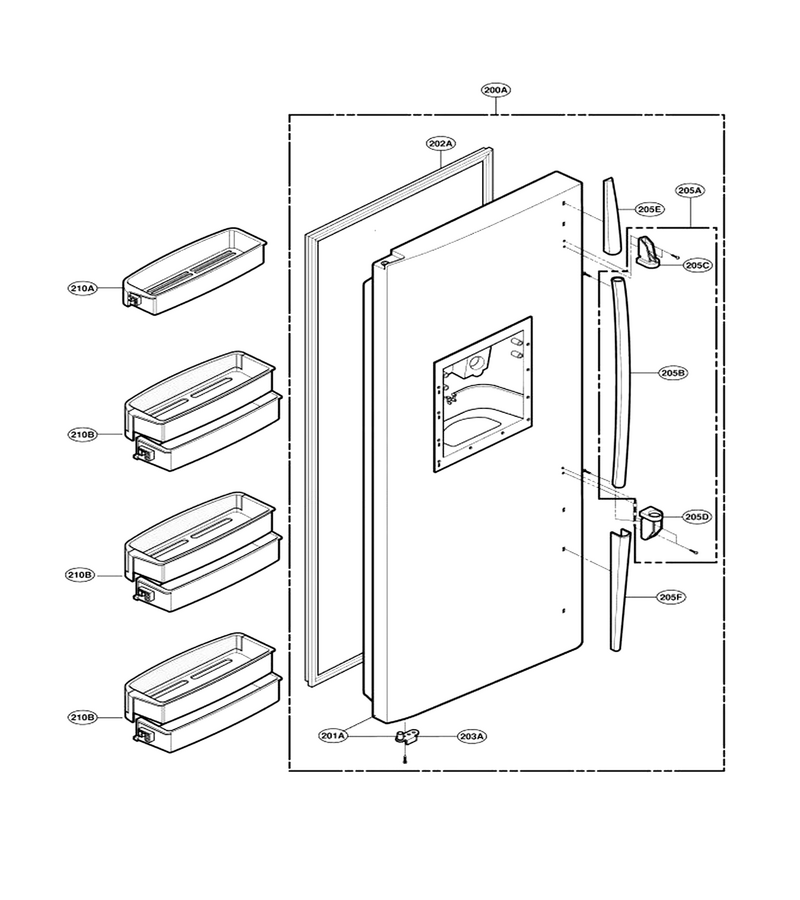

Freezer Door Part

...
...
200A
Refrigerator Freezer Door L-G-3581JA8646P
...
201A
Door Foam Assembly, F L-G-5433JA8474X
...
202A
Gasket Assembly,door L-G-ADX62799509
...
203A
Refrigerator Stopper Assembly L-G-4621JA3002E
...
205A
Refrigerator Freezer Handle Assembly L-G-3651JA2241L
...
205B
Refrigerator Handle L-G-3650JA1164F
...
205C
Refrigerator Handle L-G-3650JA2100D
...
205D
Refrigerator Handle L-G-3650JA2101D
...
205E
Handle, Deco L-G-3650JA2098H
...
205F
Handle, Deco L-G-3650JA2099G
...
210A
Refrigerator Door Basket L-G-5004JD1155B
...
210B
Refrigerator Basket Assembly L-G-5005JA1015B

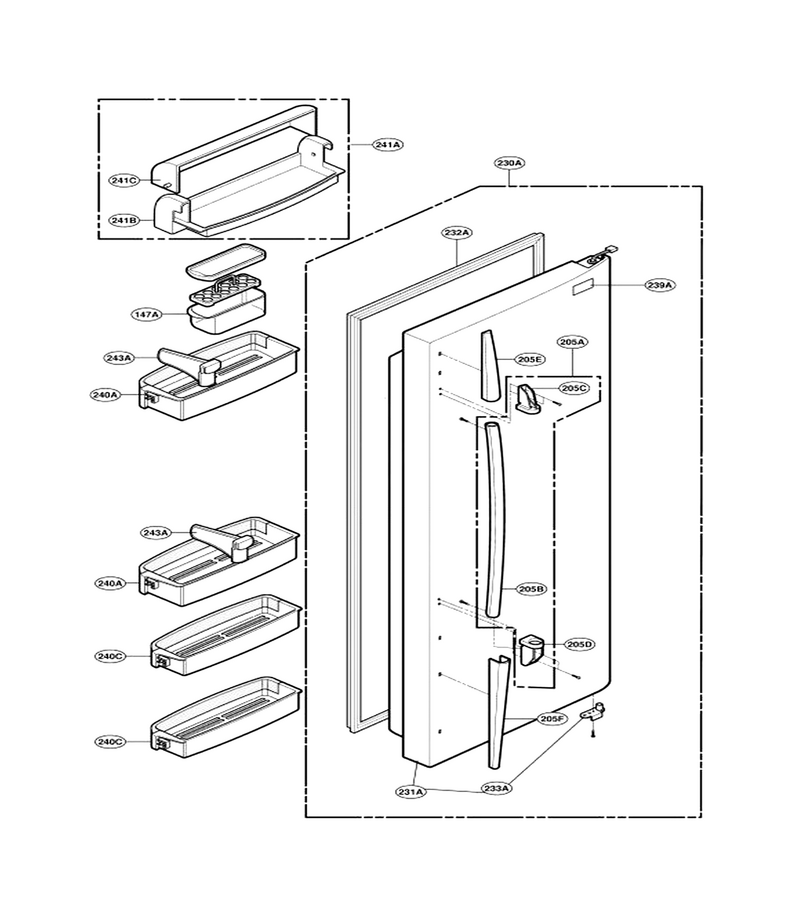

Refrigerator Door Part

...
...
147A
Bank L-G-5074JA1008A
...
205A
Bank L-G-5074JA1008A
...
205B
Refrigerator Handle L-G-3650JA1164F
...
205C
Refrigerator Handle L-G-3650JA2100D
...
205D
Refrigerator Handle L-G-3650JA2101D
...
205E
Handle, Deco L-G-3650JA2098H
...
205F
Handle, Deco L-G-3650JA2099G
...
230A
Door Assembly, R L-G-3581JA8587V
...
231A
Door Foam Assembly, R L-G-5433JA8473R
...
232A
Gasket Assembly,door L-G-ADX62799510
...
233A
Refrigerator Door Stop L-G-4621JA3002H
...
240A
Refrigerator Door Deep Bin L-G-5005JA2034A
...
240C
Refrigerator Basket Assembly L-G-5005JA2036A
...
241A
Refrigerator Door Basket Assembly L-G-5005JA1014A
...
241B
Refrigerator Door Basket L-G-5004JD1152A
...
241C
Refrigerator Dairy Bin Cover L-G-3550JA1199A
...
243A
Refrigerator Guide L-G-4974JA2055A

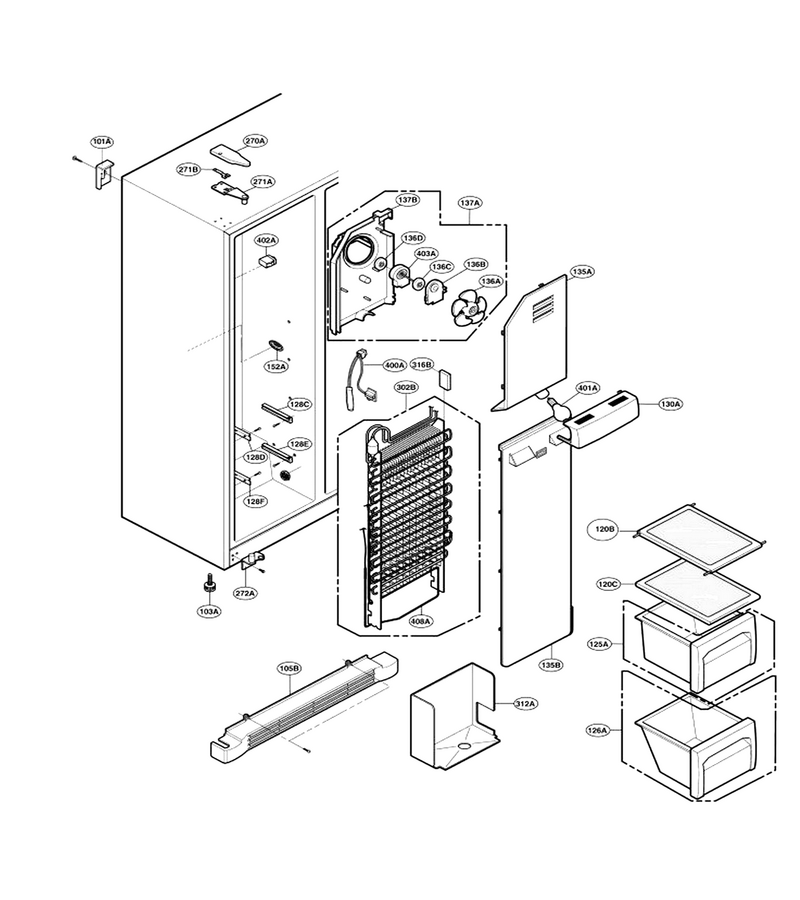

Freezer Compartment

...
...
101A
Refrigerator Handle L-G-3650JA3041Y
...
103A
Refrigerator Leveling Leg L-G-4779JA3001E
...
105B
Refrigerator Cover Assembly L-G-3551JA1062J
...
120B
Refrigerator Shelf Assembly L-G-5027JA2036F
...
120C
Shelf Asy,f L-G-5027JA2041G
...
125A
Refrigerator Drawer Tray Assembly L-G-3391JA1053G
...
126A
Refrigerator Tray Assembly L-G-3391JA1053H
...
128E
Refrigerator Guide L-G-4974JA1043A
...
128F
Refrigerator Guide L-G-4974JA1043B
...
130A
Refrigerator Light Cover L-G-3550JA1113A
...
135A
Refrigerator Fan Grille Assembly L-G-3531JA2013K
...
136A
Refrigerator Fan Assembly L-G-5901JA1011A
...
136B
Refrigerator Evaporator Fan Motor Bracket L-G-4811JA2009A
...
136C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
136D
Refrigerator Motor Support Damper L-G-5040JA2004B
...
137A
Refrigerator Shroud Assembly L-G-4999JA2019D
...
137B
Refrigerator Shroud L-G-4998JA0024A
...
152A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
270A
Refrigerator Hinge Cover L-G-3550JA1265N
...
271A
Refrigerator Hinge Assembly L-G-4775JA2074A
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
272A
Refrigerator Hinge Assembly L-G-4775JA2017J
...
302B
Refrigerator Evaporator Assembly L-G-5421JA1124K
...
312A
Refrigerator Drain Tray Assembly L-G-3391JA2016B
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003B
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2002R
...
401A
Refrigerator Light Bulb L-G-6912JB2004M
...
402A
Refrigerator Door Switch L-G-6600JB1010A
...
403A
Refrigerator Evaporator Fan Motor L-G-4681JB1017D
...
408A
Refrigerator Heater Sheath L-G-5300JB1092D

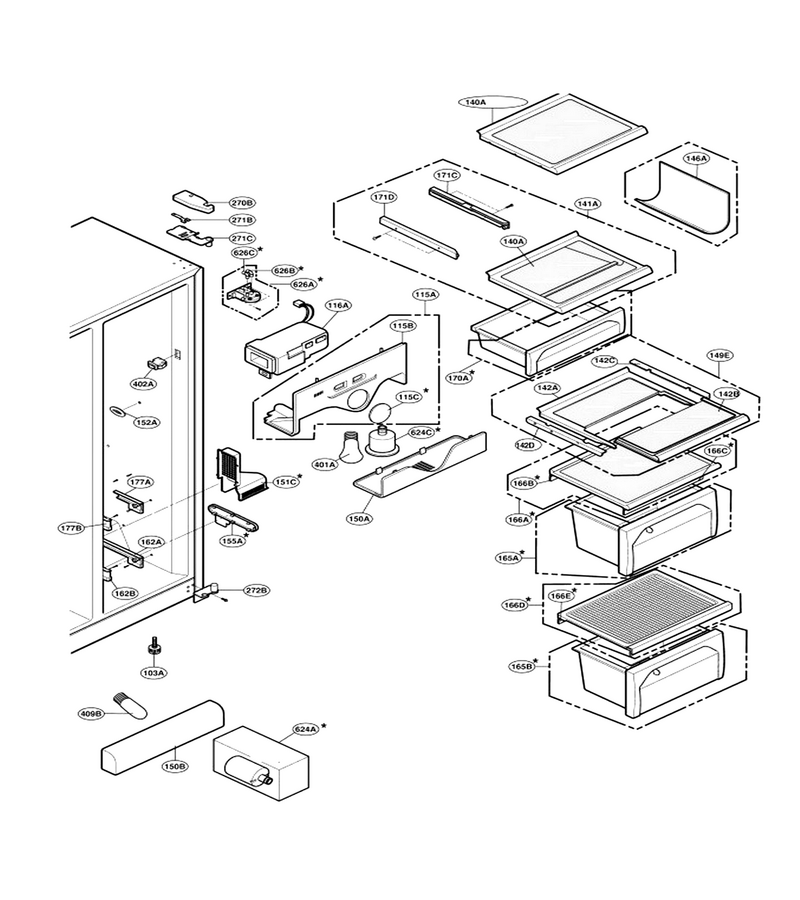

Refrigerator Compartment

...
...
103A
Refrigerator Leveling Leg L-G-4779JA3001E
...
115A
Refrigerator Control Box L-G-4995JA1030H
...
115B
Cntrl Box,r L-G-4994JA0014A
...
115C
Film, Inmold L-G-4200JD1021B
...
116A
Refrigerator Insulation Duct Assembly L-G-5209JA1027D
...
140A
Refrigerator Shelf Assembly L-G-5027JA1084D
...
141A
Refrigerator Shelf Assembly L-G-5027JA1088D
...
142A
Refrigerator Shelf Assembly L-G-5027JA2083A
...
142B
Refrigerator Shelf Assembly L-G-5027JA1082A
...
142C
Shelf,net L-G-5026JA2044A
...
142D
Shelf,net L-G-5026JA2045A
...
146A
Refrigerator Wine Rack L-G-5035JA2001A
...
149E
Shelf Assy, R L-G-5027JA2092A
...
150A
Refrigerator Lamp Cover L-G-3550JA1206A
...
150B
Refrigerator Lamp Cover L-G-3550JA1208A
...
151C
Refrigerator Cover L-G-3550JA2215A
...
152A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
155A
Refrigerator Case Assembly L-G-3111JA2007B
...
162A
Refrigerator Rail Guide Assembly L-G-4975JA2012A
...
162B
Refrigerator Rail Guide Assembly L-G-4975JA2012B
...
165A
Refrigerator Crisper Drawer L-G-3391JA1061A
...
165B
Refrigerator Crisper Drawer L-G-3391JA1062A
...
166A
Refrigerator Cover Assembly L-G-3551JA1026Q
...
166B
Refrigerator Glass Cover L-G-4890JD1037D
...
166C
Refrigerator Gasket L-G-4986JA3005D
...
166D
Refrigerator Cover Assembly L-G-3551JA1044C
...
170A
Refrigerator Deli Drawer L-G-3391JA1096B
...
171C
Refrigerator Guide Rail L-G-4974JA1106A
...
171D
Refrigerator Guide Rail L-G-4974JA1106B
...
177A
Guide Rail L-G-4975JA2022A
...
177B
Rail Guice L-G-4975JA2022B
...
270B
Refrigerator Hinge Cover L-G-3550JA1265P
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Refrigerator Hinge Assembly L-G-4775JA2075A
...
272B
Refrigerator Hinge Assembly L-G-4775JA2017K
...
401A
Refrigerator Light Bulb L-G-6912JB2004M
...
402A
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Lamp L-G-6912JB2007B
...
624A
Refrigerator Water Filter L-G-5231JA2002A
...
624C
Refrigerator Water Filter Bypas L-G-5007JA3007B
...
626A
Refrigerator Water Filter Head And Tubing L-G-5231JA2004C
...
626B
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
626C
Refrigerator Elbow L-G-4932JA3009B

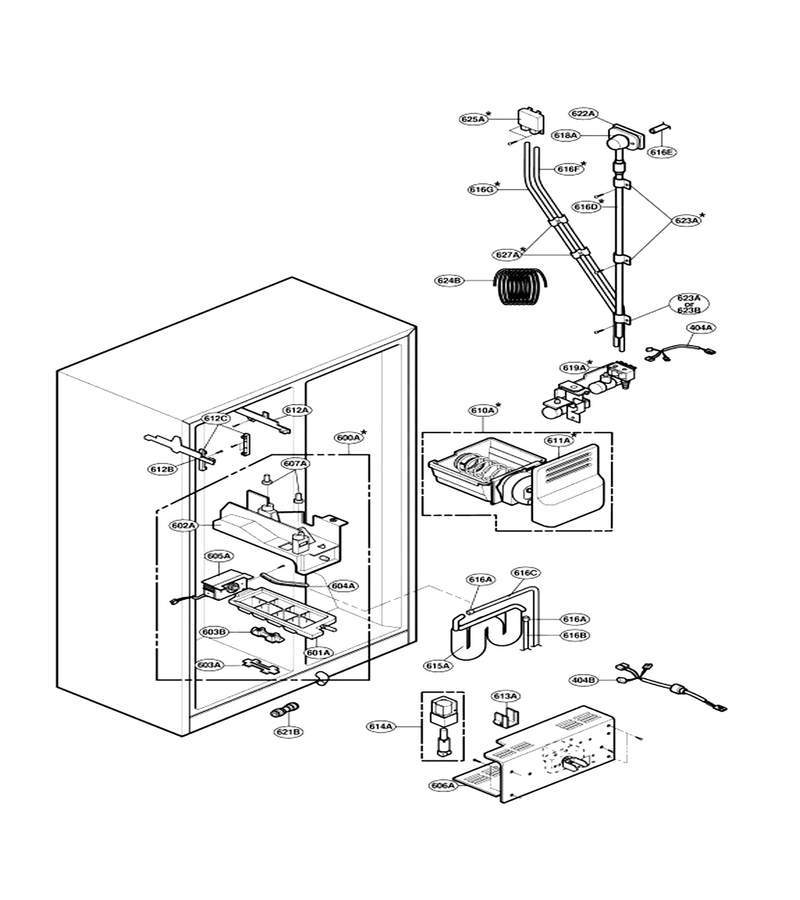

Ice & Water Part

...
...
404B
Refrigerator Wire Harness L-G-6877JB2074B
...
600A
Refrigerator Ice Maker Assembly L-G-5989JA1002D
...
601A
Refrigerator Ice Maker Ice Mold L-G-3390JA1150A
...
602A
Refrigerator Bracket L-G-4810JA1015A
...
603A
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA3095A
...
603B
Refrigerator Insulation L-G-5410JA3011A
...
604A
Refrigerator Lever L-G-4510JA3003B
...
605A
Refrigerator Ice Maker Module L-G-5988JA1001E
...
606A
Refrigerator Ice Maker Auger Motor Cove L-G-3551JA1031J
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
610A
Refrigerator Ice Container Assembly L-G-5075JA1029E
...
611A
Refrigerator Ice Bin Cover, Front L-G-3550JD1021K
...
612A
Refrigerator Guide Rail L-G-4974JA2023A
...
612B
Refrigerator Guide Rail L-G-4974JA2024A
...
612C
Refrigerator Supporter L-G-4980JA2019B
...
613A
Refrigerator Ice Guide L-G-4974JA3028A
...
614A
Solenoid Assembly L-G-EBE60661303
...
616D
Refrigerator Water Tubing L-G-5210JA3005A
...
616E
Refrigerator Water Tubing L-G-5201JA3011F
...
616F
Refrigerator Water Tubing L-G-5210JA3004U
...
616G
Refrigerator Water Tubing L-G-5210JA3005Q
...
618A
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5040JA2011A
...
619A
Refrigerator Water Inlet Valve L-G-5221JA2006D
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3012B
...
622A
Refrigerator Ice Maker Water Inlet Cover Bracket L-G-4810JA3059A
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Band L-G-4770JA3001B
...
624B
Refrigerator Water Filter L-G-5231JA2002A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184A
...
627A
Refrigerator Clamp L-G-4930JA3054A

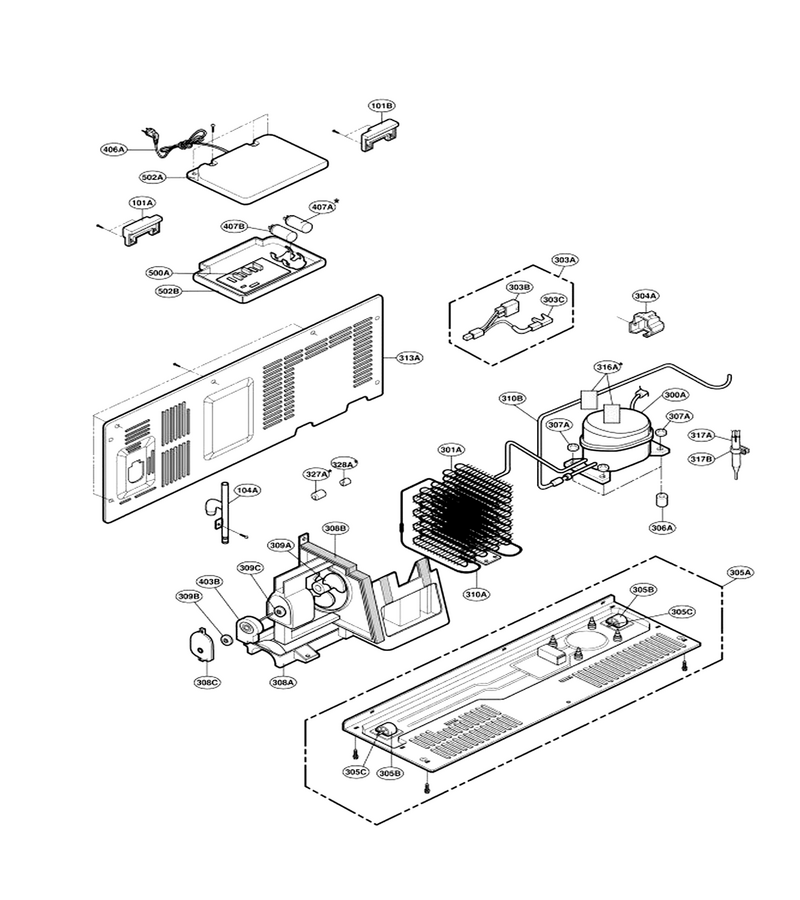

Machine Compartment

...
...
101A
Refrigerator Handle L-G-3650JA3041Y
...
101B
Refrigerator Handle L-G-3650JA3041Z
...
104A
Tube Assy,dr L-G-5251JA3004A
...
300A
Refrigerator Compressor L-G-2521C-A7256
...
301A
Refrigerator Wire Condenser Assembly L-G-5403JA1024A
...
303A
Ptc Assy L-G-6749JA2016Z
...
303B
Refrigerator Compressor Start Relay L-G-6748C-0002C
...
303C
Refrigerator Compressor Overload Protector L-G-6750C-0004R
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
305A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
305B
Refrigerator Complete Base L-G-3103JA1014B
...
305C
Refrigerator Roller L-G-4580JA3024A
...
306A
Refrigerator Roller Wheel Pin L-G-1PZZJA3013A
...
307A
Stopper L-G-4J03277A
...
308A
Refrigerator Drip Tray L-G-3390JA1109A
...
308B
Refrigerator Fan Guide L-G-4974JA1053A
...
308C
Refrigerator Motor Cover L-G-3550JA2147A
...
309A
Refrigerator Fan Assembly L-G-5901JA1012A
...
309B
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
309C
Refrigerator Motor L-G-5040JA2009A
...
310A
Pipe Joint L-G-5200JA1019A
...
310B
Pipe Joint L-G-5200JA1009G
...
313A
Refrigerator Cover L-G-3551JA1024A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Refrigerator Drier Assembly L-G-5851JA2008T
...
317B
Refrigerator Holder L-G-4930JA3034B
...
403B
Refrigerator Condenser Fan L-G-4681JB1027B
...
406A
Refrigerator Ac Cord L-G-6411JB1009B
...
407A
Refrigerator Run Capacitor L-G-J513-00012P
...
407B
Refrigerator Run Capacitor L-G-0CZZJB2010H
...
500A
Pcb Assembly,main L-G-6871JB1292V
...
502A
Cover Assembly,pcb L-G-3551JA1101N
...
502B
Pcb Case L-G-3110JA1010A

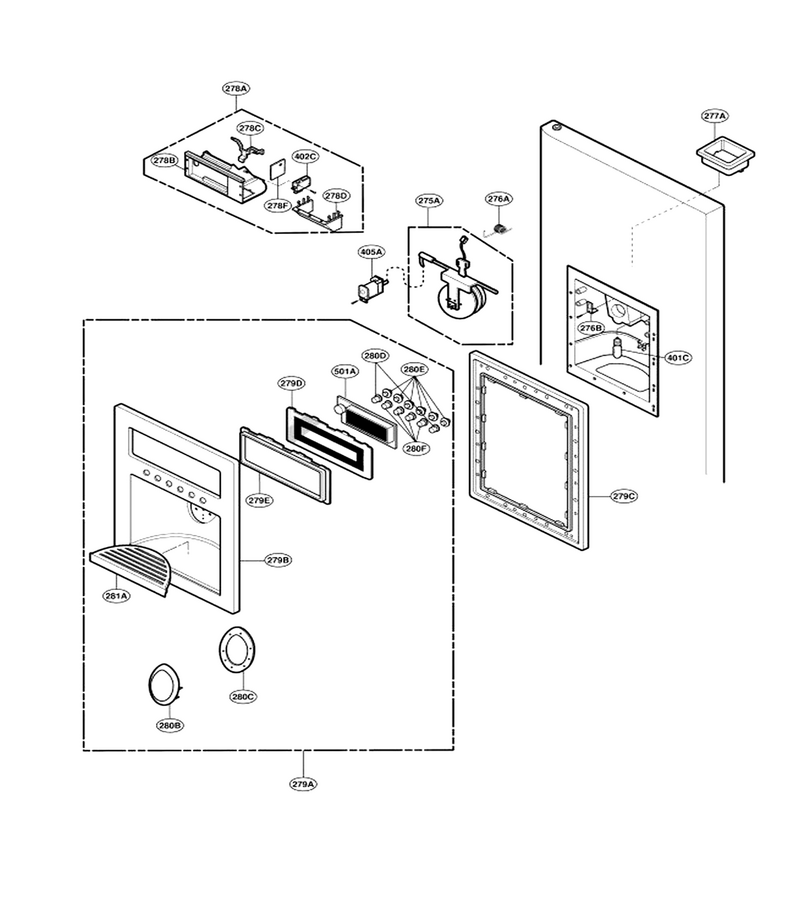

Dispenser Part

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-5007JA3006R
...
276A
Refrigerator Spring L-G-4970JA3011C
...
276B
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
277A
Refrigerator Ice Dispenser Funnel L-G-3550JA2067A
...
278A
Funnel Assembly L-G-3017JA2004U
...
278B
Refrigerator Frame L-G-3210JA0006L
...
278C
Refrigerator Dispenser Lever L-G-4510JA2018A
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-3016JA2002G
...
278F
Refrigerator Dispenser Ice Chute Switch Shield L-G-3858JA3005C
...
279A
Frame Assembly, Display L-G-3211JA1049H
...
279B
Refrigerator Dispenser Cover L-G-3550JD1085W
...
279C
Deco, Dispenser L-G-3806JA0019G
...
279D
Display Frame L-G-3210JA2005C
...
279E
Deco L-G-3806JA2045D
...
280B
Refrigerator Dispenser Lever L-G-4510JA2017E
...
280C
Decorative Button L-G-5020JA3027C
...
280E
Refrigerator Dispenser Selector Button Lin L-G-5020JA3021A
...
280F
Decorative Button L-G-5020JA3027A
...
281A
Refrigerator Decorative Drain L-G-3806JA2046J
...
401C
Refrigerator Light Bulb L-G-6912JB2002G
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001B
...
405A
Refrigerator Dispenser Ice Chute Door Solenoid L-G-6421JB2002D
...
501A
Refrigerator Power Control Board Assembly L-G-6871JB1264J
