LG LRONC1404V.APZCNA0

Model: LRONC1404V.APZCNA0

Save Part Not Listed?
product name

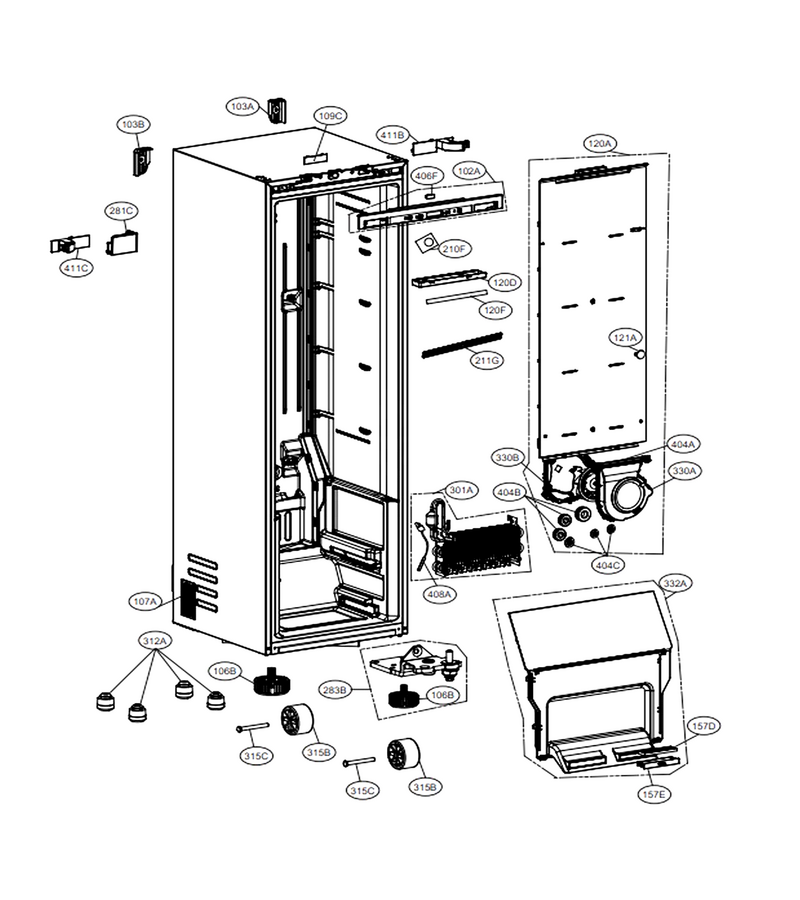

Main I

...
...
102A
Top Cover Assembly L-G-ACQ90401867
...
103B
Handle,rear L-G-3650JQ3001K
...
103A
Handle,rear L-G-3650JQ3001J
...
106B
Leg,adjust L-G-MFA62162901
...
107A
Decor,duct L-G-MCR67447504
...
109C
Cover,front L-G-MCK70288402
...
120A
Control Refrigerator Case Assembly L-G-ABQ30045602
...
120D
Cover,lamp L-G-MCK70864302
...
120F
Led Assembly L-G-EAV64632106
...
121A
Cap,duct L-G-MBL34319901
...
157D
Deodorizer L-G-MCS62101805
...
157E
Cover,deodorizer L-G-MCK66907701
...
210F
Sub Pcb Assembly L-G-EBR64730442
...
211G
Decor,duct L-G-MCR67447203
...
281C
Hinge Cover L-G-MCK71416302
...
283B
Lower Hinge Assembly L-G-AEH76179404
...
301A
Evaporator Assembly L-G-ADL76685601
...
312A
Damper,compressor L-G-5040JA3071C
...
315C
Common Pin L-G-1PZZJA3010B
...
315B
Roller L-G-MHA61933401
...
330A
Freezer Shroud L-G-MHN63782201
...
330B
Freezer Shroud L-G-MHN63782301
...
332A
Fan Grille Assembly L-G-AEB76286402
...
404A
Dc Motor Assembly L-G-EAU63103403
...
404B
Damper L-G-5040JA3063D
...
404C
Screw Assembly L-G-4001JA3001J
...
408A
Sensor Assembly L-G-EBD61246716
...
411C
Cord Holder L-G-MEG66647301
...
411B
Cord Holder L-G-MEG66647302

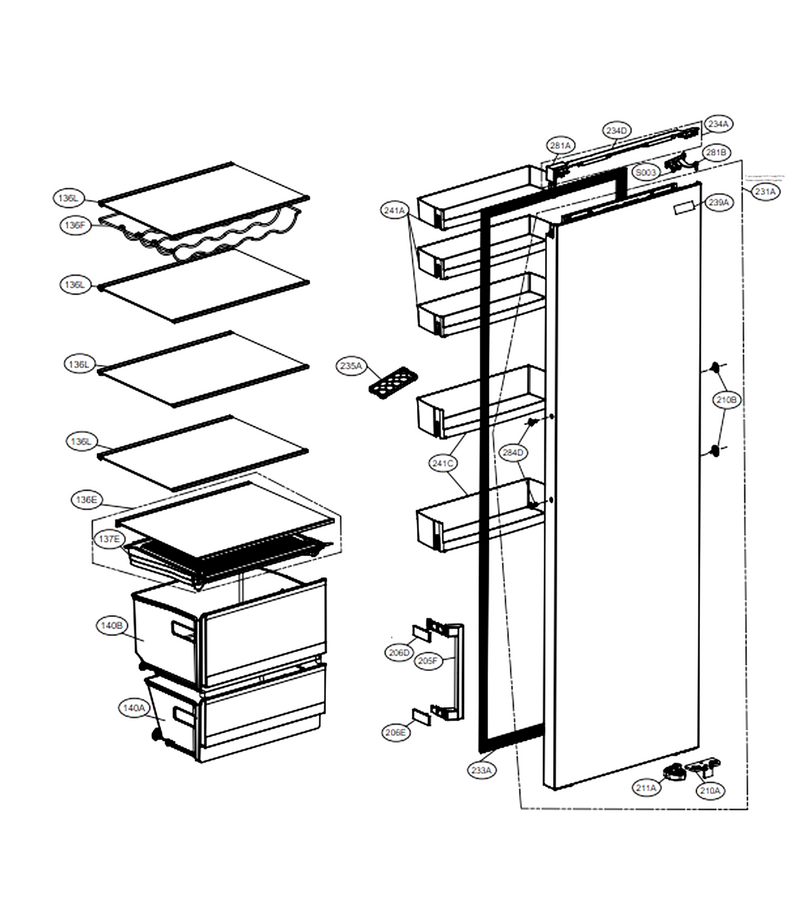

Main Ii

...
...
136E
Refrigerator Shelf Assembly L-G-AHT74973819
...
136F
Glass Shelf L-G-MHL64471719
...
136L
Refrigerator Shelf Assembly L-G-AHT74973922
...
137E
Tray Cover L-G-MCK71425202
...
140A
Drawer Tray Assembly L-G-AJP75654409
...
140B
Drawer Tray Assembly L-G-AJP75615013
...
205F
Handle Assembly L-G-AED75495205
...
206E
Cover Cap L-G-MBL68667004
...
206D
Cover Cap L-G-MBL68667001
...
210A
Door Stopper L-G-MJB65170801
...
210B
Door Cap L-G-MBL66397308
...
211A
Door Stopper L-G-MJB65170901
...
231A
Freezer Door Foam Assembly L-G-ADD76418901
...
233A
Door Gasket Assembly L-G-ADX73591437
...
234A
Door Decor Assembly L-G-ACW76642305
...
234D
Cover Decor L-G-MCR68398601
...
235A
Egg Tray L-G-3390JT2001D
...
239A
Refrigerator Nameplate L-G-MFT62346511
...
241C
Basket,door L-G-MAN64368301
...
241A
Basket,door L-G-MAN64368401
...
281A
Hinge Cover L-G-MCK71416301
...
281B
Upper Hinge Assembly L-G-AEH76178602
...
284D
Customized Screw L-G-1SZZJQ3013B

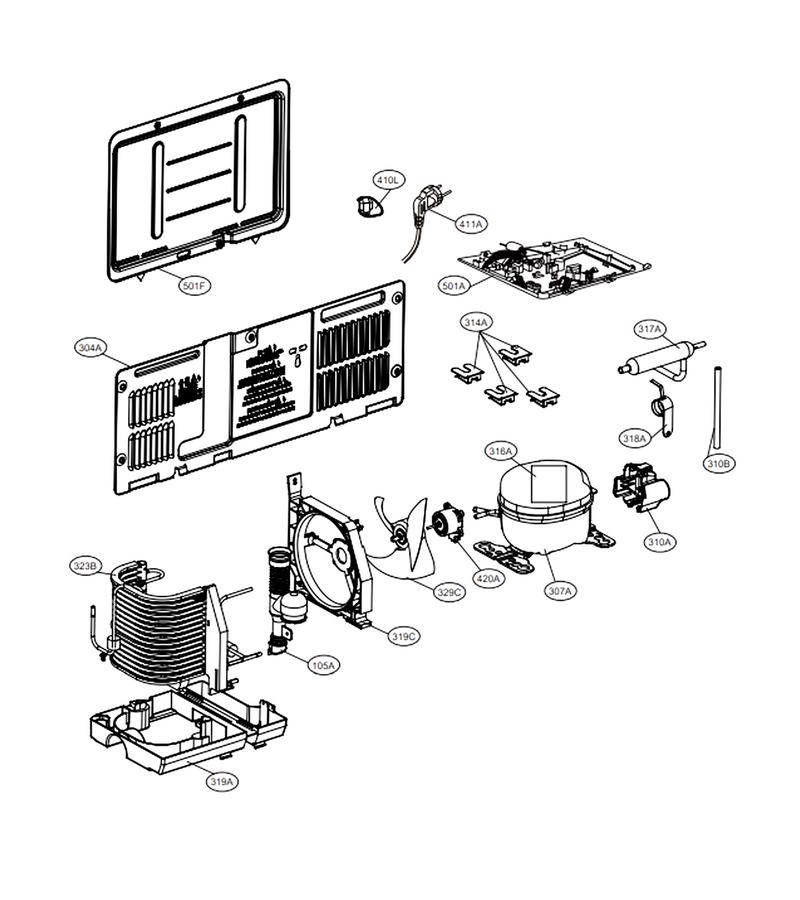

Main Iii

...
...
105A
Drain Tube Assembly L-G-5251JA3004H
...
304A
Machinery (rear) Cover Assembly L-G-ACQ90351408
...
307A
Set Assembly Compressor L-G-TCA37611416
...
310B
Pipe Joint L-G-5200JQ3002E
...
310A
Cover,ptc L-G-MCK69300903
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Damper,noise L-G-5072JQ3002F
...
317A
Drier Assembly L-G-ADH73590301
...
318A
Holder,drier L-G-MEG61863805
...
319A
Drip Tray L-G-MJS65315901
...
319C
Guide,fan L-G-MEA65410101
...
323B
Wire Condenser Assembly L-G-ACG76529001
...
329C
Fan Assembly L-G-ADP73273402
...
411A
Power Cord Assembly L-G-EAD62108365
...
420A
Motor,dc L-G-EAU63103302
...
501A
Main Pcb Assembly L-G-EBR31177562
...
501F
Cover Assembly,pcb L-G-ACQ90557701

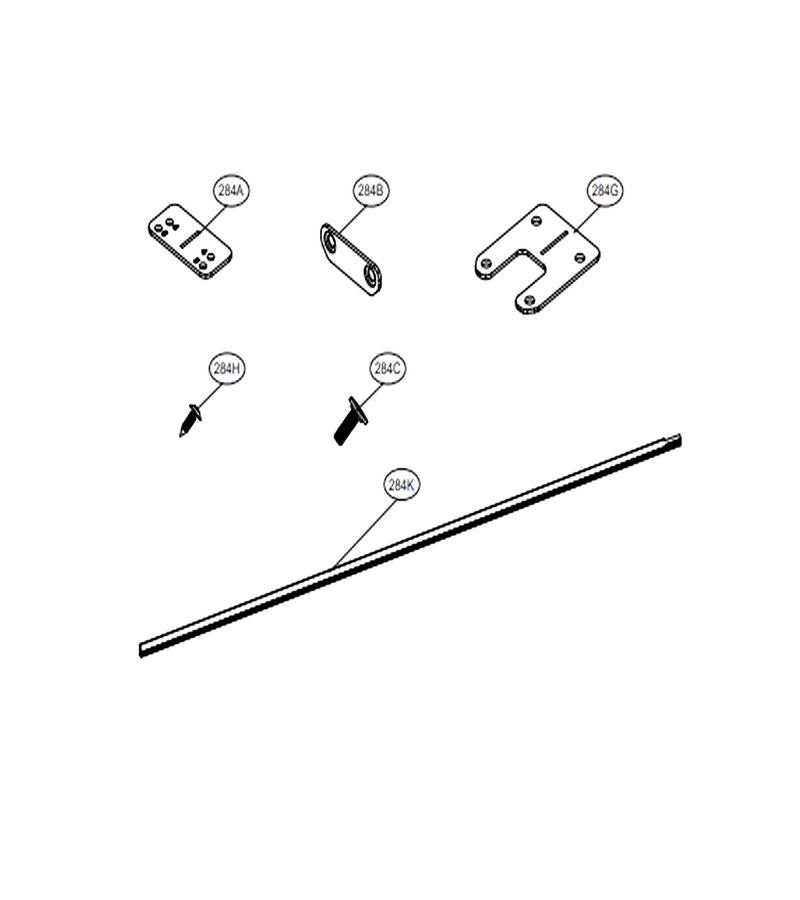

Main Iv

...
...
284A
Frame Bracket L-G-MAZ63255101
...
284B
Frame Bracket L-G-MAZ67464602
...
284C
Customized Screw L-G-FAB32818701
...
284G
Frame Bracket L-G-MAZ63255102
...
284H
Screw,customized L-G-1SZZJQ2015G
...
284K
Installation Package Assembly L-G-AGF76716947
