LG LRM1250B.CB1EBBY

Model: LRM1250B.CB1EBBY

Save Part Not Listed?
product name

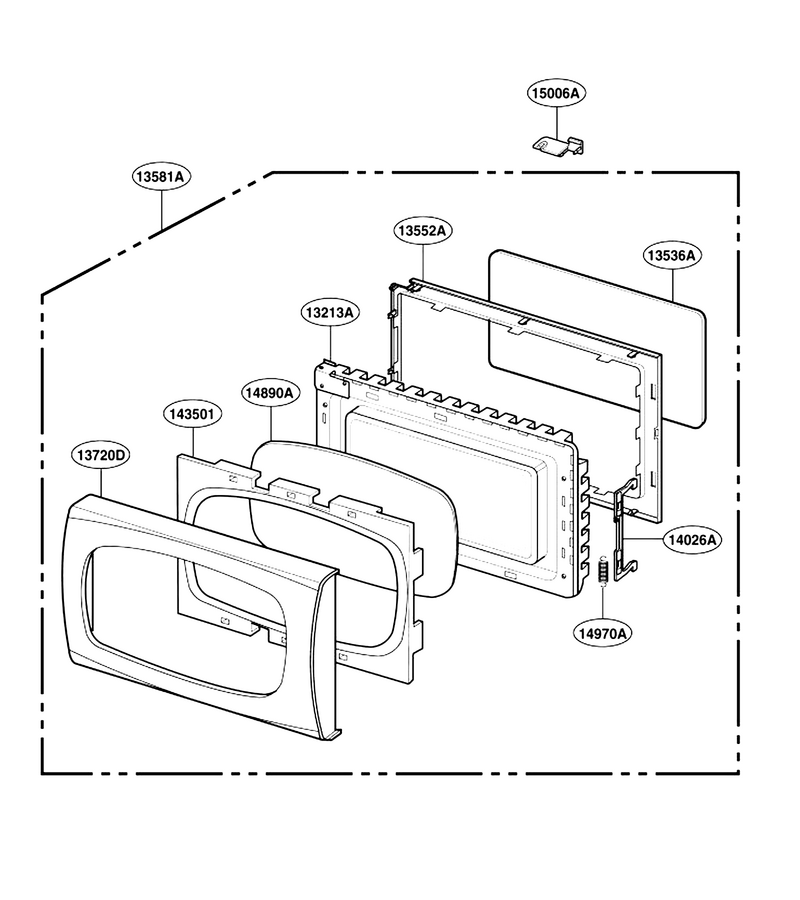

Door Parts

...
...
13213A
Out Drive Frame L-G-3213W1A031P
...
13536A
Seal Tape L-G-3536W1A004A
...
13552A
Microwave Cover L-G-3552W0A012A
...
13581A
(13581a) Door Assembly L-G-3581W1A509A
...
13720D
(13720d) Panel,door L-G-3720W0D390A
...
14026A
Latch L-G-4026W2A016A
...
14890A
Glass Window L-G-4890W1A073A
...
14970A
Microwave Door Latch Spring L-G-4970WRA001E
...
15006A
Transformer L-G-5006W3A012A
...
143501
(143501) Ring L-G-4350W0A002B

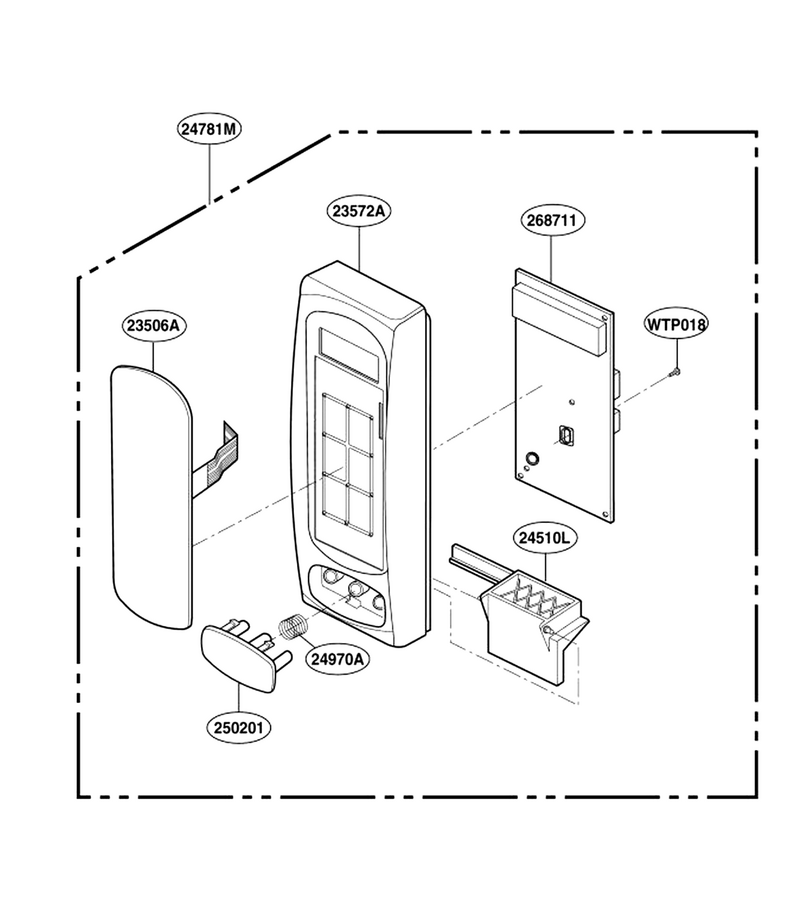

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
(23506a) Membrane L-G-3506W1A749A
...
23572A
(23572a) Panel,control L-G-3720W0C270A
...
24510L
Lever L-G-4510W3L003A
...
24781M
(24781m) Controller Assembly,keypad L-G-4781W1M418A
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
250201
Microwave Control Panel Button L-G-5020W0A001B
...
268711
Sub Pcb Assembly L-G-6871W1S197A

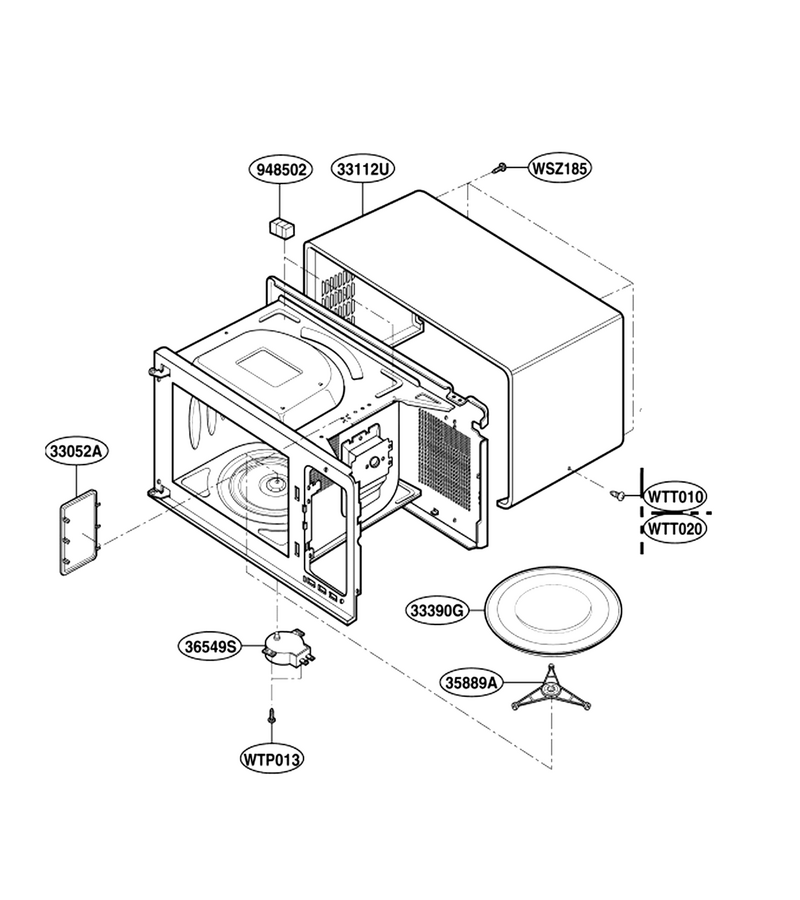

Oven Cavity Parts

...
...
WTT020
Screw L-G-1TTL0402416
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ185
Screw L-G-1SZZW2A002A
...
33052A
Canopy L-G-3052W1A004A
...
33112U
Cabinet L-G-3112W1U037C
...
33390G
Microwave Glass Tray L-G-3390W1A012D
...
35889A
Microwave Turntable Tray Support L-G-5889W1A003B
...
36549S
Microwave Turntable Motor L-G-6549W1S011B
...
948502
Cushion L-G-3B72244C

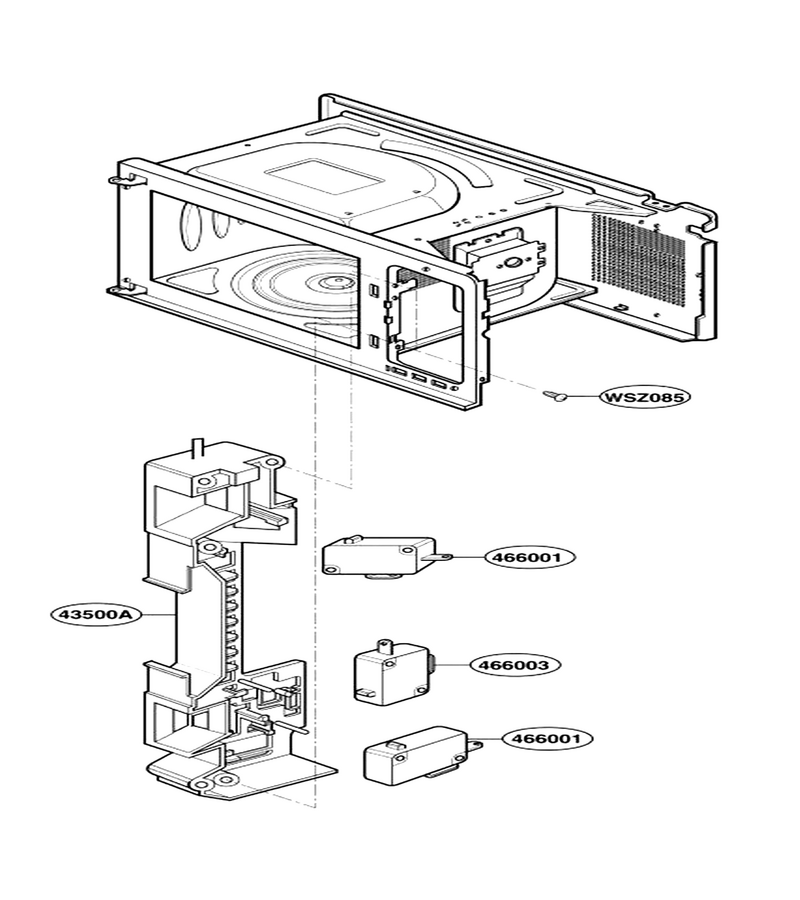

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Latch Board L-G-3500W1A004B
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

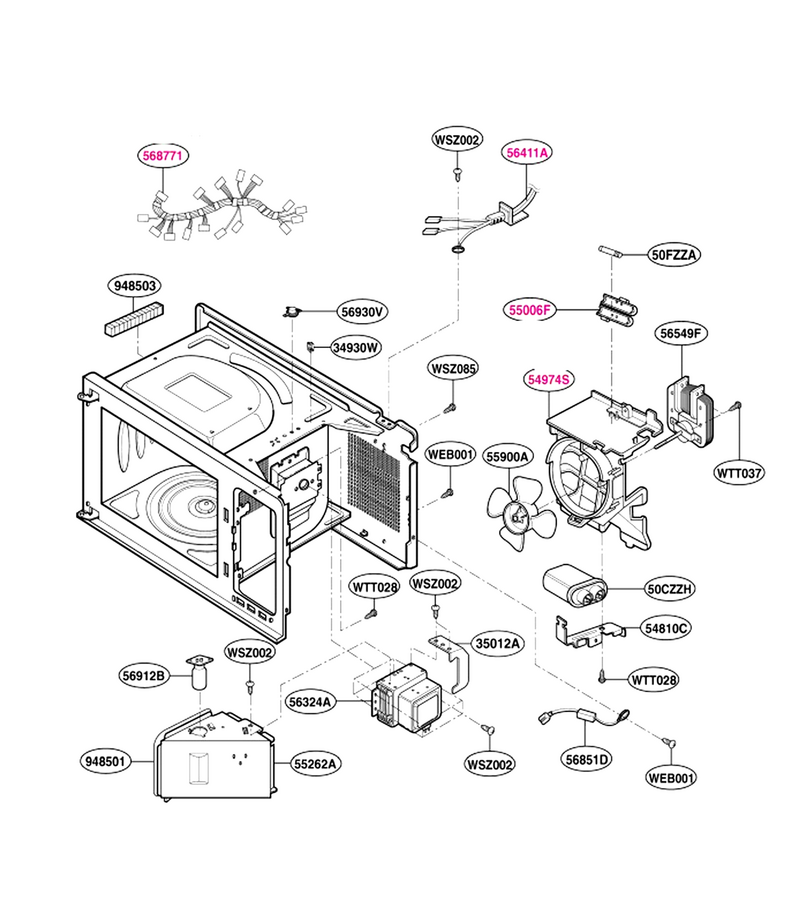

Interior Parts (i)

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004P
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A008A
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Power Cord L-G-6411W1A019S
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave Diode L-G-6851W1A002A
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
(568771) Harness,multi L-G-6877W1A474H
...
948501
Cushion L-G-3B72244T
...
948503
Cushion L-G-3B72244G

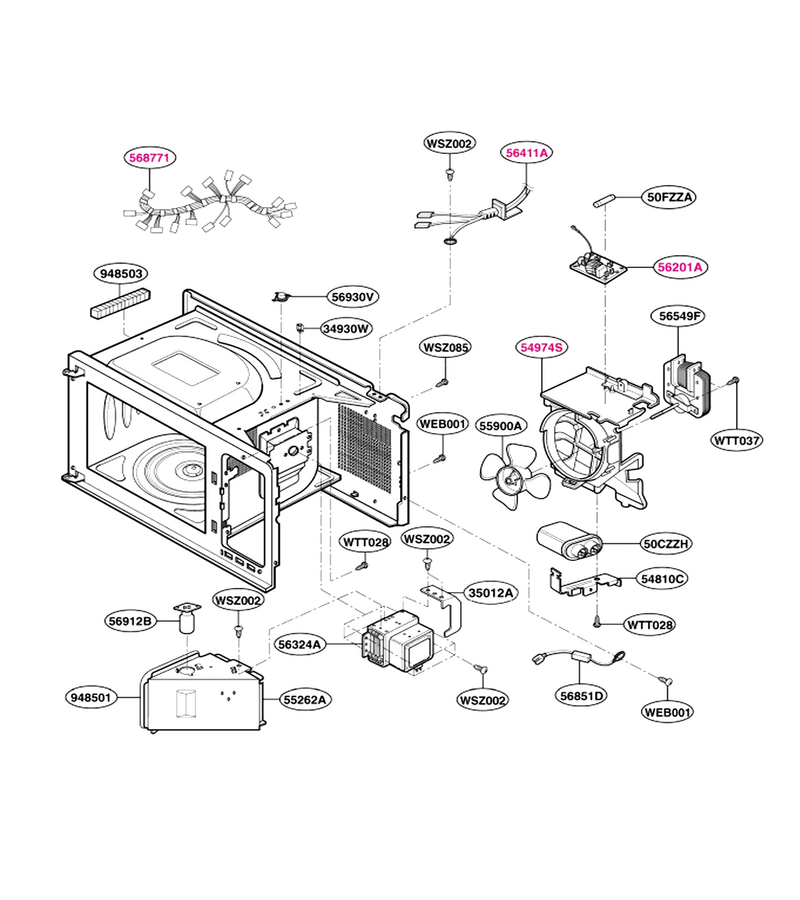

Interior Parts (ii)

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004P
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A008A
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56201A
Filter Assembly,noise L-G-6201W1A014A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Power Cord L-G-6411W1A019S
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave Diode L-G-6851W1A002A
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
(568771) Harness,multi L-G-6877W1A474H
...
948501
Cushion L-G-3B72244T
...
948503
Cushion L-G-3B72244G

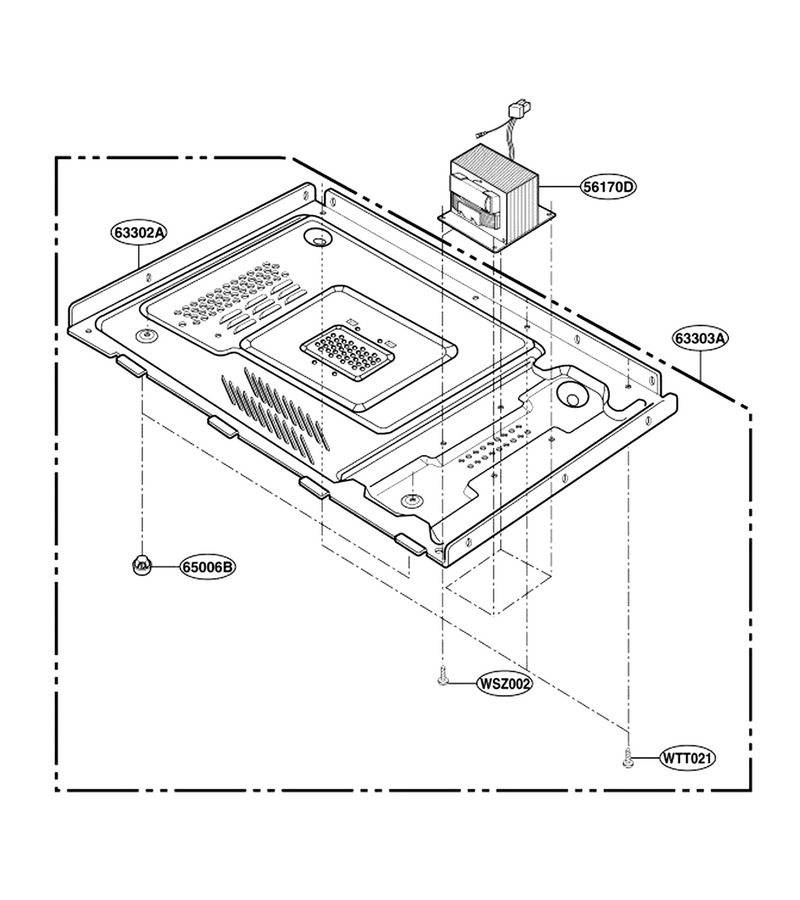

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023H
...
63302A
Microwave Base Plate Assembly L-G-3302W0A036B
...
63303A
Microwave Base Plate Assembly L-G-3303W0A019B
...
65006B
Microwave Foot (white) L-G-5006W3A019A
