LG LRKNS1205V.ANSCNA0

Model: LRKNS1205V.ANSCNA0

Save Part Not Listed?
product name

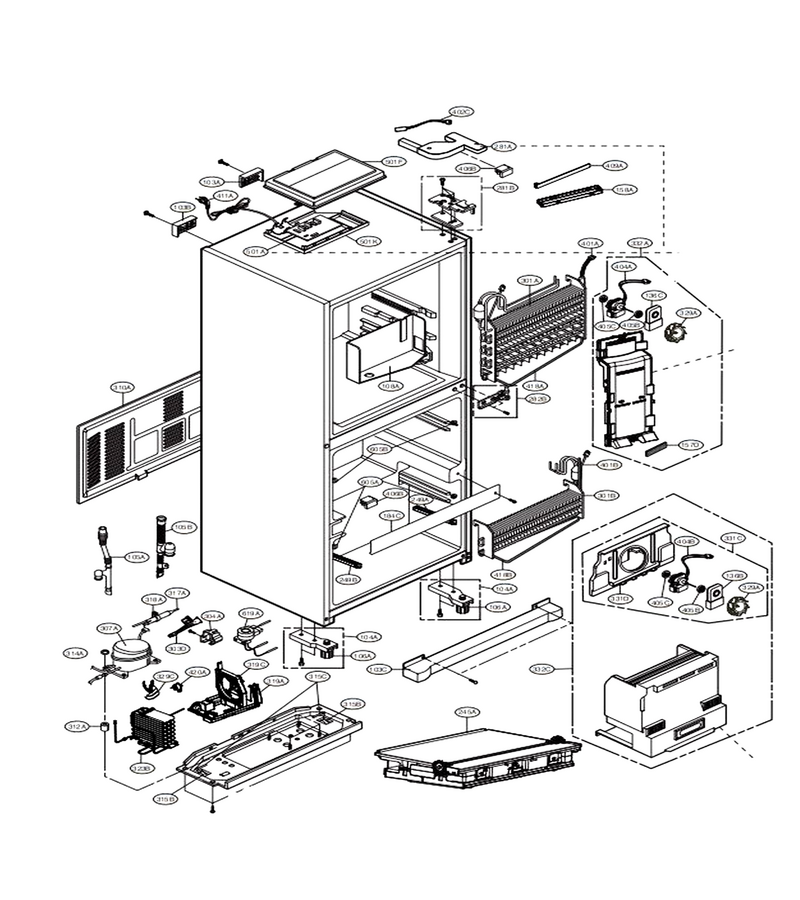

Main (i)

...
...
103A
Refrigerator Rear Handle L-G-3650JA2061W
...
103C
Cover Assembly,lower L-G-ACQ35557513
...
103B
Refrigerator Rear Handle L-G-3650JA2061X
...
104A
Leg Assembly,frame L-G-AFC30700601
...
106A
Leg,adjust L-G-4778JA2016D
...
108A
Tray Assembly,drain L-G-3391JA2027C
...
136B
Refrigerator Evaporator Fan Motor Bracket L-G-4811JA2009A
...
136C
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2055A
...
157D
Deodorizer L-G-MCS62101810
...
158A
Cover,lamp L-G-MCK70864302
...
184C
Plate Assembly,center L-G-AGU72947904
...
245A
Barrier Assembly,insulation L-G-4791JA1036U
...
249A
Gear L-G-MDT62087301
...
249B
Gear L-G-MDT62087302
...
281A
Cover Assembly,hinge L-G-ACQ67519421
...
281B
Hinge Assembly,upper L-G-4775JA2008D
...
282B
Hinge Assembly,center L-G-AEH75957501
...
301A
Evaporator Assembly L-G-5421JA0045M
...
301B
Evaporator Assembly L-G-ADL65046507
...
303D
Harness Assembly L-G-EAD64168605
...
304A
Cover,ptc L-G-MCK70052506
...
307A
Compressor,set Assembly L-G-TCA38191202
...
310A
Cover Assembly,machinery(rear) L-G-ACQ89988501
...
312A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315B
Refrigerator Compressor Base Roller Wheel L-G-3J02312A
...
315C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
317A
Drier Assembly L-G-ADH73590311
...
318A
Drier Holder L-G-4930JA3034C
...
319A
Tray,drip L-G-MJS64251801
...
319C
Guide,fan L-G-MEA42772906
...
323B
Condenser Assembly,wire L-G-ACG75604501
...
329C
Fan Assembly L-G-ADP73273401
...
331D
Shroud,freezer L-G-MHN61841302
...
331C
Shroud Assembly,freezer L-G-4999JA2021X
...
332A
Grille Assembly,fan L-G-AEB67960116
...
332C
Grille Assembly,fan L-G-3531JA1022Q
...
401A
Controller Assembly L-G-ACM73079231
...
401B
Controller Assembly L-G-6615JB2005P
...
402C
Pcb Assembly L-G-EBR71326804
...
404A
Motor,dc L-G-EAU62963003
...
404B
Motor,dc L-G-EAU62963003
...
405B
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405C
Refrigerator Motor Support Damper L-G-5040JA2004B
...
409A
Led Assembly L-G-EAV64632105
...
411A
Power Cord Assembly L-G-EAD64545714
...
418A
Heater,sheath L-G-5300JB1121J
...
418B
Heater,sheath L-G-MEE62145004
...
420A
Motor Assembly,dc L-G-EAU64843805
...
501A
Pcb Assembly,main L-G-EBR76001343
...
501F
Cover Assembly,pcb L-G-ACQ74914747
...
501K
Case,pcb L-G-MBN62362502
...
605A
Roller Assembly L-G-AHJ73190001
...
605B
Refrigerator Roller Assembly L-G-AHJ30124502

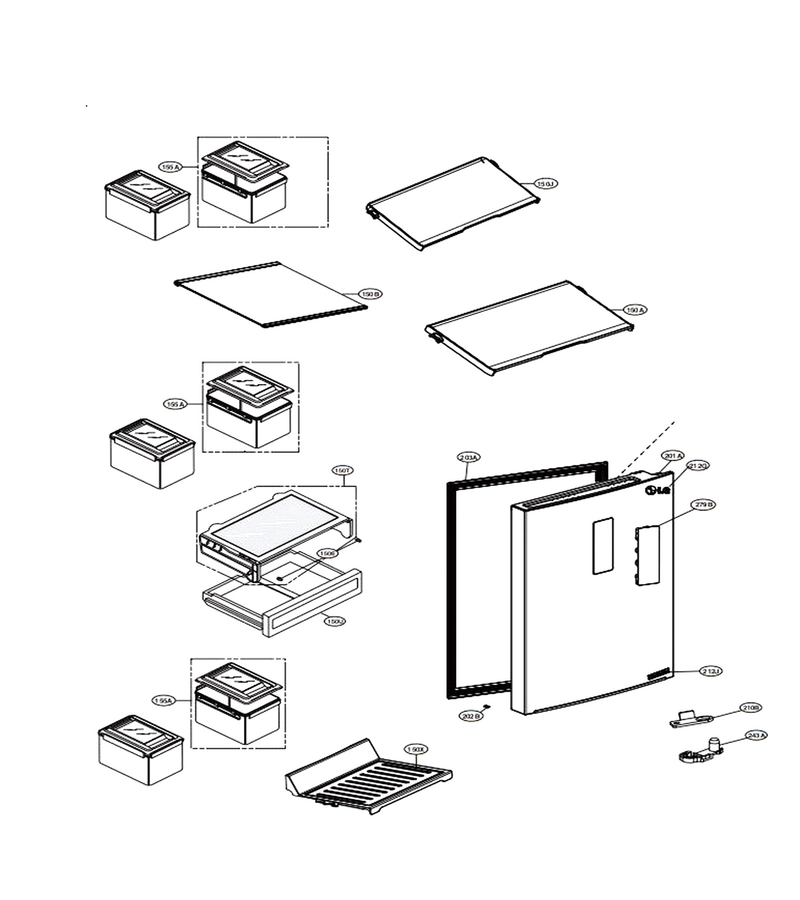

Main (ii)

...
...
150E
Stopper,door L-G-4620JA3020B
...
150X
Shelf,freezer L-G-MHL62493304
...
150U
Basket L-G-MAN62451001
...
150T
Shelf Assembly,freezer L-G-AHT72913002
...
150J
Door Assembly,freeze Room L-G-ADC75325801
...
150B
Shelf Assembly,refrigerator L-G-AHT73634005
...
150A
Door Assembly,freeze Room L-G-ADC75325802
...
155A
Bucket Assembly,side Dish L-G-AKC67523415
...
201A
Door Foam Assembly,freezer L-G-ADD75896204
...
202B
Stopper,door L-G-4620JA2029C
...
203A
Gasket Assembly,door L-G-ADX72910301
...
210B
Guide,stopper L-G-4974JA3037A
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
243A
Stopper,door L-G-J325-00032A
...
279B
Frame Assembly,display L-G-ADV74688259

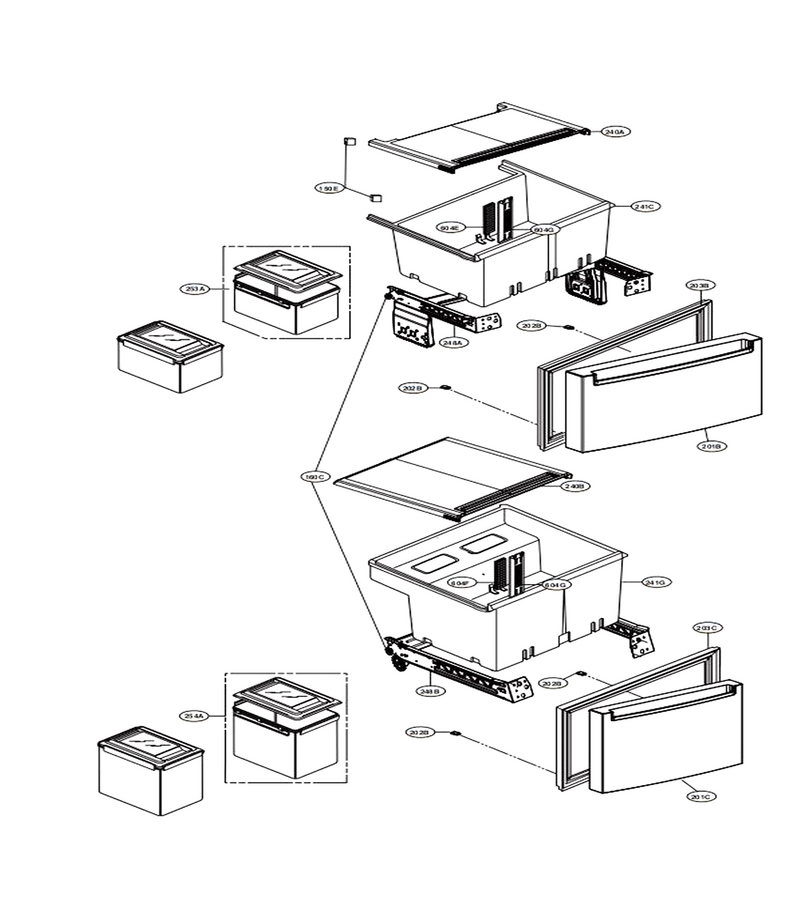

Main (iii)

...
...
150E
Stopper,door L-G-4620JA3020B
...
160C
Roller Assembly L-G-AHJ35783201
...
201B
Door Foam Assembly,refrigerator L-G-ADD75896312
...
201C
Door Foam Assembly,refrigerator L-G-ADD75896412
...
202B
Stopper,door L-G-4620JA2029C
...
203B
Gasket Assembly,door L-G-ADX72910302
...
203C
Gasket Assembly,door L-G-ADX72910303
...
240A
Cover Assembly,bucket L-G-ACQ85460604
...
240B
Cover Assembly,bucket L-G-ACQ85461005
...
241C
Basket,door L-G-MAN39373101
...
241G
Basket,door L-G-MAN39381201
...
248A
Rail Assembly,tv L-G-5219JA1004N
...
248B
Rail Assembly,tv L-G-5219JA1004M
...
253A
Bucket Assembly,side Dish L-G-AKC67523721
...
254A
Bucket Assembly,side Dish L-G-AKC67523722
...
604E
Deodorizer L-G-4756JA3001H
...
604F
Deodorizer L-G-4756JA3001H
...
604G
Cover,deodorizer L-G-3550JA2143C
