LG LRG3093SB.FBKELGA

Model: LRG3093SB.FBKELGA

Save Part Not Listed?
product name

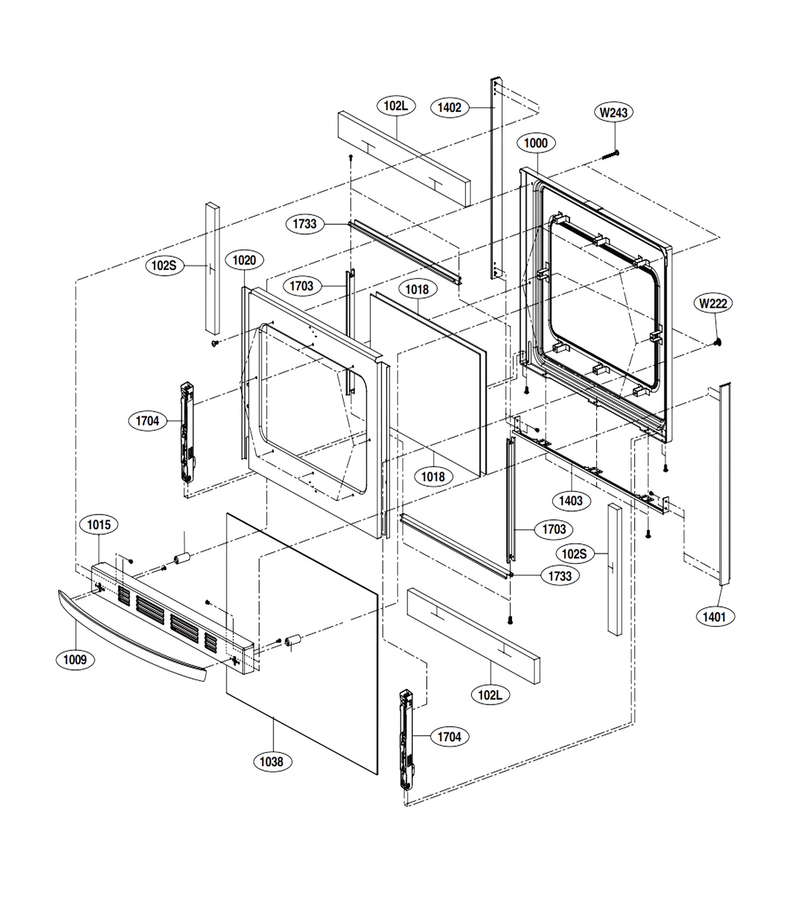

Door Parts (ii)

...
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102L
Insulator L-G-MEV64166608
...
102S
Insulator L-G-MEV64166609
...
1000
Frame Assembly,door L-G-ADV72931411
...
1009
Oven Door Handle L-G-MEB42058903
...
1015
Decor,door L-G-MCR61922801
...
1018
Range Oven Door Inner Glass L-G-4890W1N005L
...
1020
Cover,inner L-G-MCK61943601
...
1038
Window,glass L-G-MKC47970105
...
1401
Supporter L-G-MJH61847502
...
1402
Supporter L-G-MJH61847505
...
1403
Supporter L-G-4980W1N011F
...
1703
Mounting Bracket L-G-MAZ60113203
...
1704
Hinge Assembly L-G-AEH72957505
...
1733
Mounting Bracket L-G-MAZ61672103

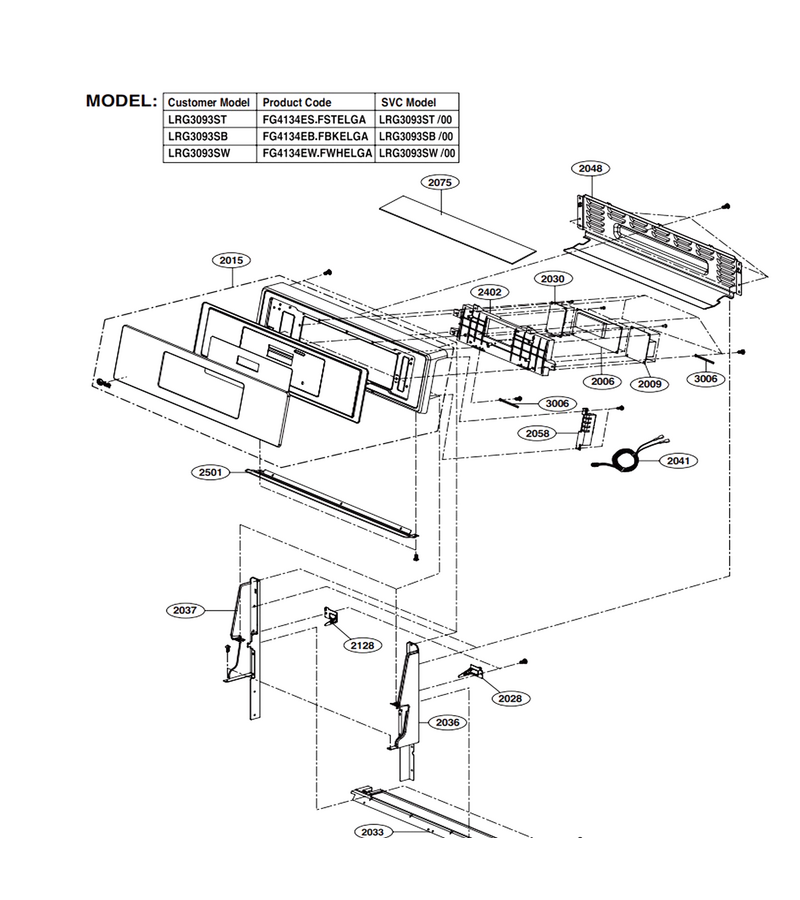

Controller Parts (i)

...
...
2006
Pcb Assembly,main L-G-EBR73811703
...
2009
Pcb Assembly,power L-G-EBR57124701
...
2015
Parts Assembly L-G-AGM73590305
...
2028
Idler Bracket L-G-MAZ61859201
...
2030
Pcb Assembly,main L-G-EBR52349703
...
2033
Barrier L-G-MAL61841101
...
2036
Supporter L-G-MJH32134509
...
2041
Harness L-G-EAD60700211
...
2048
Cover,rear L-G-MCK61941801
...
2058
Transformer,power L-G-EBJ62730001
...
2075
Insulator L-G-MEV61924501
...
2128
Idler Bracket L-G-MAZ61859202
...
2402
Holder,display L-G-MEG61858301
...
2501
Bracket L-G-MAZ61858507
...
3006
Lug (circ) L-G-4B72510F

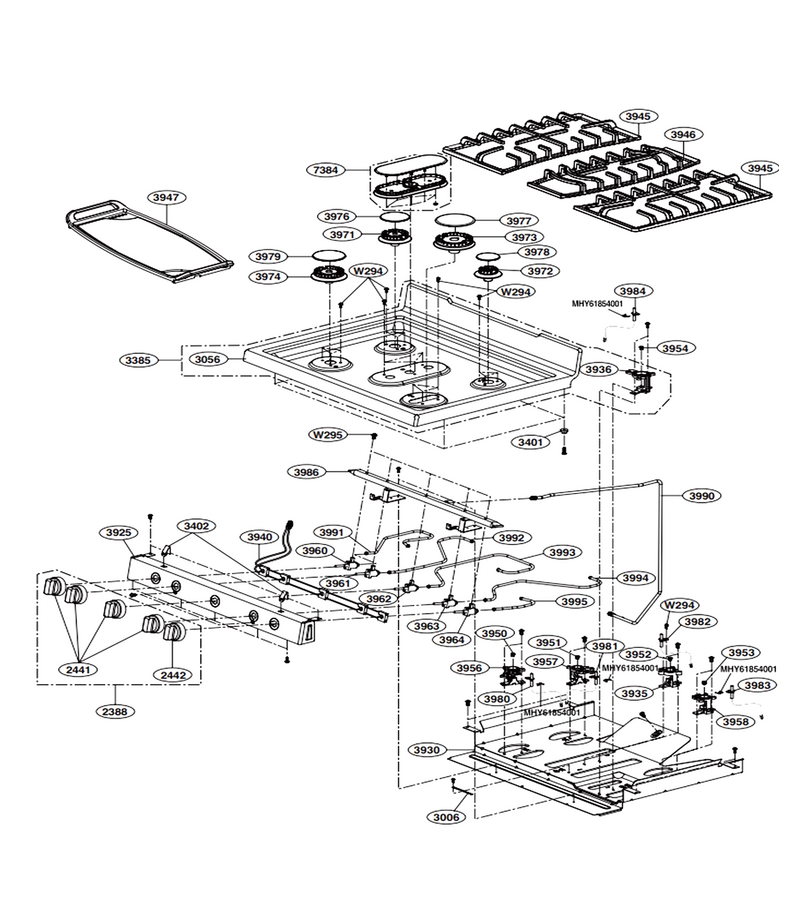

Cooktop Parts (i)

...
...
W294
Screw L-G-1SZZW1E002E
...
W295
Range Surface Burner Control Valve Screw L-G-FAB30424501
...
2388
Parts Assembly L-G-AGM73689602
...
2441
Knob Assembly L-G-AEZ73453513
...
2442
Knob Assembly L-G-AEZ73453512
...
3006
Lug (circ) L-G-4B72510F
...
3056
Plate,top L-G-MGJ62229814
...
3385
Parts Assembly L-G-AGM73809101
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-MJH61847901
...
3925
Panel,front L-G-MGC61846506
...
3930
Lower Case L-G-MBN61849501
...
3935
Tube,burner L-G-MJU61852901
...
3936
Burner Tube L-G-MJU61853901
...
3940
Range Igniter Switch And Harness Assembly L-G-EBF60662901
...
3945
Grille Assembly L-G-AEB72913403
...
3946
Grille Assembly L-G-AEB72913303
...
3947
Grille Assembly L-G-AEB72914203
...
3950
Nozzle L-G-MFV61841503
...
3951
Nozzle L-G-MFV61841504
...
3952
Nozzle L-G-MFV61841509
...
3953
Nozzle L-G-MFV61841507
...
3954
Nozzle L-G-MFV61841508
...
3956
Cooktop Burner L-G-MBE61841501
...
3957
Cooktop Burner L-G-MBE61841301
...
3958
Range Surface Burner L-G-MBE61841401
...
3960
Range Surface Burner Valve L-G-MJX61842207
...
3961
Valve L-G-MJX61842208
...
3962
Range Surface Burner Valve L-G-MJX61842210
...
3963
Valve L-G-MJX61842206
...
3964
Range Surface Burner Valve L-G-MJX61842209
...
3971
Range Surface Burner Base L-G-MBE61842001
...
3972
Range Surface Burner Base L-G-MBE61842501
...
3973
Range Surface Burner Base L-G-MBE61842701
...
3974
Range Surface Burner Assembly L-G-MBE61842101
...
3976
Range Surface Burner Cap L-G-MBL61908503
...
3977
Cap,burner L-G-MBL61909003
...
3978
Range Surface Burner Cap L-G-MBL61908703
...
3979
Range Surface Burner Cap L-G-MBL61908603
...
3980
Cable Assembly L-G-EAD60700501
...
3981
Range Spark Igniter Electrode L-G-EAD60700502
...
3982
Cable Assembly L-G-EAD60700503
...
3983
Cable Assembly L-G-EAD60700505
...
3984
Range Surface Burner Igniter L-G-EAD60700504
...
3986
Pipe Assembly L-G-AGR72909503
...
3990
Pipe L-G-MGE61842701
...
3991
Pipe L-G-MGE61842201
...
3992
Pipe L-G-MGE61842301
...
3993
Pipe L-G-MGE61842901
...
3994
Pipe L-G-MGE61842601
...
3995
Pipe L-G-MGE61842801
...
7384
Burner Assembly L-G-ABF73329701

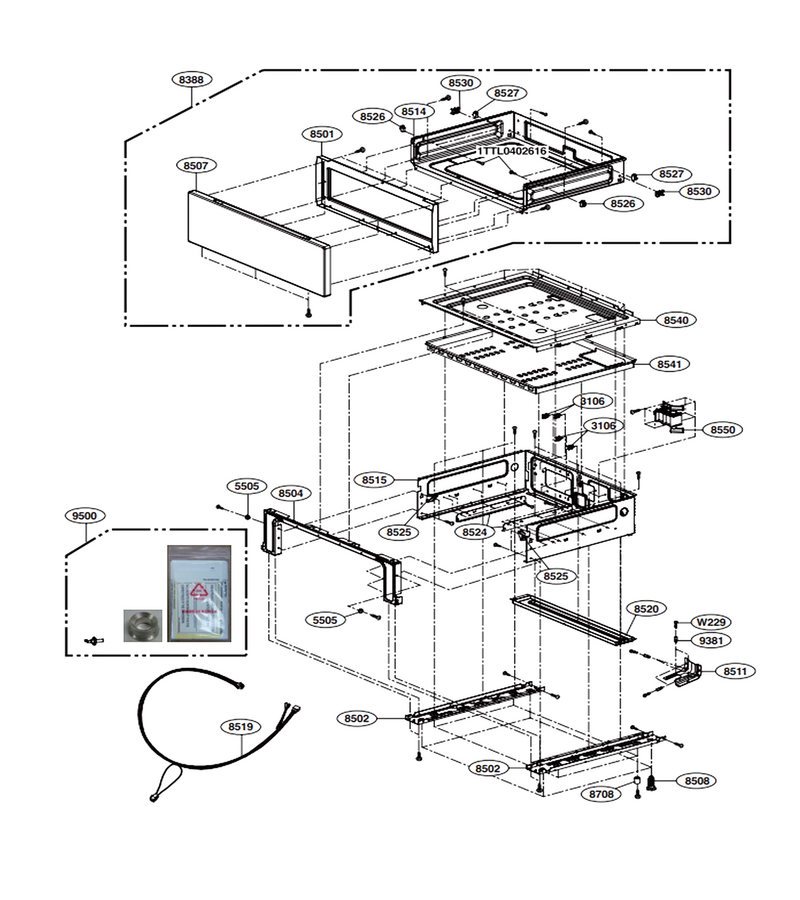

Drawer Parts (i)

...
...
W229
Screw L-G-1SZZW1N003A
...
3106
Holder L-G-4B72944B
...
5505
Supporter L-G-4980W1N013A
...
8388
Parts Assembly L-G-AGM73049106
...
8501
Frame,door L-G-MDQ61851501
...
8502
Plate L-G-3302W1N001B
...
8507
Panel,drawer L-G-MGC61845405
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
8514
Drawer L-G-MCX61841005
...
8515
Drawer L-G-MCX61841102
...
8519
Harness,single L-G-EAD60700302
...
8520
Supporter L-G-MJH37701302
...
8524
Bracket,mount L-G-MAZ61951201
...
8525
Slide Stopper L-G-MJB61872001
...
8526
Slide Stopper L-G-MJB61872101
...
8527
Stopper L-G-MJB61872201
...
8530
Guide Rail L-G-MEA61857701
...
8540
Insulator L-G-MEV58365901
...
8541
Insulator L-G-MEV58365701
...
8550
Valve L-G-MJX61842301
...
8708
Foot L-G-4B75290A
...
9381
Anchor L-G-FAK30249601
...
9500
Parts Assembly L-G-AGM73830201

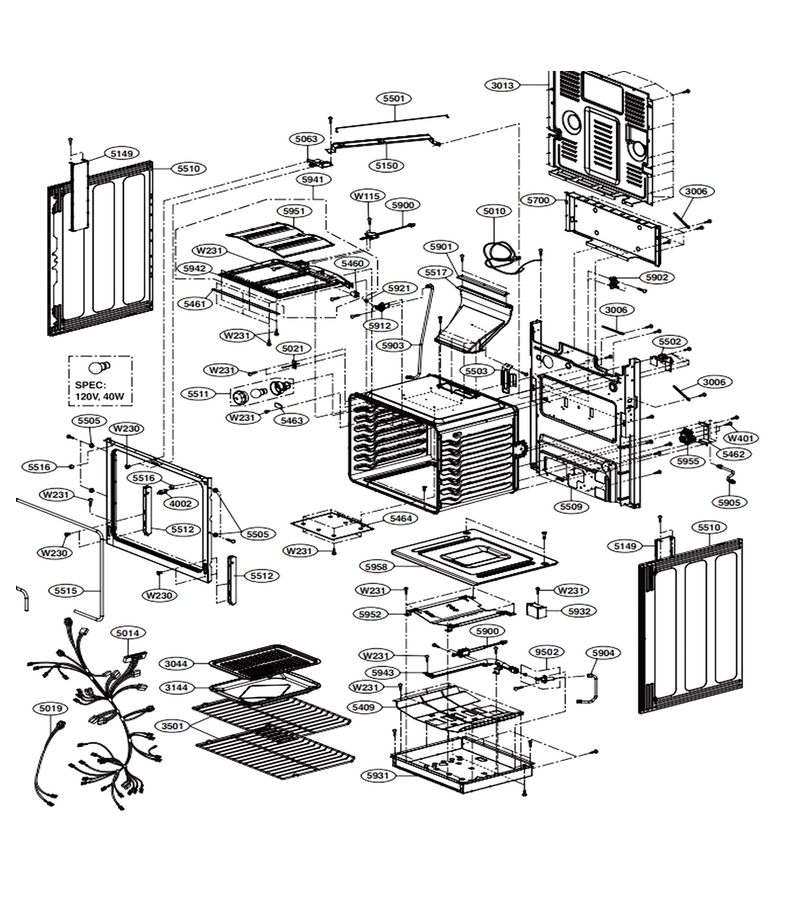

Cavity Parts (iii)

...
...
W115
Screw L-G-4B73763A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
3006
Lug (circ) L-G-4B72510F
...
3013
Cover,rear L-G-MCK58355501
...
3044
Tray,metal L-G-3390W0N002K
...
3144
Tray,metal L-G-3390W0N001L
...
3501
Shelf L-G-MHL39256102
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord L-G-EAD60700403
...
5014
Harness,single L-G-EAD60700203
...
5019
Harness,single L-G-EAD60700303
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5149
Guide,air L-G-MEA61847401
...
5150
Guide,air L-G-MEA61850901
...
5409
Insulator L-G-MEV61873801
...
5460
Bracket L-G-MAZ61859601
...
5461
Bracket L-G-MAZ61859302
...
5462
Bracket L-G-MAZ61859401
...
5463
Bracket L-G-MAZ61859501
...
5464
Bracket L-G-MAZ61859101
...
5501
Bar L-G-MAK61842401
...
5502
Range Oven Door Lock Motor L-G-EAU60671901
...
5503
Supporter L-G-MJH61847601
...
5505
Supporter L-G-4980W1N013A
...
5509
Panel,rear L-G-MGC58385501
...
5510
Range Side Panel L-G-MGC62644002
...
5511
Lamp L-G-6913W1N002D
...
5512
Hinge Bracket L-G-MAZ61885801
...
5515
Package Gasket L-G-3920W0N001B
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV72909001
...
5700
Barrier L-G-MAL61841202
...
5900
Range Oven Burner Igniter L-G-MEE61841401
...
5901
Holder,burner L-G-MEG63462401
...
5902
Cord Clamp L-G-4860W1A001A
...
5903
Pipe L-G-MGE61844501
...
5904
Pipe L-G-MGE61844601
...
5905
Pipe L-G-MGE61844401
...
5912
Nozzle Holder L-G-MEG61851202
...
5921
Nozzle L-G-MFV61841401
...
5931
Case L-G-MBN61848601
...
5932
Case L-G-MBN61849201
...
5941
Burner Assembly L-G-ABF72909202
...
5942
Burner Assembly L-G-ABF72909201
...
5943
Burner Assembly L-G-ABF72909003
...
5951
Cover,heater L-G-MCK61936601
...
5952
Cover,heater L-G-MCK61936501
...
5955
Range Pressure Regulator L-G-MDW61841001
...
5958
Base L-G-MAM61843502
...
9502
Parts Assembly L-G-AGM73770601
