LG LRG3061BD.FB1ELGA

Model: LRG3061BD.FB1ELGA

Save Part Not Listed?
product name

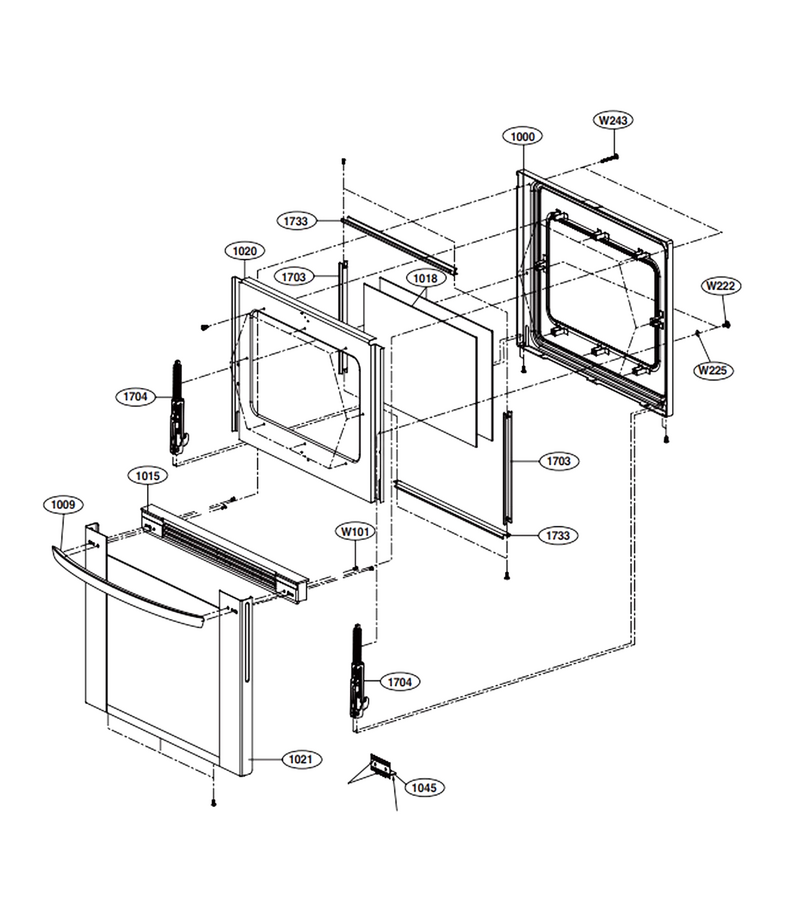

Door Parts

...
...
W101
Screw,customized L-G-FAB31821701
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
1000
Frame Assembly,door L-G-ADV72931419
...
1009
Handle,door L-G-MEB62494914
...
1015
Decorative Door L-G-MCR63866201
...
1018
Window,glass L-G-4890W1N005X
...
1020
Cover,inner L-G-MCK61943601
...
1021
Cover Assembly,poise L-G-ACQ83108502
...
1045
Bracket,door L-G-4810W1A187C
...
1703
Mounting Bracket L-G-MAZ60113203
...
1704
Hinge Assembly L-G-AEH72957518
...
1733
Mounting Bracket L-G-MAZ61672103

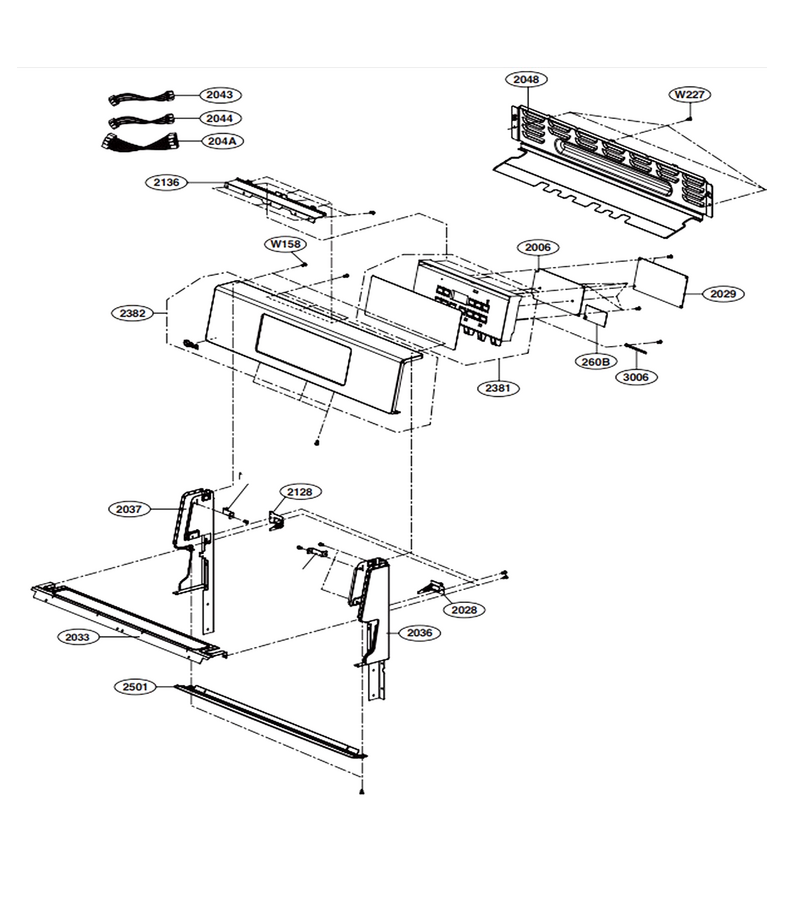

Controller Parts

...
...
W158
Screw L-G-1SZZW2E001D
...
W227
Screw L-G-1SZZW3Z001A
...
204A
Harness,single L-G-EAD34822903
...
260B
Sub,pcb Assm L-G-EBR76332902
...
2006
Pcb Assembly,main L-G-EBR82400801
...
2028
Idler Bracket L-G-MAZ61859201
...
2029
Pcb Assembly,power L-G-EBR84839802
...
2033
Barrier L-G-MAL61841101
...
2036
Supporter L-G-MJH62081108
...
2037
Supporter L-G-MJH62081007
...
2043
Harness,single L-G-EAD34822912
...
2044
Harness,single L-G-EAD62349811
...
2048
Cover,rear L-G-MCK63781301
...
2128
Idler Bracket L-G-MAZ61859202
...
2136
Supporter L-G-MJH62081201
...
2381
Parts Assembly L-G-AGM73329015
...
2382
Parts Assembly L-G-AGM73590315
...
2501
Bracket L-G-MAZ61858507
...
3006
Lug (circ) L-G-4B72510F

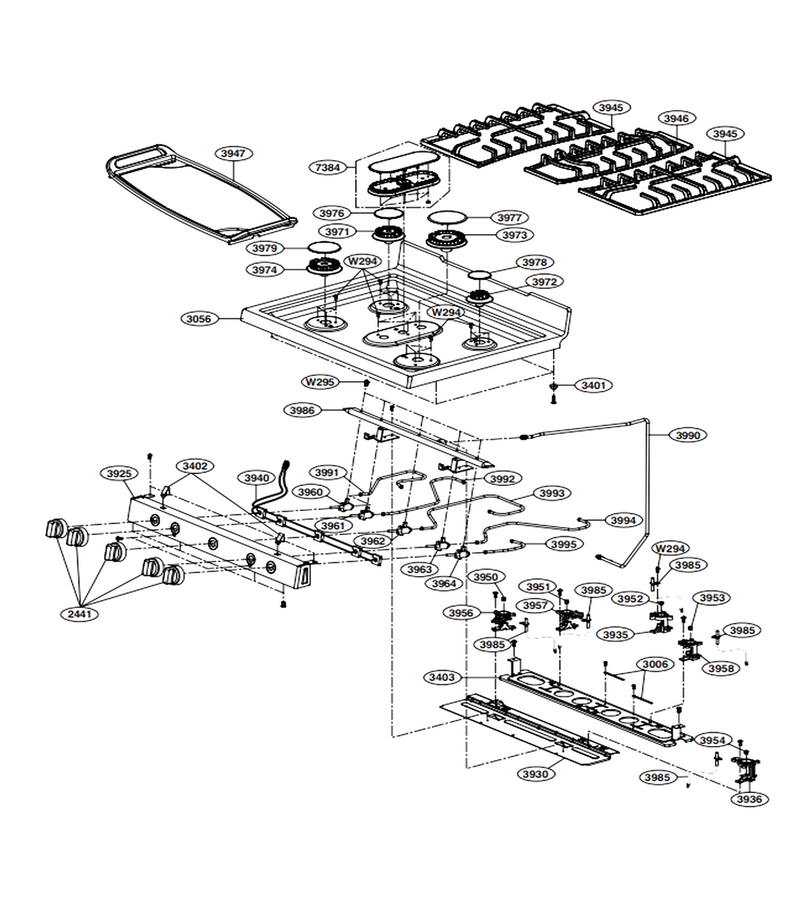

Cooktop Parts

...
...
W294
Screw L-G-1SZZW1E002E
...
W295
Screw,customize L-G-FAB30424502
...
2441
Knob Assembly L-G-AEZ73453529
...
3006
Lug (circ) L-G-4B72510F
...
3056
Plate,top L-G-MGJ62229828
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-MJH61847901
...
3403
Supporter L-G-MJH62758201
...
3925
Panel,front L-G-MGC61845612
...
3930
Case, Lower L-G-MBN62745301
...
3935
Tube,burner L-G-MJU61852903
...
3936
Tube,burner L-G-MJU61853905
...
3940
Switch Assembly L-G-EBF60662911
...
3945
Range Surface Burner Grate L-G-AEB73125001
...
3946
Grille Assembly L-G-AEB73124902
...
3947
Grille Assembly L-G-AEB72914204
...
3950
Nozzle L-G-MFV61841503
...
3951
Nozzle L-G-MFV61841504
...
3952
Nozzle L-G-MFV61841509
...
3953
Nozzle L-G-MFV61841507
...
3954
Nozzle L-G-MFV61841508
...
3956
Burner L-G-MBE61841506
...
3957
Burner L-G-MBE61841306
...
3958
Burner L-G-MBE61841405
...
3961
Valve L-G-MJX61842208
...
3962
Range Surface Burner Valve L-G-MJX61842210
...
3963
Valve L-G-MJX61842206
...
3964
Range Surface Burner Valve L-G-MJX61842209
...
3971
Range Surface Burner Base L-G-MBE61842001
...
3972
Range Surface Burner Base L-G-MBE61842501
...
3973
Range Surface Burner Base L-G-MBE61842701
...
3974
Burner L-G-MBE61842107
...
3976
Cap,burner L-G-MBL61908506
...
3977
Cap,burner L-G-MBL61909006
...
3978
Cap,burner L-G-MBL61908706
...
3979
Cap,burner L-G-MBL61908606
...
3985
Range Surface Burner Igniter L-G-EAD60700538
...
3986
Pipe Assembly L-G-AGR72909507
...
3990
Pipe L-G-MGE62671203
...
3991
Pipe L-G-MGE62690803
...
3992
Pipe L-G-MGE61842303
...
3993
Pipe L-G-MGE62691103
...
3994
Pipe L-G-MGE61842603
...
3995
Pipe L-G-MGE61842803
...
7384
Burner Assembly L-G-ABF73329702

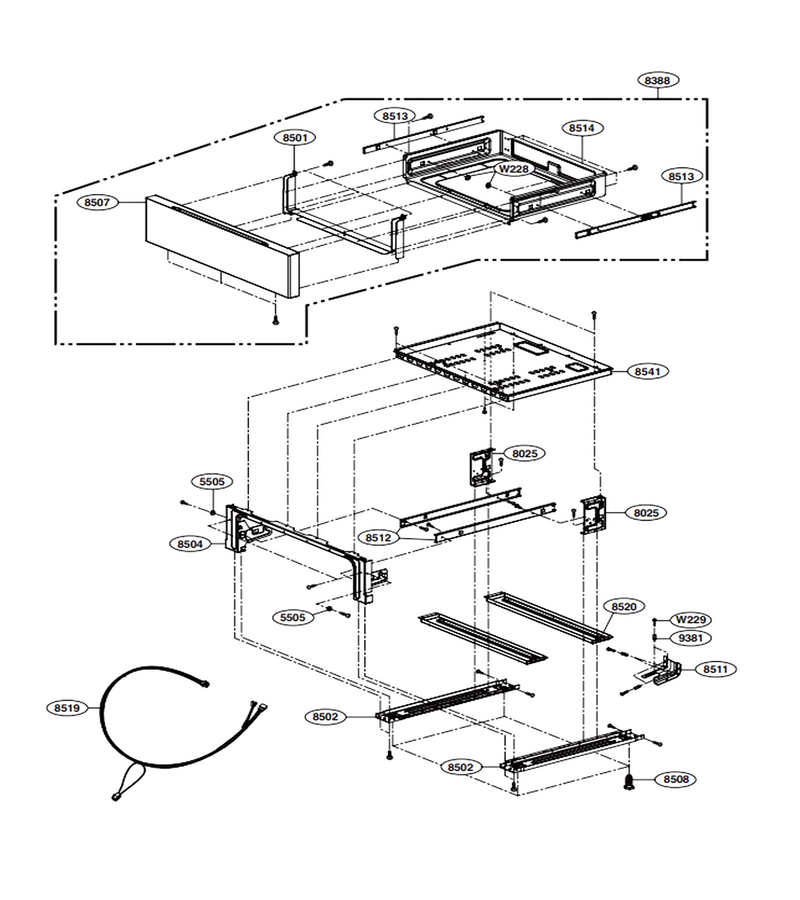

Drawer Parts

...
...
W229
Screw L-G-1SZZW1N003A
...
5505
Supporter L-G-4980W1N013A
...
8025
Bracket,mount L-G-MAZ63429301
...
8388
Parts Assembly L-G-AGM73049129
...
8501
Frame,door L-G-MDQ63197901
...
8502
Plate,base L-G-3302W1N001F
...
8504
Plate,front L-G-MGJ63347901
...
8507
Panel Assembly L-G-AGL75533403
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
8512
Slider L-G-MHS62022301
...
8513
Range Shelf L-G-MHS62022201
...
8514
Drawer Assembly L-G-ADG73329601
...
8519
Harness,single L-G-EAD62054803
...
8520
Supporter L-G-MJH37701302
...
8541
Insulator L-G-MEV58365701
...
9381
Anchor L-G-FAK30249601

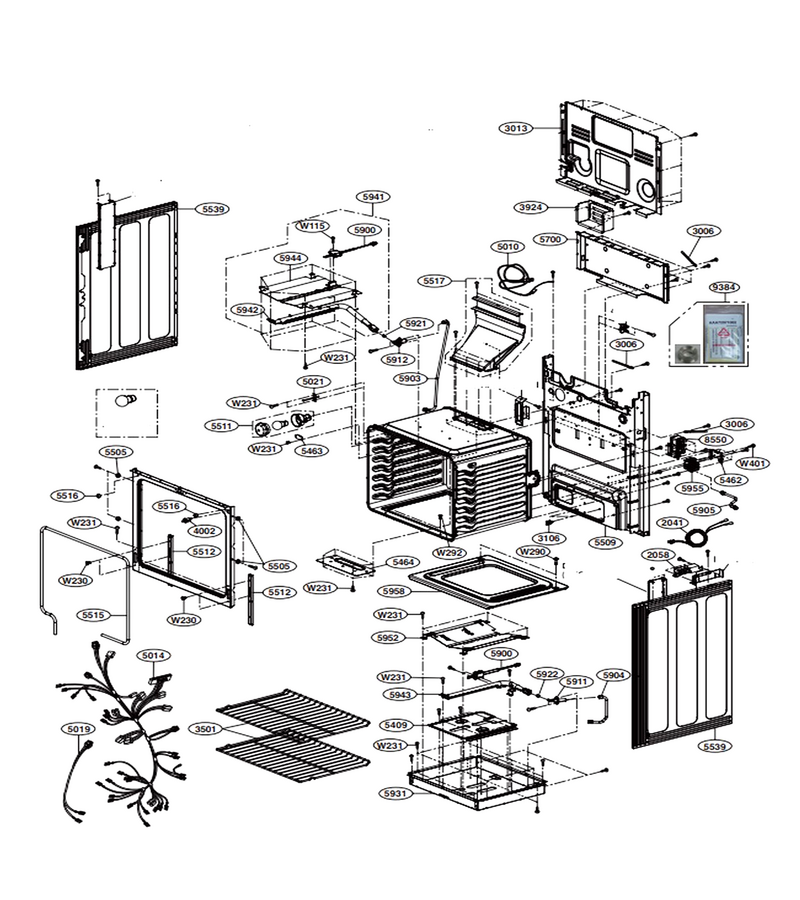

Cavity Parts (ii)

...
...
W115
Screw L-G-4B73763A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W290
Range Oven Bottom Panel Screw L-G-FAB30264901
...
W292
Tapping Screw L-G-FAB30265001
...
2041
Harness L-G-EAD60700211
...
2058
Transformer,power L-G-EBJ62730001
...
3006
Lug (circ) L-G-4B72510F
...
3013
Cover,rear L-G-MCK67052701
...
3106
Holder L-G-4B72944B
...
3501
Shelf L-G-MHL39256107
...
3924
Cover,motor L-G-MCK67052801
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord Assembly L-G-EAD60700408
...
5014
Harness,single L-G-EAD62040305
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5409
Insulator L-G-MEV64078601
...
5462
Bracket L-G-MAZ64885101
...
5463
Bracket L-G-MAZ61859501
...
5464
Bracket L-G-MAZ62372401
...
5505
Supporter L-G-4980W1N013A
...
5509
Panel,rear L-G-MGC58385501
...
5511
Lamp,incandescent L-G-6913W1N002C
...
5512
Hinge Bracket L-G-MAZ63249701
...
5515
Packing,gasket L-G-3920W0N001D
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV73269201
...
5539
Range Side Panel L-G-MGC62644002
...
5700
Supporter L-G-MJH61847601
...
5900
Range Oven Burner Igniter L-G-MEE61841401
...
5903
Pipe L-G-MGE62671104
...
5904
Pipe L-G-MGE62671003
...
5905
Pipe L-G-MGE62670904
...
5911
Holder,nozzle L-G-MEG61850403
...
5912
Nozzle Holder L-G-MEG61851202
...
5921
Nozzle L-G-MFV61841409
...
5922
Nozzle L-G-MFV62085101
...
5931
Case L-G-MBN61848605
...
5941
Burner Assembly L-G-ABF72989702
...
5942
Burner Assembly L-G-ABF73569803
...
5943
Burner Assembly L-G-ABF72909003
...
5944
Range Broil Burner Flame Spreader L-G-ABF73009701
...
5952
Cover,heater L-G-MCK61936501
...
5955
Range Pressure Regulator L-G-AMP30000002
...
5958
Base L-G-MAM63404404
...
8550
Valve L-G-MJX62571701
...
9384
Parts Assembly L-G-AGM73069214

Main

...
...
9504
Accessory Assembly L-G-AAA77169701
