product name

LG LRFXC2416S.ASTCNA1

Model: LRFXC2416S.ASTCNA1

Save Part Not Listed?
product name

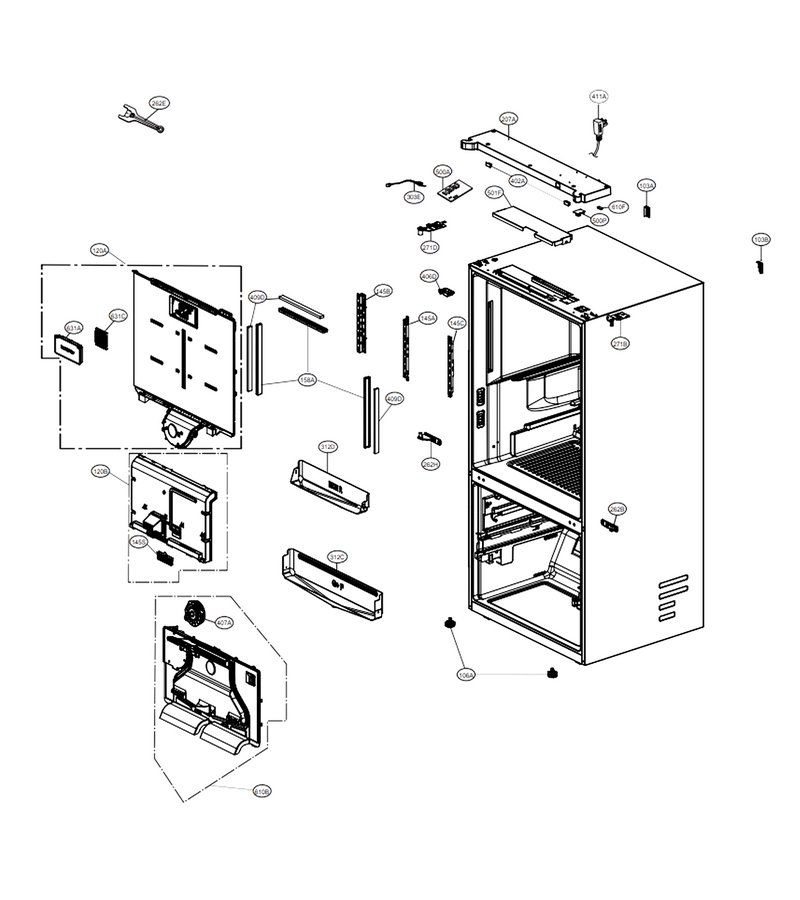

Case Parts

...
...
103A
Rear Handle L-G-MEB65420002
...
103B
Rear Handle L-G-MEB65420001
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ75352101
...
120B
Duct Assembly,connector L-G-ADJ75352201
...
145A
Holder,shelf L-G-MEG63144607
...
145B
Holder,shelf L-G-MEG64740603
...
145C
Holder,shelf L-G-MEG64740604
...
145S
Deodorizer Assembly L-G-ACX72949206
...
158A
Lamp Cover L-G-MCK70864305
...
207A
Cover,hinge L-G-MCK68412510
...
262B
Hinge Assembly,center L-G-AEH74556318
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
262H
Hinge Assembly,center L-G-AEH74556317
...
271B
Refrigerator Door Hinge L-G-AEH60614106
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
303E
Harness Assembly L-G-EAD65568402
...
312C
Tray Assembly,drain L-G-3391JJ2013Y
...
312D
Tray Assembly,drain L-G-AJP75994401
...
406D
Refrigerator Door Holder L-G-MEG63261302
...
407A
Motor Assembly,dc L-G-EAU63503706
...
409D
Led Assembly L-G-EAV64632101
...
411A
Power Cord Assembly L-G-EAD65881205
...
500A
Main Pcb Assembly L-G-EBR88309734
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
501F
Pcb Cover Assembly L-G-ACQ91406519
...
610B
Grille Assembly,fan L-G-AEB75844601
...
610F
Pcb Assembly L-G-EBR71326804
...
631A
Filter Assembly,air Cleaner L-G-ADQ75493301
...
631C
Filter Assembly,air Cleaner L-G-ADQ73214405

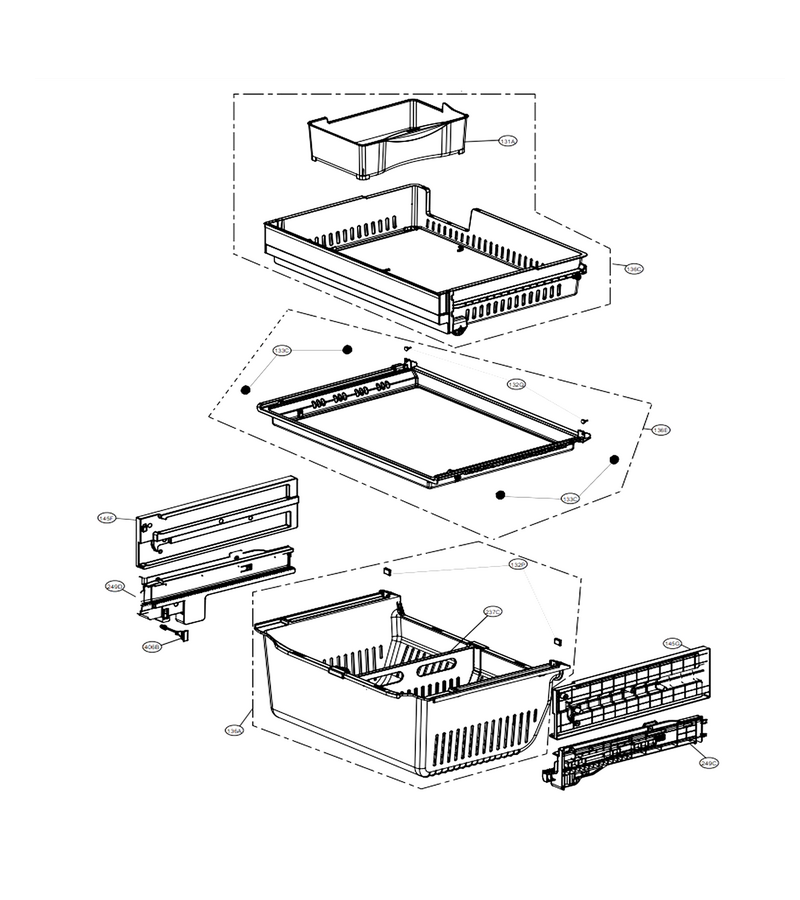

Freezer Parts

...
...
131A
Tray,freezer L-G-MJS61850901
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
132Q
Stopper,door L-G-MJB62650404
...
133C
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73070401
...
136A
Tray Assembly,drawer L-G-AJP72909905
...
136C
Drawer Tray Assembly L-G-AJP73334633
...
136E
Tray Assembly,drawer L-G-AJP73334506
...
145F
Guide Assembly,rail L-G-AEC75738103
...
145G
Guide Assembly,rail L-G-AEC75738104
...
237C
Guide,drawer L-G-MEA62770401
...
249C
Guide Assembly,rail L-G-AEC73317806
...
249D
Holder,rail L-G-MEG62900503
...
406B
Switch,magnet L-G-EBF61314816

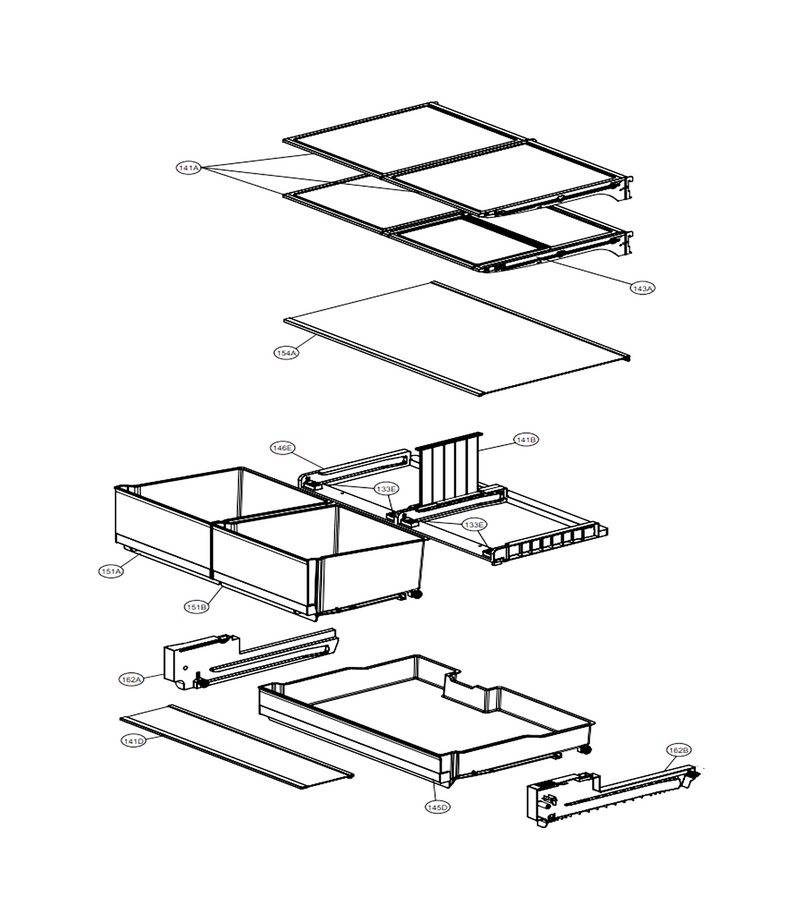

Refrigerator Parts

...
...
133E
Refrigerator Roller Assembly L-G-AHJ73269903
...
141A
Shelf Assembly,refrigerator L-G-AHT73233954
...
141B
Supporter,cover Tv L-G-MJH65793101
...
141D
Cover Assembly,tray L-G-ACQ91171001
...
143A
Shelf Assembly,refrigerator L-G-AHT73234050
...
145D
Tray Assembly,fresh Room L-G-AJP76054502
...
146E
Cover,tray L-G-MCK71064401
...
151A
Tray Assembly,vegetable L-G-AJP76054403
...
151B
Tray Assembly,vegetable L-G-AJP76054404
...
154A
Cover Assembly,tv L-G-ACQ91170802
...
162A
Rail Guide Assembly L-G-AEC73317743
...
162B
Rail Guide Assembly L-G-AEC73317744

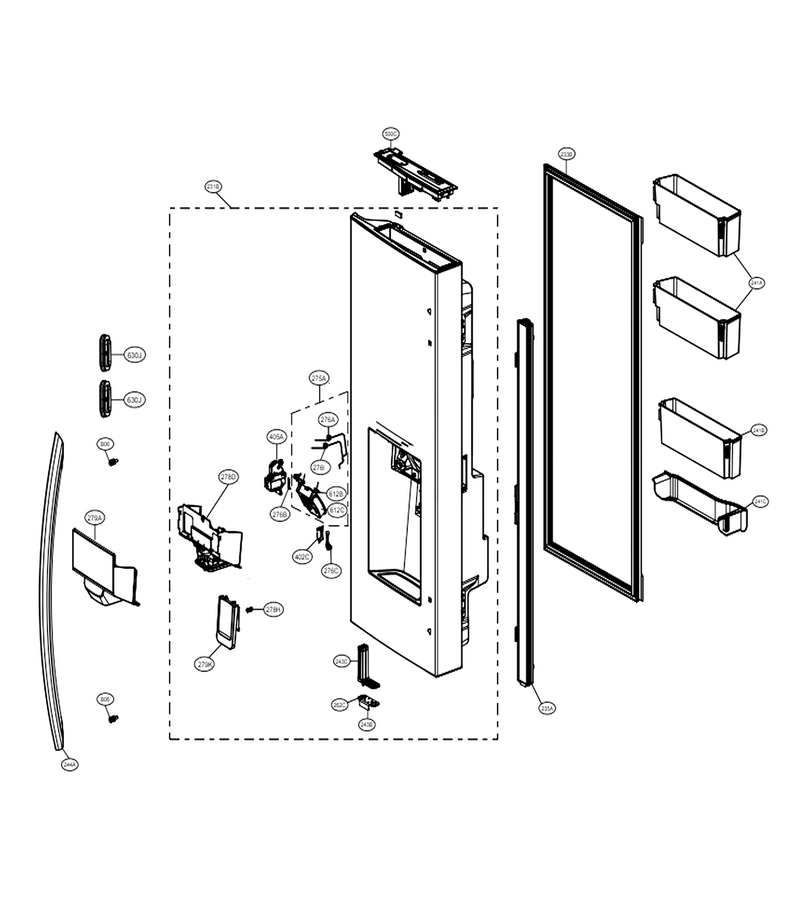

Door Parts 1

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
231B
Door Foam Assembly,refrigerator L-G-ADD76155804
...
233B
Gasket Assembly,door L-G-ADX72930460
...
235A
Plate Assembly,front L-G-AGU74268133
...
241A
Basket Assembly,door L-G-AAP74271301
...
241B
Door Basket Assembly L-G-AAP74271306
...
241C
Basket,door L-G-MAN62649301
...
243B
Refrigerator Door Stop L-G-AJC68689632
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
276A
Spring,lever L-G-MHY62603703
...
276B
Holder Lever L-G-MEG63262301
...
276I
Spring,lever L-G-MHY62603704
...
278D
Funnel Assembly L-G-ADW73389915
...
278H
Spring L-G-MHY62644404
...
279A
Display Cover Assembly L-G-ACQ91426113
...
279K
Button,lever L-G-MBG66024514
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500C
Pcb Case Assembly L-G-ABQ72940076
...
630J
Gasket Assembly,door L-G-ADX73250607

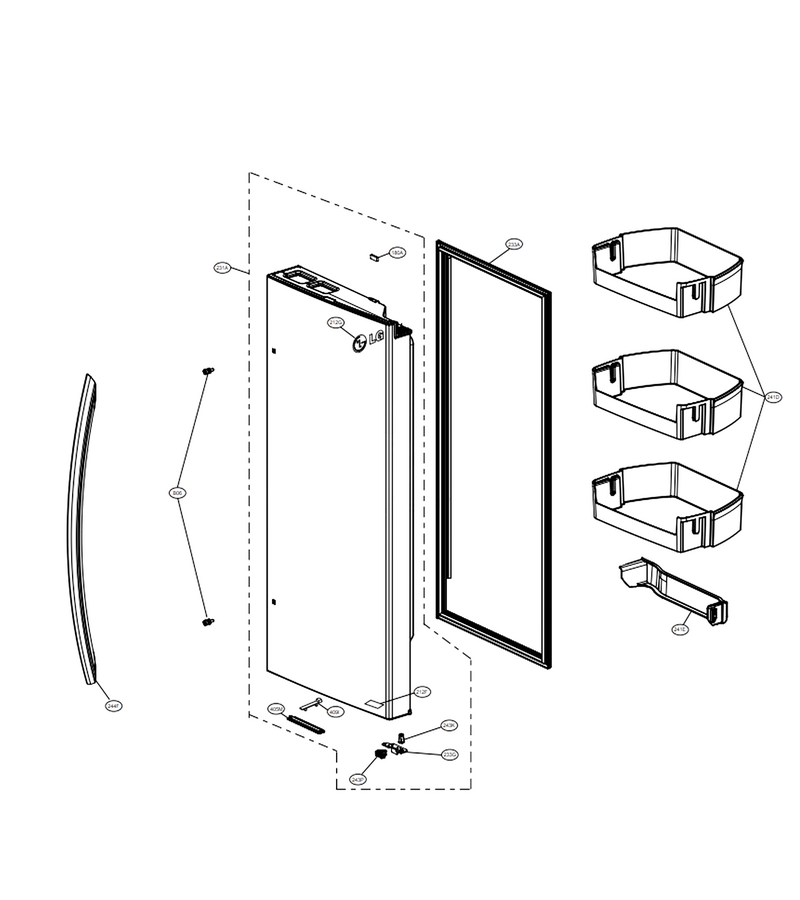

Door Parts 2

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
180A
Rt Side Uppr L-G-RAB32775604
...
212F
Name Plate L-G-MFT63986713
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
231A
Refrigerator Door Foam Assembly L-G-ADD73358353
...
233A
Gasket Assembly,door L-G-ADX72930461
...
233G
Stopper,door L-G-MJB64849801
...
241D
Basket,door L-G-MAN64628301
...
241E
Basket,door L-G-MAN63248701
...
243P
Refrigerator Door Closer L-G-MJB62830601
...
244F
Refrigerator Door Handle Assembly L-G-AED37082916
...
405M
Refrigerator Light Cover L-G-MCK66769001
...
409I
Refrigerator Led Light L-G-EAV61652805

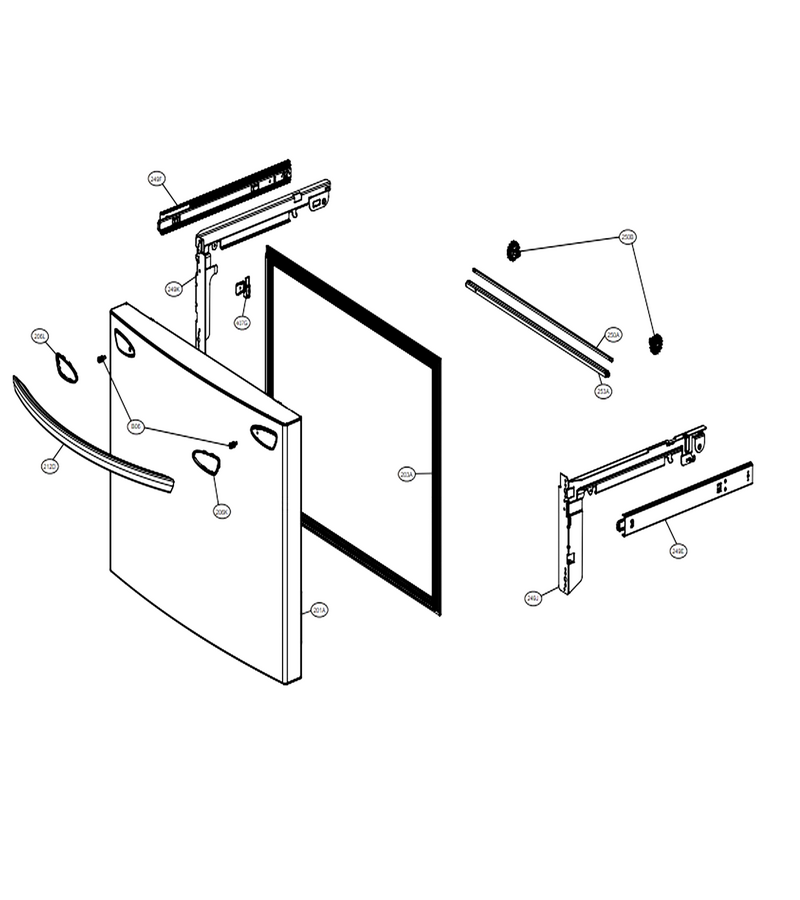

Door Parts 3

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
201A
Freezer Door Foam Assembly L-G-ADD73358050
...
203A
Gasket,door L-G-MDS38201426
...
206K
Refrigerator Decorative Handle L-G-MCR64337201
...
206L
Refrigerator Decorative Handle L-G-MCR64337202
...
212D
Refrigerator Door Handle Assembly L-G-AED37133117
...
249E
Rail,slide L-G-5218JA1009L
...
249F
Rail,slide L-G-5218JA1009M
...
249J
Connector,rail L-G-MCD62328902
...
249K
Connector,rail L-G-MCD62328907
...
250A
Bar L-G-MAK64727001
...
250B
Refrigerator Ice Gear L-G-MDT62287201
...
253A
Support Cover L-G-MJH62553605
...
407G
Cover,door Switch L-G-MCK67539802

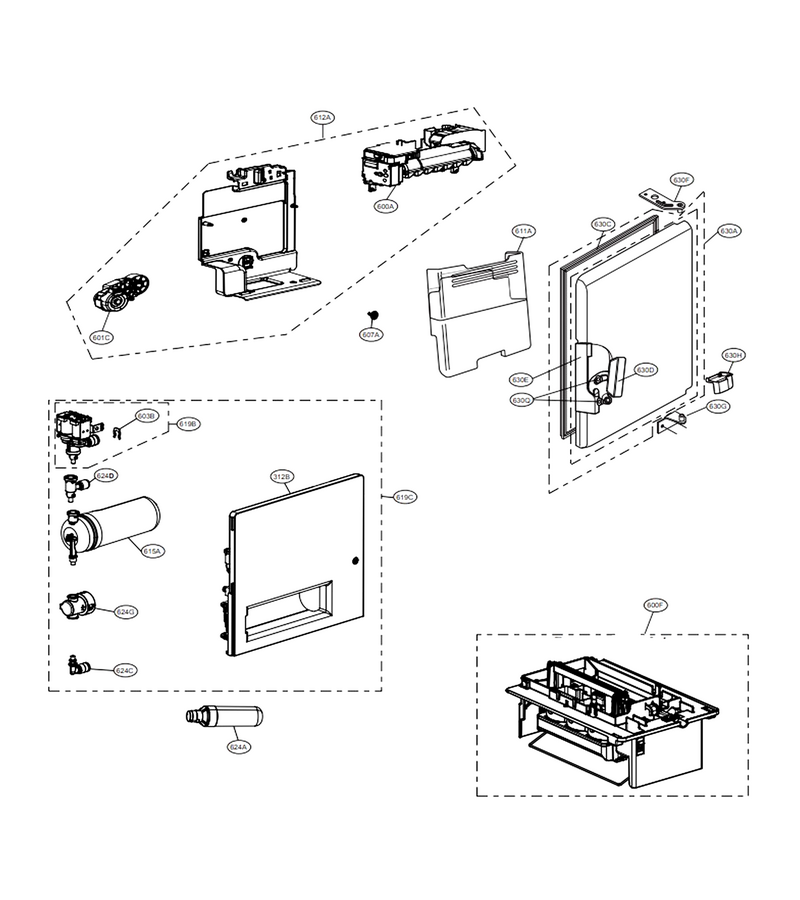

Ice Maker & Ice Bin Parts

...
...
312B
Refrigerator Cover, Front L-G-MCK67971001
...
600A
Ice Maker Assembly,kit L-G-AEQ73110219
...
600F
Ice Maker Assembly,kit L-G-AEQ73449901
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Refrigerator Ice Container Assembly L-G-AKC73369908
...
612A
Dispenser Assembly,ice L-G-ACZ74170502
...
615A
Tank,water L-G-MJM62864602
...
619B
Valve,water L-G-MJX64471402
...
619C
Filter Assembly,water L-G-ADQ73913310
...
624C
Connector,tube L-G-MCD62887402
...
624D
Connector,tube L-G-MCD64927501
...
624G
Head Assembly,filter L-G-AKN73029001
...
630A
Refrigerator Ice Room Door Assembly L-G-ADC72987149
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111103
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Lever Cover L-G-MCK63734907
...
630F
Hinge Assembly L-G-AEH72976201
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B

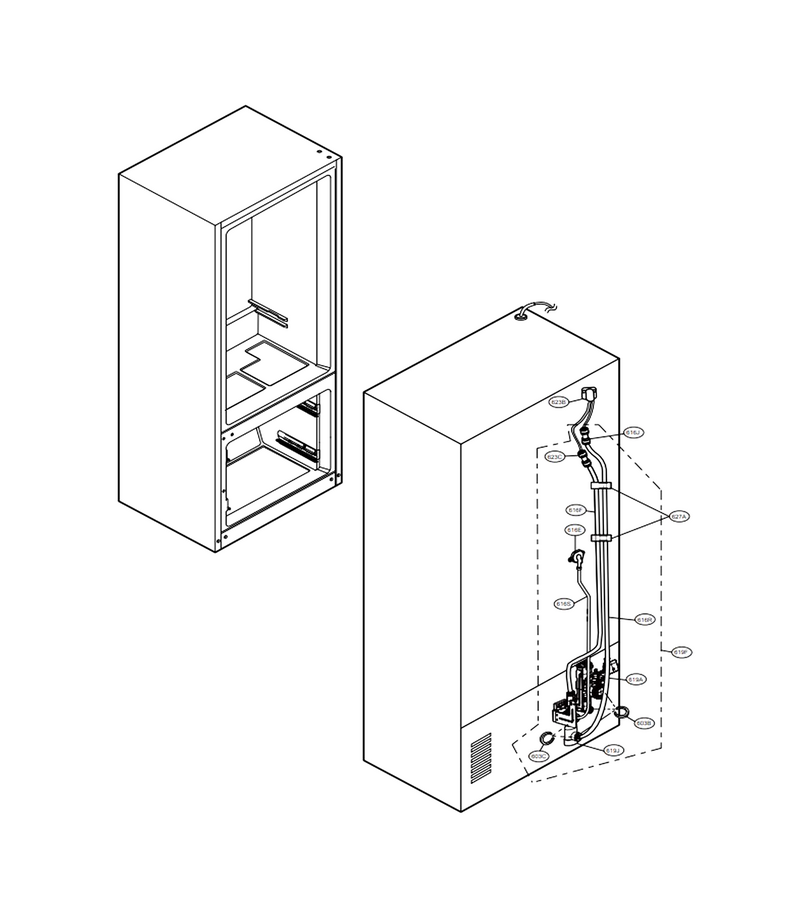

Valve & Water Tube Parts

...
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616E
Refrigerator Ice Maker Water Tube Fitting L-G-MEG61879201
...
616F
Tube,plastic L-G-MJU62070622
...
616J
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
616R
Tube,plastic L-G-MJU39256425
...
616S
Tube,plastic L-G-MJU39256424
...
619A
Valve Assembly,water L-G-AJU75632502
...
619F
Valve Assembly,water L-G-AJU73432813
...
619J
Valve,water L-G-MJX64711401
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
623C
Connector,tube L-G-4932JA3002H
...
627A
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

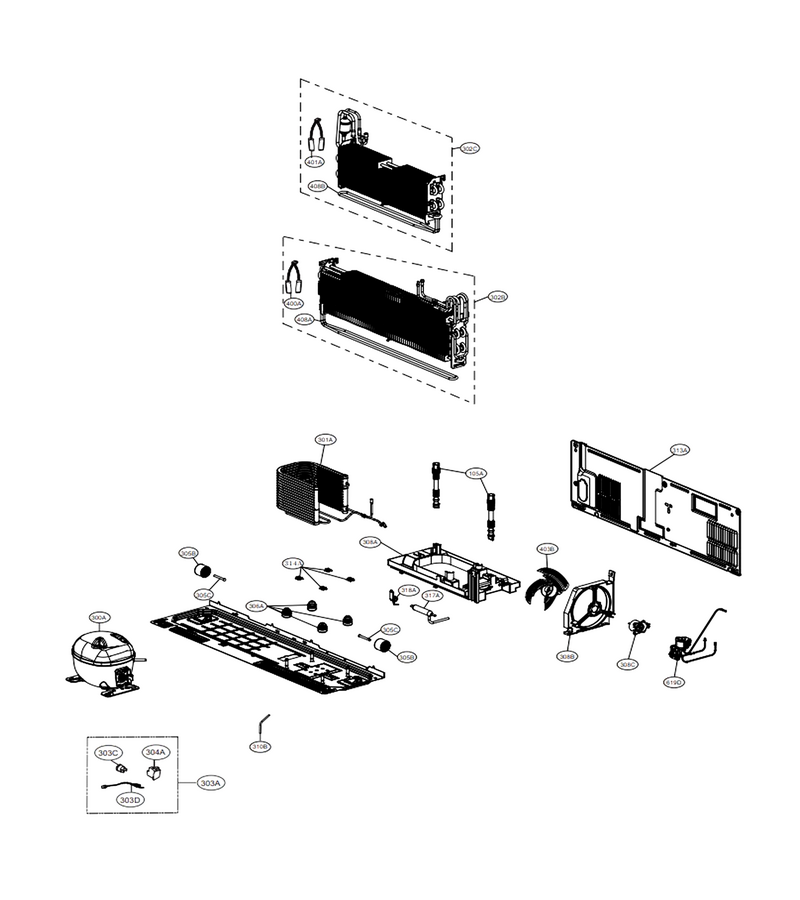

Cycle Parts

...
...
105A
Tube Assembly,drain L-G-5251JA3003K
...
300A
Compressor,set Assembly L-G-TCA36811404
...
301A
Condenser Assembly,wire L-G-ACG76164401
...
302B
Evaporator Assembly L-G-ADL76320902
...
302C
Evaporator Assembly L-G-ADL76321002
...
303A
Thermistor Assembly,ptc L-G-EBG63205845
...
303C
Overload Protect L-G-6750C-0002C
...
303D
Harness Assembly L-G-EAD64168632
...
304A
Cover,ptc L-G-MCK70052506
...
305B
Refrigerator Roller L-G-MHA62513601
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Tray,drip L-G-MJS62233504
...
308B
Guide,fan L-G-MEA65930101
...
308C
Motor Assembly,dc L-G-EAU64843805
...
310B
Pipe,compressor Sealing L-G-MGE62010606
...
313A
Cover Assembly,machinery(rear) L-G-ACQ91135801
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
317A
Drier Assembly L-G-ADH73590311
...
318A
Drier Holder L-G-4930JA3034C
...
400A
Controller Assembly L-G-ACM75678705
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005R
...
403B
Fan Assembly L-G-ADP73273401
...
408A
Heater,sheath L-G-MEE62225167
...
408B
Heater,sheath L-G-MEE62105241
...
619D
Pcb Assembly L-G-AJU73872501
