product name

LG LRFC25750TT.ATICLGA

Model: LRFC25750TT.ATICLGA

Save Part Not Listed?
product name

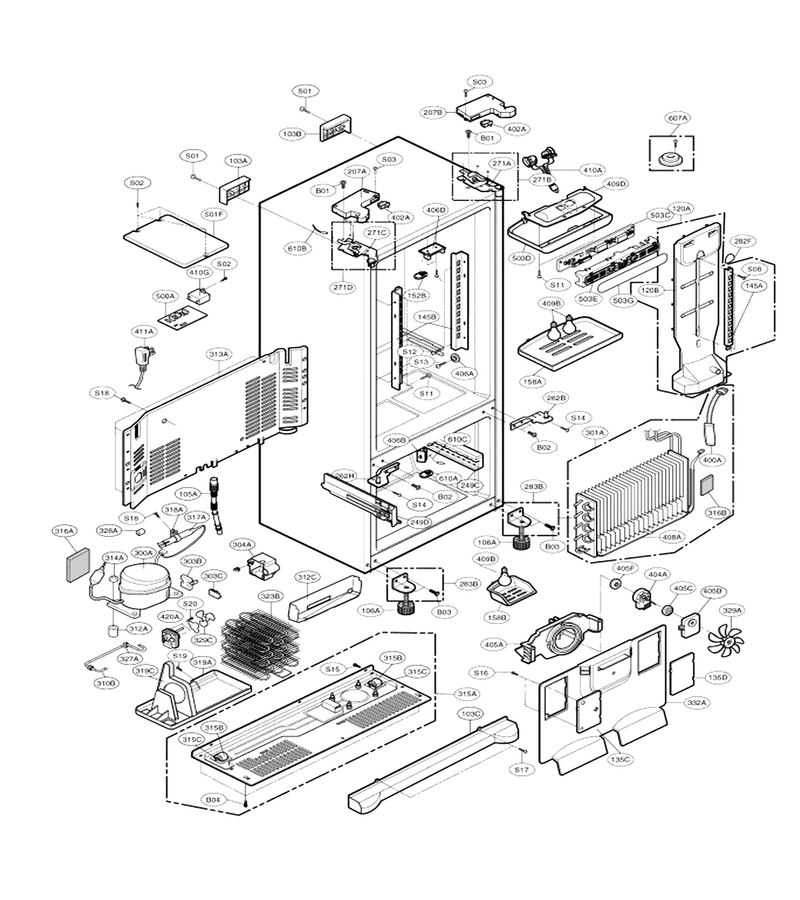

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004G
...
B03
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-1SZZJA3009A
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S08
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S12
Refrigerator Screw L-G-4J01424A
...
S13
Refrigerator Screw L-G-1SZZJJ3003D
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010B
...
S15
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
S16
Refrigerator Screw L-G-3J05696C
...
S17
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
S18
Refrigerator Screw L-G-4J00415D
...
S19
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
103C
Cover Assembly,lower L-G-3550JJ0008D
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Refrigerator Leg Assembly L-G-4779JJ2001B
...
120A
Refrigerator Duct L-G-5209JJ1009A
...
120B
Refrigerator Duct L-G-5208JJ1055A
...
135C
Refrigerator Cover L-G-3550JA2263A
...
135D
Refrigerator Cover Assembly L-G-3551JJ2028A
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-4930JA2081C
...
152B
Refrigerator Temperature Sensor Cover L-G-MCK39131501
...
158A
Refrigerator Light Cover L-G-3550JA1388B
...
158B
Refrigerator Freezer Light Cover L-G-3550JA1386A
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097Q
...
207B
Refrigerator Door Hinge Cover, Right L-G-3550JJ1097R
...
249C
Refrigerator Holder L-G-4930JJ1016A
...
249D
Refrigerator Holder L-G-4930JJ1016B
...
262B
Refrigerator Door Hinge L-G-4775JJ2017P
...
262H
Refrigerator Door Hinge L-G-4775JJ2017R
...
271A
Refrigerator Door Hinge, Upper Left L-G-4775JJ2014B
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271C
Refrigerator Door Hinge, Upper Right L-G-4775JJ2014A
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282F
Duct Deco L-G-3806JL1037B
...
283B
Hinge Assembly L-G-4775JJ2008E
...
300A
Refrigerator Compressor L-G-2521C-A5719
...
301A
Refrigerator Evaporator L-G-5421JJ1003B
...
303B
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
303C
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
310B
Pipe Joint L-G-5200JA1029A
...
312A
Refrigerator Compressor Rubber Mounting Damper L-G-5040JA3071A
...
312C
Refrigerator Drain Tray Assembly L-G-3391JJ2013B
...
313A
Refrigerator Shelf Support Rail L-G-3551JJ2018A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001H
...
315B
Refrigerator Roller L-G-4580JJ3001A
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003B
...
317A
Refrigerator Filter Dryer L-G-5851JA2008R
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JJ0007B
...
319C
Refrigerator Guide L-G-4974JJ1036B
...
323B
Refrigerator Condenser Coil L-G-5403JJ1004B
...
327A
Refrigerator Damping L-G-5040JA3056A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1021A
...
329C
Refrigerator Fan Assembly L-G-5901JA1013A
...
332A
Refrigerator Evaporator Cover L-G-3530JJ0007A
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005H
...
402A
Refrigerator Light Switch L-G-6600JB3007B
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JK1004D
...
405A
Refrigerator Bracket L-G-4810JJ0003A
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406A
Refrigerator Shelf Support Retainer L-G-AEJ33488901
...
406D
Refrigerator Door Pivot Block L-G-4931JA3006A
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
409B
Refrigerator Light Bulb L-G-6912JB2004K
...
409D
Refrigerator Light Housing L-G-3034JA1009A
...
410A
Refrigerator Light Socket L-G-6621JK2003B
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2012J
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
420A
Refrigerator Condenser Fan L-G-4681JK1001B
...
500A
Refrigerator Main Pcb L-G-6871JB1284L
...
501F
Refrigerator Pcb Cover L-G-3551JA2144D
...
503C
Refrigerator Display Control Board L-G-6871JB2046B
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JA1096A
...
503E
Refrigerator Display Cover L-G-3550JA2248A
...
503G
Refrigerator Display Control Board Cover L-G-3806JL1035A
...
607A
Refrigerator Holder Bracket L-G-MEG39133601
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JD1107A
...
610B
Refrigerator Temperature Sensor L-G-6500JB2001L
...
610C
Refrigerator Temperature Sensor L-G-6500JB2002P

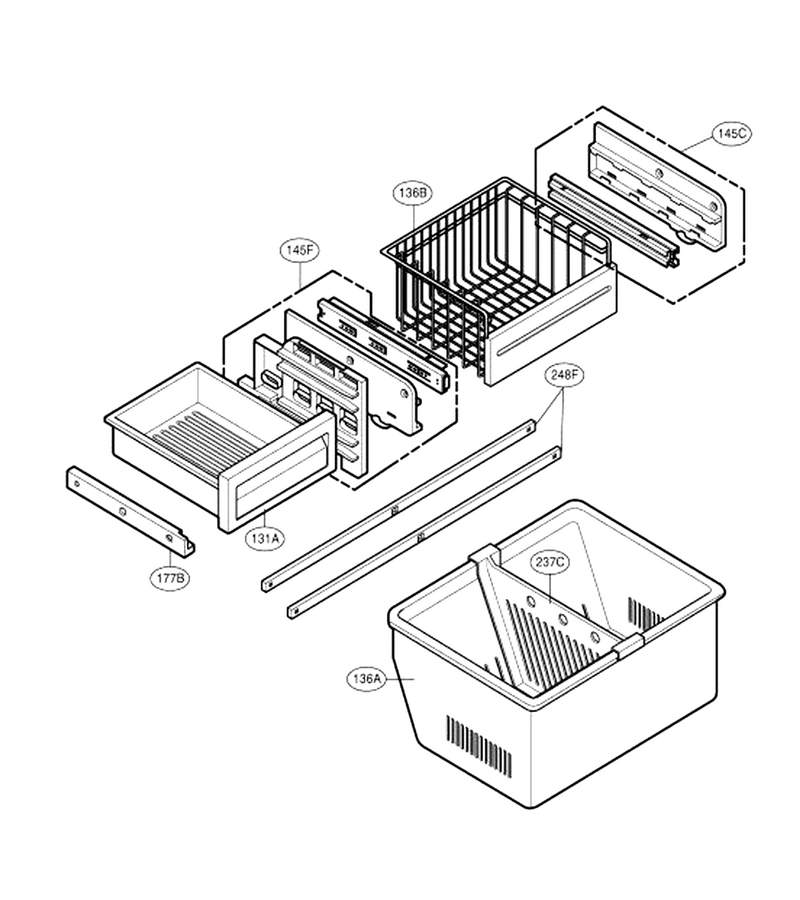

Freezer Part

...
...
131A
Ce Bank L-G-5075JJ2002B
...
136A
Refrigerator Freezer Drawer Assembly L-G-3391JJ2011B
...
136B
Refrigerator Tray Assembly L-G-3391JJ2010F
...
145C
Refrigerator Freezer Drawer Slide Rail L-G-4975JJ2007E
...
145F
Refrigerator Freezer Drawer Slide Rail L-G-4975JJ2005F
...
177B
Refrigerator Guide L-G-4974JA1127A
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A
...
248F
Refrigerator Supporter L-G-4980JJ2012A

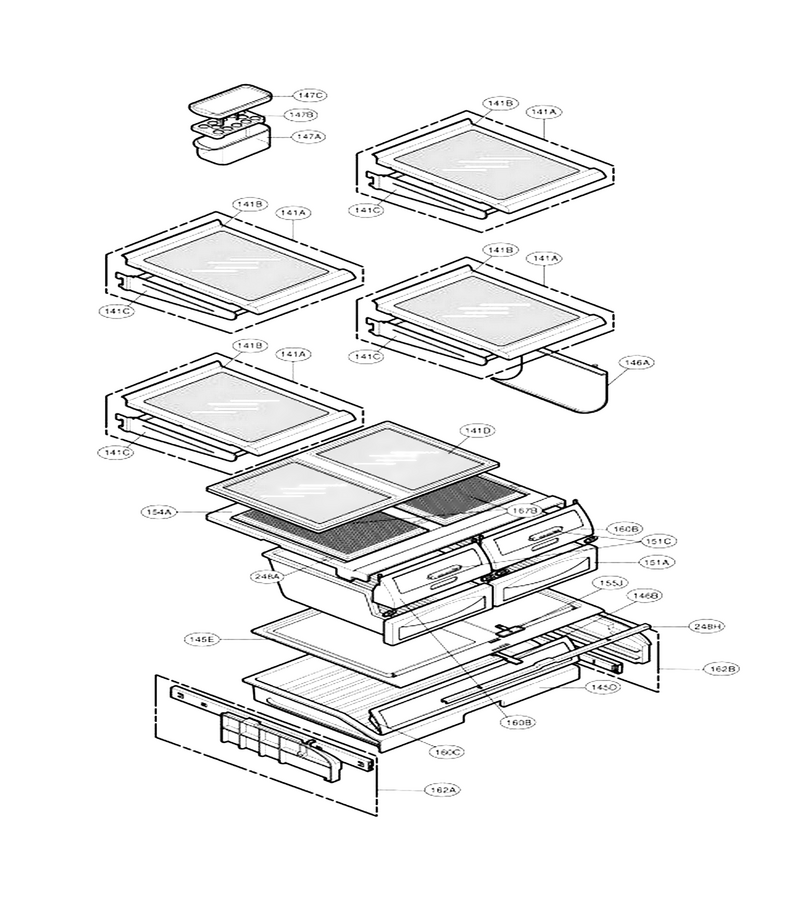

Refrigerator Parts

...
...
141A
Refrigerator Shelf L-G-5027JJ2014H
...
141B
Shelf-R L-G-5026JJ1050A
...
141C
Refrigerator Glass Shelf L-G-5027JJ2012F
...
141D
Refrigerator Crisper Cover Glass L-G-4890JD1072C
...
145D
Refrigerator Crisper Drawer L-G-3391JJ1030A
...
145E
Refrigerator Drawer Cover L-G-3550JL1010A
...
146A
Refrigerator Wine Rack L-G-J469-00030A
...
146B
Refrigerator Crisper Drawer Humidity Control L-G-4520JJ1003A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1016A
...
147B
Refrigerator Egg Tray L-G-3390JJ1082A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1084A
...
151A
Refrigerator Crisper Drawer L-G-3391JJ2012D
...
151C
Refrigerator Crisper Vent Knob L-G-4940JA2026F
...
154A
Refrigerator Drawer Cover L-G-3550JJ0009A
...
155J
Refrigerator Crisper Drawer Humidity Control Knob L-G-4940JJ2009D
...
160B
Refrigerator Crisper Drawer Front And Humidity ... L-G-3551JJ2019A
...
160C
Refrigerator Deli Drawer Lid L-G-3551JJ2021A
...
162A
Refrigerator Drawer Slide Rail L-G-4975JJ2016A
...
162B
Refrigerator Crisper Drawer Slide Rail, Right L-G-4975JJ2016B
...
167B
Refrigerator Crisper Drawer Cover Insert L-G-3550JJ1069A
...
248A
Refrigerator Crisper Drawer Cover Support L-G-4980JJ2012B
...
248H
Refrigerator Pantry Drawer Support L-G-4980JJ2014A

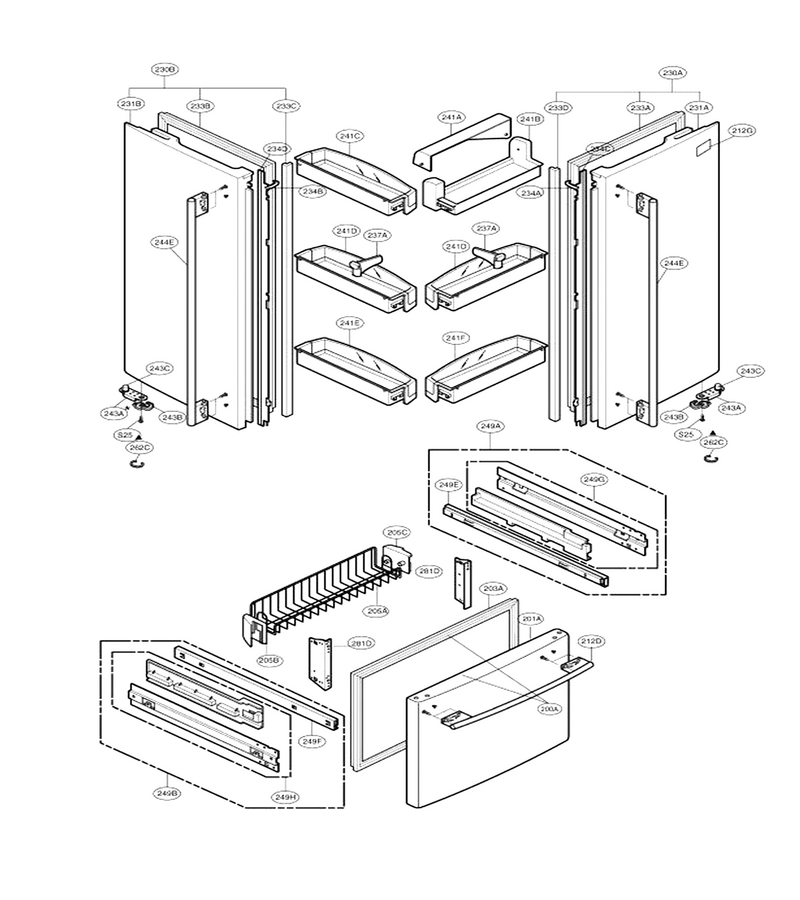

Door Parts

...
...
S25
Refrigerator Door Stop Bushing Screw L-G-1SZZJA3011D
...
200A
Door Assembly,freezer L-G-3581JJ8044E
...
201A
Door Foam Assembly,freezer L-G-5433JJ0050E
...
203A
Refrigerator Freezer Door Gasket L-G-MDS38201401
...
205A
Refrigerator Freezer Door Bin L-G-5004JJ1061B
...
205B
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JA2017A
...
205C
Refrigerator Door Hinge L-G-5004JA2017B
...
212D
Handle Assembly,freezer L-G-3651JA2268C
...
212G
Refrigerator Nameplate L-G-3846JD1007E
...
230A
Door Assembly,refrigerator(right) L-G-3581JJ8041C
...
230B
Door Assembly,refrigerator(left) L-G-3581JJ8043C
...
231A
Door Foam Assembly,refrigerator L-G-5433JJ0048C
...
231B
Door Foam Assembly,refrigerator L-G-5433JJ0049C
...
233A
Gasket Assembly,door L-G-4987JJ2002A
...
233B
Gasket Assembly,door L-G-4987JJ2002P
...
233C
Refrigerator Flipper Seal, Left L-G-3551JJ2030B
...
233D
Refrigerator Flipper Seal, Right L-G-3551JJ2030A
...
234A
Refrigerator Door Cam Latch, Right L-G-4430JJ2004A
...
234B
Refrigerator Door Cam Latch, Left L-G-4430JJ2004B
...
234D
Refrigerator Flipper Seal Frame L-G-4931JJ2002D
...
237A
Refrigerator Guide L-G-4974JA2055A
...
241A
Refrigerator Door Bin Cover L-G-5004JL1006A
...
241B
Refrigerator Door Bin L-G-5004JJ1057A
...
241C
Refrigerator Door Bin L-G-5005JJ2014A
...
241D
Refrigerator Door Bin L-G-5005JJ2014B
...
241E
Refrigerator Door Bin L-G-5005JJ2014G
...
241F
Refrigerator Door Bin L-G-5005JJ2014C
...
243A
Stopper,door L-G-4620JJ3006F
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
243C
Refrigerator Hinge Bushing L-G-J326-00012A
...
244E
Handle Assembly,refrigerator L-G-3651JA2269M
...
249A
Refrigerator Connector L-G-5098JJ2002K
...
249B
Refrigerator Connector L-G-5098JJ2002J
...
249E
Refrigerator Freezer Drawer Slide Rail L-G-5218JA1010A
...
249F
Refrigerator Freezer Drawer Slide Rail L-G-5218JA1010B
...
249G
Refrigerator Freezer Door Slide Rail Cover, Right L-G-3550JA1387A
...
249H
Refrigerator Freezer Door Slide Rail Cover, Left L-G-3550JA1387B
...
262C
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
281D
Refrigerator Connector L-G-4932JA2001C

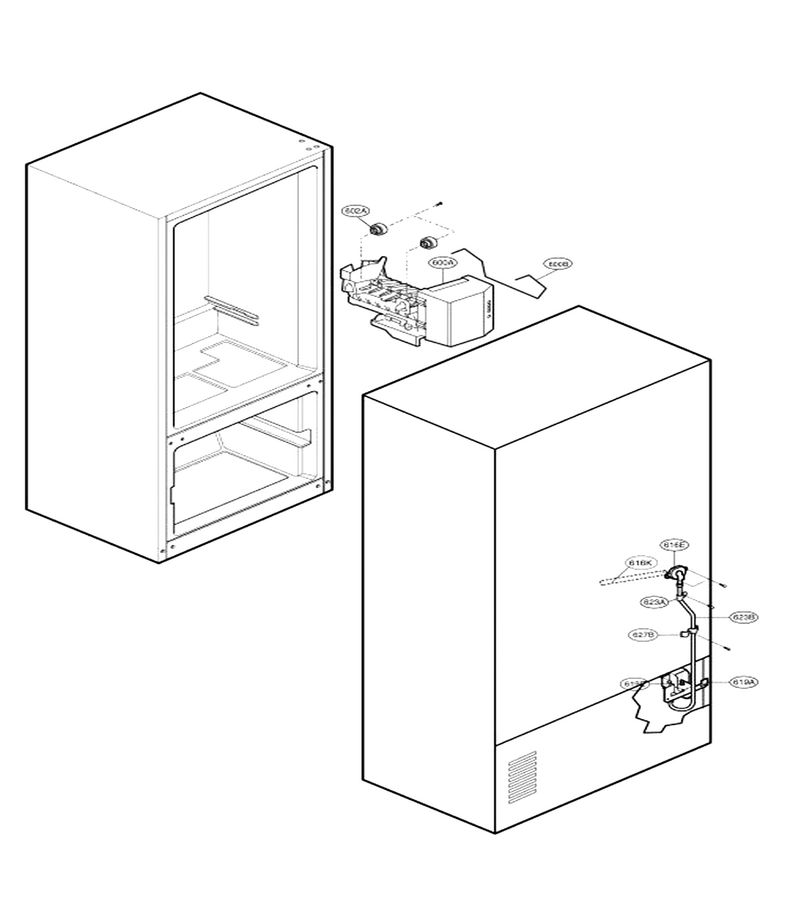

Ice & Maker Parts

...
...
600A
Refrigerator Ice Maker L-G-5989JA0002A
...
600B
Lever,ice Maker L-G-MFC39559901
...
602A
Refrigerator Holder L-G-4930JA3090A
...
616E
Refrigerator Water Tube Fitting L-G-5040JA2015A
...
616K
Refrigerator Injection Tube L-G-5210JJ3007B
...
619A
Refrigerator Water Inlet Valve L-G-5220JB2010A
...
619E
Refrigerator Ice Maker Wire Harness L-G-6877JB3036K
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Water Tubing Clip L-G-5210JA3005N
...
627B
Refrigerator Clamp L-G-4930JA3054A
