product name

LG LRFC22750TT.ATICLGY

Model: LRFC22750TT.ATICLGY

Save Part Not Listed?
product name

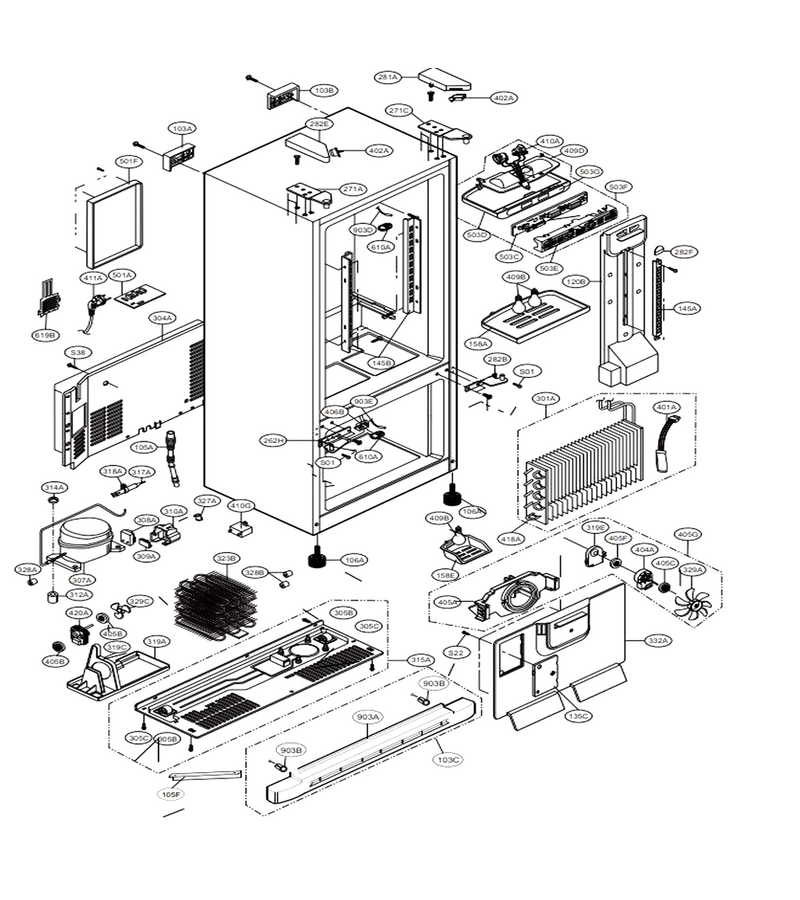

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Handle L-G-3650JJ2003H
...
103B
Refrigerator Handle L-G-3650JJ2003D
...
103C
Refrigerator Toe Grille L-G-3551JJ1015H
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
262H
Refrigerator Door Hinge, Center L-G-4775JJ2019F
...
271A
Refrigerator Door Hinge L-G-4775JJ2018B
...
271C
Refrigerator Door Hinge L-G-4775JJ2018A
...
281A
Refrigerator Hinge Cover Assembly L-G-3551JJ1018C
...
282B
Refrigerator Door Hinge, Center L-G-4775JJ2019E
...
282E
Refrigerator Hinge Cover Assembly L-G-3551JJ1018F
...
282F
Deco,duct L-G-3806JL2006E
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-2521CRA5715
...
308A
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Compressor Base Assembly L-G-3103JJ1001J
...
317A
Refrigerator Filter Dryer L-G-5851JJ2002F
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drain Pan L-G-3390JJ0004A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
402A
Refrigerator Light Switch L-G-6600JB3007B
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2002D
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord Assembly L-G-6411JK1006H
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-6871JK1011C
...
501F
Refrigerator Electronic Control Board Housing L-G-3551JJ1020A
...
503C
Pcb Assembly,display L-G-6871JB1374C
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Cover L-G-3550JJ2032A
...
503F
Case Assembly,display L-G-ABQ33905315
...
503G
Decor,control L-G-3806JL1053A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006D
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

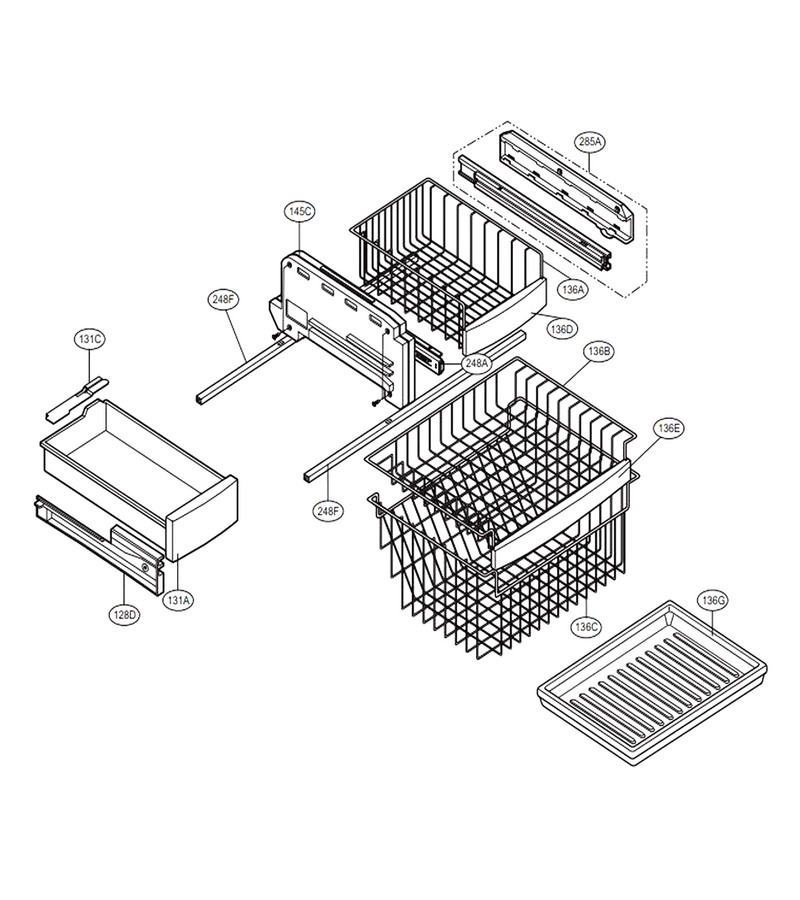

Freezer Part

...
...
128D
Refrigerator Rail L-G-4974JJ2035A
...
131A
Refrigerator Ice Container L-G-5074JL1001B
...
131C
Refrigerator Cover L-G-3550JJ2045A
...
136A
Refrigerator Freezer Drawer Tray L-G-3390JJ1062A
...
136B
Refrigerator Tray Assembly L-G-3390JJ1059A
...
136C
Refrigerator Tray Assembly L-G-3391JJ1012C
...
136D
Refrigerator Decorative Tray L-G-3806JL1020B
...
136E
Refrigerator Decorative Tray L-G-3806JL1024B
...
136G
Refrigerator Drawer Tray L-G-3390JJ1036A
...
145C
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ1001C
...
248A
Slide Rail A L-G-5219JJ1002F
...
248F
Refrigerator Supporter L-G-4980JJ2005A
...
285A
Refrigerator Rail Guide Assembly L-G-4975JJ2008C

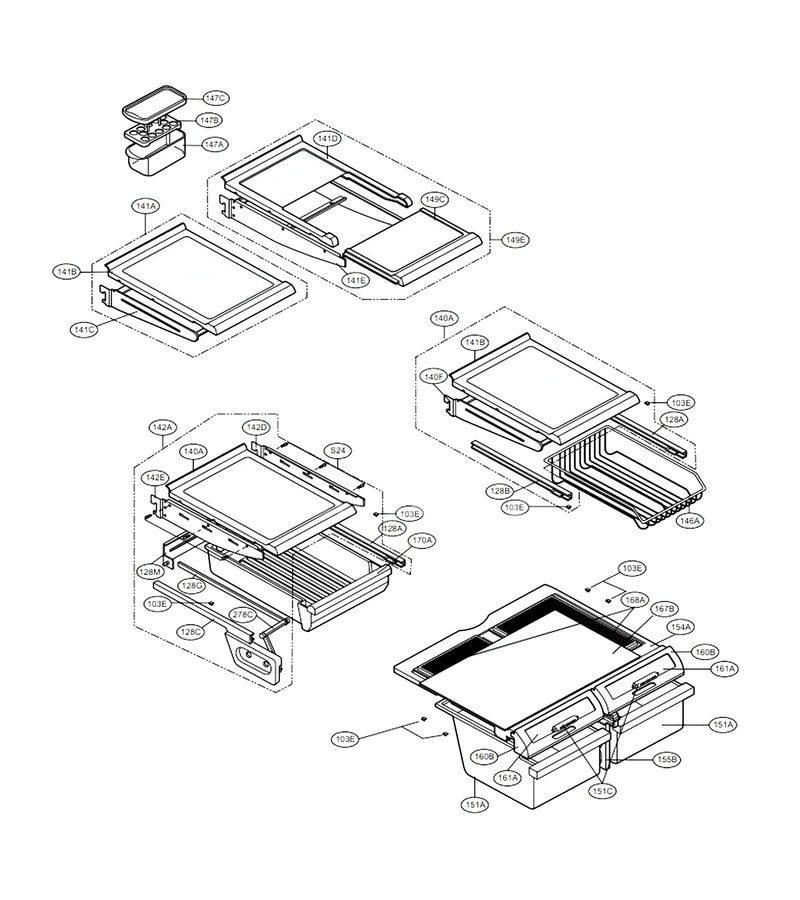

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
128C
Refrigerator Guide Assembly L-G-4975JJ2003C
...
128G
Refrigerator Link L-G-4520JJ2001A
...
128M
Refrigerator Meat Pan Air Guide (white) L-G-4974JJ2011A
...
140A
Refrigerator Shelf Assembly L-G-5027JJ1014M
...
140F
Refrigerator Shelf Assembly L-G-5027JJ2005F
...
141A
Refrigerator Shelf Assembly L-G-5027JJ1014P
...
141B
Refrigerator Shelf Assembly L-G-5027JJ1038A
...
141C
Refrigerator Shelf Assembly L-G-5027JJ2005C
...
141D
Refrigerator Glass Shelf L-G-5027JJ2011B
...
141E
Refrigerator Shelf Net L-G-5027JJ2005D
...
142A
Refrigerator Shelf Assembly L-G-5027JJ1013M
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
146A
Refrigerator Wire Server Drawer L-G-5044JJ1001A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1005A
...
147B
Refrigerator Egg Bin L-G-3390JJ1014A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1017A
...
149C
Refrigerator Shelf Assembly L-G-5027JJ2010B
...
149E
Refrigerator Glass Shelf L-G-5027JJ2009B
...
151A
Refrigerator Tray Assembly L-G-3391JJ1019E
...
151C
Refrigerator Shutter Knob L-G-4940JJ2003B
...
154A
Refrigerator Crisper Drawer Cover Frame L-G-3550JJ1033A
...
155B
Refrigerator Supporter L-G-4981JJ2001A
...
160B
Refrigerator Decorative Tray L-G-3806JL2005D
...
161A
Refrigerator Crisper Drawer Lid L-G-3550JJ2026A
...
167B
Refrigerator Glass Shelf L-G-4890JL1002K
...
168A
Refrigerator Crisper Drawer Cover Insert L-G-3550JJ1035A
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004K
...
278C
Shutter Lever L-G-4510JJ2002A

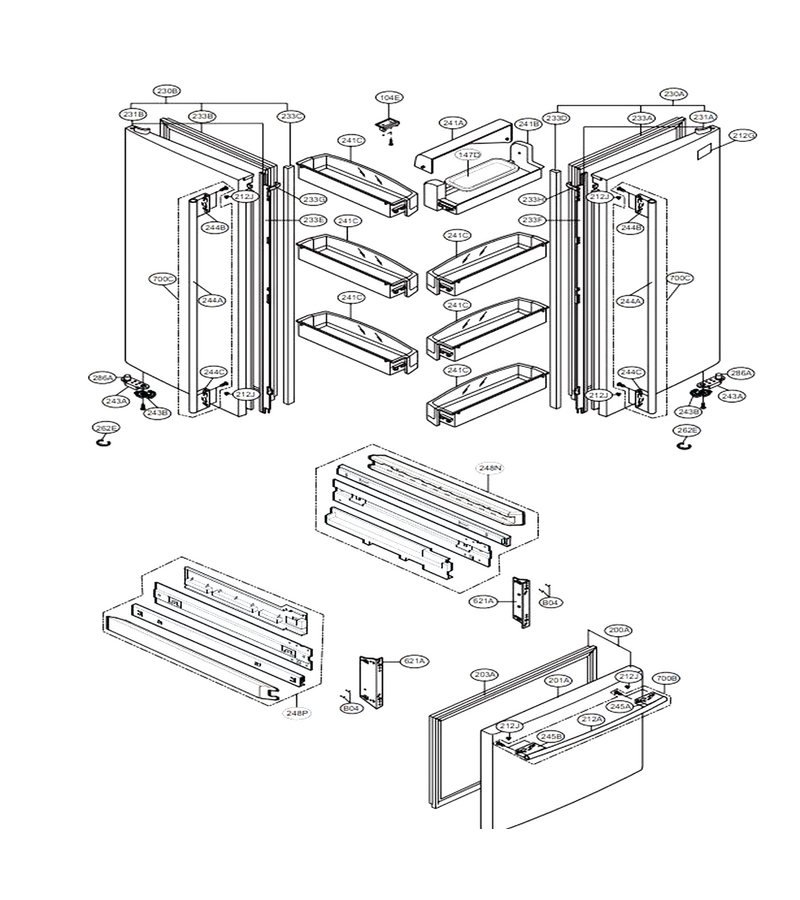

Door Parts

...
...
B04
Refrigerator Freezer Door Assembly L-G-1SZZJJ3011C
...
104E
Refrigerator Door Gasket Retainer L-G-4931JJ3002A
...
147D
Refrigerator Tray L-G-3390JJ2003A
...
200A
Door Assembly, F L-G-3581JJ8058P
...
201A
Refrigerator Door Assembly L-G-5433JJ0022W
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752607
...
212A
Refrigerator Freezer Door Handle L-G-3650JJ1041A
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
212J
Refrigerator Door Handle Mounting Screw L-G-4620JJ3007E
...
230A
Refrigerator Door Assembly, Right L-G-3581JJ8056G
...
230B
Refrigerator Door Assembly L-G-3581JJ8057L
...
231A
Refrigerator Door Foam Assembly L-G-5433JJ0063G
...
231B
Door Foam Assembly, R L-G-5433JJ0061M
...
233A
Refrigerator Door Gasket, Right L-G-4987JJ2003E
...
233B
Refrigerator Door Gasket, Left L-G-4987JJ2003G
...
233C
Refrigerator Mullion Cover, Left L-G-3551JJ2034B
...
233D
Refrigerator Mullion Cover, Right L-G-3551JJ2034A
...
233E
Holder,gasket L-G-4930JJ2028B
...
233F
Holder,gasket L-G-4930JJ2028A
...
233G
Cam,shaft L-G-4430JJ2005B
...
233H
Cam,shaft L-G-4430JJ2005A
...
241A
Refrigerator Dairy Bin And Cover L-G-3550JL2006A
...
241B
Refrigerator Door Bin L-G-5074JJ1019A
...
241C
Refrigerator Door Deep Bin L-G-5005JJ2022A
...
243A
Refrigerator Door Stop L-G-4620JJ3006D
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Handle Assembly, R L-G-3650JA1221C
...
244B
Handle Holde L-G-4930JJ2018B
...
244C
Handle Holde L-G-4930JJ2017B
...
245A
Refrigerator Holder L-G-4930JJ2019B
...
245B
Refrigerator Holder L-G-4930JJ2020B
...
248N
Rail Assembly,slide L-G-5219JJ2002K
...
248P
Rail Assembly,slide L-G-5219JJ2002L
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621A
Refrigerator Connector L-G-4932JJ2001B
...
700B
Refrigerator Handle Assembly L-G-3651JJ2010N
...
700C
Refrigerator Handle L-G-3651JA2269C

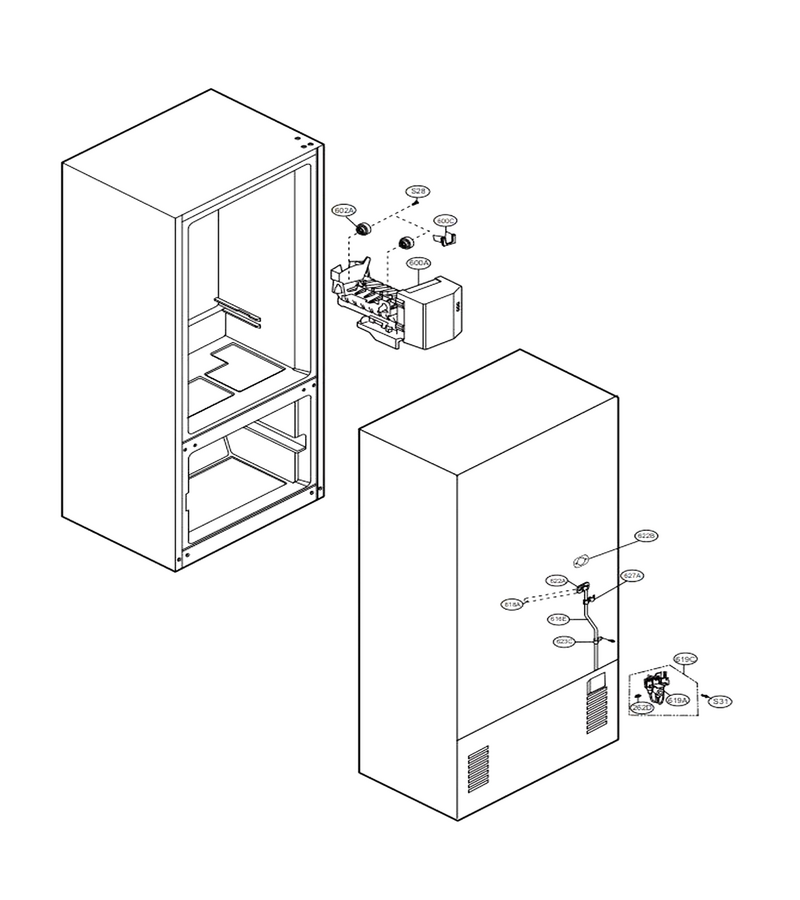

Ice & Maker Parts

...
...
S28
Refrigerator Ice Maker Bracket Screw L-G-1SZZJJ3005E
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
262D
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
600A
Refrigerator Ice Maker L-G-5989JA0002U
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Shelf Support L-G-4931JA3005B
...
616E
Refrigerator Water Tubing Clip L-G-5210JA3005N
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3005B
...
619A
Refrigerator Water Inlet Valve L-G-5220JA2009D
...
619C
Refrigerator Water Inlet Valve L-G-5221JA2008G
...
622A
Refrigerator Water Tube Fitting L-G-5040JA2015A
...
622B
Refrigerator Ice Maker Water Inlet Cover Bracket L-G-4810JA3036A
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
627A
Refrigerator Clamp L-G-4930JA3054A
