product name

LG LREL6323D.FB1LLGA

Model: LREL6323D.FB1LLGA

Save Part Not Listed?
product name

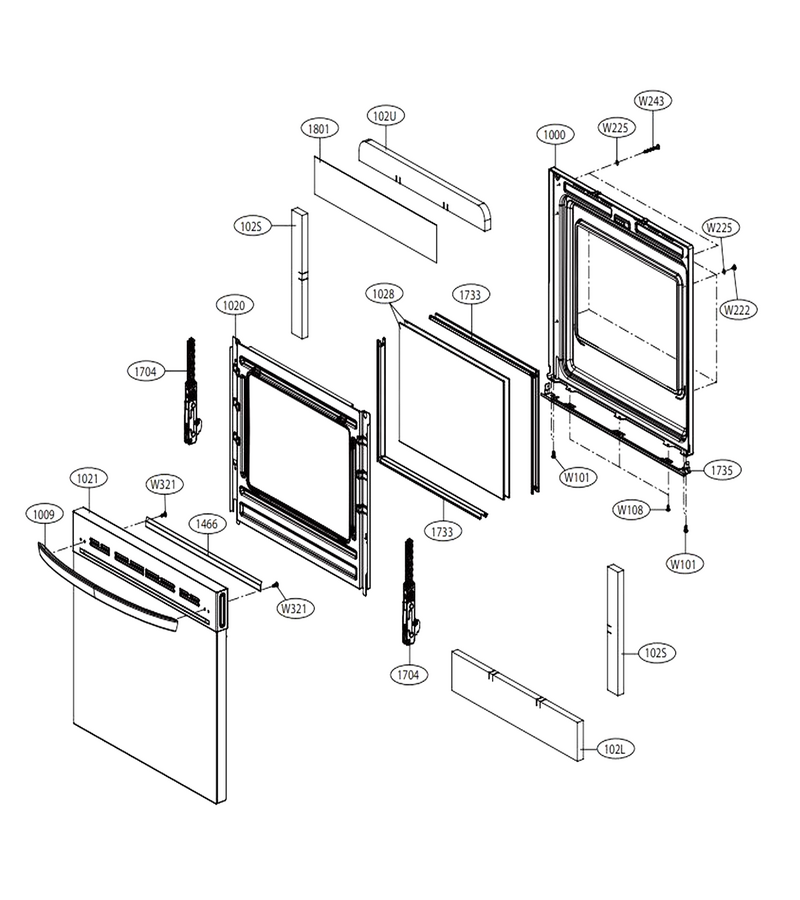

Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
W321
4.0x16mm Tap L-G-1TTL0403118
...
102L
Insulator L-G-MEV65115502
...
102S
Insulator L-G-MEV65115503
...
102U
Insulator L-G-MEV65115501
...
1000
Frame,door L-G-MDQ64177003
...
1009
Handle,door L-G-MEB65414302
...
1020
Plate,inner L-G-MGJ67004401
...
1021
Door Assembly,sub L-G-ADC30000602
...
1028
Range Oven Door Inner Glass L-G-4890W1N005L
...
1466
Cover,guide L-G-MCK71414901
...
1704
Hinge Assembly L-G-AEH75637213
...
1733
Supporter,window L-G-MJH66074001
...
1735
Cover,safety L-G-MCK71167402
...
1801
Shield Plate L-G-3300W1N003P

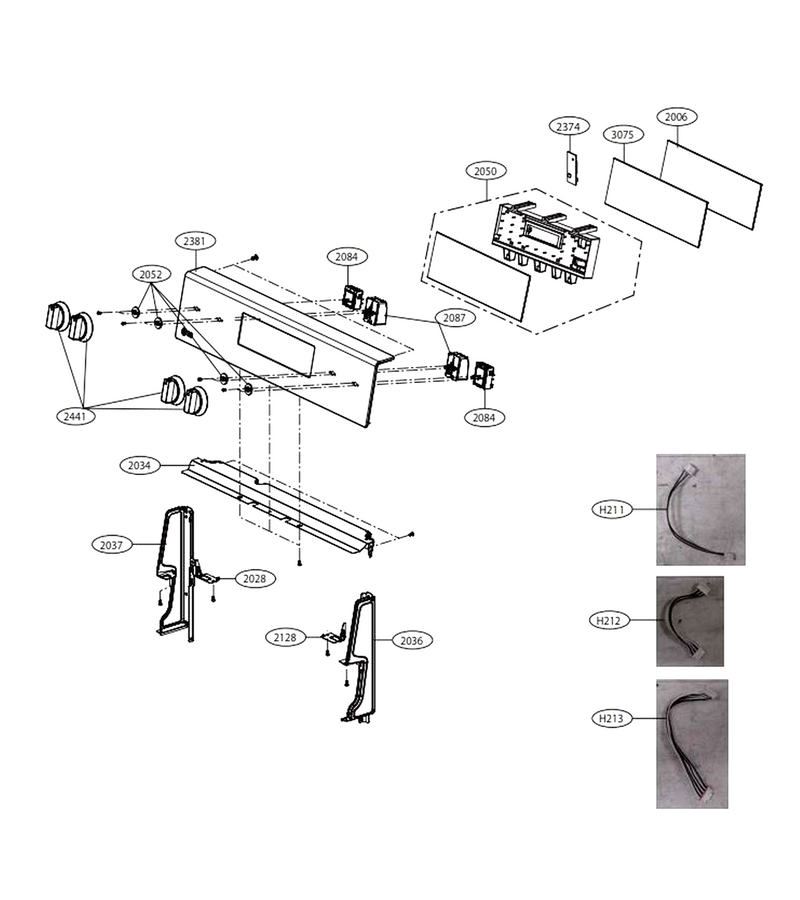

Controller Parts

...
...
H211
Harness,single L-G-EAD62349830
...
H212
Harness,single L-G-EAD62349832
...
H213
Range Wire Harness L-G-EAD34822916
...
2006
Main Pcb Assembly L-G-EBR89296005
...
2028
Idler Bracket L-G-MAZ61859201
...
2034
Barrier L-G-MAL64203701
...
2036
Supporter,cover L-G-MJH66074502
...
2037
Supporter,cover L-G-MJH66074501
...
2050

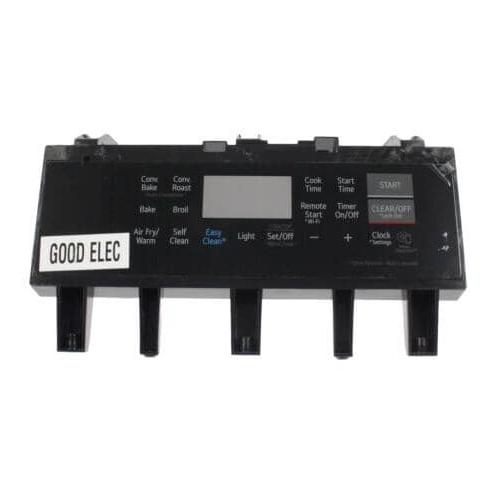

Parts Assembly L-G-AGM30025905
...
2052
Ring,guide L-G-MGZ63727001
...
2084
Switch,rotary L-G-EBF62174904
...
2087
Switch,rotary L-G-EBF64395301
...
2128
Idler Bracket L-G-MAZ61859202
...
2374
Pcb Assembly,module L-G-EBR85871801
...
2381
Parts Assembly L-G-AGM30025507
...
2441
Knob Assembly L-G-AEZ75853711
...
3075
Display Pcb Assembly L-G-EBR89296403

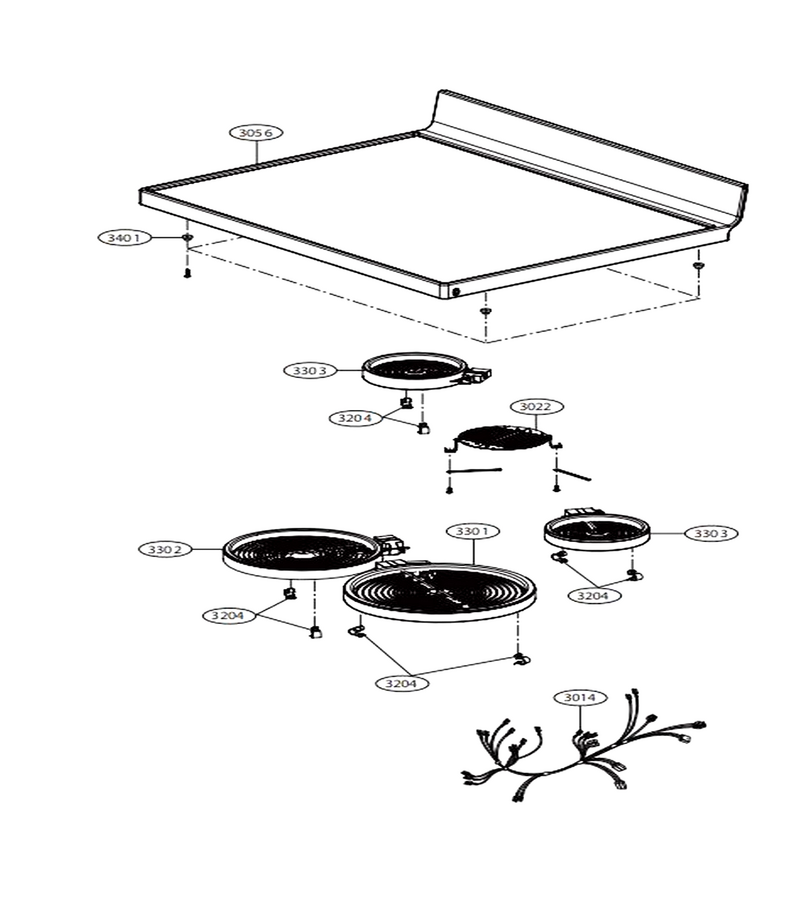

Cooktop Parts

...
...
3014
Harness,single L-G-EAD65616902
...
3022
Heater Assembly L-G-AEG33897013
...
3056
Plate Assembly L-G-AGU76970505
...
3204
Dishwasher Heating Element Support Bracket L-G-MAZ63310801
...
3301
Heater,radiation L-G-MEE64284901
...
3302
Range Radiant Surface Element L-G-MEE62385201
...
3303
Range Radiant Surface Element L-G-MEE62385001
...
3401
Supporter L-G-4980W1N014A

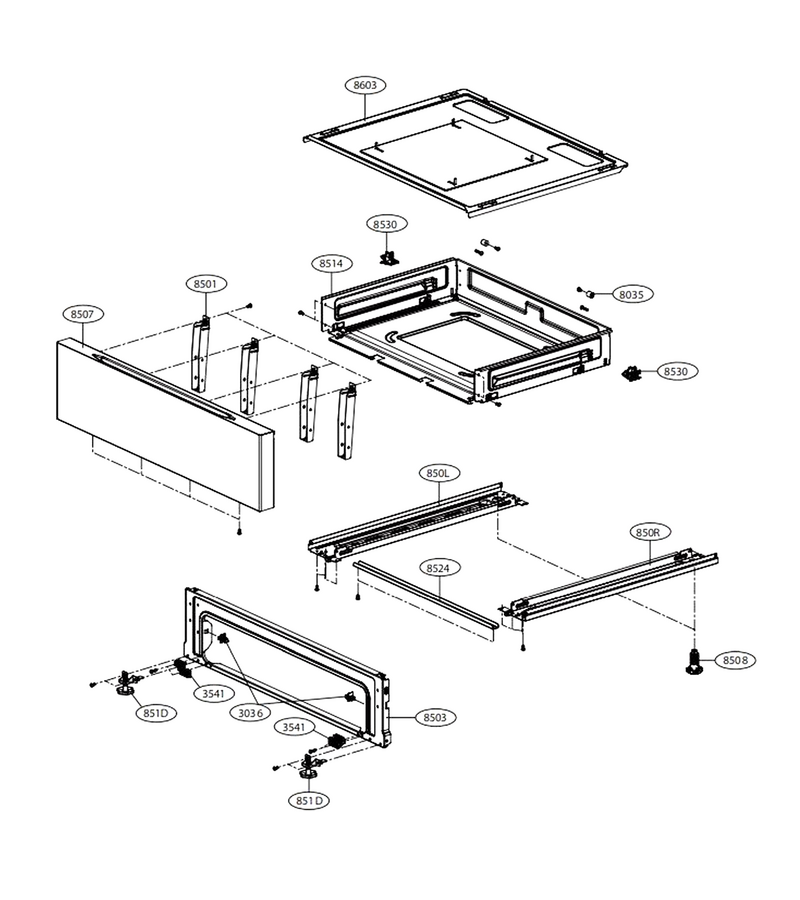

Drawer Parts

...
...
850L
Plate,base L-G-MGJ67004802
...
850R
Plate,base L-G-MGJ67004801
...
851D
Foot L-G-MDP62447004
...
3036
Holder,cook Auxiliary L-G-4930W1A069B
...
3541
Holder,fixing L-G-MEG66479101
...
8035
Noise Damper L-G-MCQ70795201
...
8501
Frame,fixing L-G-MDQ66517601
...
8503
Plate,front L-G-MGJ67004001
...
8507
Panel,drawer L-G-MGC63820407
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8514
Drawer L-G-MCX62621401
...
8524
Mount Bracket L-G-MAZ67454001
...
8530
Guide,rail L-G-MEA66170001
...
8603
Cover,insulator L-G-MCK71166701

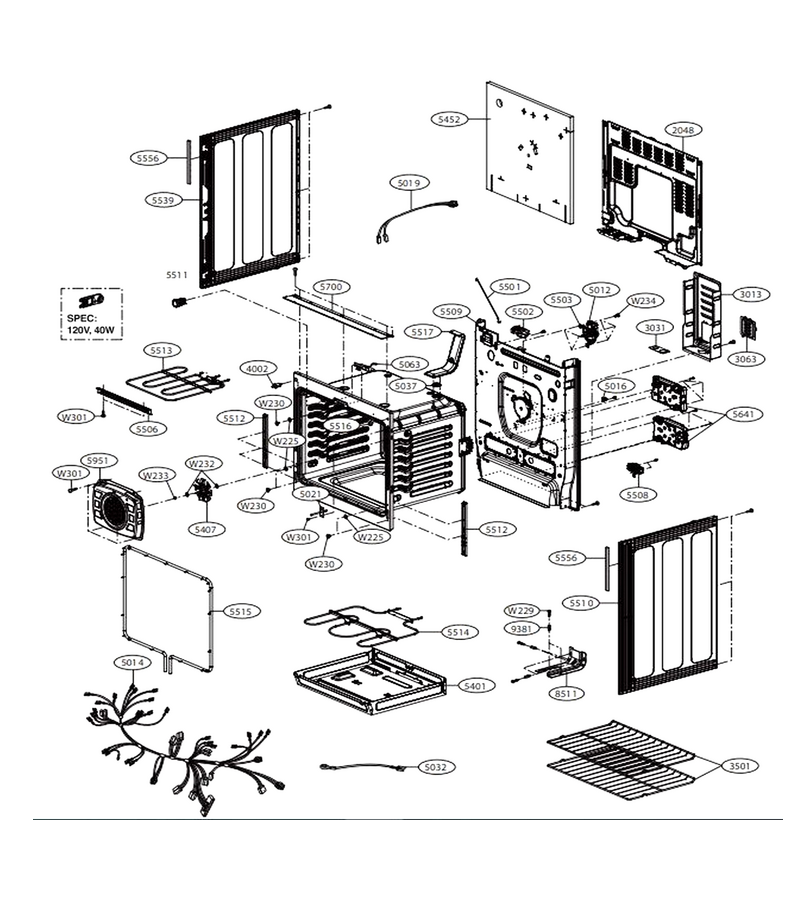

Cavity Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W229
Screw L-G-1SZZW1N003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W234
Screw L-G-1SZZW1E002E
...
W301
Drawing Screw L-G-1SZZW1N006A
...
2048
Cover,rear L-G-MCK71167101
...
3013
Cover,motor L-G-MCK71167501
...
3031
Power Cord Cover L-G-MCK66822404
...
3063
Cover,motor L-G-MCK71167503
...
3501
Shelf L-G-MHL64712101
...
4002
Switch,tact L-G-EBF60663404
...
5012
Motor,ac Fan L-G-EAU61865305
...
5014
Harness,single L-G-EAD65616802
...
5016
Thermostat L-G-6930W1A003X
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5037
Charcoal Filter L-G-5230W1N001B
...
5063
Bracket Assembly L-G-ABA75389602
...
5401
Chamber L-G-MBR62041701
...
5407
Fan,convection L-G-MDG35948702
...
5452
Insulator L-G-MEV67477202
...
5501
Bar L-G-MAK61907202
...
5502
Motor Assembly,ac,synchronous L-G-EAU62862904
...
5503
Motor Bracket L-G-4810W1N060B
...
5506
Bracket,heater L-G-MAZ63491301
...
5508
Terminal L-G-6640000045A
...
5509
Panel,rear L-G-MGC66180401
...
5510
Panel,side L-G-MGC62644028
...
5511
Lamp,halogen L-G-EAQ62881201
...
5512
Hinge Bracket L-G-MAZ64788501
...
5513
Heater,sheath L-G-MEE62306504
...
5514
Heater,sheath L-G-MEE62306405
...
5515
Packing,gasket L-G-MFZ66946601
...
5516
Packing,gasket L-G-3920W1N013D
...
5517
Vent Assembly L-G-AJV73009305
...
5539
Panel,side L-G-MGC62644027
...
5556
Packing,gasket L-G-MFZ62037301
...
5641
Balance Weight L-G-MAG64123001
...
5700
Barrier L-G-MAZ62210803
...
5951
Cover,heater L-G-MCK71166602
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
9381
Anchor L-G-FAK30249601
