LG LRE3193BM.FBMLLGA

Model: LRE3193BM.FBMLLGA

Save Part Not Listed?
product name

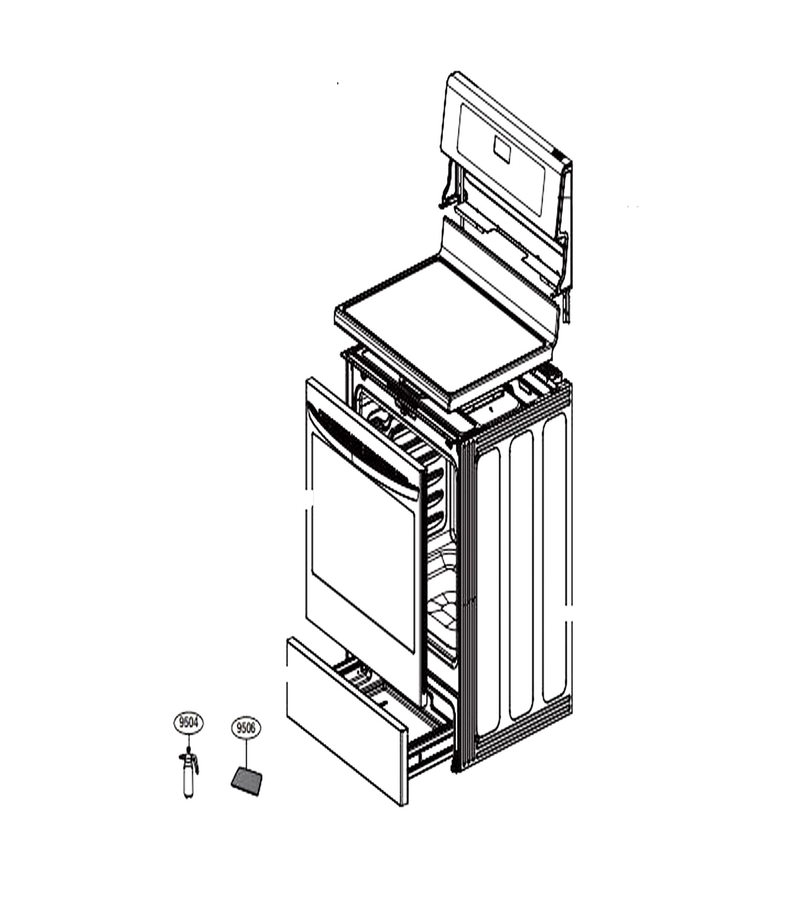

Main

...
...
9504
Accessory Assembly L-G-AAA77169701
...
9506
Assembly Accessory L-G-AAA74970601

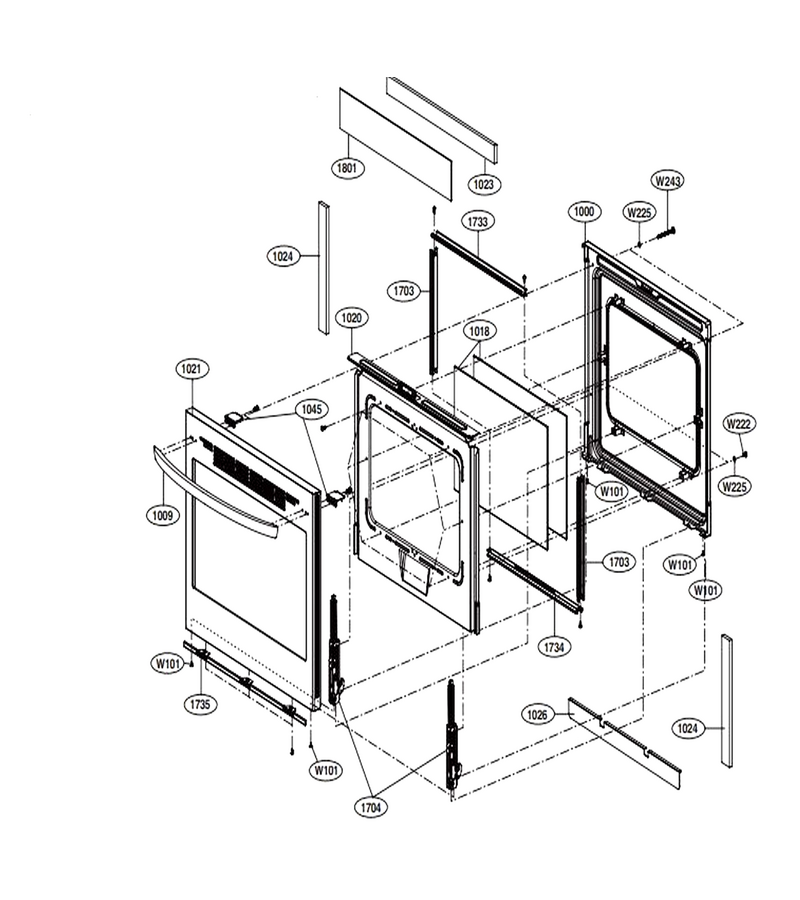

Door Parts

...
...
W101
Screw,customized L-G-FAB31821701
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Screw L-G-1SZZW1E002E
...
1000
Frame Assembly,door L-G-ADV74166310
...
1009
Handle,door L-G-MEB42058910
...
1018
Frame Assembly,door L-G-ADV74166311
...
1020
Handle,door L-G-MEB42058911
...
1021
Range Oven Door Inner Glass L-G-4890W1N005L
...
1023
Frame Assembly,door L-G-ADV74166312
...
1024
Handle,door L-G-MEB42058912
...
1026
Range Oven Door Inner Glass L-G-4890W1N005L
...
1045
Frame Assembly,door L-G-ADV74166313
...
1703
Range Oven Door Inner Glass L-G-4890W1N005L
...
1704
Hinge Assembly L-G-AEH72957502
...
1733
Mounting Bracket L-G-MAZ61672103
...
1734
Mounting Bracket L-G-MAZ61672102
...
1735
Bracket L-G-MAZ63478602
...
1801
Plate,shield L-G-3300W1N003K

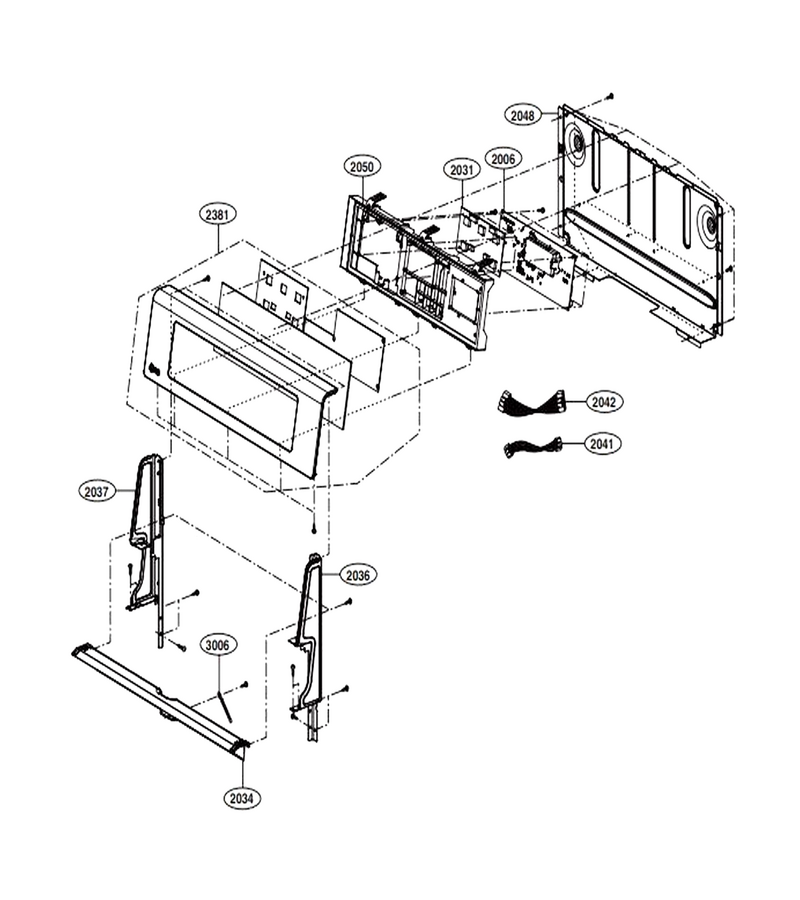

Controller Parts

...
...
2006
Pcb Assembly,main L-G-EBR77562709
...
2031
Range Display Control Board L-G-EBR64624906
...
2034
Barrier L-G-MAL62324001
...
2036
Supporter L-G-MJH62535708
...
2037
Supporter L-G-MJH62535808
...
2041
Range Wire Harness L-G-EAD34822916
...
2042
Range Wire Harness L-G-EAD34822910
...
2048
Rear Cover L-G-MCK66822601
...
2050
Supporter,pcb L-G-MJH62574201
...
2381
Parts Assembly L-G-AGM73551671
...
3006
Lug (circ) L-G-4B72510F

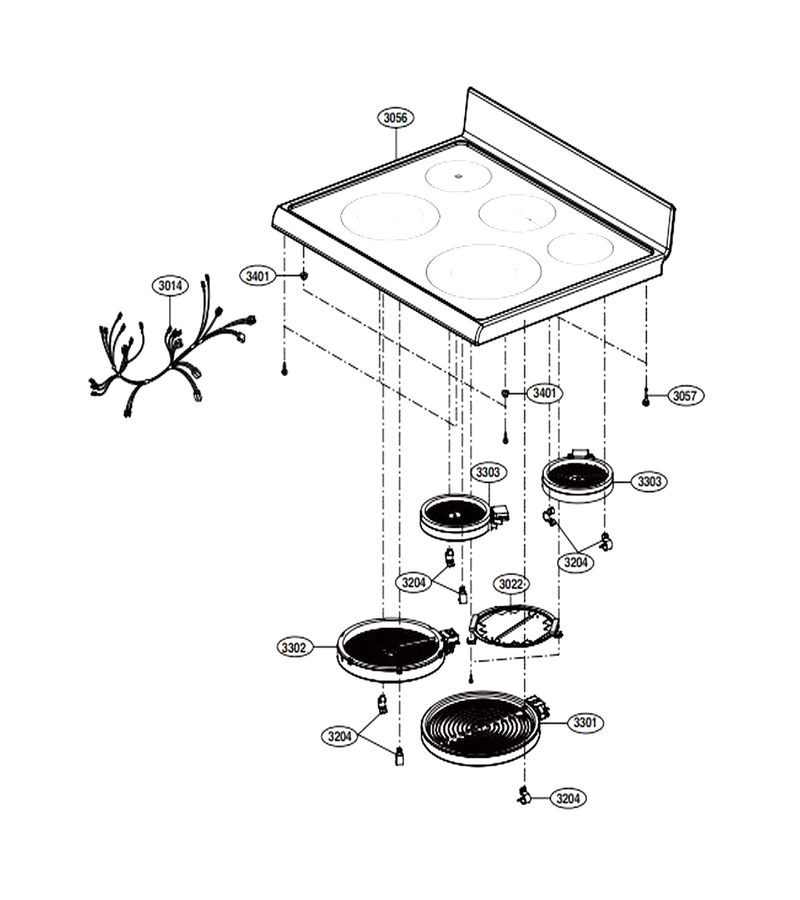

Cooktop Parts

...
...
3014
Range Wire Harness L-G-EAD61850401
...
3022
Heater Assembly L-G-AEG33897003
...
3056
Plate Assembly L-G-AGU73969711
...
3057
Packing L-G-3920W1N014A
...
3204
Dishwasher Heating Element Support Bracket L-G-MAZ63310801
...
3302
Range Radiant Surface Element L-G-MEE62385201
...
3303
Range Radiant Surface Element L-G-MEE62385001
...
3401
Supporter L-G-4980W1N014A

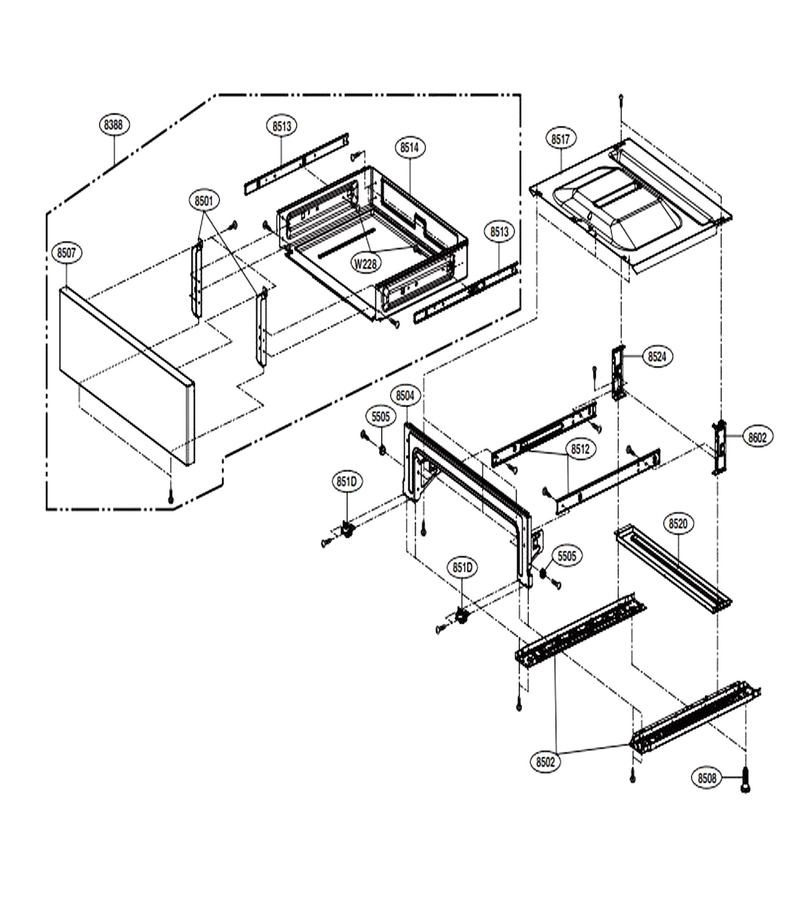

Drawer Parts

...
...
W228
Screw L-G-1SZZW5N001E
...
851D
Bracket,idle L-G-MAZ64590502
...
5505
Supporter L-G-4980W1N013A
...
8388
Parts Assembly L-G-383EW0N001Y
...
8501
Oven Door Frame L-G-MDQ63019801
...
8502
Plate,base L-G-3302W1N001F
...
8504
Range Storage Drawer Front Plate L-G-MGJ63105901
...
8507
Panel,drawer L-G-MGC62641507
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8512
Slider L-G-MHS62022301
...
8513
Range Shelf L-G-MHS62022201
...
8514
Drawer Assembly L-G-ADG73329501
...
8520
Supporter L-G-MJH37701302
...
8524
Mounting Bracket L-G-MAZ63250901
...
8602
Mounting Bracket L-G-MAZ63250601

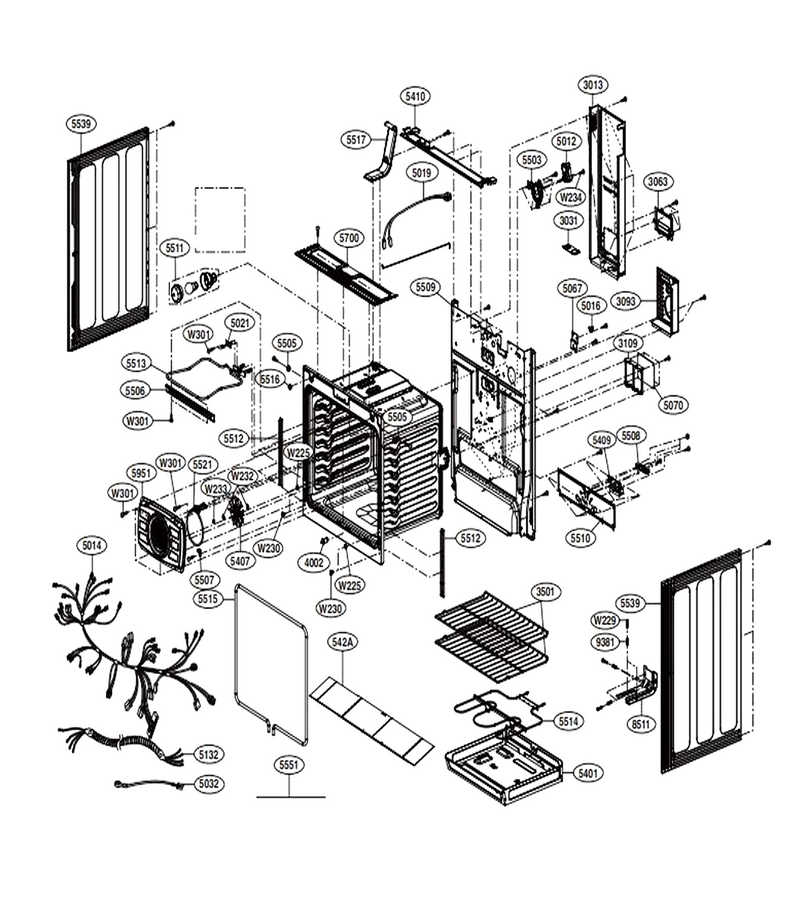

Cavity Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W229
Screw L-G-1SZZW1N003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W234
Screw L-G-1SZZW1E002E
...
542A
6.3cu.ft Lgemm Ceramic Fiber + Al Sheet L-G-AEV72989602
...
3013
Rear Cover L-G-MCK66822701
...
3063
Range Access Panel L-G-MCK66822702
...
3093
Rear Cover L-G-MCK66822801
...
3109
Supporter Hood L-G-MJH62758801
...
3501
Dishwasher Heating Element Support Bracket L-G-MAZ63310801
...
5012
Range Convection Fan Motor L-G-EAU61865301
...
5014
Harness,single L-G-EAD61850515
...
5016
Thermostat L-G-6930W1A003X
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5067
Bracket,?m L-G-4810W3G135A
...
5070
Pcb Assembly,main L-G-EBR74164812
...
5401
Chamber L-G-MBR62041701
...
5407
Convection Fan L-G-MDG62162801
...
5409
Insulator L-G-5012W1N016D
...
5410
Insulator L-G-MEV63876201
...
5503
Range Convection Fan Motor Support Bracket L-G-MJH62535601
...
5505
Supporter L-G-4980W1N013A
...
5506
Bracket,heater L-G-MAZ63491301
...
5507
Heater Bracket L-G-4810W1N022A
...
5508
Range Terminal Block L-G-EAG32629302
...
5509
Panel L-G-MGC62640801
...
5510
Panel L-G-MGC62640802
...
5511
Lamp,incandescent L-G-6913W1N002C
...
5512
Hinge Bracket L-G-MAZ63249701
...
5513
Supporter L-G-MJH62535602
...
5514
Heater,sheath L-G-MEE62306405
...
5515
Packing,gasket L-G-MFZ63174202
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV73009301
...
5521
Heater,sheath L-G-MEE32902206
...
5539
Range Panel L-G-MGC62644005
...
5551
Bar L-G-MAK61842901
...
5700
Mounting Bracket L-G-MAZ62210801
...
5951
Bar L-G-MAK61842901
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
9381
Anchor L-G-FAK30249601
