product name

LG LRE3083SB.FBKLLGA

Model: LRE3083SB.FBKLLGA

Save Part Not Listed?
product name

Main

...
...
9504
Accessory Assembly L-G-AAA77169701
...
9506
Assembly Accessory L-G-AAA74970601

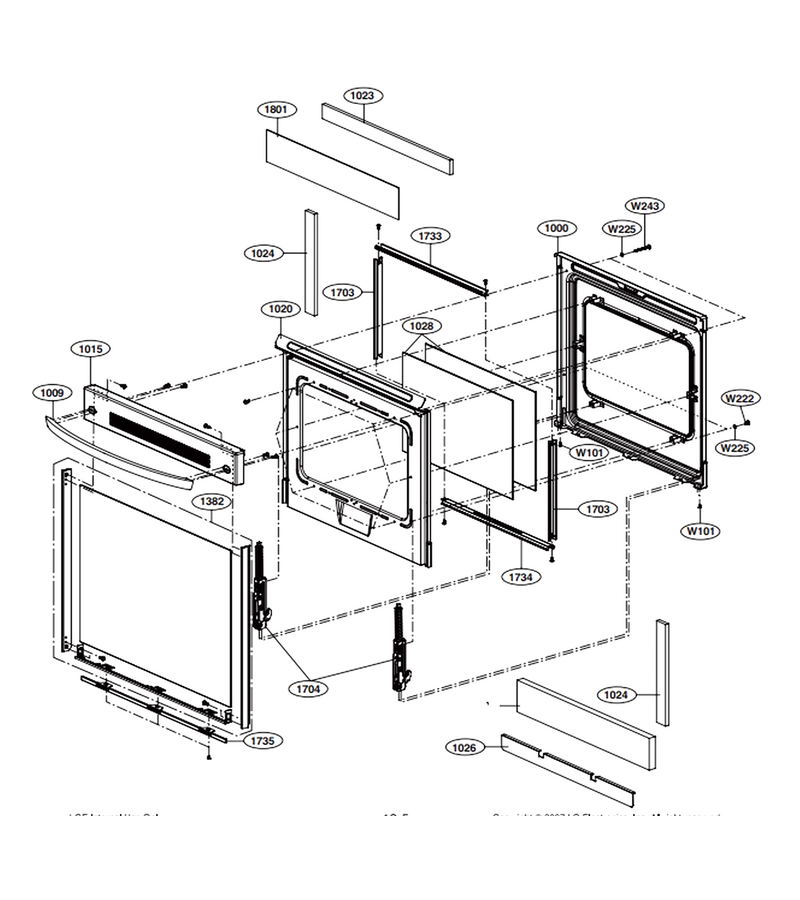

Door Parts (iii)

...
...
W101
Screw,customized L-G-FAB31821701
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
1000
Frame Assembly L-G-ADV74166302
...
1009
Oven Door Handle L-G-MEB47914503
...
1015
Decor,door L-G-MCR64732602
...
1020
Inner Cover L-G-MCK66838101
...
1023
Insulator L-G-MEV65052201
...
1024
Insulator L-G-MEV65051902
...
1026
Insulator L-G-MEV63910901
...
1028
Range Oven Door Inner Glass L-G-4890W1N005L
...
1382
Parts Assembly L-G-AGM76029502
...
1703
Mount Bracket L-G-MAZ60113209
...
1704
Hinge Assembly L-G-AEH72957502
...
1733
Mount Bracket L-G-MAZ61672112
...
1734
Mount Bracket L-G-MAZ61672111
...
1735
Bracket L-G-MAZ63478602
...
1801
Plate,shield L-G-3300W1N003K

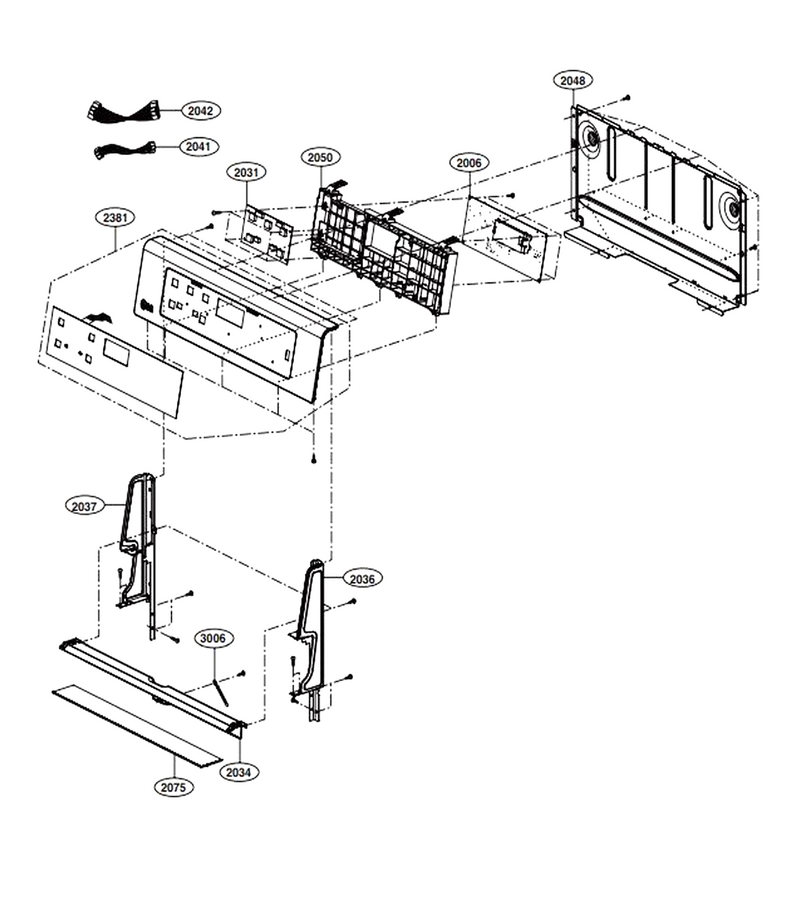

Controller Parts (i)

...
...
2006
Pcb Assembly,main L-G-EBR77562705
...
2031
Pcb Assembly,display L-G-EBR64624907
...
2034
Barrier L-G-MAL62324001
...
2036
Supporter L-G-MJH62535708
...
2037
Supporter L-G-MJH62535808
...
2041
Range Wire Harness L-G-EAD34822916
...
2042
Range Wire Harness L-G-EAD34822910
...
2048
Rear Cover L-G-MCK66822601
...
2050
Range Power Control Board Support L-G-MJH62758301
...
2075
Insulator L-G-MEV61924507
...
2381
Parts Assembly L-G-AGM73551625
...
3006
Lug (circ) L-G-4B72510F

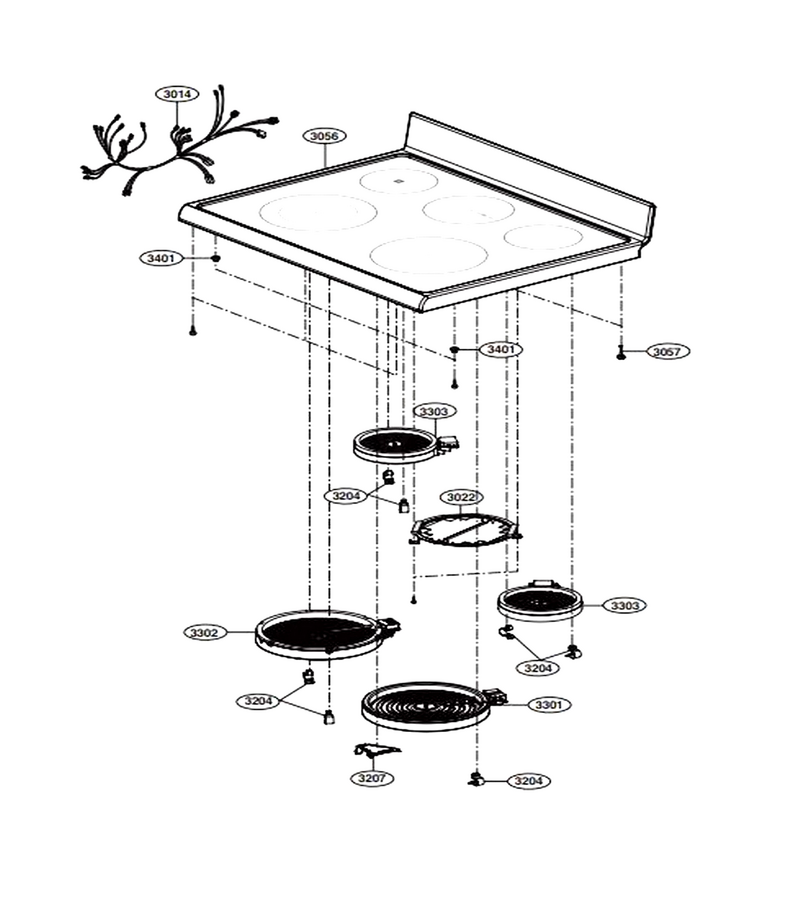

Cooktop Parts

...
...
3014
Harness,single L-G-EAD61850402
...
3022
Heater Assembly L-G-AEG33897006
...
3056
Plate Assembly L-G-AGU73969703
...
3057
Packing L-G-3920W1N014A
...
3204
Dishwasher Heating Element Support Bracket L-G-MAZ63310801
...
3207
Heat Bracket L-G-MAZ63488301
...
3301
Range Radiant Surface Element L-G-MEE62385101
...
3302
Range Radiant Surface Element L-G-MEE62385201
...
3303
Range Radiant Surface Element L-G-MEE62385001
...
3401
Supporter L-G-4980W1N014A

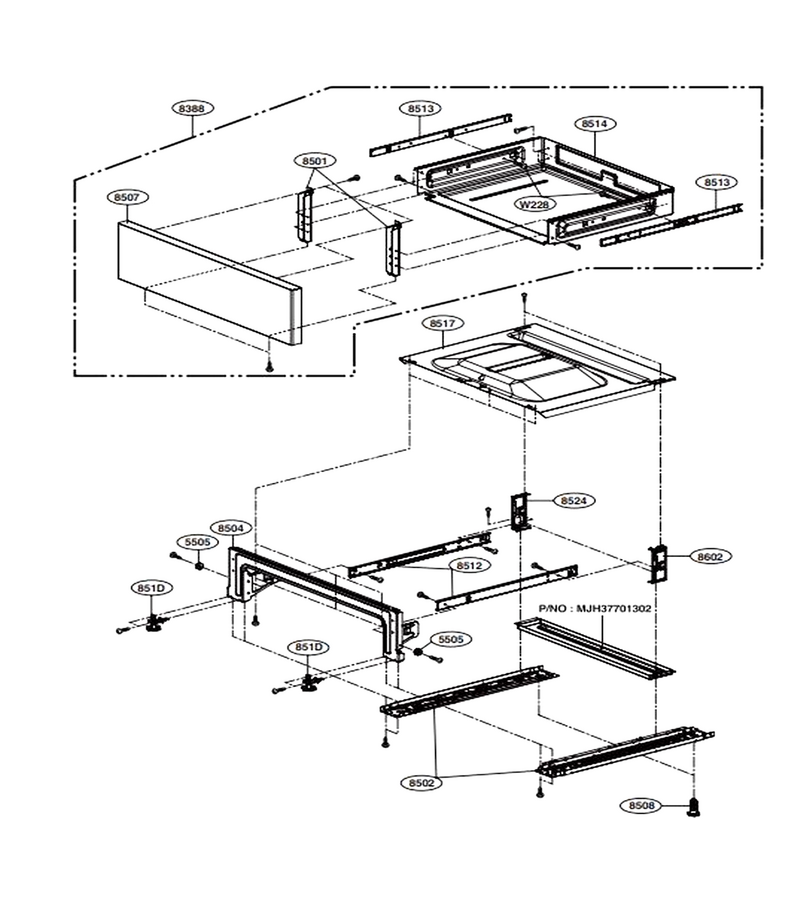

Drawer Parts

...
...
W228
Screw L-G-1SZZW5N001E
...
851D
Bracket,idle L-G-MAZ64590502
...
5505
Supporter L-G-4980W1N013A
...
8388
Parts Assembly L-G-383EW0N001V
...
8501
Oven Door Frame L-G-MDQ63019801
...
8502
Plate,base L-G-3302W1N001F
...
8504
Range Storage Drawer Front Plate L-G-MGJ63105901
...
8507
Panel,drawer L-G-MGC62863704
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8512
Slider L-G-MHS62022301
...
8513
Range Shelf L-G-MHS62022201
...
8514
Drawer Assembly L-G-ADG73329501
...
8524
Mounting Bracket L-G-MAZ63250901
...
8602
Mounting Bracket L-G-MAZ63250601

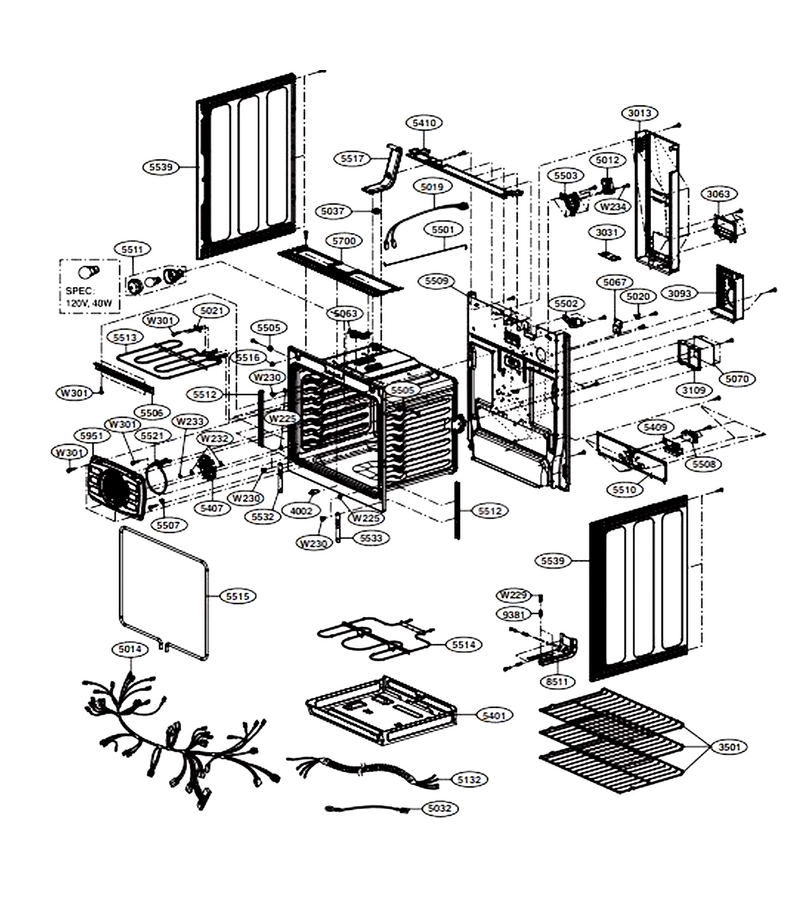

Cavity Parts (i)

...
...
W225
Washer L-G-1WZZW3Z003B
...
W229
Screw L-G-1SZZW1N003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W234
Screw L-G-1SZZW1E002E
...
3013
Rear Cover L-G-MCK66822701
...
3063
Range Access Panel L-G-MCK66822702
...
3093
Rear Cover L-G-MCK66822801
...
3109
Supporter Hood L-G-MJH62758801
...
4002
Switch L-G-EBF60663403
...
5012
Range Convection Fan Motor L-G-EAU61865301
...
5014
Harness,single L-G-EAD61850507
...
5019
Range Wire Harness L-G-EAD61076101
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5037
Charcoal Filter L-G-5230W1N001B
...
5063
Bracket Assembly L-G-ABA73249402
...
5067
Bracket,?m L-G-4810W3G135A
...
5070
Pcb Assembly,main L-G-EBR74164805
...
5132
Single Harness L-G-EAD60833506
...
5401
Chamber L-G-MBR62041701
...
5407
Convection Fan L-G-MDG62162801
...
5409
Insulator L-G-5012W1N016D
...
5410
Insulator L-G-MEV63876201
...
5501
Bar L-G-4270W1N001B
...
5502
Range Oven Door Lock Assembly L-G-6549W1S025B
...
5503
Range Convection Fan Motor Support Bracket L-G-MJH62535601
...
5505
Supporter L-G-4980W1N013A
...
5506
Bracket,heater L-G-MAZ63491301
...
5507
Heater Bracket L-G-4810W1N022A
...
5508
Range Terminal Block L-G-EAG32629302
...
5509
Panel L-G-MGC62640801
...
5510
Panel L-G-MGC62640802
...
5511
Lamp L-G-6913W1N002D
...
5512
Hinge Bracket L-G-MAZ63249701
...
5514
Range Bake Element L-G-MEE62306401
...
5515
Packing,gasket L-G-MFZ63174202
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV73009301
...
5521
Heater Sheath L-G-MEE32902203
...
5532
Hinge Bracket L-G-MAZ63548102
...
5533
Hinge Bracket L-G-MAZ63548103
...
5539
Range Panel L-G-MGC62644005
...
5700
Barrier L-G-MAL62344203
...
5951
Cover,heater L-G-MCK66822304
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
9381
Anchor L-G-FAK30249601

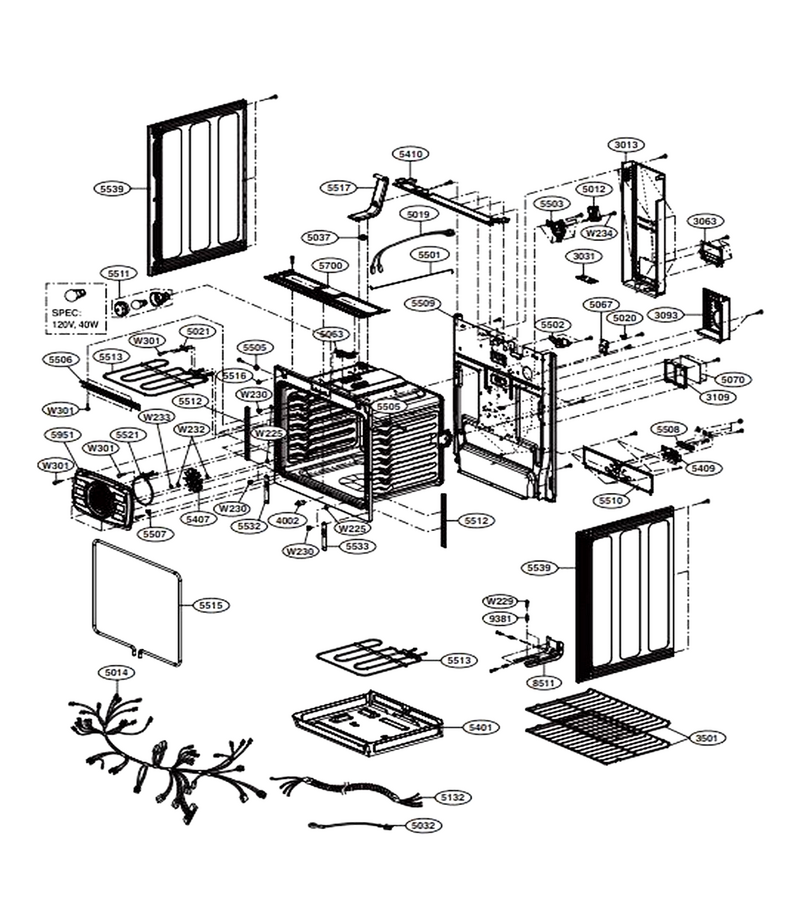

Cavity Parts (ii)

...
...
W225
Washer L-G-1WZZW3Z003B
...
W229
Screw L-G-1SZZW1N003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W234
Screw L-G-1SZZW1E002E
...
3013
Rear Cover L-G-MCK66822701
...
3063
Range Access Panel L-G-MCK66822702
...
3093
Rear Cover L-G-MCK66822801
...
3109
Supporter Hood L-G-MJH62758801
...
4002
Switch L-G-EBF60663403
...
5012
Range Convection Fan Motor L-G-EAU61865301
...
5014
Harness,single L-G-EAD61850507
...
5019
Range Wire Harness L-G-EAD61076101
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5037
Charcoal Filter L-G-5230W1N001B
...
5063
Bracket Assembly L-G-ABA73249402
...
5067
Bracket,?m L-G-4810W3G135A
...
5070
Pcb Assembly,main L-G-EBR74164805
...
5132
Single Harness L-G-EAD60833506
...
5401
Chamber L-G-MBR62041701
...
5407
Convection Fan L-G-MDG62162801
...
5409
Insulator L-G-5012W1N016D
...
5410
Insulator L-G-MEV63876201
...
5501
Bar L-G-4270W1N001B
...
5502
Range Oven Door Lock Assembly L-G-6549W1S025B
...
5503
Range Convection Fan Motor Support Bracket L-G-MJH62535601
...
5505
Supporter L-G-4980W1N013A
...
5506
Bracket,heater L-G-MAZ63491301
...
5507
Heater Bracket L-G-4810W1N022A
...
5508
Range Terminal Block L-G-EAG32629302
...
5509
Panel L-G-MGC62640801
...
5510
Panel L-G-MGC62640802
...
5511
Lamp L-G-6913W1N002D
...
5512
Hinge Bracket L-G-MAZ63249701
...
5514
Range Bake Element L-G-MEE62306401
...
5515
Packing,gasket L-G-MFZ63174202
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV73009301
...
5521
Heater Sheath L-G-MEE32902203
...
5532
Hinge Bracket L-G-MAZ63548102
...
5533
Hinge Bracket L-G-MAZ63548103
...
5539
Range Panel L-G-MGC62644005
...
5700
Barrier L-G-MAL62344203
...
5951
Cover,heater L-G-MCK66822304
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
9381
Anchor L-G-FAK30249601

Main 2

...
...
9504
Accessory Assembly L-G-AAA77169701
...
9506
Assembly Accessory L-G-AAA74970601
